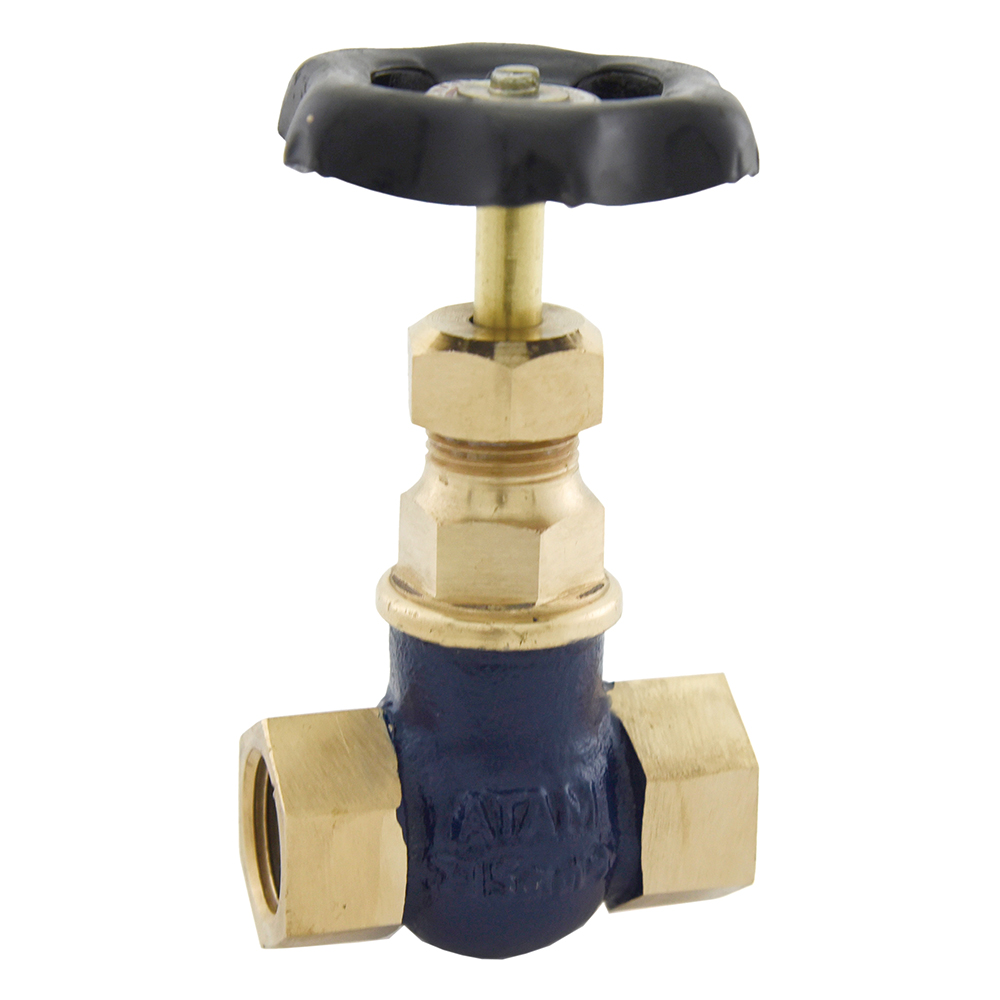

AV-105 Bronze Globe Valve, Screwed Ends, Class-1

AV-105 | Bronze Globe Valve, Screwed Ends, Class-1

Features

Product Standard

IS-778

Testing Standard

IS-778

Pressure / Class Rating

Class-1

Body Material Cum Standard

Bronze (IS 318 Gr. LTB2)

Product Description

Screwed in Bonnet, Inside Screw, Rising Stem., Handwheel Operated

Type of Seat

Integral Seat

Type of Disc

Renewable Disc

Trim

Cu-Alloy

End Details

Screwed Female Parallel Threads (IS:554)

Test Pressure

Body: 1.5 Mpa (Hyd.), Seat: 1.0 Mpa (Hyd.)

Max. Working Temperature

45°C

Notes

Other screwed end specifications can be provided on request.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Bronze	IS 318 Gr. LTB2
2	Disc	1	Bronze	IS 318 Gr. LTB2
3	Disc Nut	1	Bronze	IS 318 Gr. LTB2
4	Bonnet	1	Bronze	IS 318 Gr. LTB2
5	Packing	–	Asbestos	–
6	Gland	1	Bronze / Brass Rod	IS 318 Gr. LTB2 / IS 319 Type I/II
7	Gland Nut	1	Bronze	IS 318 Gr. LTB2
8	Stem	1	H.T. Brass	IS 6912 Gr. FLB / IS 320
9	Handwheel	1	Cast Iron / Steel	IS 210 Gr. FG200

Download PDF Product Inquiry

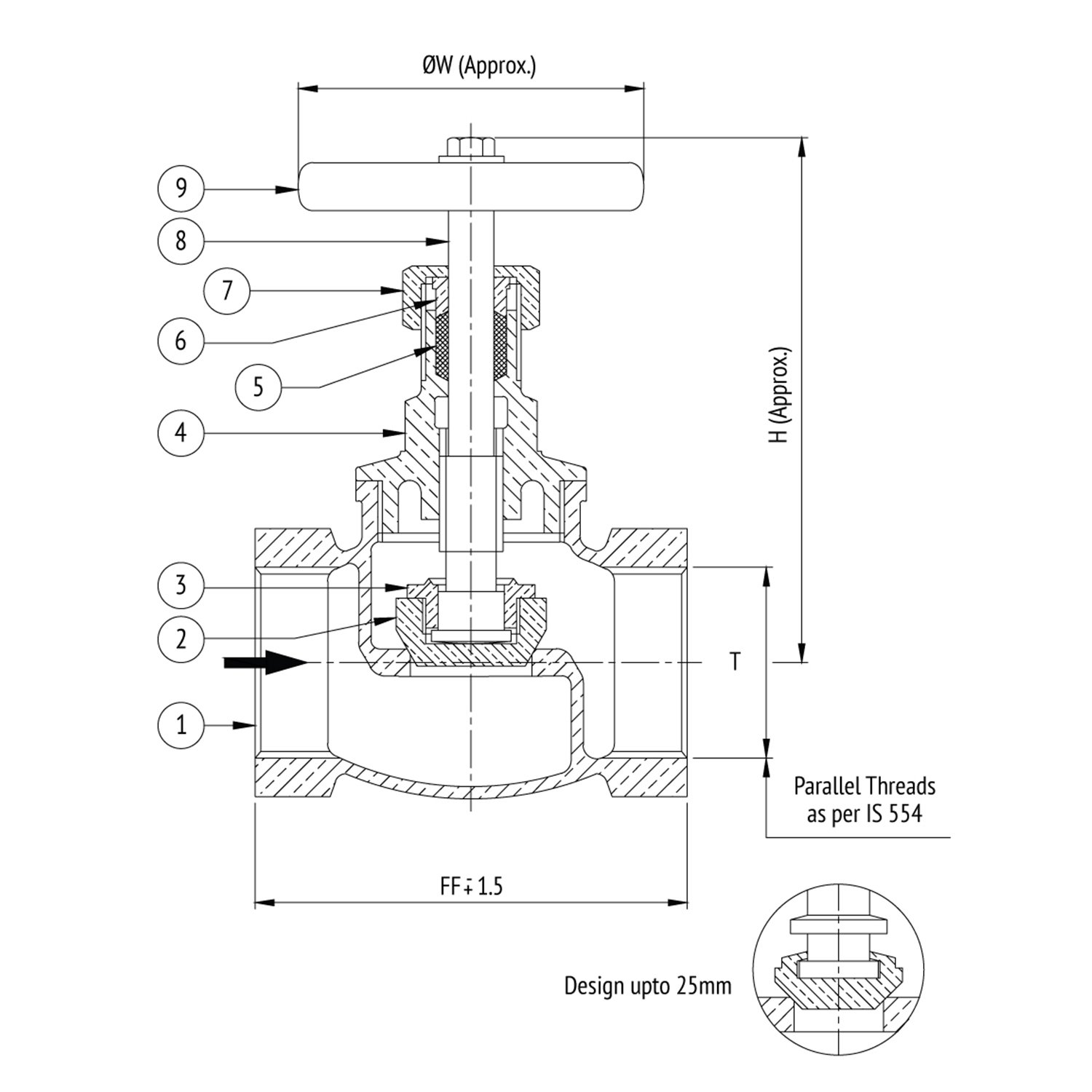

Dimensional Data

Size (mm)	FF	H	ØW	T
15	60	95	53	1/2”
20	70	100	58	3/4”
25	80	105	67	1”
32	95	130	79	1.1/4”
40	110	135	87	1.1/2”
50	125	160	98	2”
65	160	175	104	2.1/2”
80	180	215	140	3”
100	216	260	183	4”

Download PDF Product Inquiry

AV-105 | Bronze Globe Valve, Screwed Ends, Class-1

Product Inquiry

Features

Product Standard

IS-778

Testing Standard

IS-778

Pressure / Class Rating

Class-1

Body Material Cum Standard

Bronze (IS 318 Gr. LTB2)

Product Description

Screwed in Bonnet, Inside Screw, Rising Stem., Handwheel Operated

Type of Seat

Integral Seat

Type of Disc

Renewable Disc

Trim

Cu-Alloy

End Details

Screwed Female Parallel Threads (IS:554)

Test Pressure

Body: 1.5 Mpa (Hyd.), Seat: 1.0 Mpa (Hyd.)

Max. Working Temperature

45°C

Notes

Other screwed end specifications can be provided on request.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Body 1 Bronze IS 318 Gr. LTB2

2 Disc 1 Bronze IS 318 Gr. LTB2

3 Disc Nut 1 Bronze IS 318 Gr. LTB2

4 Bonnet 1 Bronze IS 318 Gr. LTB2

5 Packing – Asbestos –

6 Gland 1 Bronze / Brass Rod IS 318 Gr. LTB2 / IS 319 Type I/II

7 Gland Nut 1 Bronze IS 318 Gr. LTB2

8 Stem 1 H.T. Brass IS 6912 Gr. FLB / IS 320

9 Handwheel 1 Cast Iron / Steel IS 210 Gr. FG200

Dimensional Data

Size (mm) FF H ØW T

15 60 95 53 1/2”

20 70 100 58 3/4”

25 80 105 67 1”

32 95 130 79 1.1/4”

40 110 135 87 1.1/2”

50 125 160 98 2”

65 160 175 104 2.1/2”

80 180 215 140 3”

100 216 260 183 4”
