Features
Product Standard
IS-14846
Pressure / Class Rating
PN-1.0
Body Material Cum Standard
Cast Iron (IS 210 Gr. FG 200)
Product Description
Bolted Bonnet, Inside Screw, Non Rising Stem, Handwheel Operated
Type of Seat
Renewable Seat
Type of Wedge
Solid Wedge
Trim
Stem: 13% Cr. (SS 410)
Seat Facing
Cu-Alloy
End Details
Flanged Ends as per IS:1538 PN-1.0 Flat Face (Drilled)
Test Pressure
Body: 1.5 Mpa (Hyd.), Seat: 1.0 Mpa (Hyd.)
Max. Working Temperature
45°C
Notes
Sizes 350mm & above are supplied with Gear
Suitability
Water
Steam
Gas
Oil
Air
-

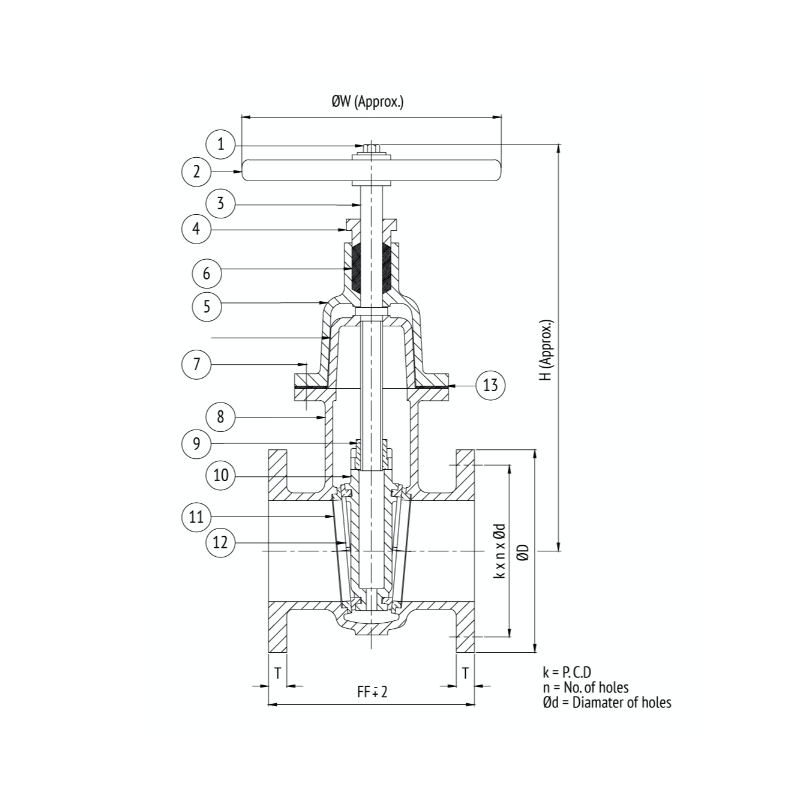

Material Combination
S.No Description No. Material Specifications 1 Screw 1 Carbon Steel IS:1363 2 Handwheel / Cap 1 Cast Iron IS:210 Gr. FG.200 3 Stem 1 Stainless Steel IS 6603 Gr. 12 CR.12 / IS 6604 Gr. 04 Cr 19N109 / ASTM A276 TP 410 4 Gland 1 Cast Iron IS:210 Gr. FG.200 5 Gland Packing 1 Hemp & Jute / Rubber IS 5414 / IS 638 Type B 6 Bonnet 1 Cast Iron IS:210 Gr. FG.200 7 Thrust Plate 1 Cast Iron IS:210 Gr. FG.200 8 Bolts / Nuts To Suit Carbon Steel IS:1363 Part 1 / IS:1363 Part 3 9 Body 1 Cast Iron IS:210 Gr. FG.200 10 Wedge Nut 1 Leaded Tin Bronze IS:318 Gr. LTB2 11 Wedge 1 Cast Iron IS:210 Gr. FG.200 12 Body Seat Ring 2 Leaded Tin Bronze IS:318 Gr. LTB2 13 Wedge Ring 2 Leaded Tin Bronze IS:318 Gr. LTB2 14 Gasket 1 Rubber IS 638 Type B 15 T-Head Bolts / Nuts 2 Each Carbon Steel IS:1363 Part 1 / IS:1363 Part 3 -
Dimensional Data
Size (mm) FF ØW H ØD T k n Ød 50 178 225 330 165 16 125 4 19 65 190 225 370 185 16 145 4 19 80 203 225 410 200 21 160 4 19 100 229 320 460 220 22 180 8 19 125 254 320 485 250 22.5 210 8 19 150 267 320 557 285 23 240 8 23 200 292 360 680 340 24.5 295 8 23 250 330 400 770 395 26 350 12 23 300 356 400 865 445 27.5 400 12 23 350 381 500 1020 505 29 460 16 23 400 406 640 1110 565 30 513 16 28 450 432 720 1200 615 31.5 565 20 28 500 457 720 1300 670 33 620 20 28 600 508 720 1500 780 36 725 20 31
Features
Product Standard
IS-14846
Pressure / Class Rating
PN-1.0
Body Material Cum Standard
Cast Iron (IS 210 Gr. FG 200)
Product Description
Bolted Bonnet, Inside Screw, Non Rising Stem, Handwheel Operated
Type of Seat
Renewable Seat
Type of Wedge
Solid Wedge
Trim
Stem: 13% Cr. (SS 410)
Seat Facing
Cu-Alloy
End Details
Flanged Ends as per IS:1538 PN-1.0 Flat Face (Drilled)
Test Pressure
Body: 1.5 Mpa (Hyd.), Seat: 1.0 Mpa (Hyd.)
Max. Working Temperature
45°C
Product Standard
IS-14846
Pressure / Class Rating
PN-1.0
Body Material Cum Standard
Cast Iron (IS 210 Gr. FG 200)
Product Description
Bolted Bonnet, Inside Screw, Non Rising Stem, Handwheel Operated
Type of Seat
Renewable Seat
Type of Wedge
Solid Wedge
Trim
Stem: 13% Cr. (SS 410)
Seat Facing
Cu-Alloy
End Details
Flanged Ends as per IS:1538 PN-1.0 Flat Face (Drilled)
Test Pressure
Body: 1.5 Mpa (Hyd.), Seat: 1.0 Mpa (Hyd.)
Max. Working Temperature
45°C
Notes
Sizes 350mm & above are supplied with Gear
Suitability
Water
Steam
Gas
Oil
Air

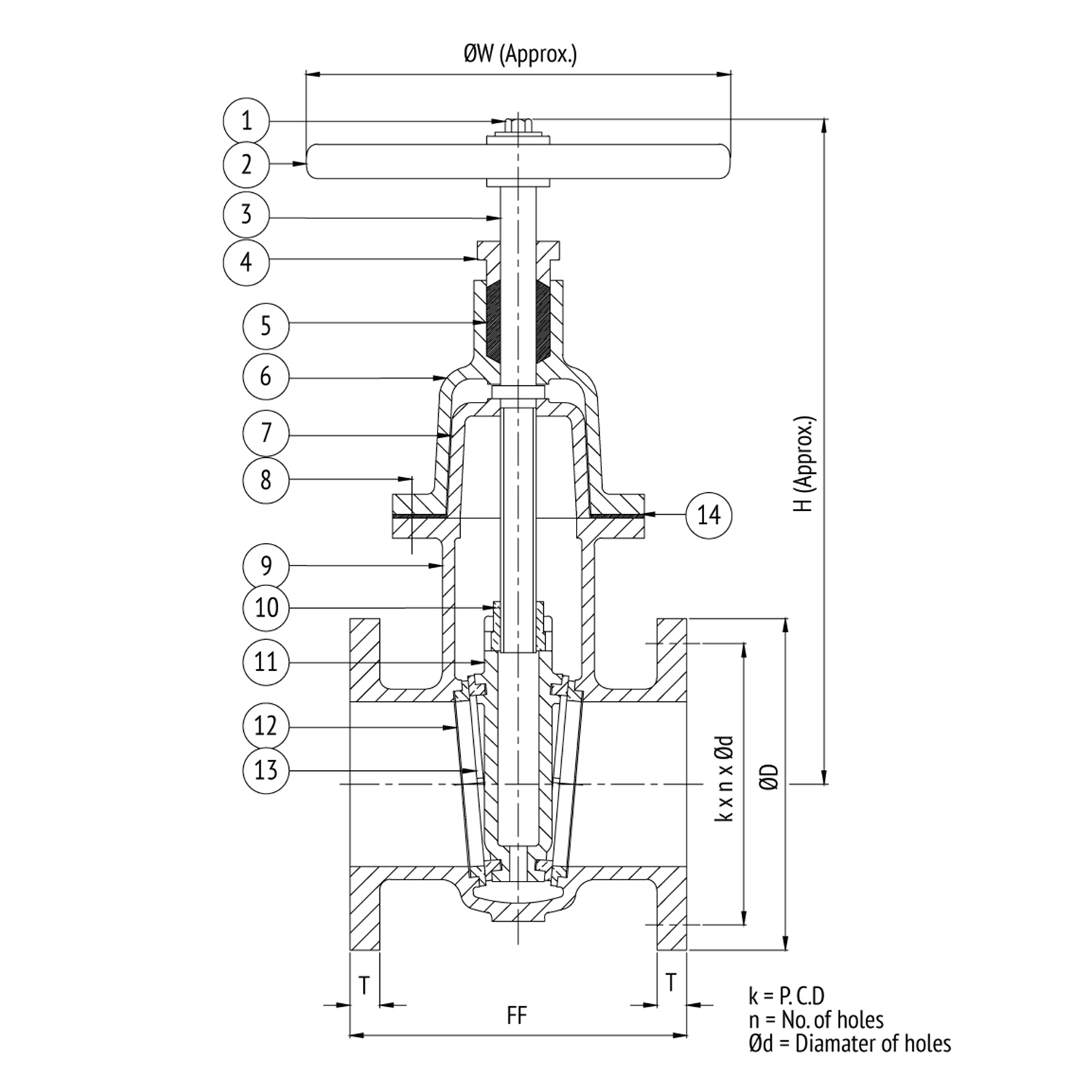

Material Combination
S.No
Description
No.
Material
Specifications
1
Screw
1
Carbon Steel
IS:1363
2
Handwheel / Cap
1
Cast Iron
IS:210 Gr. FG.200
3
Stem
1
Stainless Steel
IS 6603 Gr. 12 CR.12 / IS 6604 Gr. 04
Cr 19N109 / ASTM A276 TP 410
4
Gland
1
Cast Iron
IS:210 Gr. FG.200
5
Gland Packing
1
Hemp & Jute / Rubber
IS 5414 / IS 638 Type B
6
Bonnet
1
Cast Iron
IS:210 Gr. FG.200
7
Thrust Plate
1
Cast Iron
IS:210 Gr. FG.200
8
Bolts / Nuts
To Suit
Carbon Steel
IS:1363 Part 1 / IS:1363 Part 3
9
Body
1
Cast Iron
IS:210 Gr. FG.200
10
Wedge Nut
1
Leaded Tin Bronze
IS:318 Gr. LTB2
11
Wedge
1
Cast Iron
IS:210 Gr. FG.200
12
Body Seat Ring
2
Leaded Tin Bronze
IS:318 Gr. LTB2
13
Wedge Ring
2
Leaded Tin Bronze
IS:318 Gr. LTB2
14
Gasket
1
Rubber
IS 638 Type B
15
T-Head Bolts / Nuts
2 Each
Carbon Steel
IS:1363 Part 1 / IS:1363 Part 3
| S.No | Description | No. | Material | Specifications |
|---|---|---|---|---|
| 1 | Screw | 1 | Carbon Steel | IS:1363 |
| 2 | Handwheel / Cap | 1 | Cast Iron | IS:210 Gr. FG.200 |
| 3 | Stem | 1 | Stainless Steel | IS 6603 Gr. 12 CR.12 / IS 6604 Gr. 04 |
| Cr 19N109 / ASTM A276 TP 410 | ||||
| 4 | Gland | 1 | Cast Iron | IS:210 Gr. FG.200 |
| 5 | Gland Packing | 1 | Hemp & Jute / Rubber | IS 5414 / IS 638 Type B |
| 6 | Bonnet | 1 | Cast Iron | IS:210 Gr. FG.200 |
| 7 | Thrust Plate | 1 | Cast Iron | IS:210 Gr. FG.200 |
| 8 | Bolts / Nuts | To Suit | Carbon Steel | IS:1363 Part 1 / IS:1363 Part 3 |
| 9 | Body | 1 | Cast Iron | IS:210 Gr. FG.200 |
| 10 | Wedge Nut | 1 | Leaded Tin Bronze | IS:318 Gr. LTB2 |
| 11 | Wedge | 1 | Cast Iron | IS:210 Gr. FG.200 |
| 12 | Body Seat Ring | 2 | Leaded Tin Bronze | IS:318 Gr. LTB2 |
| 13 | Wedge Ring | 2 | Leaded Tin Bronze | IS:318 Gr. LTB2 |
| 14 | Gasket | 1 | Rubber | IS 638 Type B |
| 15 | T-Head Bolts / Nuts | 2 Each | Carbon Steel | IS:1363 Part 1 / IS:1363 Part 3 |
Dimensional Data
Size (mm)
FF
ØW
H
ØD
T
k
n
Ød
50
178
225
330
165
16
125
4
19
65
190
225
370
185
16
145
4
19
80
203
225
410
200
21
160
4
19
100
229
320
460
220
22
180
8
19
125
254
320
485
250
22.5
210
8
19
150
267
320
557
285
23
240
8
23
200
292
360
680
340
24.5
295
8
23
250
330
400
770
395
26
350
12
23
300
356
400
865
445
27.5
400
12
23
350
381
500
1020
505
29
460
16
23
400
406
640
1110
565
30
513
16
28
450
432
720
1200
615
31.5
565
20
28
500
457
720
1300
670
33
620
20
28
600
508
720
1500
780
36
725
20
31
| Size (mm) | FF | ØW | H | ØD | T | k | n | Ød |
|---|---|---|---|---|---|---|---|---|
| 50 | 178 | 225 | 330 | 165 | 16 | 125 | 4 | 19 |
| 65 | 190 | 225 | 370 | 185 | 16 | 145 | 4 | 19 |
| 80 | 203 | 225 | 410 | 200 | 21 | 160 | 4 | 19 |
| 100 | 229 | 320 | 460 | 220 | 22 | 180 | 8 | 19 |
| 125 | 254 | 320 | 485 | 250 | 22.5 | 210 | 8 | 19 |
| 150 | 267 | 320 | 557 | 285 | 23 | 240 | 8 | 23 |
| 200 | 292 | 360 | 680 | 340 | 24.5 | 295 | 8 | 23 |
| 250 | 330 | 400 | 770 | 395 | 26 | 350 | 12 | 23 |
| 300 | 356 | 400 | 865 | 445 | 27.5 | 400 | 12 | 23 |
| 350 | 381 | 500 | 1020 | 505 | 29 | 460 | 16 | 23 |
| 400 | 406 | 640 | 1110 | 565 | 30 | 513 | 16 | 28 |
| 450 | 432 | 720 | 1200 | 615 | 31.5 | 565 | 20 | 28 |
| 500 | 457 | 720 | 1300 | 670 | 33 | 620 | 20 | 28 |
| 600 | 508 | 720 | 1500 | 780 | 36 | 725 | 20 | 31 |
Selected Product

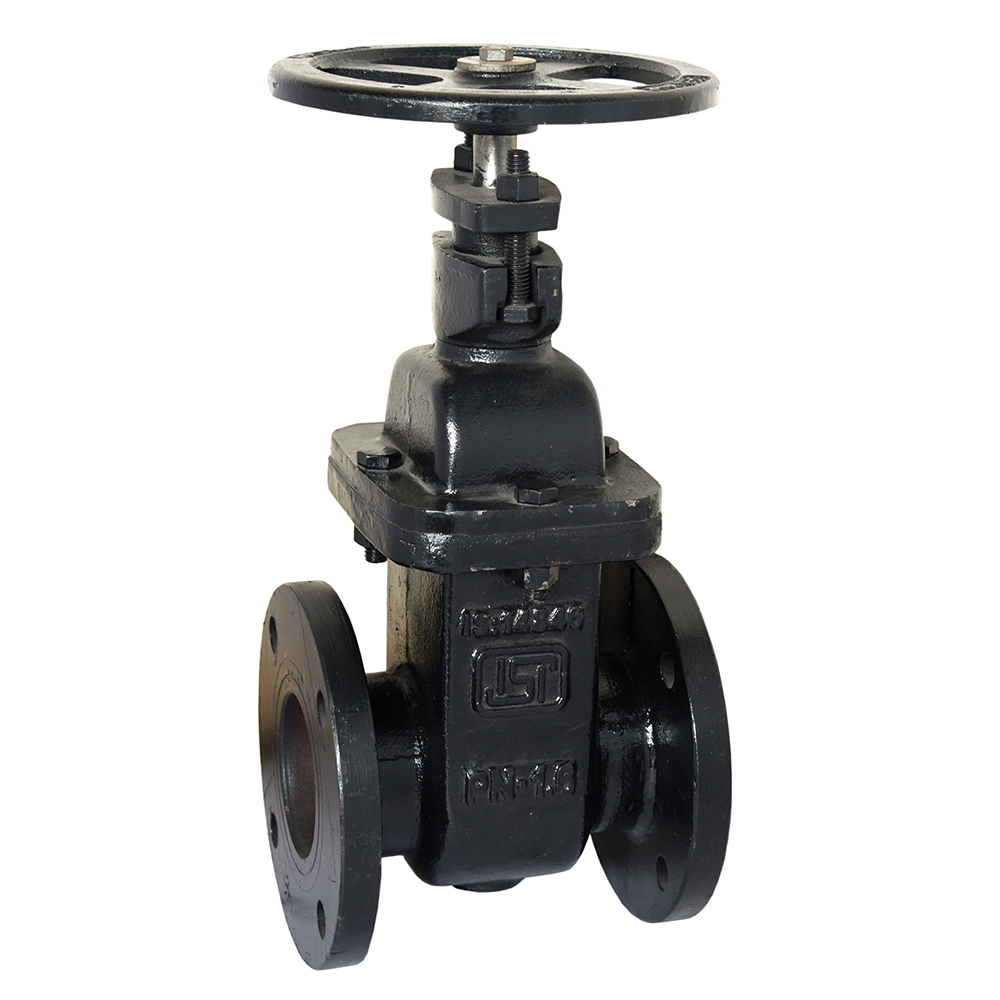

AV-117 Cast Iron Sluice Valve, Flanged Ends, PN-1.0
