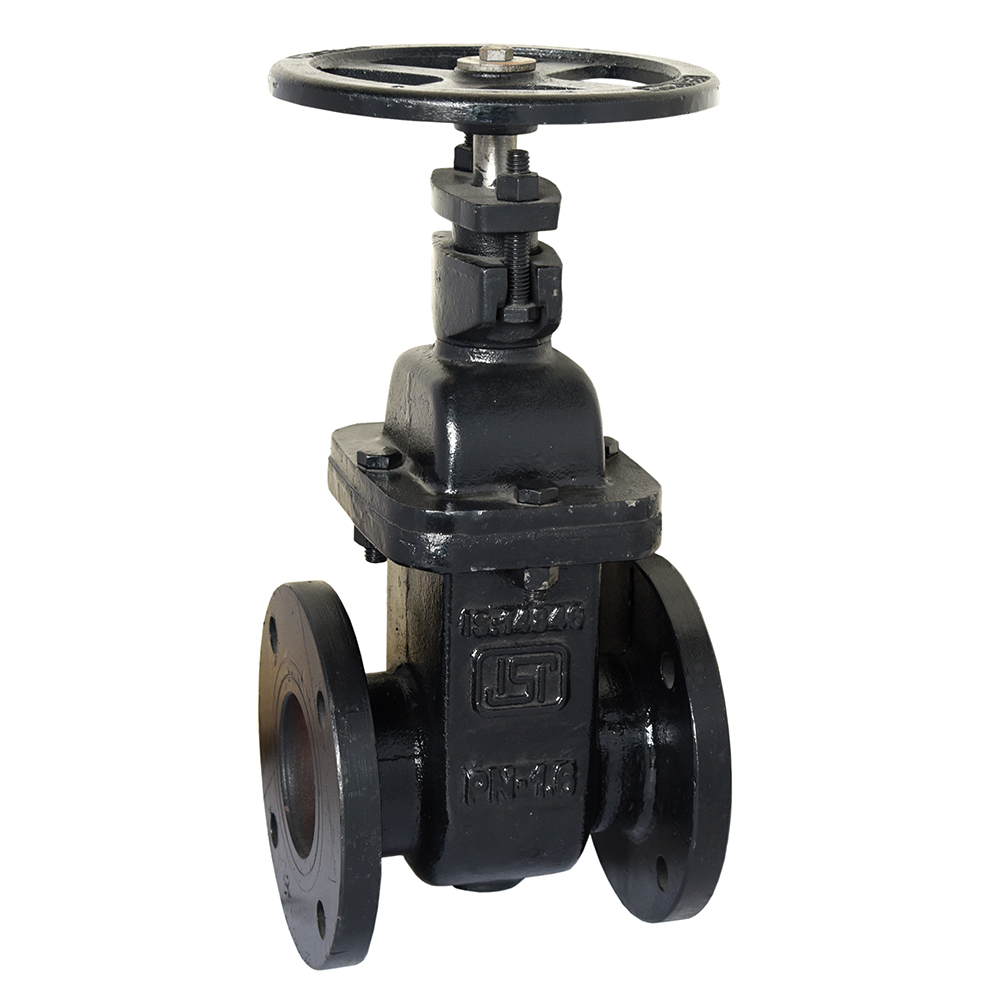

AV-117A Cast Iron Sluice Valve, Flanged Ends, PN-1.6

AV-117A | Cast Iron Sluice Valve, Flanged Ends, PN-1.6

Features

Product Standard

IS-14846

Pressure / Class Rating

PN-1.6

Body Material Cum Standard

Cast Iron (IS 210 Gr. FG 200)

Product Description

Bolted Bonnet, Inside Screw, Non Rising Stem, Handwheel Operated

Type of Seat

Renewable Seat

Type of Wedge

Solid Wedge

Trim

Stem: 13% Cr. (SS 410)

Seat Facing

Cu-Alloy

End Details

Flanged Ends as per IS:1538 PN-1.6 Flat Face (Drilled)

Test Pressure

Body: 2.4 Mpa (Hyd.), Seat: 1.6 Mpa (Hyd.)

Max. Working Temperature

45°C

Notes

Sizes 350mm & above are supplied with Gear

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	Screw	1	Carbon Steel	IS:1363
2	Handwheel / Cap	1	Cast Iron	IS:210 Gr. FG.200
3	Stem	1	Stainless Steel	IS 6603 Gr. 12 CR.12 / IS 6604 Gr. 04
				Cr 19N109 / ASTM A276 TP 410
4	Gland	1	Cast Iron	IS:210 Gr. FG.200
5	Gland Packing	1	Hemp & Jute / Rubber	IS 5414 / IS 638 Type B
6	Bonnet	1	Cast Iron	IS:210 Gr. FG.200
7	Thrust Plate	1	Cast Iron	IS:210 Gr. FG.200
8	Bolts / Nuts	To Suit	Carbon Steel	IS:1363 Part 1 / IS:1363 Part 3
9	Body	1	Cast Iron	IS:210 Gr. FG.200
10	Wedge Nut	1	Leaded Tin Bronze	IS:318 Gr. LTB2
11	Wedge	1	Cast Iron	IS:210 Gr. FG.200
12	Body Seat Ring	2	Leaded Tin Bronze	IS:318 Gr. LTB2
13	Wedge Ring	2	Leaded Tin Bronze	IS:318 Gr. LTB2
14	Gasket	1	Rubber	IS 638 Type B
15	T-Head Bolts / Nuts	2 Each	Carbon Steel	IS:1363 Part 1 / IS:1363 Part 3

Download PDF Product Inquiry

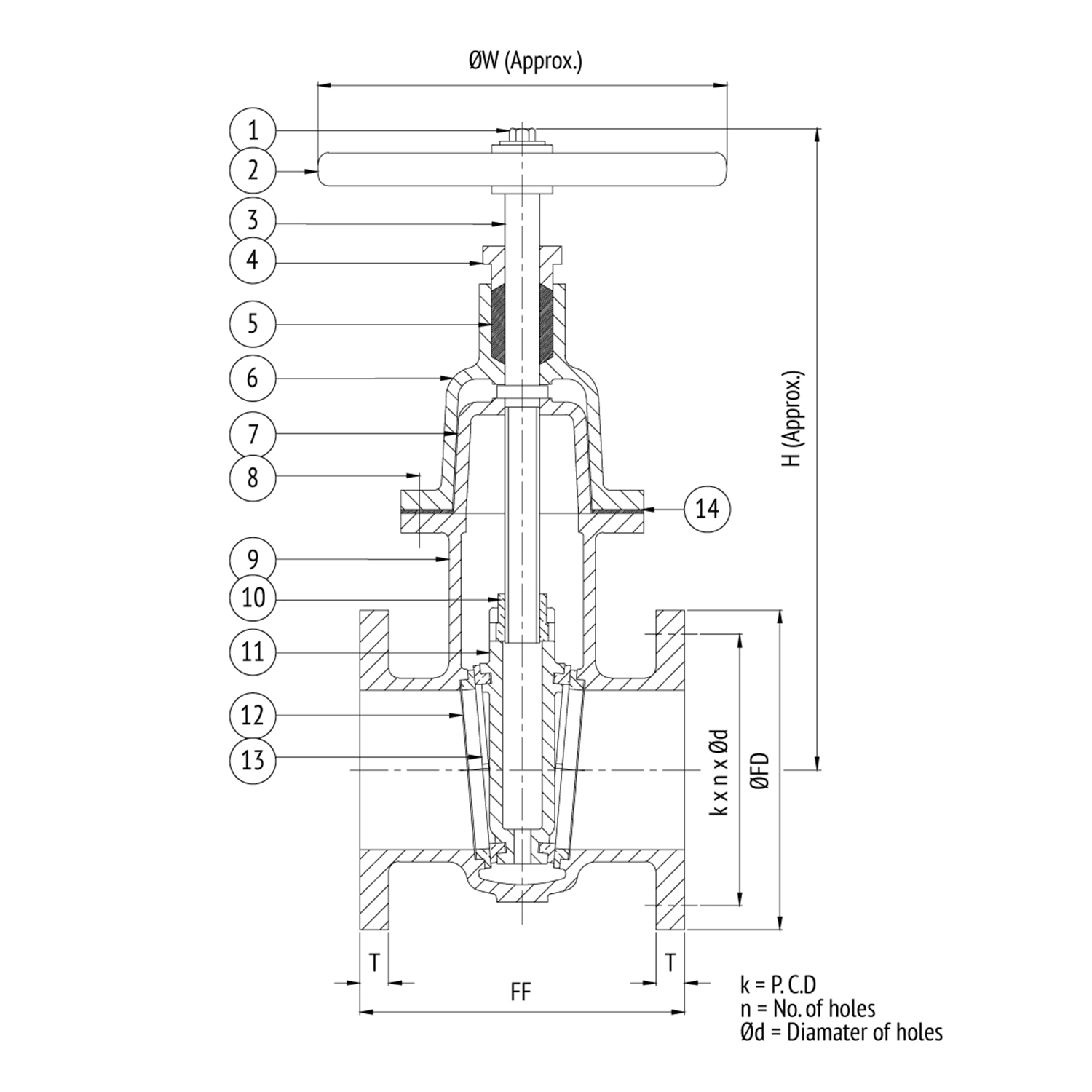

Dimensional Data

Size (mm)	FF	ØW	H	ØFD	T	k	n	Ød
50	178	280	365	165	16	125	4	19
65	190	280	380	185	16	145	4	19
80	203	280	425	200	21	160	4	19
100	229	360	470	220	22	180	8	19
125	254	360	485	250	22.5	210	8	19
150	267	360	595	285	23	240	8	23
200	292	450	725	340	24.5	295	8	23
250	330	640	835	395	26	350	12	23
300	356	640	910	445	27.5	400	12	23
350	381	640	1030	505	29	460	16	23
400	406	730	1110	565	30	515	16	28
450	432	800	1210	615	31.5	565	20	28
500	457	800	1340	670	33	620	20	28
600	508	800	1500	780	36	725	20	31

Download PDF Product Inquiry

AV-117A | Cast Iron Sluice Valve, Flanged Ends, PN-1.6

Product Inquiry

Features

Product Standard

IS-14846

Pressure / Class Rating

PN-1.6

Body Material Cum Standard

Cast Iron (IS 210 Gr. FG 200)

Product Description

Bolted Bonnet, Inside Screw, Non Rising Stem, Handwheel Operated

Type of Seat

Renewable Seat

Type of Wedge

Solid Wedge

Trim

Stem: 13% Cr. (SS 410)

Seat Facing

Cu-Alloy

End Details

Flanged Ends as per IS:1538 PN-1.6 Flat Face (Drilled)

Test Pressure

Body: 2.4 Mpa (Hyd.), Seat: 1.6 Mpa (Hyd.)

Max. Working Temperature

45°C

Notes

Sizes 350mm & above are supplied with Gear

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Screw 1 Carbon Steel IS:1363

2 Handwheel / Cap 1 Cast Iron IS:210 Gr. FG.200

3 Stem 1 Stainless Steel IS 6603 Gr. 12 CR.12 / IS 6604 Gr. 04

Cr 19N109 / ASTM A276 TP 410

4 Gland 1 Cast Iron IS:210 Gr. FG.200

5 Gland Packing 1 Hemp & Jute / Rubber IS 5414 / IS 638 Type B

6 Bonnet 1 Cast Iron IS:210 Gr. FG.200

7 Thrust Plate 1 Cast Iron IS:210 Gr. FG.200

8 Bolts / Nuts To Suit Carbon Steel IS:1363 Part 1 / IS:1363 Part 3

9 Body 1 Cast Iron IS:210 Gr. FG.200

10 Wedge Nut 1 Leaded Tin Bronze IS:318 Gr. LTB2

11 Wedge 1 Cast Iron IS:210 Gr. FG.200

12 Body Seat Ring 2 Leaded Tin Bronze IS:318 Gr. LTB2

13 Wedge Ring 2 Leaded Tin Bronze IS:318 Gr. LTB2

14 Gasket 1 Rubber IS 638 Type B

15 T-Head Bolts / Nuts 2 Each Carbon Steel IS:1363 Part 1 / IS:1363 Part 3

Dimensional Data

Size (mm) FF ØW H ØFD T k n Ød

50 178 280 365 165 16 125 4 19

65 190 280 380 185 16 145 4 19

80 203 280 425 200 21 160 4 19

100 229 360 470 220 22 180 8 19

125 254 360 485 250 22.5 210 8 19

150 267 360 595 285 23 240 8 23

200 292 450 725 340 24.5 295 8 23

250 330 640 835 395 26 350 12 23

300 356 640 910 445 27.5 400 12 23

350 381 640 1030 505 29 460 16 23

400 406 730 1110 565 30 515 16 28

450 432 800 1210 615 31.5 565 20 28

500 457 800 1340 670 33 620 20 28

600 508 800 1500 780 36 725 20 31
