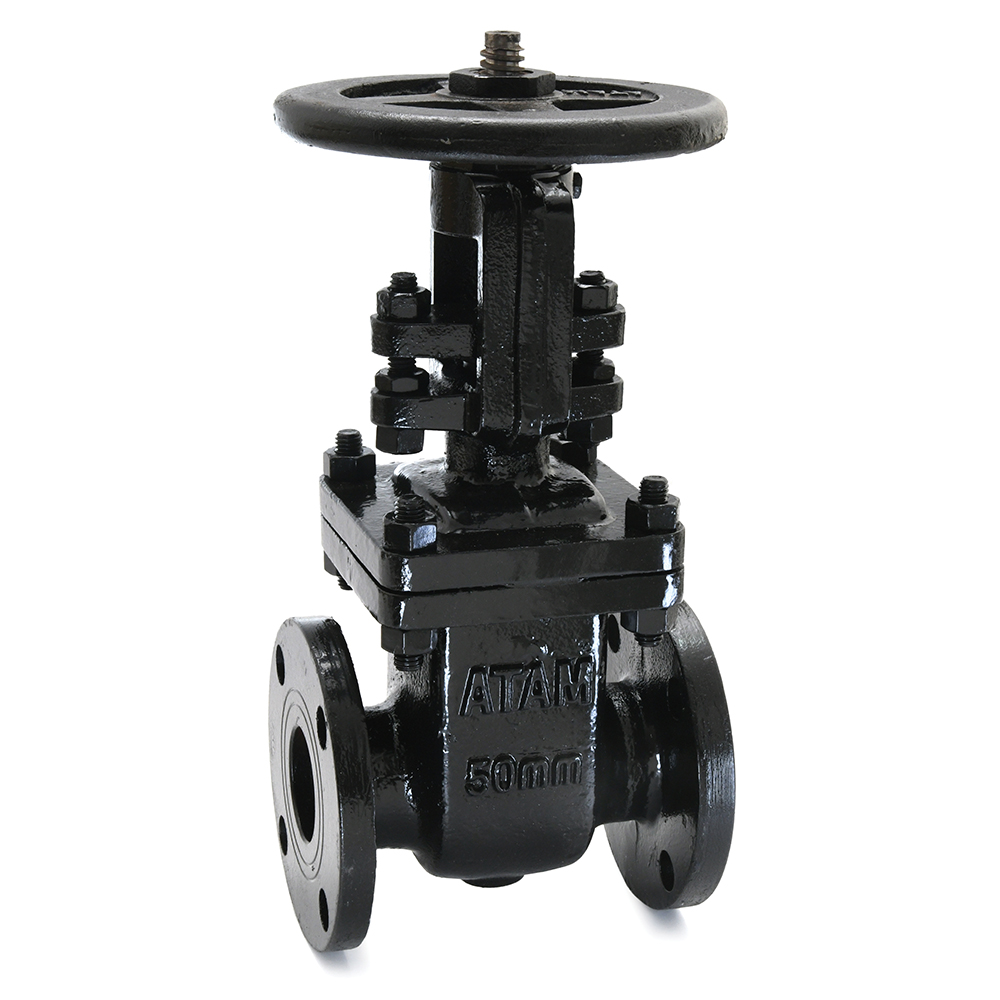

AV-118A Cast Iron Gate Valve, Flanged Ends, PN-1.6

AV-118A | Cast Iron Gate Valve, Flanged Ends, PN-1.6

Features

Product Standard

BS EN-1171 / IS-14846

Testing Standard

BS EN 12266-Part 1

Pressure / Class Rating

PN-1.6

Body Material Cum Standard

Cast Iron (IS 210 Gr. FG 200)

Product Description

Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem, Handwheel Operated

Type of Seat

Renewable Seat

Type of Wedge

Solid Wedge

Trim

Stem: 13% Cr. (SS 410)

Seat Facing

Cu-Alloy

End Details

Flanged Ends as per IS:1538 PN -1.6 Flat Face (Drilled)

Test Pressure

Body: 2.4 Mpa (Hyd.), Seat: 1.6 Mpa (Hyd.)

Max. Working Temperature

45°C

Notes

Sizes 350mm & above are supplied with Gear

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

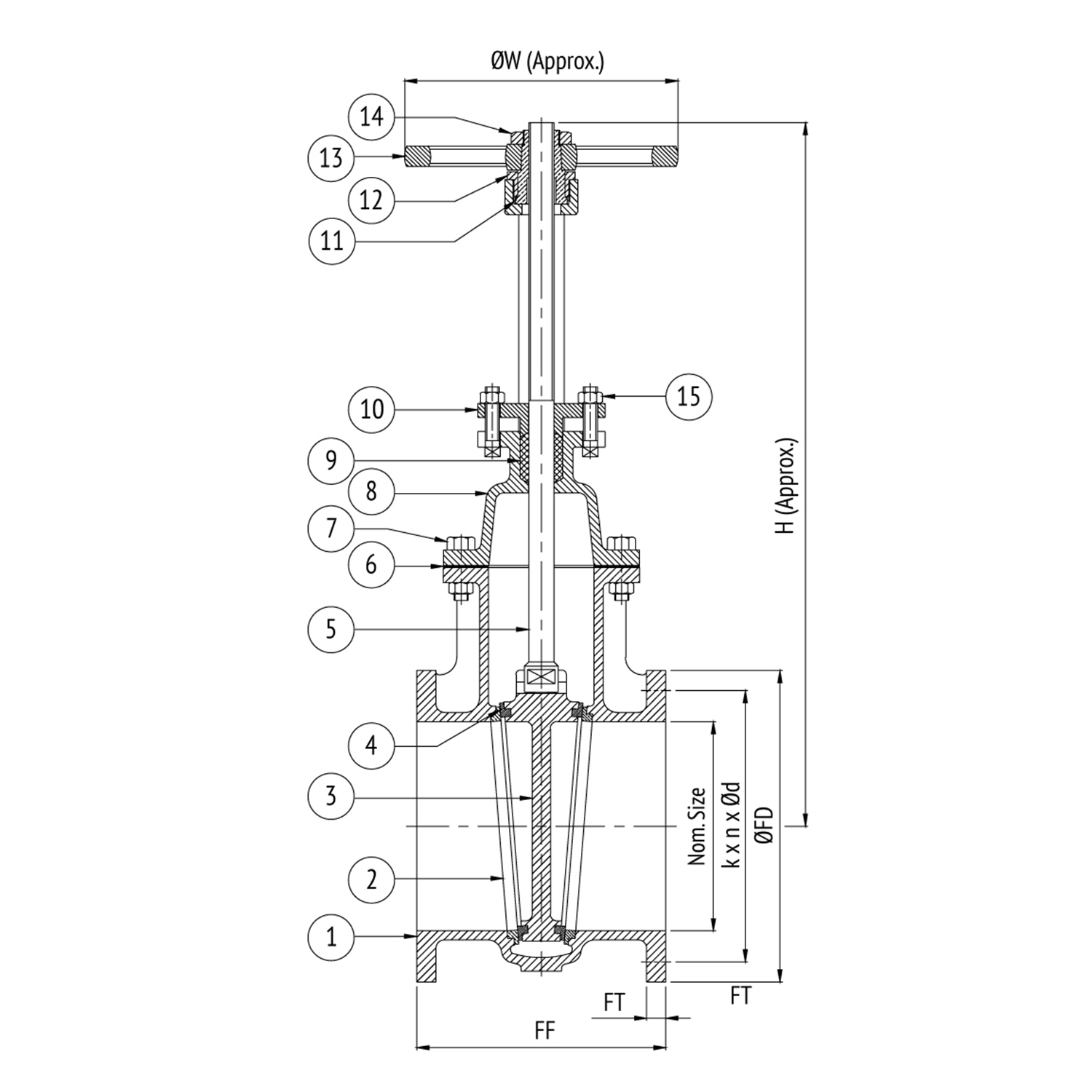

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Cast Iron	IS 210 Gr. FG200 / BS EN 1561 Gr. GJL 220
2	Body Seat Ring	2	Gun Metal	IS 318 Gr. LTB2 / BS EN 1982 Gr. CC491K
3	Wedge	1	Cast Iron	IS 210 Gr. FG200 / BS EN 1561 Gr. GJL 220
4	Wedge Ring	2	Gun Metal	IS 318 Gr. LTB2 / BS EN 1982 Gr. CC491K
5	Stem	1	Stainless Steel	ASTM A 276 Type 410
6	Gasket	1	C.A.F	–
7	Body / Bonnet Bolts & Nuts	To Suit	Carbon Steel	–
8	Bonnet	1	Cast Iron	IS 210 Gr. FG200 / BS EN 1561 Gr. GJL 220
9	Gland Packing	–	Hemp & Jute / Non Asbestos	IS 4687
10	Gland Flange	1	Cast Iron	IS 210 Gr. FG200 / BS EN 1561 Gr. GJL 220
11	Yoke Sleeve	1	Bronze / Stainless Steel	BS EN 1982 Gr. CC3314 / ASTM A 582 Type 416
12	Yoke Sleeve Nut	1	Carbon Steel	–
13	Handwheel	1	M.I. / C.I.	–
14	Handwheel Retaining Nut	1	Carbon Steel	–
15	Gland Flange Bolts & Nuts	2 Each	Carbon Steel	–

Download PDF Product Inquiry

Dimensional Data

Size (mm)	FF	ØW	H	ØFD	FT	k	n	Ød
50	178	225	320	165	16	125	4	19
65	190	225	375	185	16	145	4	19
80	203	225	422	200	21	160	4	19
100	229	320	490	220	22	180	8	19
125	254	320	560	250	22.5	210	8	19
150	267	320	640	285	23	240	8	23
200	292	360	782	340	24.5	295	8	23
250	330	400	1040	395	26	350	12	23
300	356	400	1170	445	27.5	400	12	23
350	381	500	1300	505	29	460	16	23
400	406	640	1370	565	30	513	16	28
450	432	720	1430	615	31.5	565	20	28
500	457	720	1510	670	33	620	20	28
600	508	720	–	780	36	725	20	31

Download PDF Product Inquiry

AV-118A | Cast Iron Gate Valve, Flanged Ends, PN-1.6

Product Inquiry

Features

Product Standard

BS EN-1171 / IS-14846

Testing Standard

BS EN 12266-Part 1

Pressure / Class Rating

PN-1.6

Body Material Cum Standard

Cast Iron (IS 210 Gr. FG 200)

Product Description

Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem, Handwheel Operated

Type of Seat

Renewable Seat

Type of Wedge

Solid Wedge

Trim

Stem: 13% Cr. (SS 410)

Seat Facing

Cu-Alloy

End Details

Flanged Ends as per IS:1538 PN -1.6 Flat Face (Drilled)

Test Pressure

Body: 2.4 Mpa (Hyd.), Seat: 1.6 Mpa (Hyd.)

Max. Working Temperature

45°C

Notes

Sizes 350mm & above are supplied with Gear

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Body 1 Cast Iron IS 210 Gr. FG200 / BS EN 1561 Gr. GJL 220

2 Body Seat Ring 2 Gun Metal IS 318 Gr. LTB2 / BS EN 1982 Gr. CC491K

3 Wedge 1 Cast Iron IS 210 Gr. FG200 / BS EN 1561 Gr. GJL 220

4 Wedge Ring 2 Gun Metal IS 318 Gr. LTB2 / BS EN 1982 Gr. CC491K

5 Stem 1 Stainless Steel ASTM A 276 Type 410

6 Gasket 1 C.A.F –

7 Body / Bonnet Bolts & Nuts To Suit Carbon Steel –

8 Bonnet 1 Cast Iron IS 210 Gr. FG200 / BS EN 1561 Gr. GJL 220

9 Gland Packing – Hemp & Jute / Non Asbestos IS 4687

10 Gland Flange 1 Cast Iron IS 210 Gr. FG200 / BS EN 1561 Gr. GJL 220

11 Yoke Sleeve 1 Bronze / Stainless Steel BS EN 1982 Gr. CC3314 / ASTM A 582 Type 416

12 Yoke Sleeve Nut 1 Carbon Steel –

13 Handwheel 1 M.I. / C.I. –

14 Handwheel Retaining Nut 1 Carbon Steel –

15 Gland Flange Bolts & Nuts 2 Each Carbon Steel –

Dimensional Data

Size (mm) FF ØW H ØFD FT k n Ød

50 178 225 320 165 16 125 4 19

65 190 225 375 185 16 145 4 19

80 203 225 422 200 21 160 4 19

100 229 320 490 220 22 180 8 19

125 254 320 560 250 22.5 210 8 19

150 267 320 640 285 23 240 8 23

200 292 360 782 340 24.5 295 8 23

250 330 400 1040 395 26 350 12 23

300 356 400 1170 445 27.5 400 12 23

350 381 500 1300 505 29 460 16 23

400 406 640 1370 565 30 513 16 28

450 432 720 1430 615 31.5 565 20 28

500 457 720 1510 670 33 620 20 28

600 508 720 – 780 36 725 20 31
