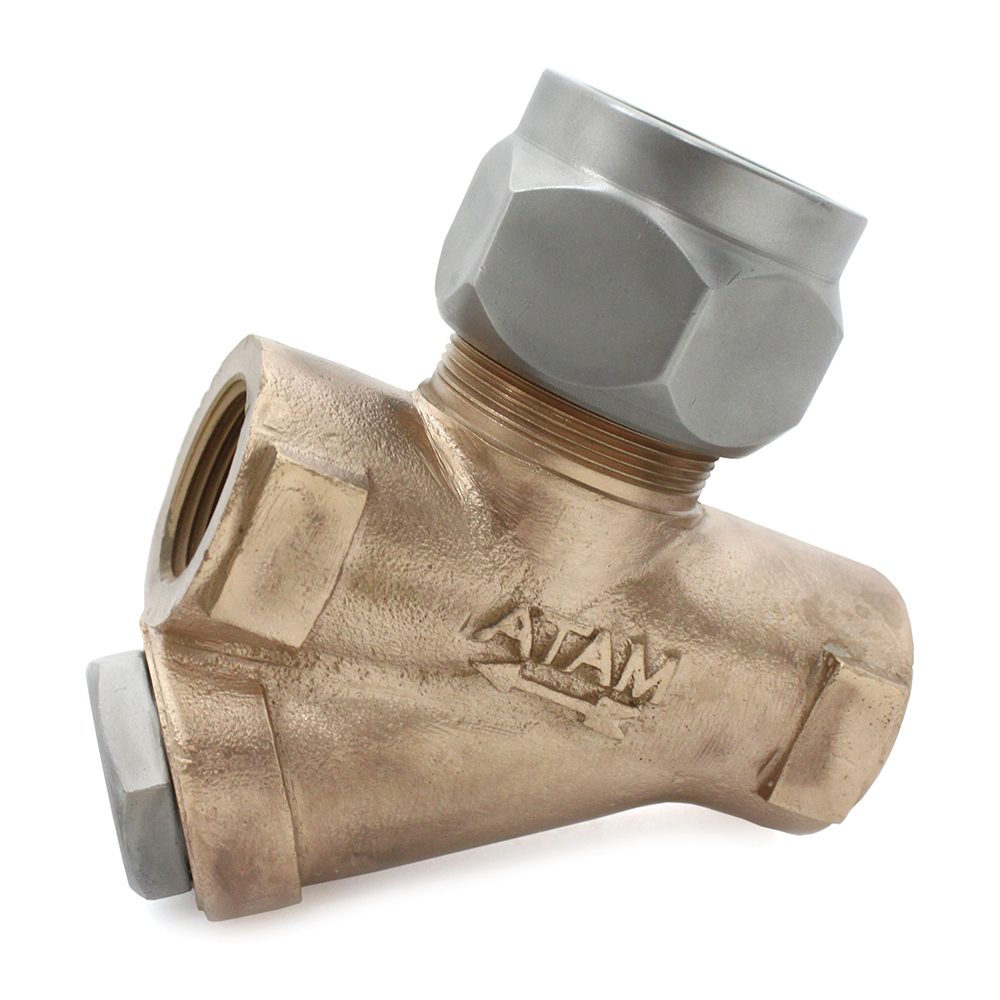

AV-12 Bronze Thermodynamic Steam Trap, Screwed Ends

AV-12 | Bronze Thermodynamic Steam Trap, Screwed Ends

Features

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Product Description

Thermodynamic Type with Inbuilt Guided Strainer

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

500 Psig (Hyd.)

Max. Working Pressure

250 Psig (Steam)

Notes

Other screwed end specifications can be provided on request.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

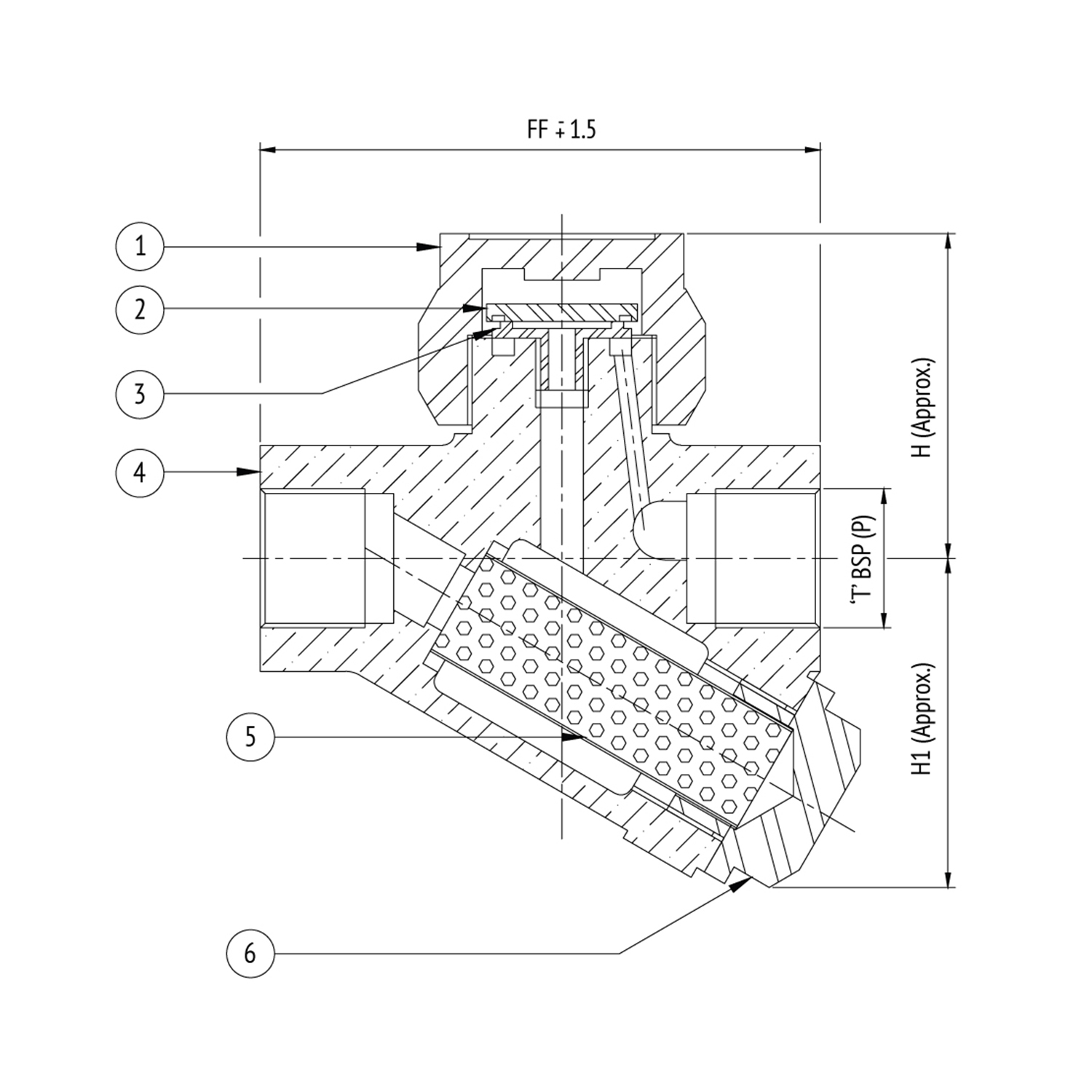

S.No	Description	No.	Material	Specifications
1	Top Nut	1	Stainless Steel	ASTM A 276 Type 410
2	Disc	1	Stainless Steel	ASTM A 276 Type 410
3	Seat	1	Stainless Steel	ASTM A 276 Type 410
4	Body	1	Bronze	IBR 282 (a) (iv) Gr. B
5	Screen	1	Stainless Steel	ASTM A 240 Type 304
6	Cover	1	Stainless Steel	ASTM A 276 Type 410
