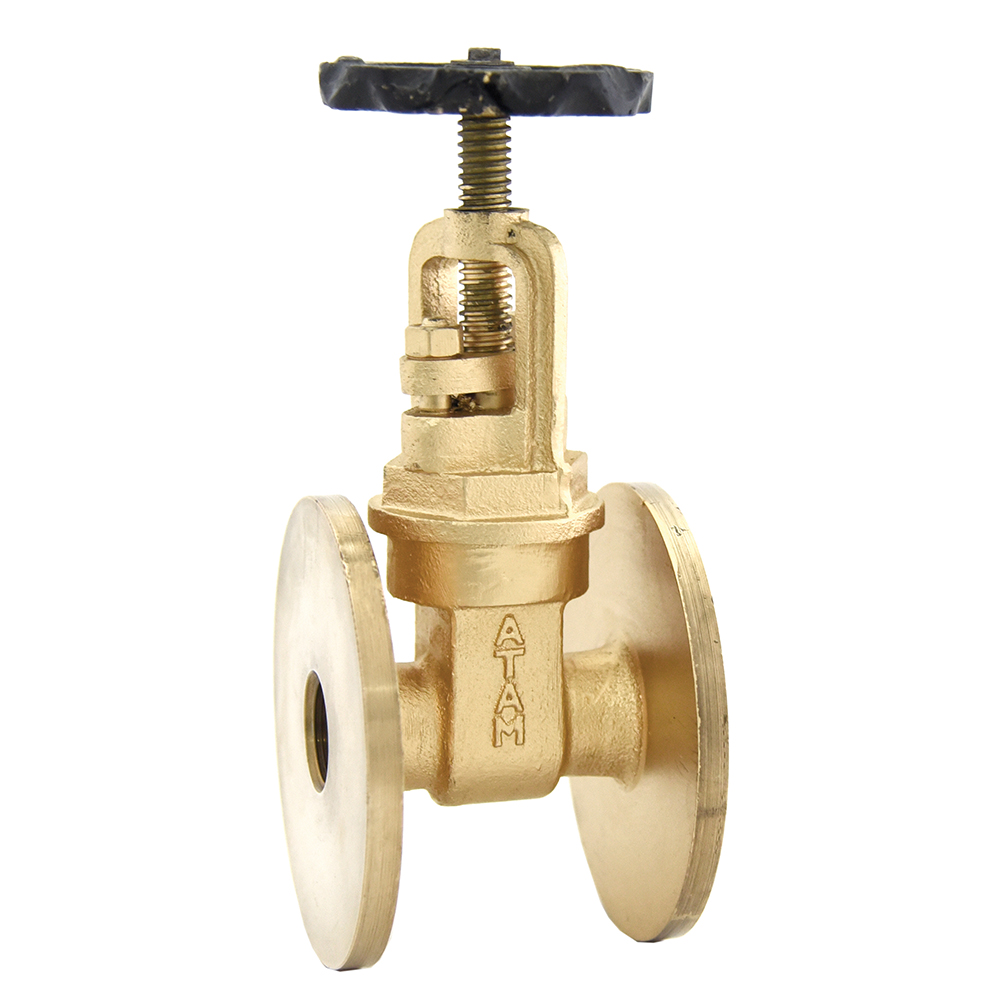

AV-121 Bronze Gate Valve, Flanged Ends, Class-1

AV-121 | Bronze Gate Valve, Flanged Ends, Class-1

Features

Product Standard

IS-778

Testing Standard

IS-778

Pressure / Class Rating

Class-1

Body Material Cum Standard

Bronze (IS 318 Gr. LTB2)

Product Description

Screwed in Bonnet, Outside Screw & Yoke Type, Rising Stem, Handwheel Operated

Type of Seat

Integral Seat

Type of Wedge

Solid Wedge

Trim

Cu-Alloy

End Details

Flanged Ends as per IS:778 Class-1 Flat Face (Undrilled)

Test Pressure

Body: 1.5 Mpa (Hyd.), Seat: 1.0 Mpa (Hyd.)

Max. Working Temperature

45°C

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Bronze	IS 318 Gr. LTB2
2	Wedge	1	Bronze	IS 318 Gr. LTB2
3	Stem	1	H.T. Brass	IS 6912 Gr. FLB / IS 320
4	Bonnet	1	Bronze	IS 318 Gr. LTB2
5	Packing	–	Graphited Asbestos	–
6	Gland Flange	1	Bronze	IS 318 Gr. LTB2
7	Studs & Nuts for Gland	2 Each	Carbon Steel	–
8	Handwheel	1	C.I. / C.S.	IS 210 Gr. FG200 / –
9	Washer	1	Carbon Steel	–
10	Screw	1	Carbon Steel	–

Download PDF Product Inquiry

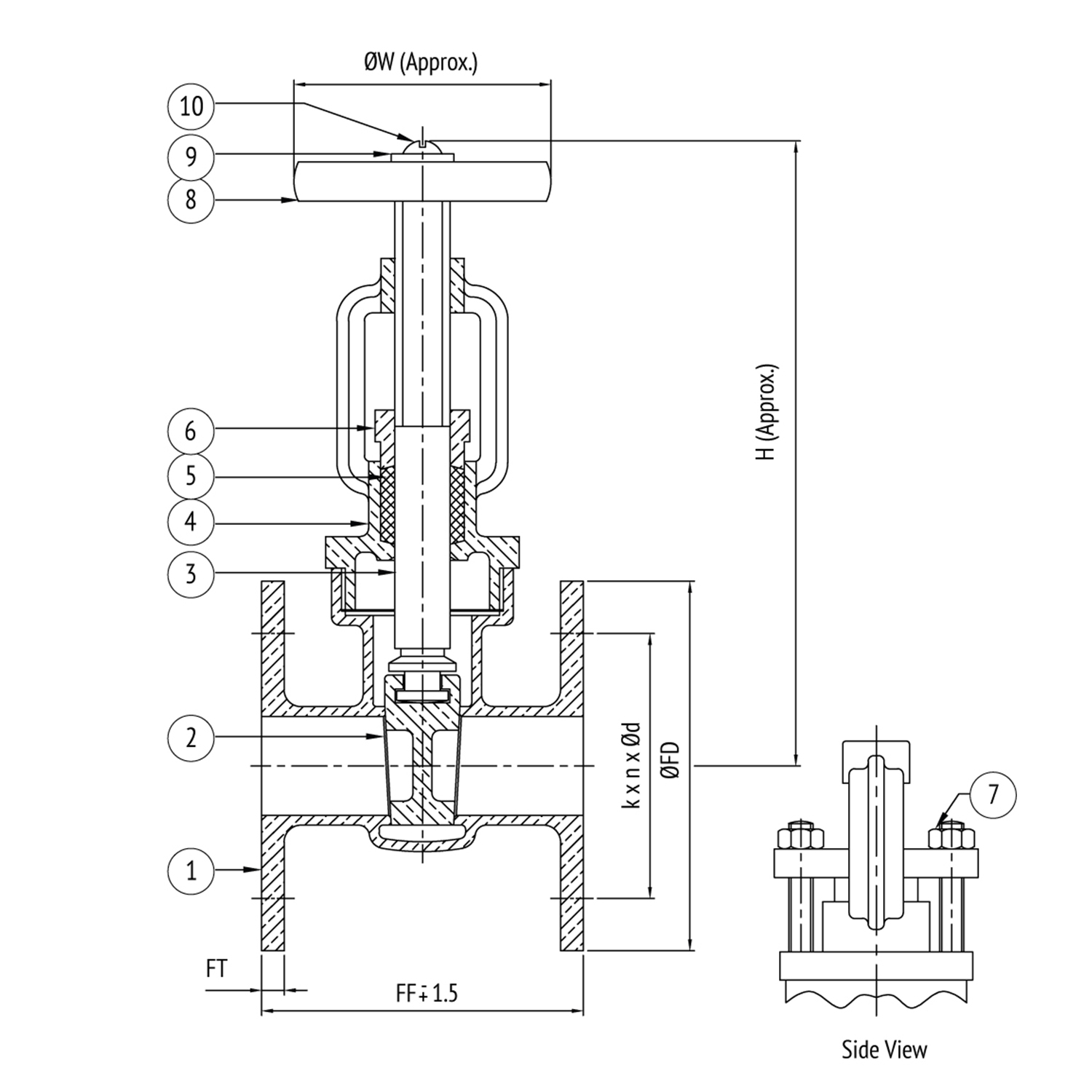

Dimensional Data

Size (mm)	FF	H	ØW	ØFD	FT	k	n	Ød
15	72	138	60	95	6	65	4	14
20	76	147	60	105	6	75	4	14
25	90	155	70	115	8	85	4	14
32	100	185	79	140	8	100	4	18
40	110	225	87	150	9	110	4	18
50	120	235	96	165	11	125	4	18
65	140	280	104	185	13	145	4	18
80	150	352	140	200	13	160	8	18
100	190	415	183	220	16	180	8	18

Download PDF Product Inquiry

AV-121 | Bronze Gate Valve, Flanged Ends, Class-1

Product Inquiry

Features

Product Standard

IS-778

Testing Standard

IS-778

Pressure / Class Rating

Class-1

Body Material Cum Standard

Bronze (IS 318 Gr. LTB2)

Product Description

Screwed in Bonnet, Outside Screw & Yoke Type, Rising Stem, Handwheel Operated

Type of Seat

Integral Seat

Type of Wedge

Solid Wedge

Trim

Cu-Alloy

End Details

Flanged Ends as per IS:778 Class-1 Flat Face (Undrilled)

Test Pressure

Body: 1.5 Mpa (Hyd.), Seat: 1.0 Mpa (Hyd.)

Max. Working Temperature

45°C

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Body 1 Bronze IS 318 Gr. LTB2

2 Wedge 1 Bronze IS 318 Gr. LTB2

3 Stem 1 H.T. Brass IS 6912 Gr. FLB / IS 320

4 Bonnet 1 Bronze IS 318 Gr. LTB2

5 Packing – Graphited Asbestos –

6 Gland Flange 1 Bronze IS 318 Gr. LTB2

7 Studs & Nuts for Gland 2 Each Carbon Steel –

8 Handwheel 1 C.I. / C.S. IS 210 Gr. FG200 / –

9 Washer 1 Carbon Steel –

10 Screw 1 Carbon Steel –

Dimensional Data

Size (mm) FF H ØW ØFD FT k n Ød

15 72 138 60 95 6 65 4 14

20 76 147 60 105 6 75 4 14

25 90 155 70 115 8 85 4 14

32 100 185 79 140 8 100 4 18

40 110 225 87 150 9 110 4 18

50 120 235 96 165 11 125 4 18

65 140 280 104 185 13 145 4 18

80 150 352 140 200 13 160 8 18

100 190 415 183 220 16 180 8 18
