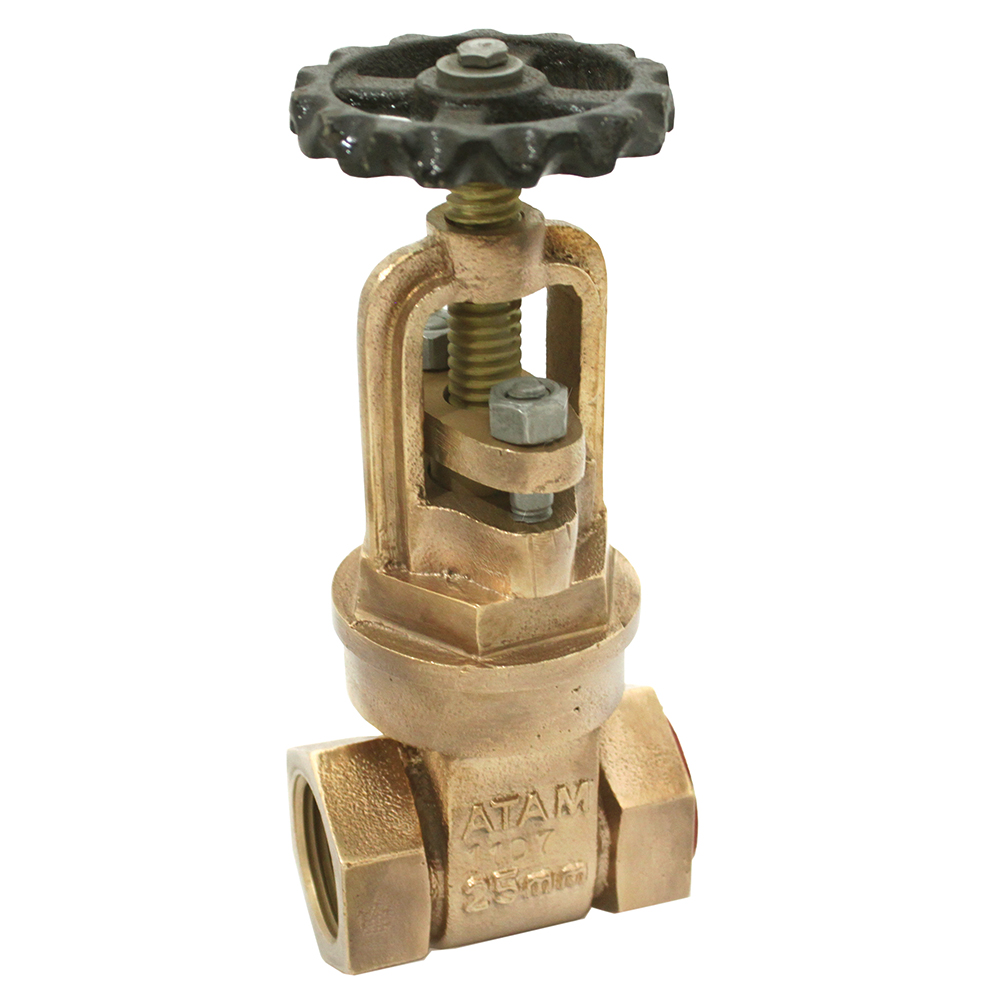

AV-122 Bronze Gate Valve, Screwed Ends, Class-2

AV-122 | Bronze Gate Valve, Screwed Ends, Class-2

Features

Product Standard

IS-778

Testing Standard

IS-778

Pressure / Class Rating

Class-2

Body Material Cum Standard

Bronze (IS 318 Gr. LTB2)

Product Description

Screwed in Bonnet, Outside Screw & Yoke Type, Rising Stem, Handwheel Operated

Type of Seat

Integral Seat

Type of Wedge

Solid Wedge

Trim

Cu-Alloy

End Details

Screwed Female Parallel Threads (IS:554)

Test Pressure

Body: 2.4 Mpa (Hyd.), Seat: 1.6 Mpa (Hyd.)

Max. Working Temperature

45°C

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Bronze	IS 318 Gr. LTB2
2	Wedge	1	Bronze	IS 318 Gr. LTB2
3	Stem	1	H.T. Brass	IS 6912 Gr. FLB / IS 320
4	Bonnet	1	Bronze	IS 318 Gr. LTB2
5	Packing	–	Graphited Asbestos	–
6	Gland Flange	1	Bronze	IS 318 Gr. LTB2
7	Studs & Nuts for Gland	2 Each	Carbon Steel	–
8	Handwheel	1	C.I. / C.S.	IS 210 Gr. FG200 / –
9	Washer	1	Carbon Steel	–
10	Screw	1	Carbon Steel	–

Download PDF Product Inquiry

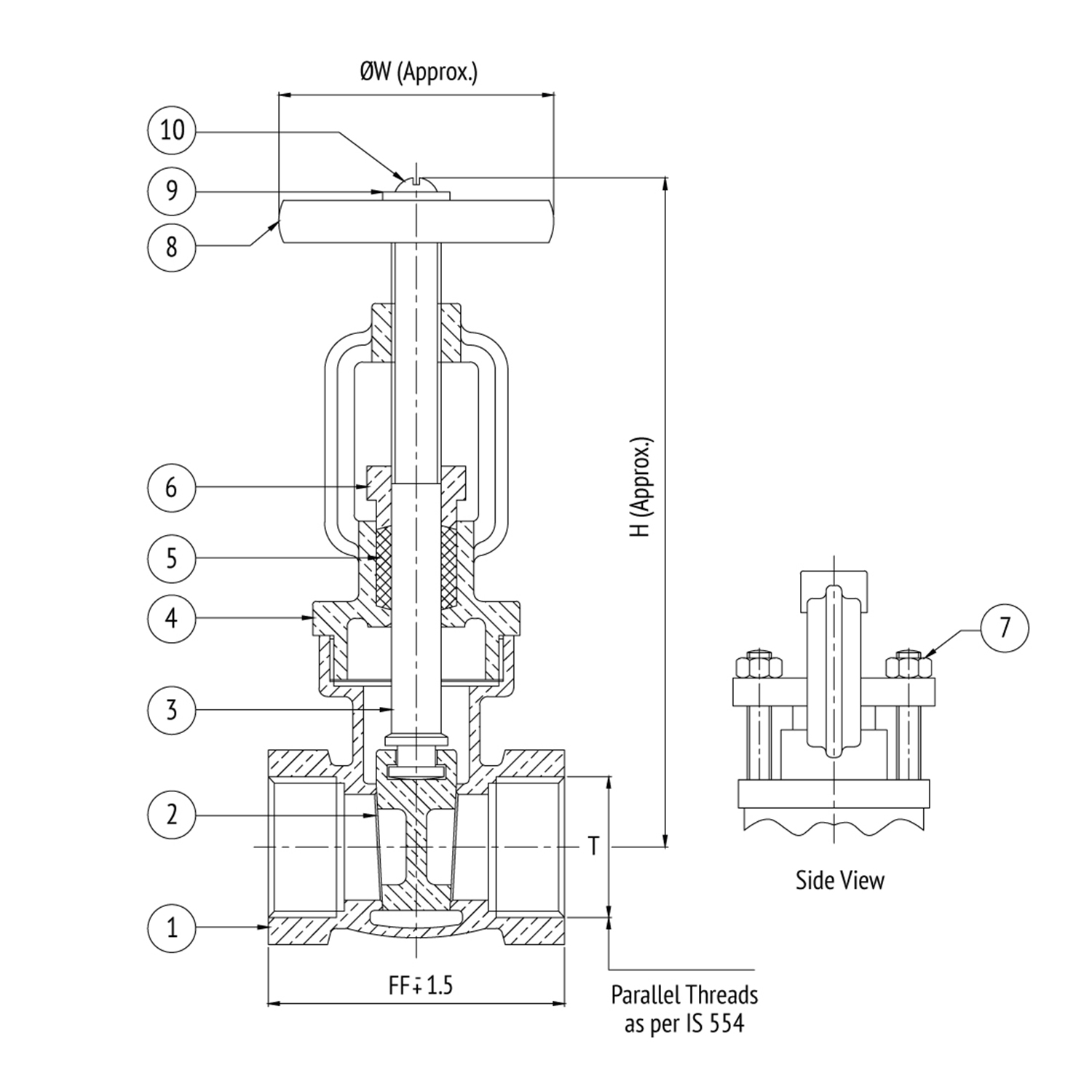

Dimensional Data

Size (mm)	FF	H	ØW	T
15	60	138	60	1/2”
20	60	147	60	3/4”
25	70	155	70	1”
32	80	185	79	1.1/4”
40	90	225	87	1.1/2”
50	100	235	96	2”
65	105	280	104	2.1/2”
80	125	352	140	3”
100	160	415	183	4”

Download PDF Product Inquiry

AV-122 | Bronze Gate Valve, Screwed Ends, Class-2

Product Inquiry

Features

Product Standard

IS-778

Testing Standard

IS-778

Pressure / Class Rating

Class-2

Body Material Cum Standard

Bronze (IS 318 Gr. LTB2)

Product Description

Screwed in Bonnet, Outside Screw & Yoke Type, Rising Stem, Handwheel Operated

Type of Seat

Integral Seat

Type of Wedge

Solid Wedge

Trim

Cu-Alloy

End Details

Screwed Female Parallel Threads (IS:554)

Test Pressure

Body: 2.4 Mpa (Hyd.), Seat: 1.6 Mpa (Hyd.)

Max. Working Temperature

45°C

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Body 1 Bronze IS 318 Gr. LTB2

2 Wedge 1 Bronze IS 318 Gr. LTB2

3 Stem 1 H.T. Brass IS 6912 Gr. FLB / IS 320

4 Bonnet 1 Bronze IS 318 Gr. LTB2

5 Packing – Graphited Asbestos –

6 Gland Flange 1 Bronze IS 318 Gr. LTB2

7 Studs & Nuts for Gland 2 Each Carbon Steel –

8 Handwheel 1 C.I. / C.S. IS 210 Gr. FG200 / –

9 Washer 1 Carbon Steel –

10 Screw 1 Carbon Steel –

Dimensional Data

Size (mm) FF H ØW T

15 60 138 60 1/2”

20 60 147 60 3/4”

25 70 155 70 1”

32 80 185 79 1.1/4”

40 90 225 87 1.1/2”

50 100 235 96 2”

65 105 280 104 2.1/2”

80 125 352 140 3”

100 160 415 183 4”
