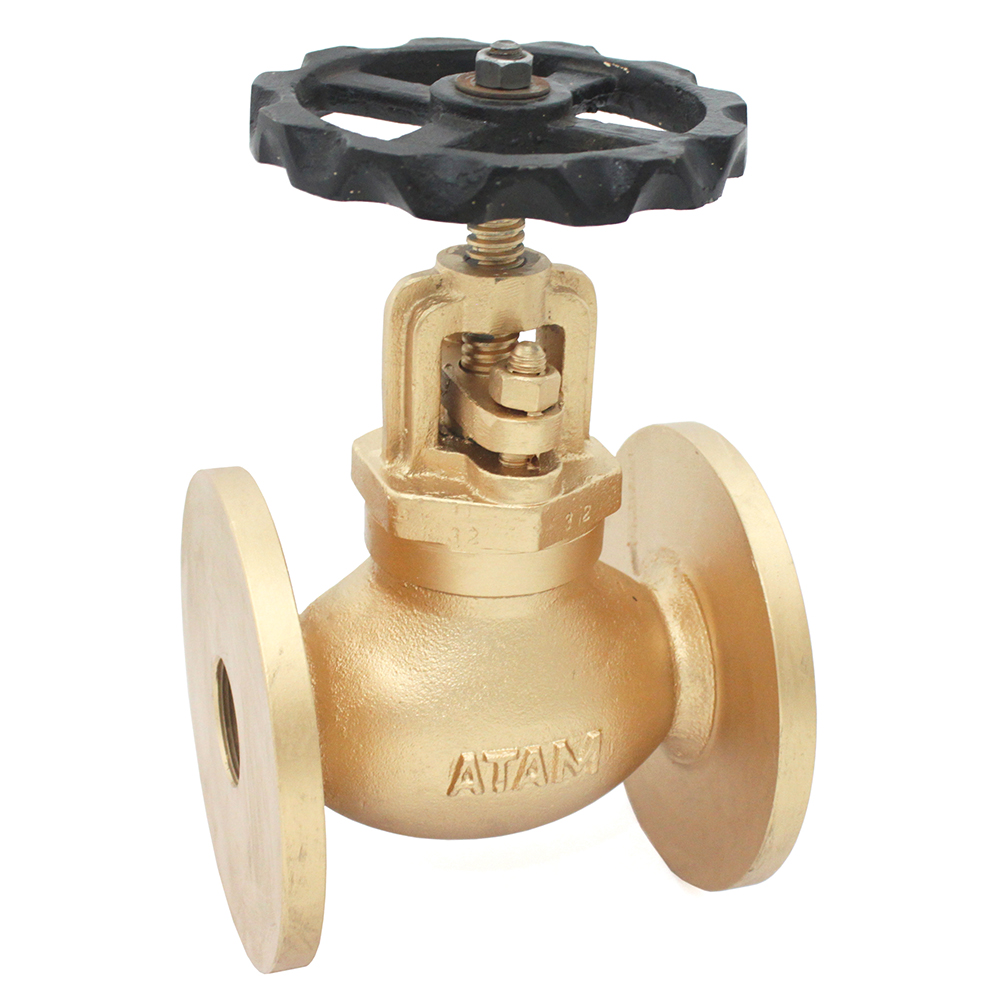

AV-127 Bronze Globe Valve, Flanged Ends, Class-2

AV-127 | Bronze Globe Valve, Flanged Ends, Class-2

Features

Product Standard

IS-778

Testing Standard

IS-778

Pressure / Class Rating

Class-2

Body Material Cum Standard

Bronze (IS 318 Gr. LTB2)

Product Description

Screwed in Bonnet, Outside Screw & Yoke Type, Rising Stem, Handwheel Operated

Type of Seat

Integral Seat

Type of Disc

Renewable Disc

Trim

Cu-Alloy

End Details

Flanged Ends as per IS:778 Class-2 Flat Face (Undrilled)

Test Pressure

Body: 2.4 Mpa (Hyd.), Seat: 1.6 Mpa (Hyd.)

Max. Working Temperature

45°C

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Bronze	IS 318 Gr. LTB2
2	Disc	1	Bronze	IS 318 Gr. LTB2
3	Stem	1	H.T. Brass	IS 6912 Gr. FLB / IS 320
4	Bonnet	1	Bronze	IS 318 Gr. LTB2
5	Packing	–	Hemp & Jute Asbestos	–
6	Gland Flange	1	Bronze	IS 318 Gr. LTB2
7	Handwheel	1	C.I. / C.S.	IS 210 Gr. FG200 / –
8	Washer	1	Carbon Steel	–
9	Screw	1	Carbon Steel	–
10	Studs & Nuts	2 Each	Carbon Steel	–
11	Check Nut	1	Bronze	IS 318 Gr. LTB2

Download PDF Product Inquiry

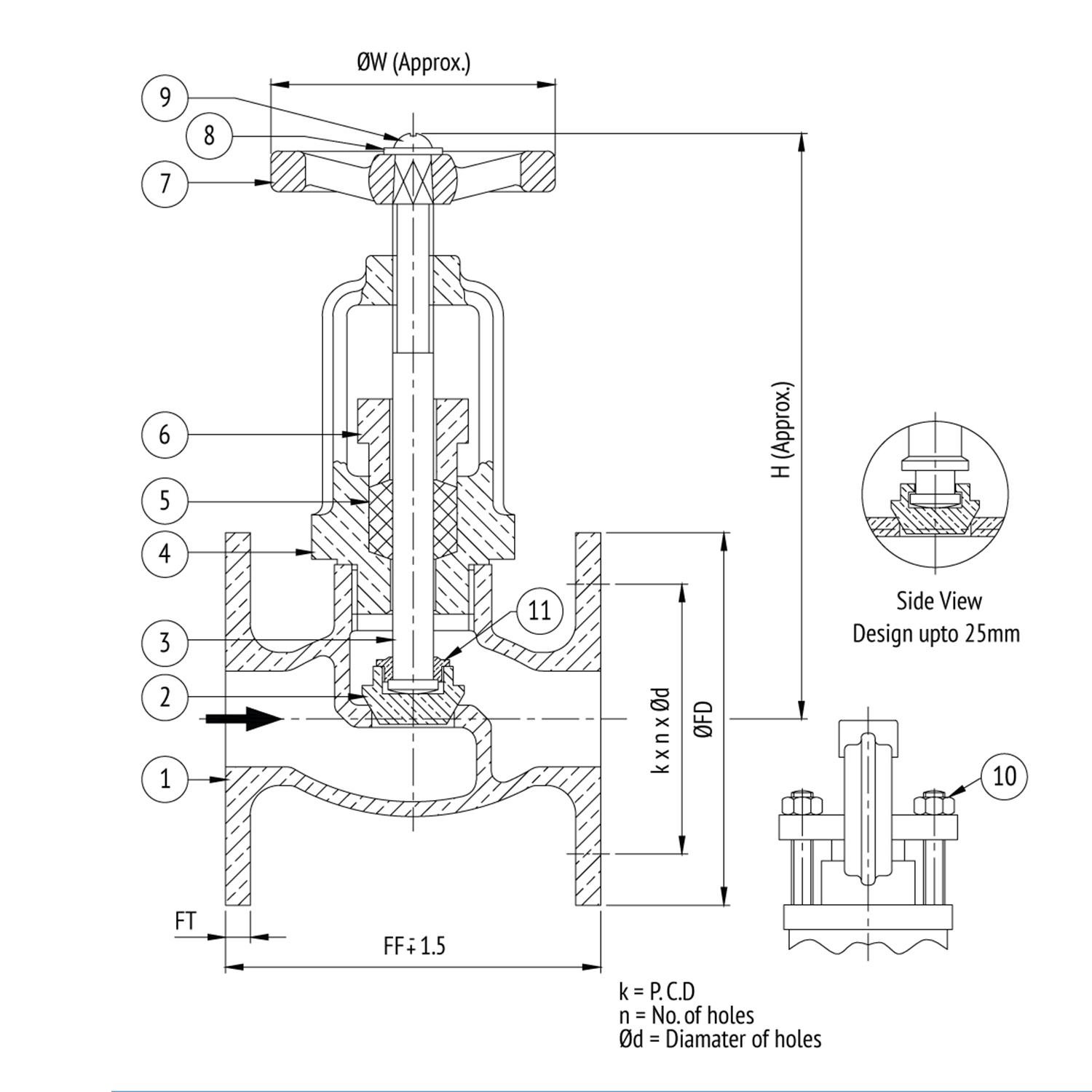

Dimensional Data

Size (mm)	FF	H	ØW	ØFD	FT	k	n	Ød
15	75	112	53	95	6	65	4	14
20	85	127	58	105	6	75	4	14
25	95	130	67	115	8	85	4	14
32	110	142	79	140	8	100	4	18
40	120	155	87	150	9	110	4	18
50	145	170	98	165	11	125	4	18

Download PDF Product Inquiry
