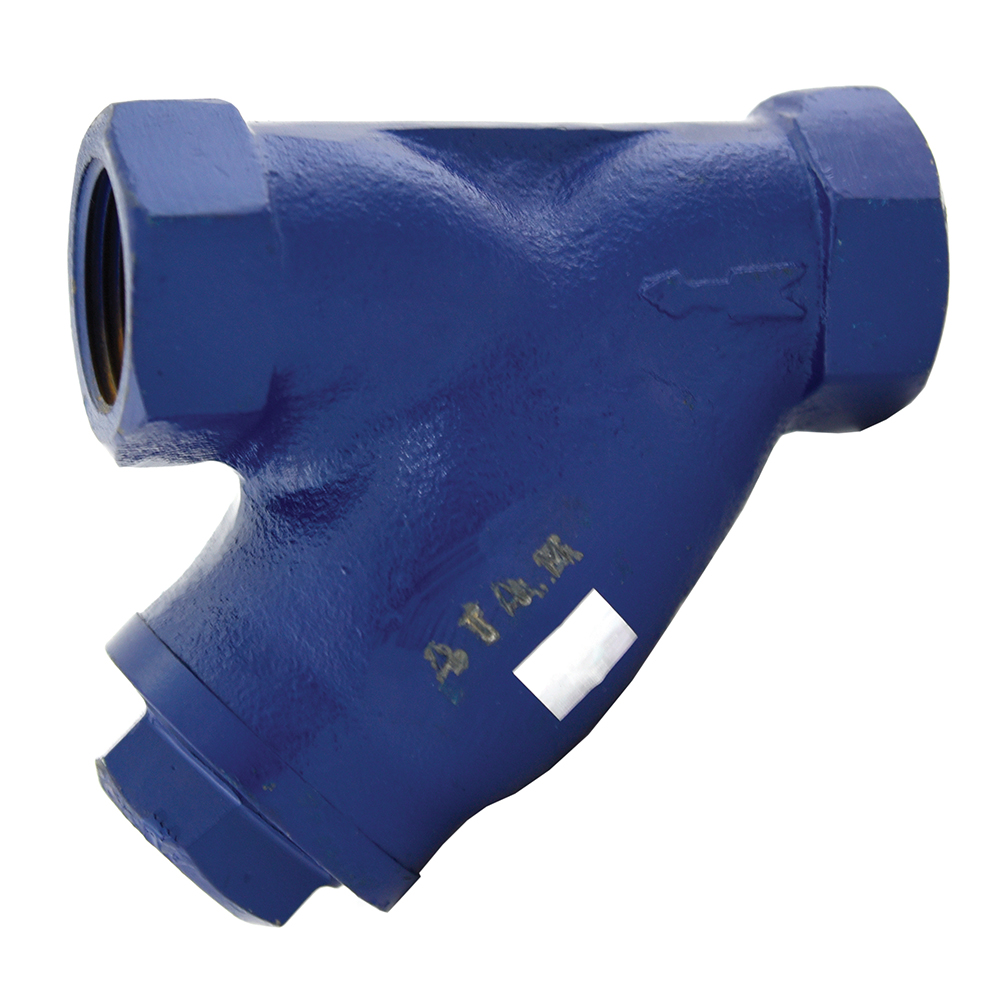

AV-134 Cast Iron Y-Type Strainer, Screwed Ends

AV-134 | Cast Iron Y-Type Strainer, Screwed Ends

Features

Body Material Cum Standard

Cast Iron (BS EN 1561 Gr. GJL 220)

Product Description

Y-Type, Bolted Cover

Trim

SS (Type 304) Screen Having 1mm Diameter Perforations

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 15 kg/cm² (Hyd.)

Max. Working Pressure

10 kg/cm² (Steam)

Max. Working Temperature

200°C

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry
Material Combination

S.No Description No. Material Specifications

1 Body 1 Cast Iron EN 1561 Gr. GJL 200

2 Screen 1 Stainless Steel Type 304

3 Cover 1 Cast Iron EN 1561 Gr. GJL 200

AV-134 | Cast Iron Y-Type Strainer, Screwed Ends

Download PDF Product Inquiry

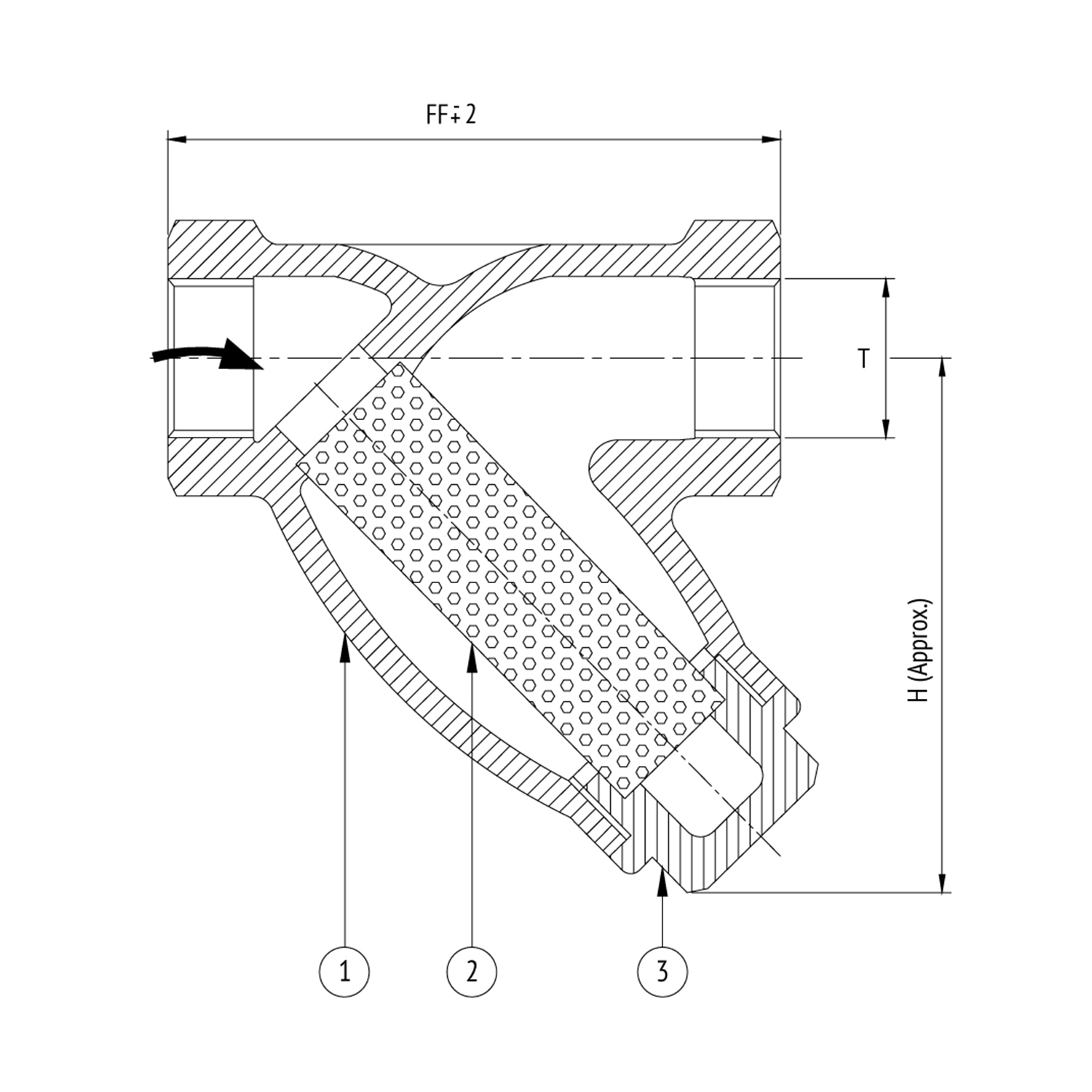

Dimensional Data

Size (mm) FF T H

15 75 1/2” 63

20 94 3/4” 75

25 109 1” 88

32 124 1.1/4” 93

40 182 1.1/2” 145

50 222 2” 190

Download PDF Product Inquiry
AV-134 | Cast Iron Y-Type Strainer, Screwed Ends

Product Inquiry

S.No	Description	No.	Material	Specifications
1	Body	1	Cast Iron	EN 1561 Gr. GJL 200
2	Screen	1	Stainless Steel	Type 304
3	Cover	1	Cast Iron	EN 1561 Gr. GJL 200

Size (mm)	FF	T	H
15	75	1/2”	63
20	94	3/4”	75
25	109	1”	88
32	124	1.1/4”	93
40	182	1.1/2”	145
50	222	2”	190

Features

Body Material Cum Standard

Cast Iron (BS EN 1561 Gr. GJL 220)

Product Description

Y-Type, Bolted Cover

Trim

SS (Type 304) Screen Having 1mm Diameter Perforations

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 15 kg/cm² (Hyd.)

Max. Working Pressure

10 kg/cm² (Steam)

Max. Working Temperature

200°C

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Body 1 Cast Iron EN 1561 Gr. GJL 200

2 Screen 1 Stainless Steel Type 304

3 Cover 1 Cast Iron EN 1561 Gr. GJL 200

S.No	Description	No.	Material	Specifications
1	Body	1	Cast Iron	EN 1561 Gr. GJL 200
2	Screen	1	Stainless Steel	Type 304
3	Cover	1	Cast Iron	EN 1561 Gr. GJL 200

Dimensional Data

Size (mm) FF T H

15 75 1/2” 63

20 94 3/4” 75

25 109 1” 88

32 124 1.1/4” 93

40 182 1.1/2” 145

50 222 2” 190

Size (mm)	FF	T	H
15	75	1/2”	63
20	94	3/4”	75
25	109	1”	88
32	124	1.1/4”	93
40	182	1.1/2”	145
50	222	2”	190
