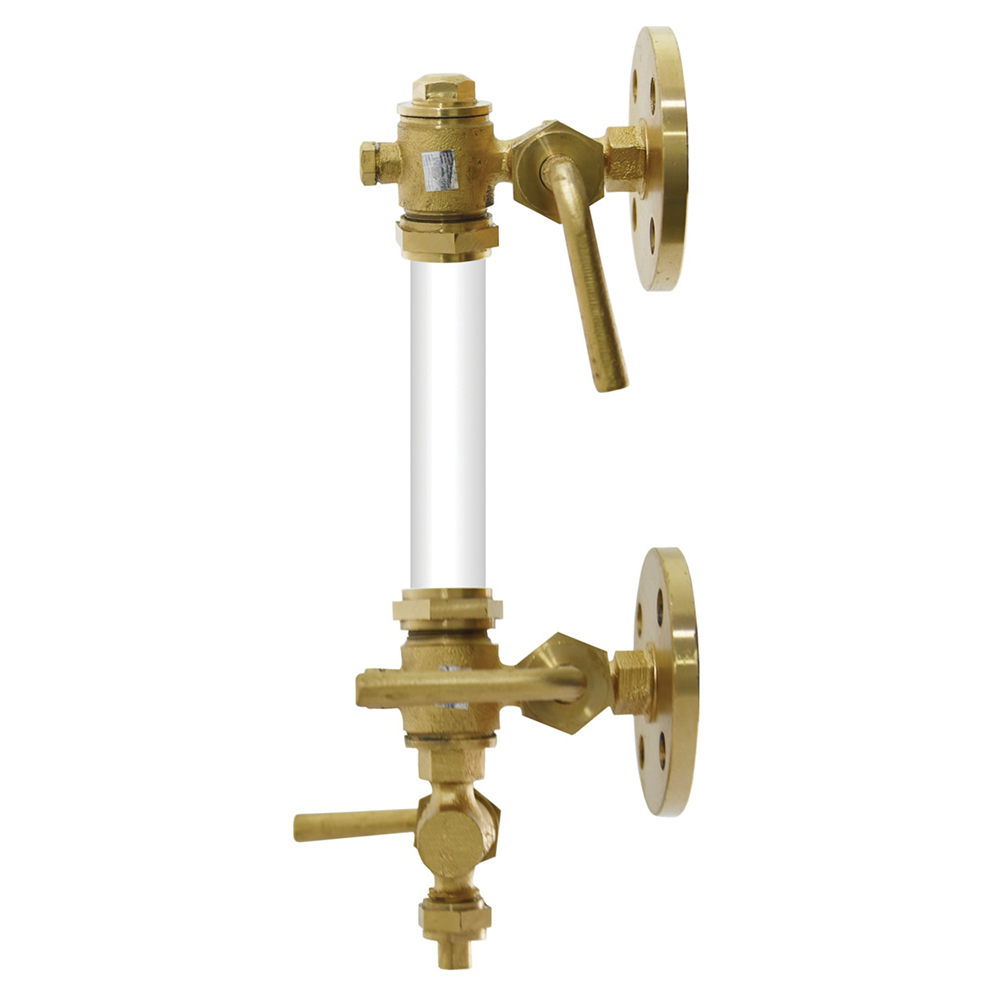

AV-17 Bronze Gland Packed Water Level Gauge, Flanged Ends

AV-17 | Bronze Gland Packed Water Level Gauge, Flanged Ends

Features

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Product Description

Gland Packed

End Details

Flanged Ends to BS-10 Table-F (Undrilled)

Test Pressure

300 Psig (Hyd.)

Max. Working Pressure

150 Psig (Steam)

Max. Working Temperature

225°C

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	Top Plug	1	Bronze	BSEN 1982 Gr. CC491K
2	Side Plug	2	Bronze	BSEN 1982 Gr. CC491K
3	Upper Arm	1	Bronze	BSEN 1982 Gr. CC491K
4	Gland Nut	2	Bronze	BSEN 1982 Gr. CC491K
5	Gland	2	Bronze	BSEN 1982 Gr. CC491K
6	Glass Tube	1	Glass	–
7	Gland Packing	–	Graphited Asbestos	–
8	Drain Valve Body	1	Bronze	BSEN 1982 Gr. CC491K
9	Gland Nut	3	Bronze	BSEN 1982 Gr. CC491K
10	Gland	3	Bronze	BSEN 1982 Gr. CC491K
11	Plug	3	Bronze	BSEN 1982 Gr. CC491K
12	Nipple	1	Bronze / Brass	BSEN 1982 Gr. CC491K
13	Nut	1	Bronze	BSEN 1982 Gr. CC491K
14	Lower Arm	1	Bronze	BSEN 1982 Gr. CC491K

Download PDF Product Inquiry

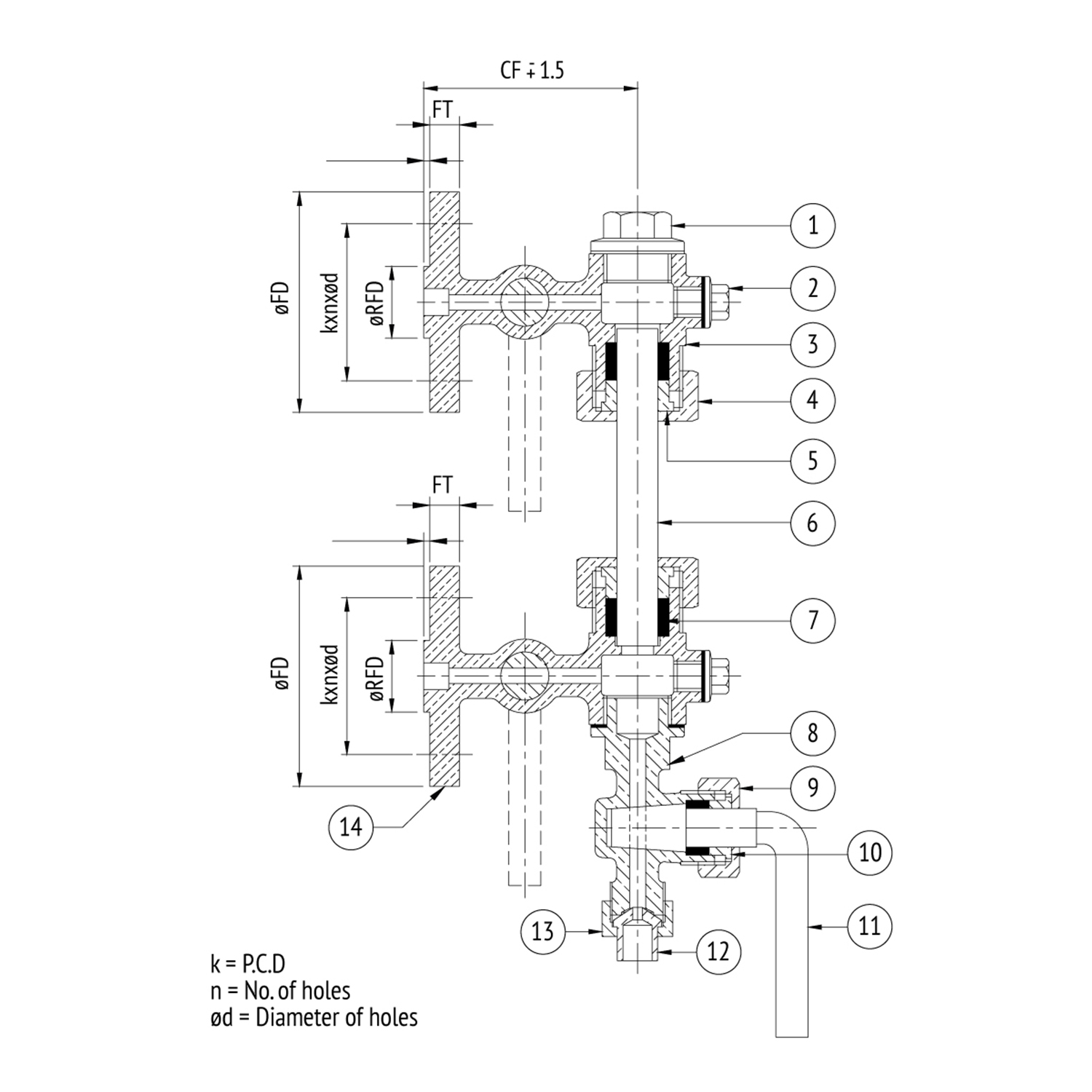

Dimensional Data

Size (mm) CF øFD FT øRFD RFH

10 82 95.3 7.9 23 2

15 82 95.3 7.9 23 2

18 85 101.6 7.9 24 3

20 85 101.6 7.9 24 3

Download PDF Product Inquiry
AV-17 | Bronze Gland Packed Water Level Gauge, Flanged Ends

Product Inquiry

Size (mm)	CF	øFD	FT	øRFD	RFH
10	82	95.3	7.9	23	2
15	82	95.3	7.9	23	2
18	85	101.6	7.9	24	3
20	85	101.6	7.9	24	3

Features

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Product Description

Gland Packed

End Details

Flanged Ends to BS-10 Table-F (Undrilled)

Test Pressure

300 Psig (Hyd.)

Max. Working Pressure

150 Psig (Steam)

Max. Working Temperature

225°C

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Top Plug 1 Bronze BSEN 1982 Gr. CC491K

2 Side Plug 2 Bronze BSEN 1982 Gr. CC491K

3 Upper Arm 1 Bronze BSEN 1982 Gr. CC491K

4 Gland Nut 2 Bronze BSEN 1982 Gr. CC491K

5 Gland 2 Bronze BSEN 1982 Gr. CC491K

6 Glass Tube 1 Glass –

7 Gland Packing – Graphited Asbestos –

8 Drain Valve Body 1 Bronze BSEN 1982 Gr. CC491K

9 Gland Nut 3 Bronze BSEN 1982 Gr. CC491K

10 Gland 3 Bronze BSEN 1982 Gr. CC491K

11 Plug 3 Bronze BSEN 1982 Gr. CC491K

12 Nipple 1 Bronze / Brass BSEN 1982 Gr. CC491K

13 Nut 1 Bronze BSEN 1982 Gr. CC491K

14 Lower Arm 1 Bronze BSEN 1982 Gr. CC491K

Dimensional Data

Size (mm) CF øFD FT øRFD RFH

10 82 95.3 7.9 23 2

15 82 95.3 7.9 23 2

18 85 101.6 7.9 24 3

20 85 101.6 7.9 24 3

Size (mm)	CF	øFD	FT	øRFD	RFH
10	82	95.3	7.9	23	2
15	82	95.3	7.9	23	2
18	85	101.6	7.9	24	3
20	85	101.6	7.9	24	3
