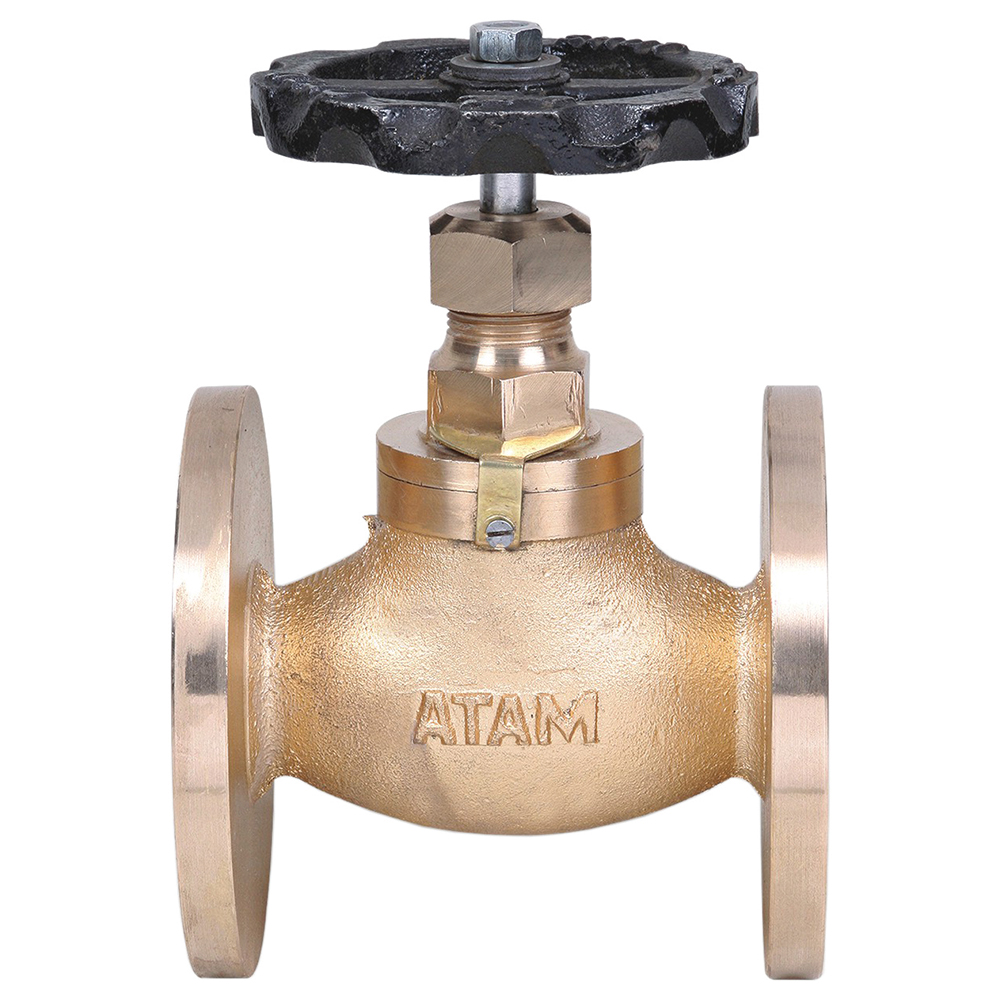

AV-202A Bronze Globe Steam Stop Valve, Flanged Ends (Table-F)

AV-202A | Bronze Globe Steam Stop Valve, Flanged Ends (Table-F)

Features

Body Material Cum Standard

Bronze (IBR 282 (a) (iv) Gr. B)

Product Description

Screwed in Bonnet, Inside Screw, Rising Stem, Handwheel Operated

Type of Seat

Renewable Seat

Type of Disc

Renewable Disc

Trim

13% Cr. (SS 410)

End Details

Flanged Ends as per BS-10 Table-F Flat Face (Undrilled)

Test Pressure

Body: 300 Psig (Hyd.)

Max. Working Pressure

150 Psig (Steam)

Max. Working Temperature

225°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Bronze	IBR 282 (a) (iv) Gr. B
2	Body Seat Ring	1	Stainless Steel	AISI 410
3	Disc	1	Stainless Steel	AISI 410
4	Disc Nut	1	Bronze	IBR 282 (a) (iv) Gr. B
5	Bonnet	1	Bronze	IBR 282 (a) (iv) Gr. B
6	Packing	–	Graphited Asbestos	–
7	Gland	1	Bronze	IBR 282 (a) (iv) Gr. B
8	Gland Nut	1	Bronze	IBR 282 (a) (iv) Gr. B
9	Stem	1	Stainless Steel	AISI 410
10	Handwheel	1	Cast Iron	–

Download PDF Product Inquiry

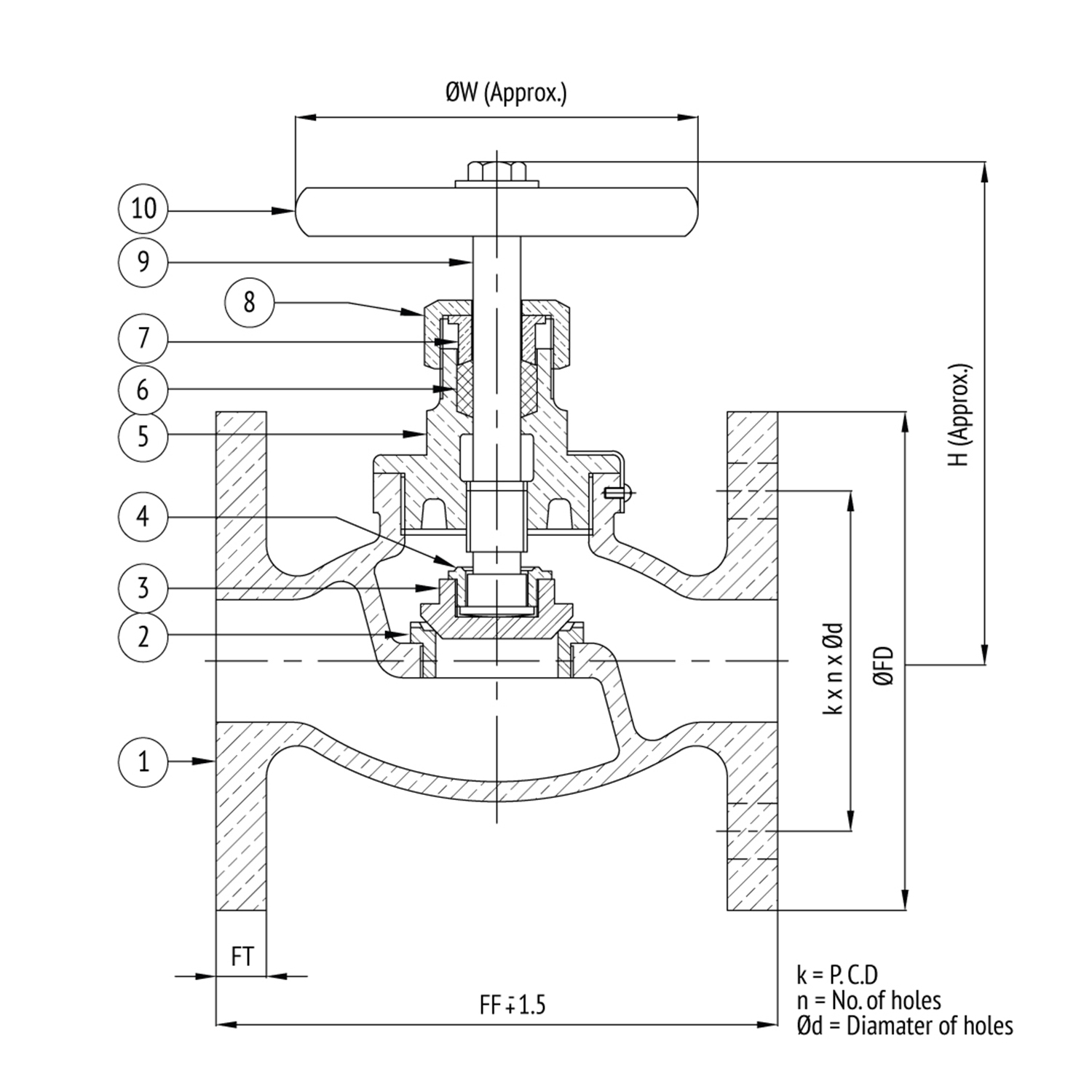

Dimensional Data
