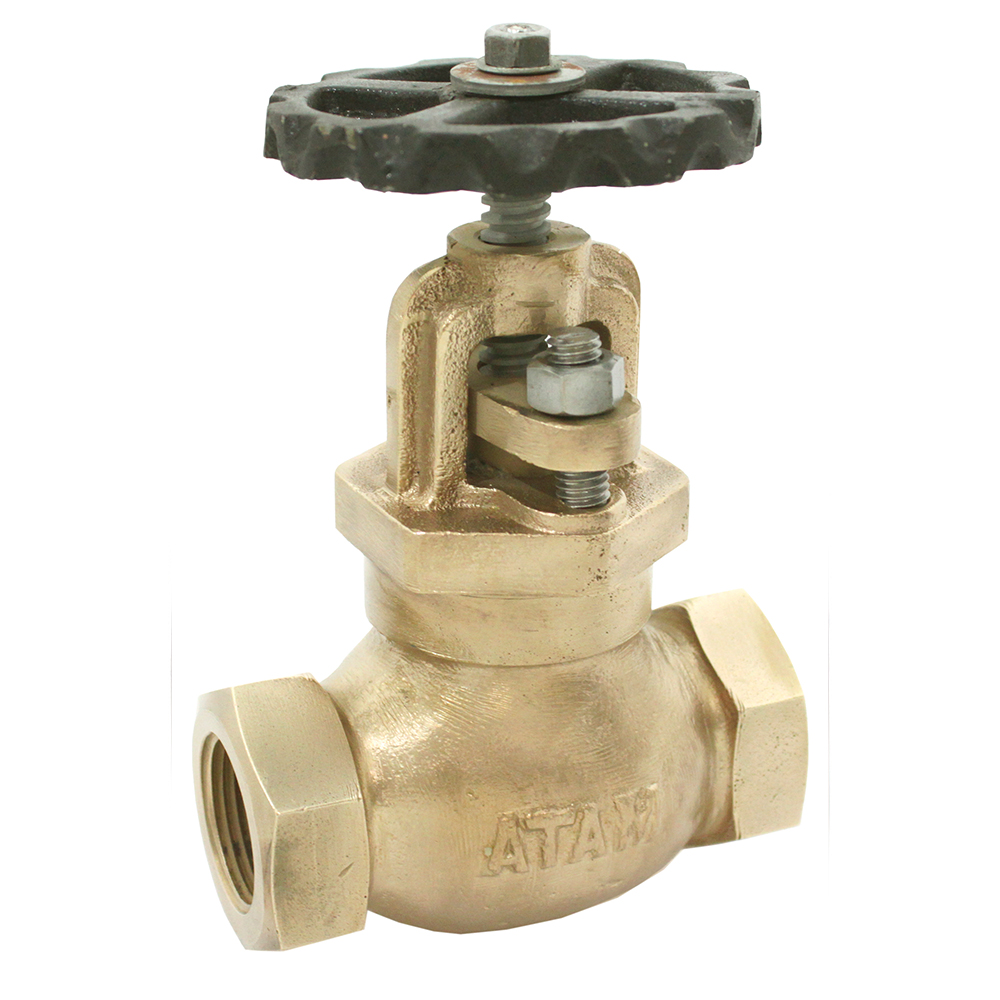

AV-203 Bronze Auxiliary Steam Stop Valve, Screwed Ends

AV-203 | Bronze Auxiliary Steam Stop Valve, Screwed Ends

Features

Body Material Cum Standard

Bronze (IBR 282 (a) (iv) Gr. B)

Product Description

Outside Screw & Yoke Type, Rising Stem, Handwheel Operated

Type of Seat

Renewable Seat

Type of Disc

Renewable Disc

Trim

13% Cr. (SS 410)

End Details

Screwed Female BSP Taper Threads (BS-21)

Test Pressure

Body: 500 Psig (Hyd.)

Max. Working Pressure

250 Psig (Steam)

Max. Working Temperature

225°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

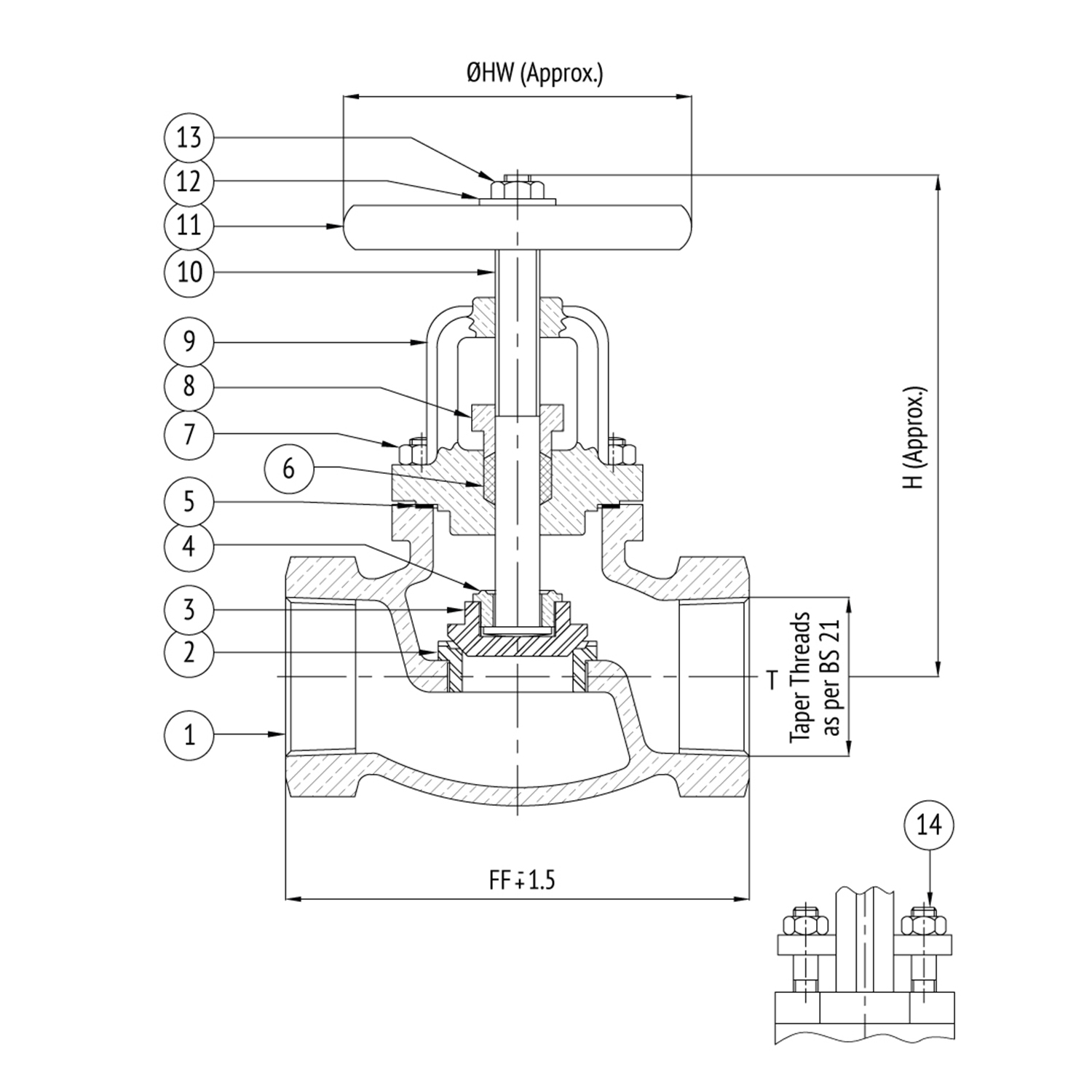

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
2	Body Seat Ring	1	Stainless Steel	ASTM A 276 Type 410
3	Disc	1	Stainless Steel	ASTM A 276 Type 410
4	Disc Nut	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
5	Gasket	1	CAF	IS 2712
6	Packing	–	Graphited Asbestos	–
7	Studs & Nuts	4 Each	Carbon Steel	–
8	Gland Flange	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
9	Bonnet	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
10	Stem	1	Stainless Steel	ASTM A 276 Type 410
11	Handwheel	1	Cast Iron	–
12	Washer	1	Carbon Steel	–
13	Nut	1	Carbon Steel	–
14	Gland Studs & Nuts	2 Each	Carbon Steel	–

Download PDF Product Inquiry

Dimensional Data

Size (mm) L H ØHW T

15 83 130 80 1/2”

20 95 135 80 3/4”

25 111 145 100 1”

32 133 170 127 1.1/4”

40 150 180 127 1.1/2”

50 178 210 150 2”

Download PDF Product Inquiry
AV-203 | Bronze Auxiliary Steam Stop Valve, Screwed Ends

Product Inquiry

Size (mm)	L	H	ØHW	T
15	83	130	80	1/2”
20	95	135	80	3/4”
25	111	145	100	1”
32	133	170	127	1.1/4”
40	150	180	127	1.1/2”
50	178	210	150	2”

Features

Body Material Cum Standard

Bronze (IBR 282 (a) (iv) Gr. B)

Product Description

Outside Screw & Yoke Type, Rising Stem, Handwheel Operated

Type of Seat

Renewable Seat

Type of Disc

Renewable Disc

Trim

13% Cr. (SS 410)

End Details

Screwed Female BSP Taper Threads (BS-21)

Test Pressure

Body: 500 Psig (Hyd.)

Max. Working Pressure

250 Psig (Steam)

Max. Working Temperature

225°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Body 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

2 Body Seat Ring 1 Stainless Steel ASTM A 276 Type 410

3 Disc 1 Stainless Steel ASTM A 276 Type 410

4 Disc Nut 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

5 Gasket 1 CAF IS 2712

6 Packing – Graphited Asbestos –

7 Studs & Nuts 4 Each Carbon Steel –

8 Gland Flange 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

9 Bonnet 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

10 Stem 1 Stainless Steel ASTM A 276 Type 410

11 Handwheel 1 Cast Iron –

12 Washer 1 Carbon Steel –

13 Nut 1 Carbon Steel –

14 Gland Studs & Nuts 2 Each Carbon Steel –

Dimensional Data

Size (mm) L H ØHW T

15 83 130 80 1/2”

20 95 135 80 3/4”

25 111 145 100 1”

32 133 170 127 1.1/4”

40 150 180 127 1.1/2”

50 178 210 150 2”

Size (mm)	L	H	ØHW	T
15	83	130	80	1/2”
20	95	135	80	3/4”
25	111	145	100	1”
32	133	170	127	1.1/4”
40	150	180	127	1.1/2”
50	178	210	150	2”
