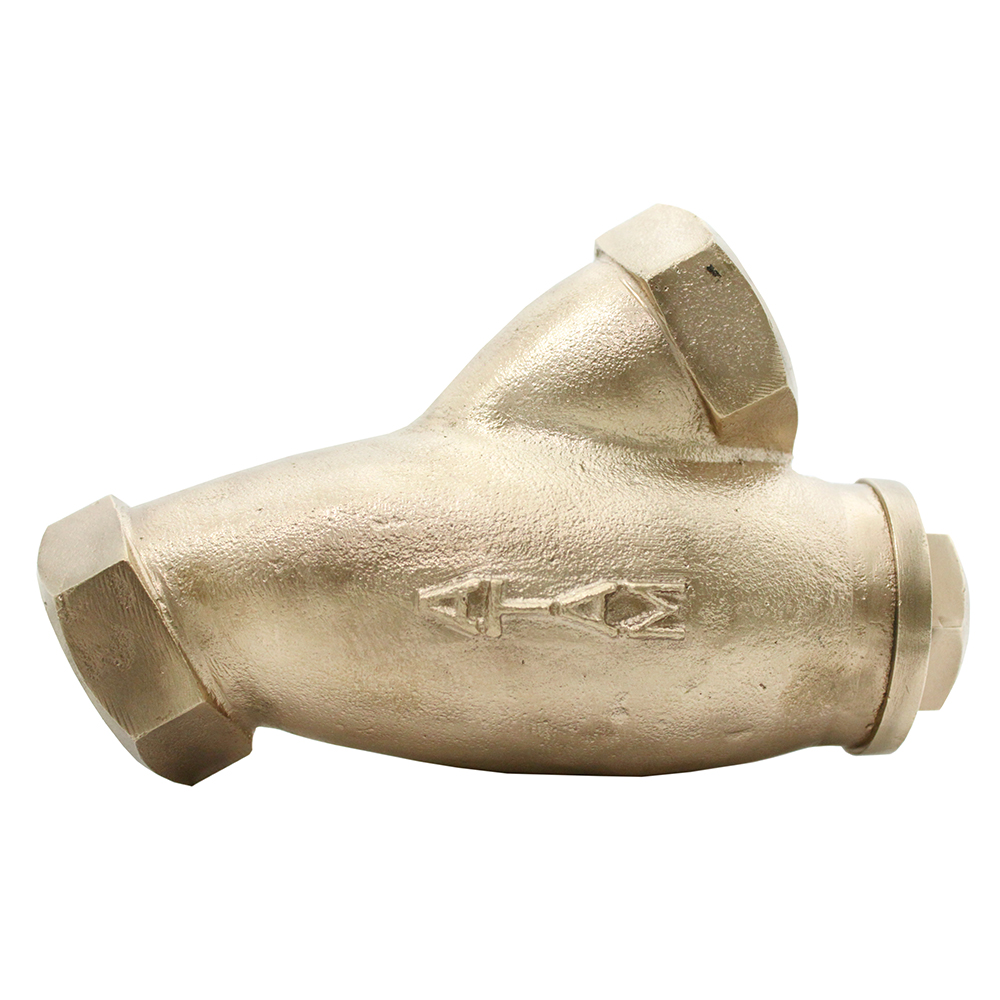

AV-208 Bronze Y-Type Strainer, Screwed Ends

AV-208 | Bronze Y-Type Strainer, Screwed Ends

Features

Body Material Cum Standard

Bronze (IBR 282 (a) (iv) Gr. B)

Product Description

Y-Type, Screwed in Cover

Trim

Stainless Steel (Type 304) Screen Having 1mm Diameter Perforations

End Details

Screwed Female BSP Taper Threads (BS-21)

Test Pressure

Body: 500 Psig (Hyd.)

Max. Working Pressure

250 Psig (Steam)

Max. Working Temperature

225°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

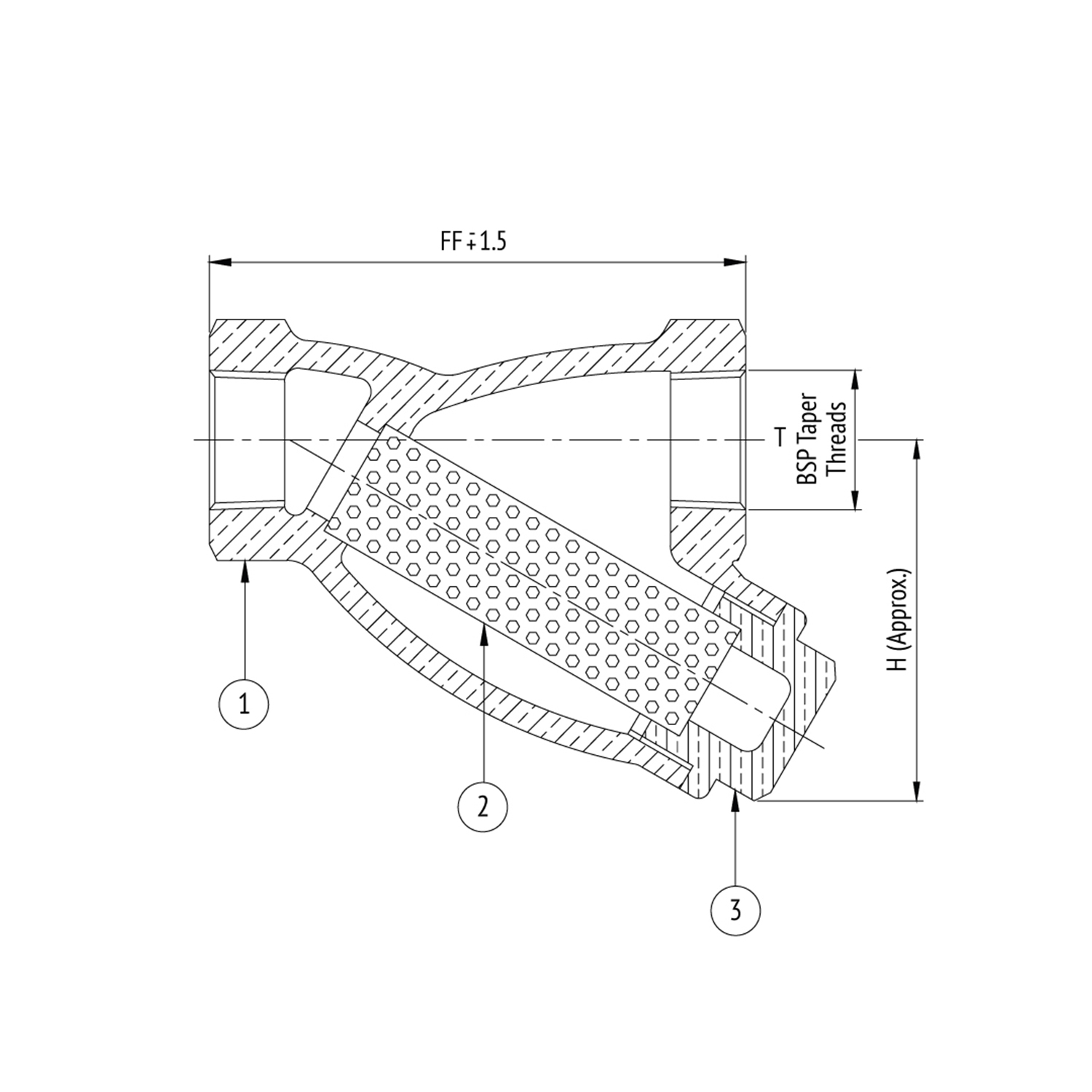

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
2	Screen	1	Stainless Steel	ASTM A 240 Type 304 (1mm Dia. Perforation)
3	Cover	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

Download PDF Product Inquiry

Dimensional Data

Size (mm) FF H T

15 78 55 1/2”

20 100 68 3/4”

25 138 85 1”

32 152 100 1.1/4”

40 178 115 1.1/2”

50 222 140 2”

Download PDF Product Inquiry
AV-208 | Bronze Y-Type Strainer, Screwed Ends

Product Inquiry

Size (mm)	FF	H	T
15	78	55	1/2”
20	100	68	3/4”
25	138	85	1”
32	152	100	1.1/4”
40	178	115	1.1/2”
50	222	140	2”

Features

Body Material Cum Standard

Bronze (IBR 282 (a) (iv) Gr. B)

Product Description

Y-Type, Screwed in Cover

Trim

Stainless Steel (Type 304) Screen Having 1mm Diameter Perforations

End Details

Screwed Female BSP Taper Threads (BS-21)

Test Pressure

Body: 500 Psig (Hyd.)

Max. Working Pressure

250 Psig (Steam)

Max. Working Temperature

225°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Body 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

2 Screen 1 Stainless Steel ASTM A 240 Type 304 (1mm Dia. Perforation)

3 Cover 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

Dimensional Data

Size (mm) FF H T

15 78 55 1/2”

20 100 68 3/4”

25 138 85 1”

32 152 100 1.1/4”

40 178 115 1.1/2”

50 222 140 2”

Size (mm)	FF	H	T
15	78	55	1/2”
20	100	68	3/4”
25	138	85	1”
32	152	100	1.1/4”
40	178	115	1.1/2”
50	222	140	2”
