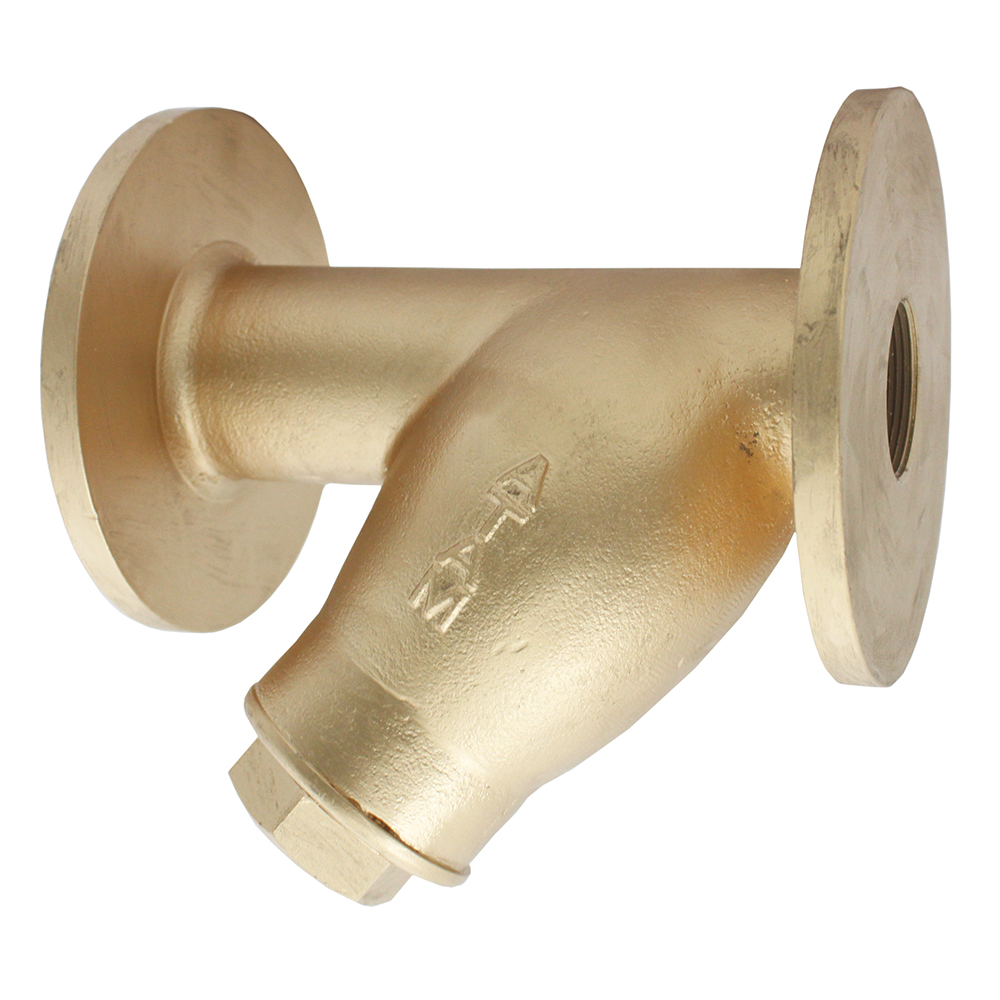

AV-209 Bronze Y-Type Strainer, Flanged Ends

AV-209 | Bronze Y-Type Strainer, Flanged Ends

Features

Body Material Cum Standard

Bronze (IBR 282 (a) (iv) Gr. B)

Product Description

Y-Type, Screwed in Cover

Trim

Stainless Steel (Type 304) Screen Having 1mm Diameter Perforations

End Details

Flanged Ends as per BS-10 Table-H Flat Face (Undrilled)

Test Pressure

Body: 500 Psig (Hyd.)

Max. Working Pressure

250 Psig (Steam)

Max. Working Temperature

225°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
2	Screen	1	Stainless Steel	ASTM A 240 Type 304 (1mm Dia. Perforation)
3	Cover	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

Download PDF Product Inquiry

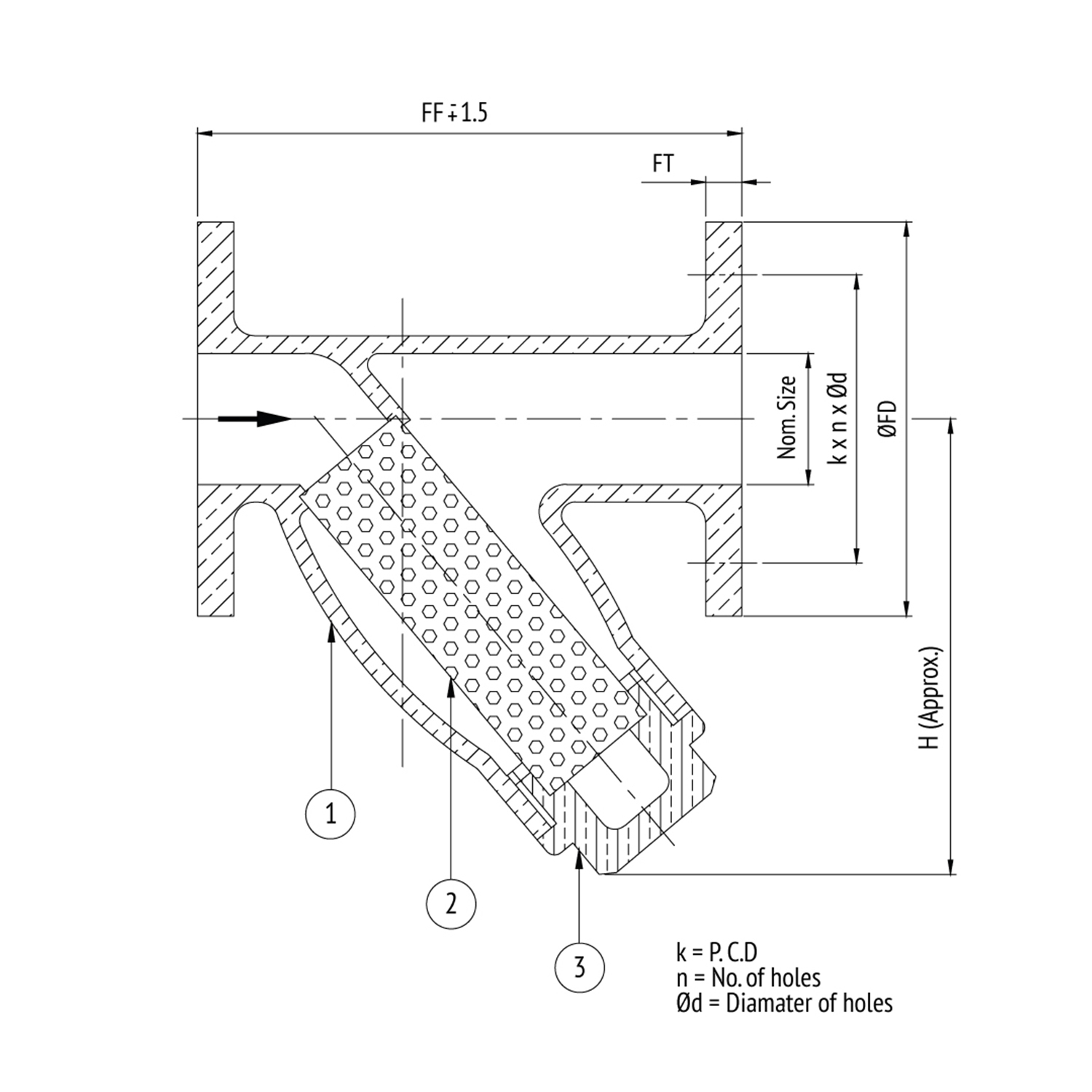

Dimensional Data

Size (mm)	FF	H	ØFD	FT	k	n	Ød
15	125	67	114.3	9.5	82.6	4	17.5
20	140	85	114.3	9.5	82.6	4	17.5
25	162	110	120.7	11.1	87.3	4	17.5
32	178	120	133.4	11.1	98.4	4	17.5
40	203	146	139.7	12.7	104.8	4	17.5
50	203	195	165.1	12.7	127	4	17.5

Download PDF Product Inquiry
