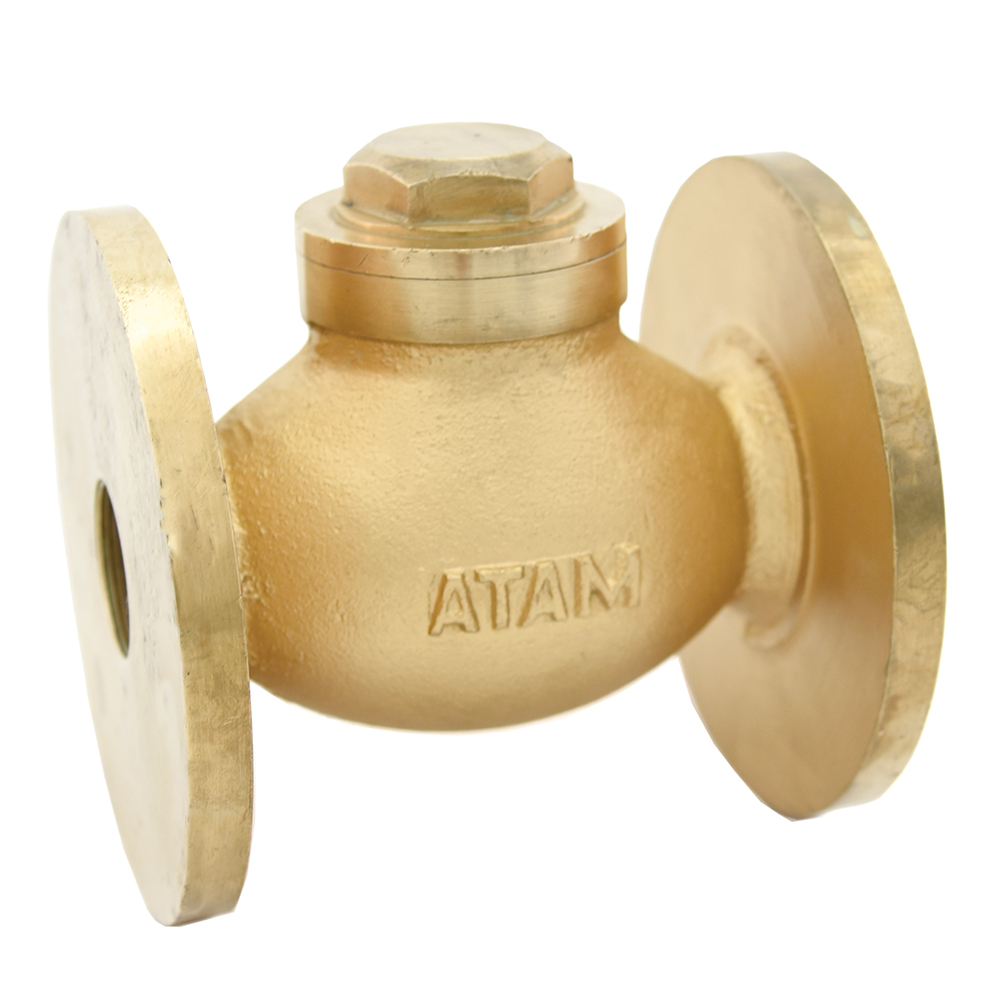

AV-211 Bronze Horizontal Lift Check Valve, Flanged Ends

AV-211 | Bronze Horizontal Lift Check Valve, Flanged Ends

Features

Body Material Cum Standard

Bronze (IBR 282 (a) (iv) Gr. B)

Product Description

Screwed in Cover

Type of Seat

Renewable Seat

Type of Disc

Renewable Disc

Trim

13% Cr. (SS 410)

End Details

Flanged Ends as per BS-10 Table-H Flat Face (Undrilled)

Test Pressure

Body: 500 Psig (Hyd.)

Max. Working Pressure

250 Psig (Steam)

Max. Working Temperature

225°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
2	Body Seat Ring	1	Stainless Steel	ASTM A 276 Type 410
3	Disc	1	Stainless Steel	ASTM A 276 Type 410
4	Cover	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

Download PDF Product Inquiry

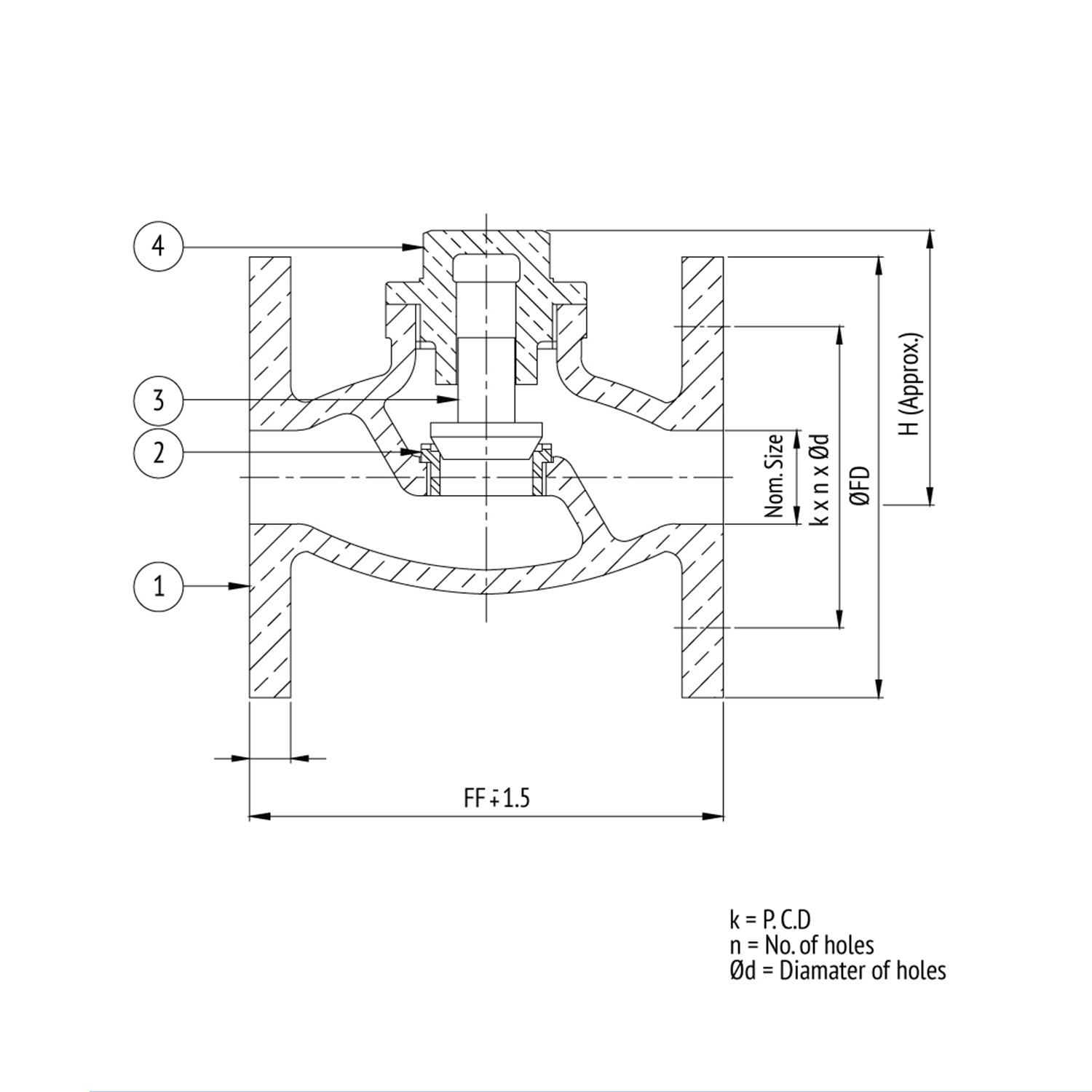

Dimensional Data

Size (mm)	FF	H	ØFD	FT	k	n	Ød
15	102	55	114.3	9.5	82.6	4	17.5
20	114	55	114.3	9.5	82.6	4	17.5
25	127	64	120.7	11.1	87.3	4	17.5
32	140	74	133.4	11.1	98.4	4	17.5
40	150	80	139.7	12.7	104.8	4	17.5
50	178	90	165.1	12.7	127	4	17.5

Download PDF Product Inquiry

AV-211 | Bronze Horizontal Lift Check Valve, Flanged Ends

Product Inquiry

Features

Body Material Cum Standard

Bronze (IBR 282 (a) (iv) Gr. B)

Product Description

Screwed in Cover

Type of Seat

Renewable Seat

Type of Disc

Renewable Disc

Trim

13% Cr. (SS 410)

End Details

Flanged Ends as per BS-10 Table-H Flat Face (Undrilled)

Test Pressure

Body: 500 Psig (Hyd.)

Max. Working Pressure

250 Psig (Steam)

Max. Working Temperature

225°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Body 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

2 Body Seat Ring 1 Stainless Steel ASTM A 276 Type 410

3 Disc 1 Stainless Steel ASTM A 276 Type 410

4 Cover 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

Dimensional Data

Size (mm) FF H ØFD FT k n Ød

15 102 55 114.3 9.5 82.6 4 17.5

20 114 55 114.3 9.5 82.6 4 17.5

25 127 64 120.7 11.1 87.3 4 17.5

32 140 74 133.4 11.1 98.4 4 17.5

40 150 80 139.7 12.7 104.8 4 17.5

50 178 90 165.1 12.7 127 4 17.5
