Features
Body Material Cum Standard
Bronze (IBR 282 (a) (iv) Gr. B)
Product Description
with Automatic Shut-Off Device in the Water Arm (LH or RH)
End Details
Flanged Ends as per BS-10 Table-H Flat Face (Undrilled)
Test Pressure
Body: 500 Psig (Hyd.)
Max. Working Pressure
250 Psig (Steam)
Max. Working Temperature
225°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Suitability
Water
Steam
Gas
Oil
Air
-

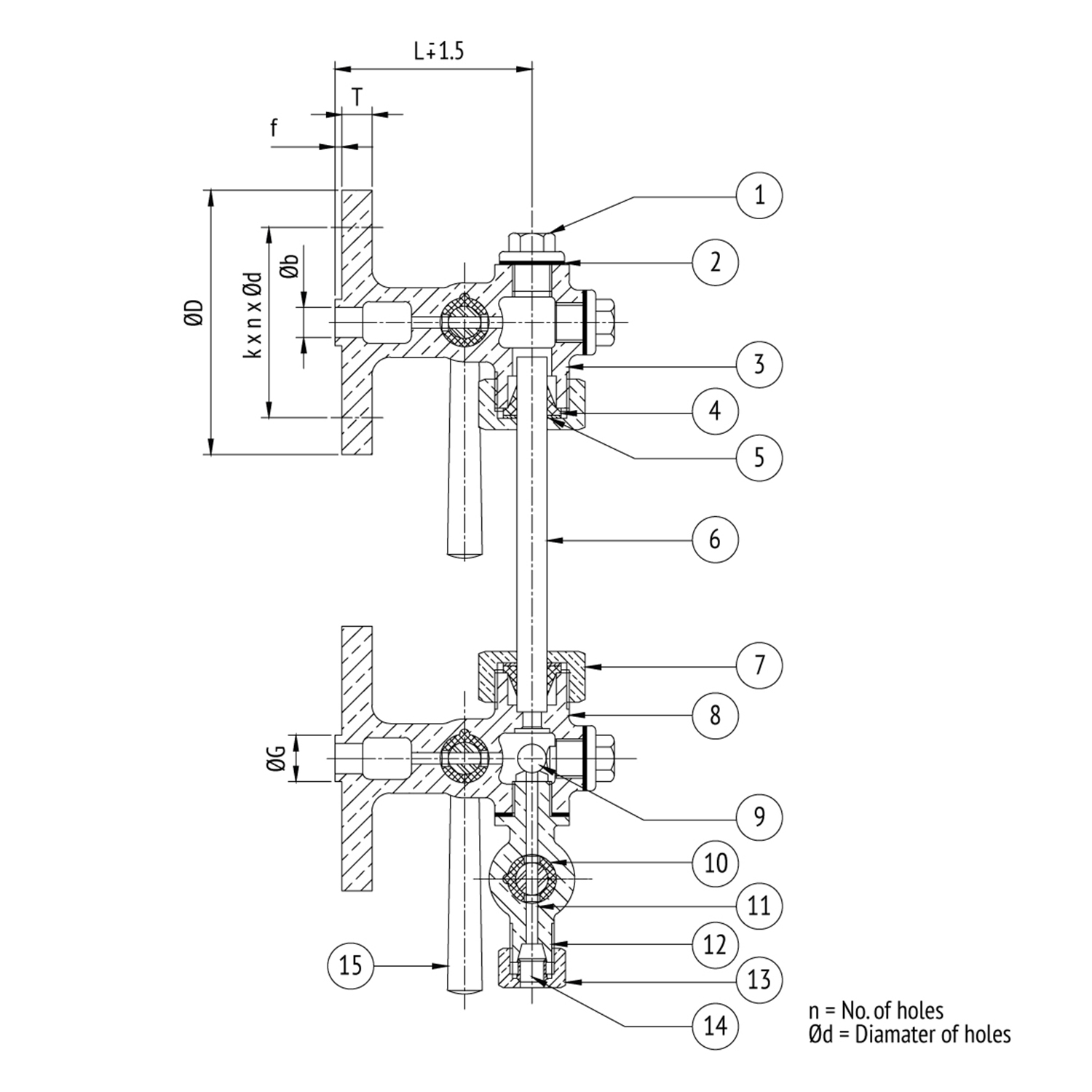

Material Combination
S.No Description No. Material Specifications 1 Plug 1 Bronze IBR 282 (a) (iv) Gr. B 2 Gasket 1 CAF IS 2712 3 upper Arm 1 Bronze IBR 282 (a) (iv) Gr. B 4 Cone 1 Rubber – 5 Washer 1 Bronze IBR 282 (a) (iv) Gr. B 6 Glass Tube 1 – – 7 Nut 1 Bronze IBR 282 (a) (iv) Gr. B 8 Lower Arm 1 Bronze IBR 282 (a) (iv) Gr. B 9 Ball 1 Stainless Steel AISI 304 10 Sleeve 1 Moulded Asbestos – 11 Stem 1 Stainless Steel AISI 304 12 Drain Valve 1 Bronze IBR 282 (a) (iv) Gr. B 13 Nut 1 Bronze IBR 282 (a) (iv) Gr. B 14 Nipple 1 Bronze IBR 282 (a) (iv) Gr. B 15 Handle 1 M.S. – -
Dimensional Data
Size (mm) L ØD Øb ØG T f Øk n Ød 15 82 114.3 12.7 19 9.6 3 82.6 4 17.5 18 95 114.3 15.8 25.4 9.6 3 82.6 4 17.5 20 95 114.3 19 25.4 9.6 3 82.6 4 17.5
Features
Body Material Cum Standard
Bronze (IBR 282 (a) (iv) Gr. B)
Product Description
with Automatic Shut-Off Device in the Water Arm (LH or RH)
End Details
Flanged Ends as per BS-10 Table-H Flat Face (Undrilled)
Test Pressure
Body: 500 Psig (Hyd.)
Max. Working Pressure
250 Psig (Steam)
Max. Working Temperature
225°C
Body Material Cum Standard
Bronze (IBR 282 (a) (iv) Gr. B)
Product Description
with Automatic Shut-Off Device in the Water Arm (LH or RH)
End Details
Flanged Ends as per BS-10 Table-H Flat Face (Undrilled)
Test Pressure
Body: 500 Psig (Hyd.)
Max. Working Pressure
250 Psig (Steam)
Max. Working Temperature
225°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Suitability
Water
Steam
Gas
Oil
Air
Material Combination
S.No
Description
No.
Material
Specifications
1
Plug
1
Bronze
IBR 282 (a) (iv) Gr. B
2
Gasket
1
CAF
IS 2712
3
upper Arm
1
Bronze
IBR 282 (a) (iv) Gr. B
4
Cone
1
Rubber
–
5
Washer
1
Bronze
IBR 282 (a) (iv) Gr. B
6
Glass Tube
1
–
–
7
Nut
1
Bronze
IBR 282 (a) (iv) Gr. B
8
Lower Arm
1
Bronze
IBR 282 (a) (iv) Gr. B
9
Ball
1
Stainless Steel
AISI 304
10
Sleeve
1
Moulded Asbestos
–
11
Stem
1
Stainless Steel
AISI 304
12
Drain Valve
1
Bronze
IBR 282 (a) (iv) Gr. B
13
Nut
1
Bronze
IBR 282 (a) (iv) Gr. B
14
Nipple
1
Bronze
IBR 282 (a) (iv) Gr. B
15
Handle
1
M.S.
–
| S.No | Description | No. | Material | Specifications |
|---|---|---|---|---|
| 1 | Plug | 1 | Bronze | IBR 282 (a) (iv) Gr. B |
| 2 | Gasket | 1 | CAF | IS 2712 |
| 3 | upper Arm | 1 | Bronze | IBR 282 (a) (iv) Gr. B |
| 4 | Cone | 1 | Rubber | – |
| 5 | Washer | 1 | Bronze | IBR 282 (a) (iv) Gr. B |
| 6 | Glass Tube | 1 | – | – |
| 7 | Nut | 1 | Bronze | IBR 282 (a) (iv) Gr. B |
| 8 | Lower Arm | 1 | Bronze | IBR 282 (a) (iv) Gr. B |
| 9 | Ball | 1 | Stainless Steel | AISI 304 |
| 10 | Sleeve | 1 | Moulded Asbestos | – |
| 11 | Stem | 1 | Stainless Steel | AISI 304 |
| 12 | Drain Valve | 1 | Bronze | IBR 282 (a) (iv) Gr. B |
| 13 | Nut | 1 | Bronze | IBR 282 (a) (iv) Gr. B |
| 14 | Nipple | 1 | Bronze | IBR 282 (a) (iv) Gr. B |
| 15 | Handle | 1 | M.S. | – |
Dimensional Data
Size (mm)
L
ØD
Øb
ØG
T
f
Øk
n
Ød
15
82
114.3
12.7
19
9.6
3
82.6
4
17.5
18
95
114.3
15.8
25.4
9.6
3
82.6
4
17.5
20
95
114.3
19
25.4
9.6
3
82.6
4
17.5
| Size (mm) | L | ØD | Øb | ØG | T | f | Øk | n | Ød |
|---|---|---|---|---|---|---|---|---|---|
| 15 | 82 | 114.3 | 12.7 | 19 | 9.6 | 3 | 82.6 | 4 | 17.5 |
| 18 | 95 | 114.3 | 15.8 | 25.4 | 9.6 | 3 | 82.6 | 4 | 17.5 |
| 20 | 95 | 114.3 | 19 | 25.4 | 9.6 | 3 | 82.6 | 4 | 17.5 |
Selected Product

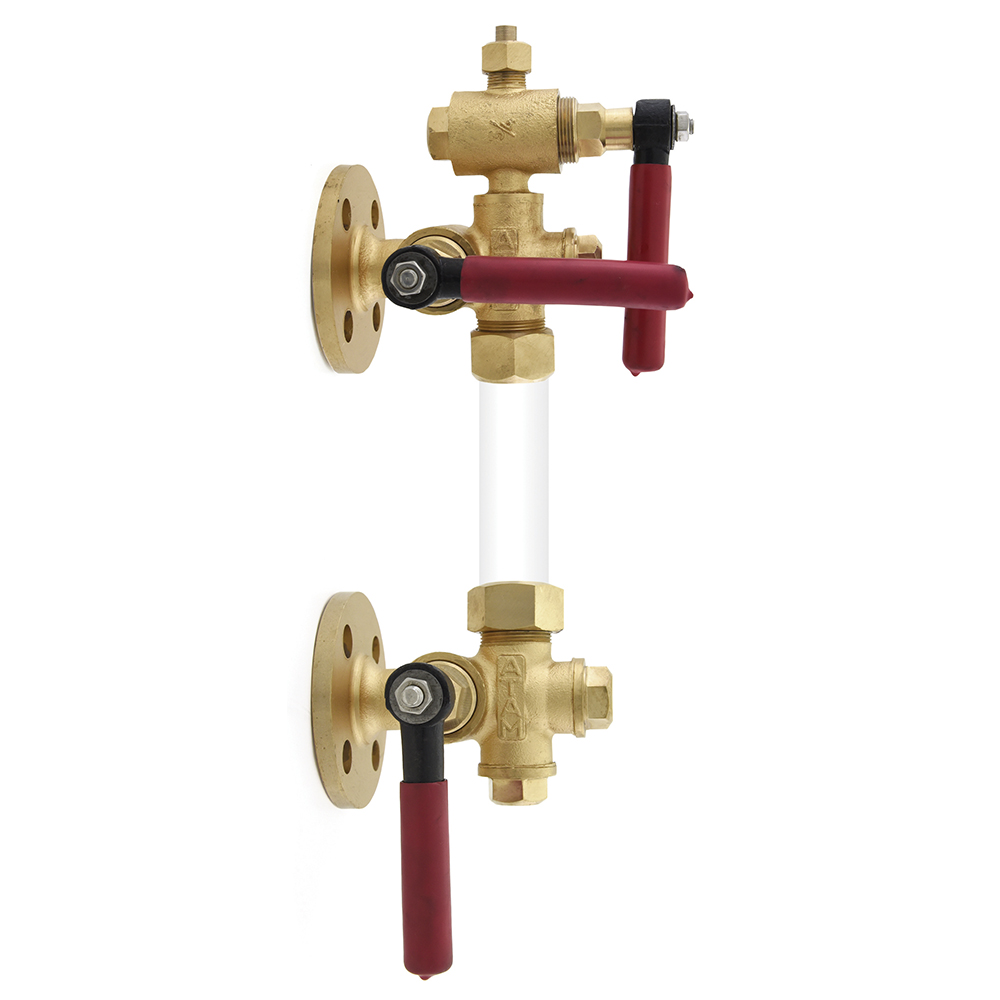

AV-214 Bronze Sleeve Packed Water Level Gauge, Flanged Ends
