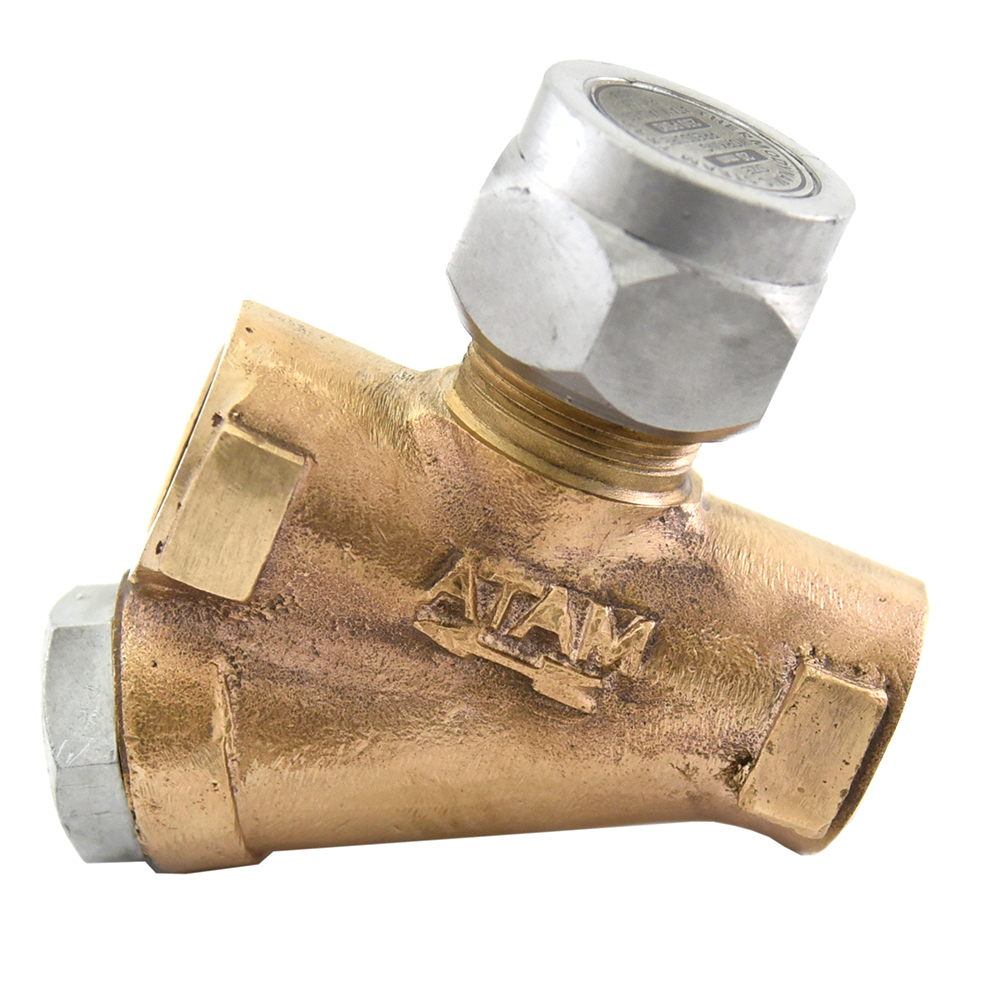

AV-220 Bronze Thermodynamic Steam Trap, Screwed Ends

AV-220 | Bronze Thermodynamic Steam Trap, Screwed Ends

Features

Body Material Cum Standard

Bronze (IBR 282 (a) (iv) Gr. B)

Product Description

with SS 304 Strainer

End Details

Screwed Female BSP Taper Threads (BS-21)

Test Pressure

Body: 500 Psig (Hyd.)

Max. Working Pressure

250 Psig (Steam)

Max. Working Temperature

225°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	Top Nut	1	Stainless Steel	AISI 410
2	Disc	1	Stainless Steel	AISI 410
3	Seat	1	Stainless Steel	AISI 410
4	Body	1	Bronze	IBR 282 (a) (iv) Gr. B
5	Screen	1	Stainless Steel	AISI 304
6	Cover	1	Stainless Steel	AISI 410

Download PDF Product Inquiry

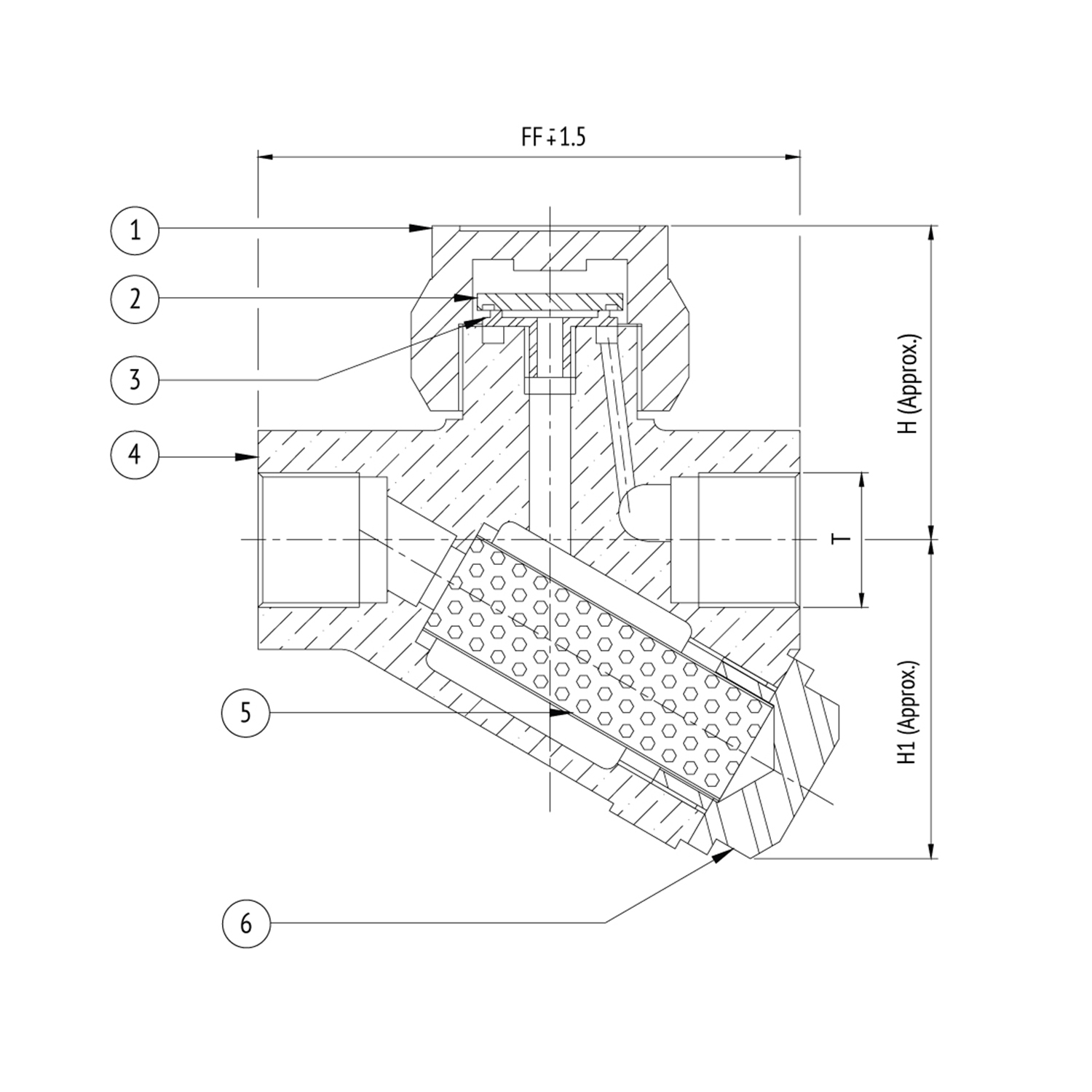

Dimensional Data

Size (mm) FF T H H1

15 83 1/2” 60 56

20 95 3/4” 60 62

25 117 1” 70 76

Download PDF Product Inquiry
AV-220 | Bronze Thermodynamic Steam Trap, Screwed Ends

Product Inquiry

Size (mm)	FF	T	H	H1
15	83	1/2”	60	56
20	95	3/4”	60	62
25	117	1”	70	76

Features

Body Material Cum Standard

Bronze (IBR 282 (a) (iv) Gr. B)

Product Description

with SS 304 Strainer

End Details

Screwed Female BSP Taper Threads (BS-21)

Test Pressure

Body: 500 Psig (Hyd.)

Max. Working Pressure

250 Psig (Steam)

Max. Working Temperature

225°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Top Nut 1 Stainless Steel AISI 410

2 Disc 1 Stainless Steel AISI 410

3 Seat 1 Stainless Steel AISI 410

4 Body 1 Bronze IBR 282 (a) (iv) Gr. B

5 Screen 1 Stainless Steel AISI 304

6 Cover 1 Stainless Steel AISI 410

Dimensional Data

Size (mm) FF T H H1

15 83 1/2” 60 56

20 95 3/4” 60 62

25 117 1” 70 76

Size (mm)	FF	T	H	H1
15	83	1/2”	60	56
20	95	3/4”	60	62
25	117	1”	70	76
