Features
Body Material Cum Standard
Bronze (IBR 282 (a) (iv) Gr. B)
Product Description
Two Piece Design
End Details
Screwed Male BSP Taper Threads (BS-21)
Test Pressure
Body: 500 Psig (Hyd.)
Max. Working Pressure
250 Psig (Steam)
Max. Working Temperature
225°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Suitability
Water
Steam
Gas
Oil
Air
-
Material Combination
S.No Description No. Material Specifications 1 Body 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K 2 Cone 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K 3 Fusible Alloy 1 Pb. Sn. Alloy IBR 333 4 Plug 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K -
Dimensional Data
Size (mm) FF T 15 53 1/2” 20 63 3/4” 25 70 1” 32 83 1.1/4” 40 89 1.1/2” 50 100 2”
Features
Body Material Cum Standard
Bronze (IBR 282 (a) (iv) Gr. B)
Product Description
Two Piece Design
End Details
Screwed Male BSP Taper Threads (BS-21)
Test Pressure
Body: 500 Psig (Hyd.)
Max. Working Pressure
250 Psig (Steam)
Max. Working Temperature
225°C
Body Material Cum Standard
Bronze (IBR 282 (a) (iv) Gr. B)
Product Description
Two Piece Design
End Details
Screwed Male BSP Taper Threads (BS-21)
Test Pressure
Body: 500 Psig (Hyd.)
Max. Working Pressure
250 Psig (Steam)
Max. Working Temperature
225°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Suitability
Water
Steam
Gas
Oil
Air
Material Combination
S.No
Description
No.
Material
Specifications
1
Body
1
Bronze
IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
2
Cone
1
Bronze
IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
3
Fusible Alloy
1
Pb. Sn. Alloy
IBR 333
4
Plug
1
Bronze
IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
| S.No | Description | No. | Material | Specifications |
|---|---|---|---|---|
| 1 | Body | 1 | Bronze | IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K |
| 2 | Cone | 1 | Bronze | IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K |
| 3 | Fusible Alloy | 1 | Pb. Sn. Alloy | IBR 333 |
| 4 | Plug | 1 | Bronze | IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K |
Dimensional Data
Size (mm)
FF
T
15
53
1/2”
20
63
3/4”
25
70
1”
32
83
1.1/4”
40
89
1.1/2”
50
100
2”
| Size (mm) | FF | T |
|---|---|---|
| 15 | 53 | 1/2” |
| 20 | 63 | 3/4” |
| 25 | 70 | 1” |
| 32 | 83 | 1.1/4” |
| 40 | 89 | 1.1/2” |
| 50 | 100 | 2” |
Selected Product

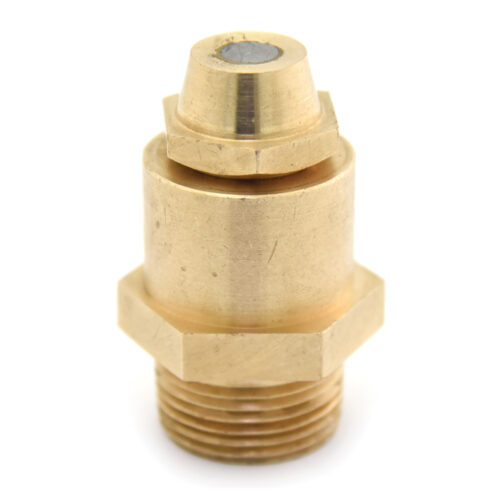

AV-222 Bronze Fusible Plug, Screwed Ends
