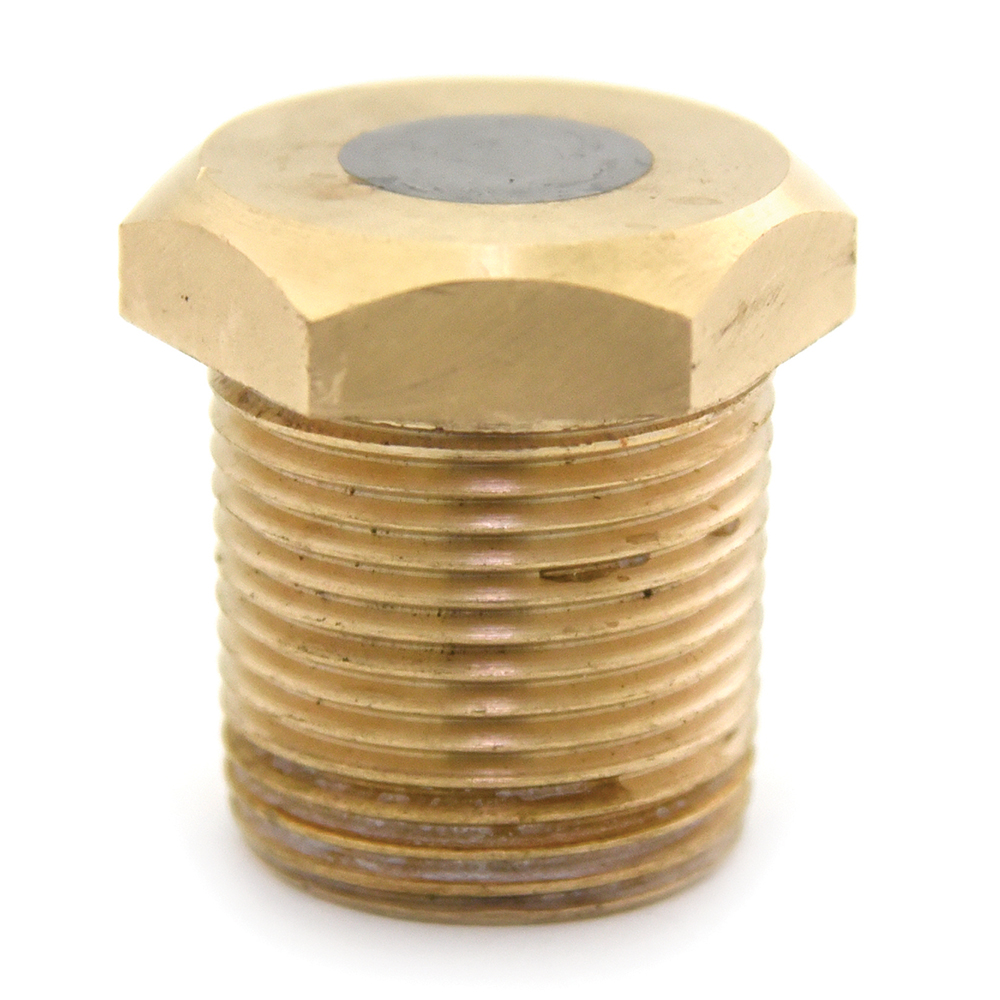

AV-223 Bronze Fusible Plug, Screwed Ends

AV-223 | Bronze Fusible Plug, Screwed Ends

Features

Body Material Cum Standard

Bronze (IBR 282 (a) (iv) Gr. B)

Product Description

One Piece Design

End Details

Screwed Male BSP Taper Threads (BS-21)

Test Pressure

Body: 500 Psig (Hyd.)

Max. Working Pressure

250 Psig (Steam)

Max. Working Temperature

225°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

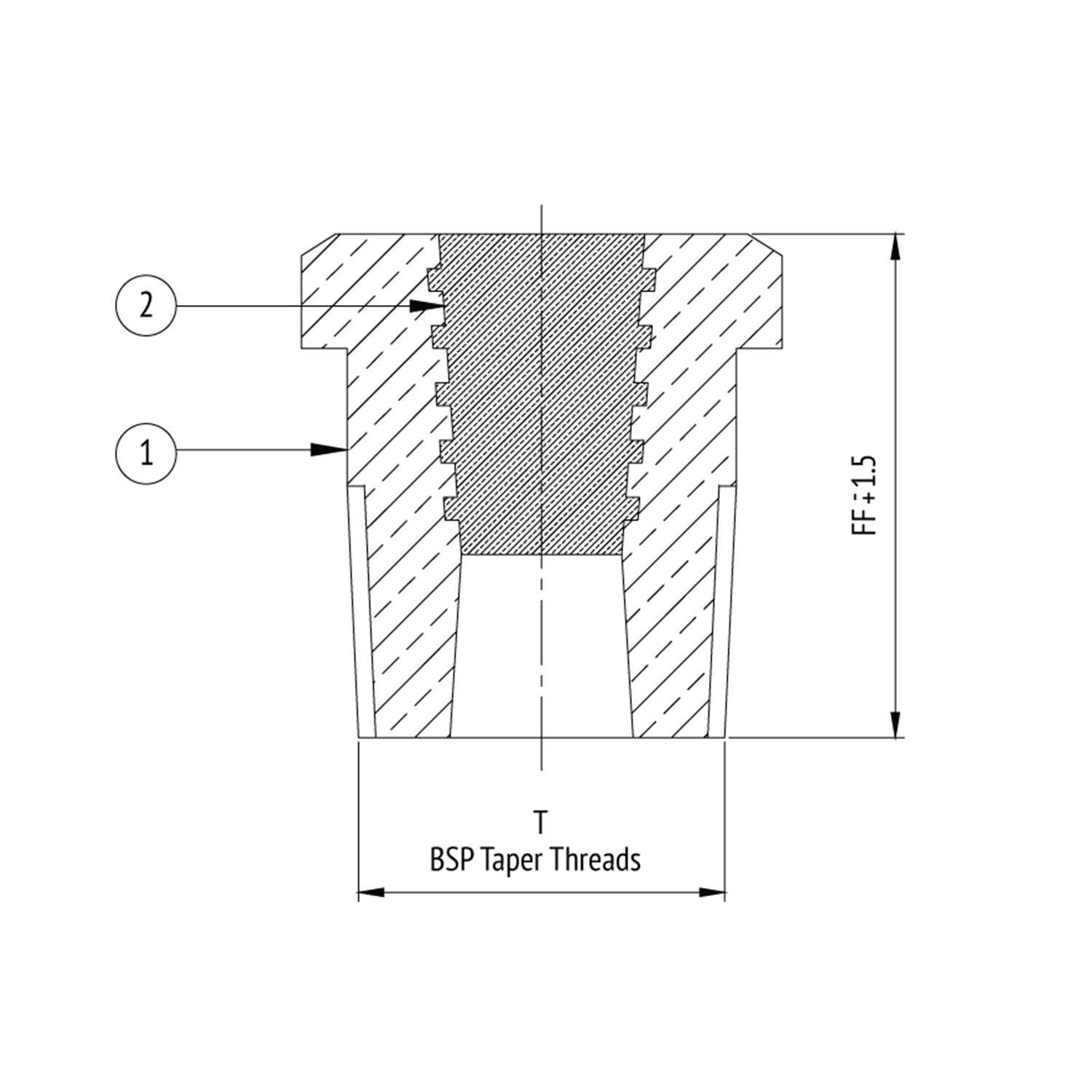

Material Combination

S.No Description No. Material Specifications

1 Body 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

2 Fusible Alloy 1 Pb. Sn. Alloy IBR 333

AV-223 | Bronze Fusible Plug, Screwed Ends

Download PDF Product Inquiry
Dimensional Data

Size (mm) FF T

15 32 1/2”

20 38 3/4”

25 44 1”

Download PDF Product Inquiry
AV-223 | Bronze Fusible Plug, Screwed Ends

Product Inquiry

S.No	Description	No.	Material	Specifications
1	Body	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
2	Fusible Alloy	1	Pb. Sn. Alloy	IBR 333

Size (mm)	FF	T
15	32	1/2”
20	38	3/4”
25	44	1”

Features

Body Material Cum Standard

Bronze (IBR 282 (a) (iv) Gr. B)

Product Description

One Piece Design

End Details

Screwed Male BSP Taper Threads (BS-21)

Test Pressure

Body: 500 Psig (Hyd.)

Max. Working Pressure

250 Psig (Steam)

Max. Working Temperature

225°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Body 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

2 Fusible Alloy 1 Pb. Sn. Alloy IBR 333

S.No	Description	No.	Material	Specifications
1	Body	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
2	Fusible Alloy	1	Pb. Sn. Alloy	IBR 333

Dimensional Data

Size (mm) FF T

15 32 1/2”

20 38 3/4”

25 44 1”

Size (mm)	FF	T
15	32	1/2”
20	38	3/4”
25	44	1”
