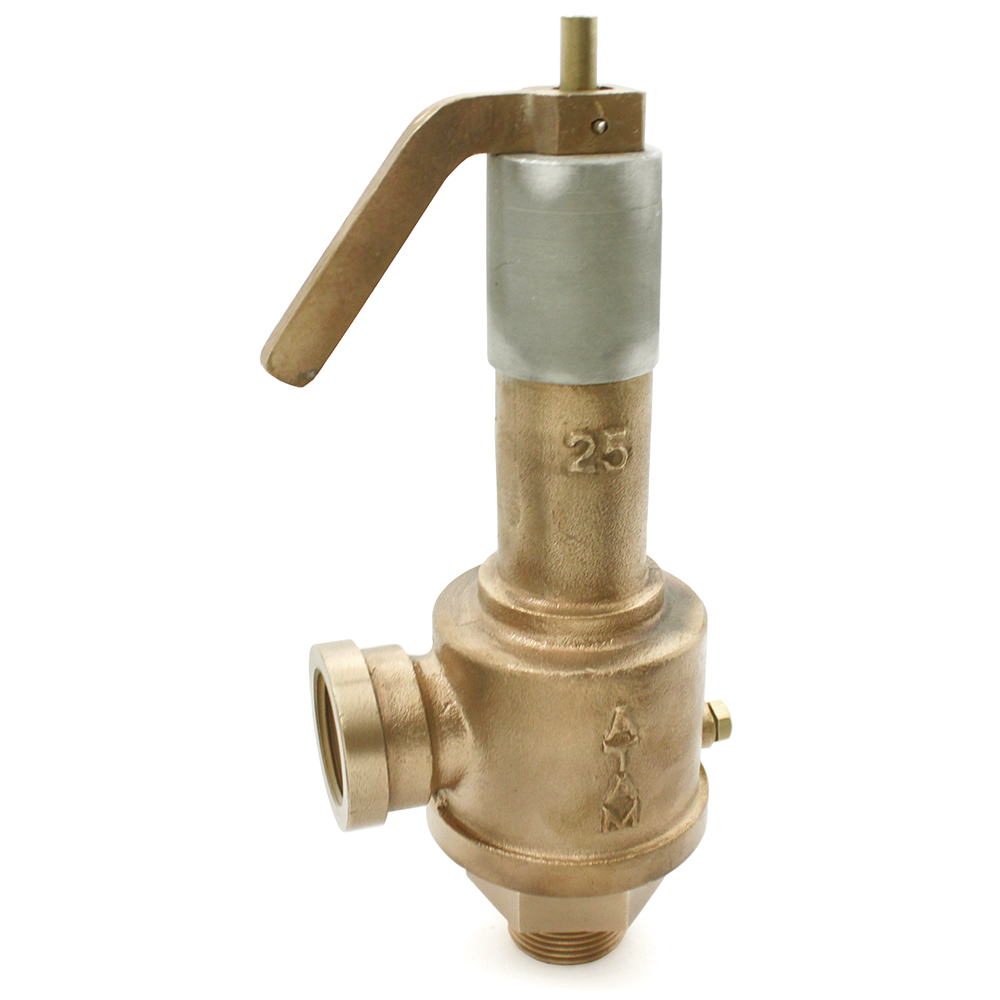

AV-230 Bronze Safety Valve, Screwed Ends

AV-230 | Bronze Safety Valve, Screwed Ends

Features

Type of Pattern

Right Angle Pattern

Body Material Cum Standard

Bronze (IBR 282 (a) (iv) Gr. B)

Product Description

Spring Loaded, Enclosed Discharge

Trim

Cu-Alloy

End Details

Inlet Screwed Male BSP Taper Threads (BS-21), Outlet Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 300 Psig (Hyd.)

Max. Working Pressure

150 Psig (Steam)

Max. Working Temperature

225°C

Max. Set Pressure

150 Psig (Steam)

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

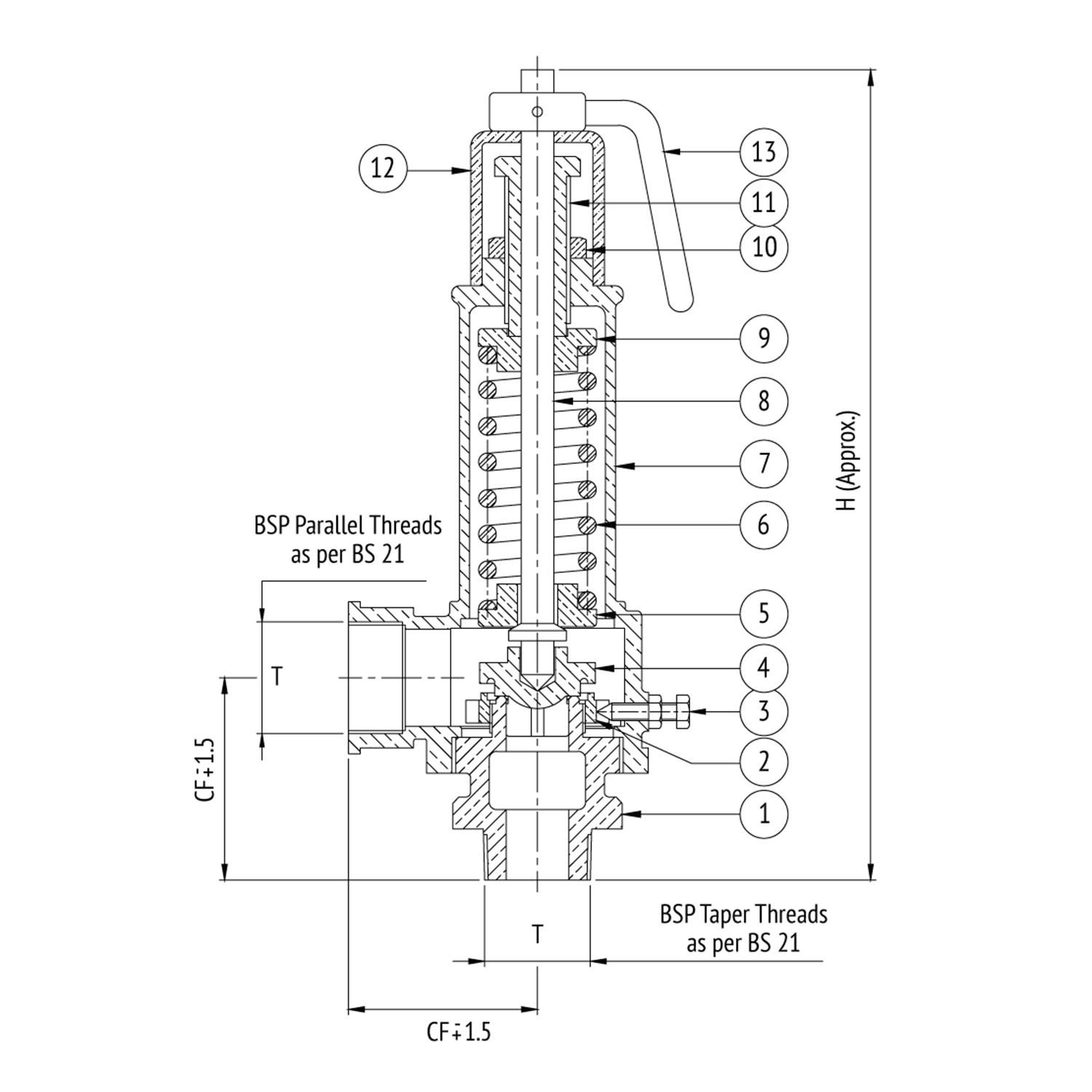

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
2	Regulating Ring	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
3	Locking Screw	1	Brass	–
4	Disc	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
5	Lower Spring Disc	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
6	Spring	1	Stainless Steel	IBR 307 / AISI 304
7	Spring Chamber	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
8	Stem	1	Brass / Stainless Steel	IS 6912 Gr. FLB / ASTM A 276 Type 410
9	Upper Spring Disc	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
10	Check Nut	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
11	Adjusting Screw	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
12	Cap	1	Aluminium	–
13	Lever	1	Bronze	IBR 282 (a) (iv) Gr. B

Download PDF Product Inquiry

Dimensional Data

Size (mm) CF CF1 H T

15 48 62 220 1/2”

20 48 62 220 3/4”

25 60 74 235 1”

32 74 81 291 1.1/4”

40 75 91 300 1.1/2”

50 81 110 360 2”

Download PDF Product Inquiry
AV-230 | Bronze Safety Valve, Screwed Ends

Product Inquiry

Size (mm)	CF	CF1	H	T
15	48	62	220	1/2”
20	48	62	220	3/4”
25	60	74	235	1”
32	74	81	291	1.1/4”
40	75	91	300	1.1/2”
50	81	110	360	2”

Features

Type of Pattern

Right Angle Pattern

Body Material Cum Standard

Bronze (IBR 282 (a) (iv) Gr. B)

Product Description

Spring Loaded, Enclosed Discharge

Trim

Cu-Alloy

End Details

Inlet Screwed Male BSP Taper Threads (BS-21), Outlet Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 300 Psig (Hyd.)

Max. Working Pressure

150 Psig (Steam)

Max. Working Temperature

225°C

Max. Set Pressure

150 Psig (Steam)

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Body 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

2 Regulating Ring 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

3 Locking Screw 1 Brass –

4 Disc 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

5 Lower Spring Disc 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

6 Spring 1 Stainless Steel IBR 307 / AISI 304

7 Spring Chamber 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

8 Stem 1 Brass / Stainless Steel IS 6912 Gr. FLB / ASTM A 276 Type 410

9 Upper Spring Disc 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

10 Check Nut 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

11 Adjusting Screw 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

12 Cap 1 Aluminium –

13 Lever 1 Bronze IBR 282 (a) (iv) Gr. B

Dimensional Data

Size (mm) CF CF1 H T

15 48 62 220 1/2”

20 48 62 220 3/4”

25 60 74 235 1”

32 74 81 291 1.1/4”

40 75 91 300 1.1/2”

50 81 110 360 2”

Size (mm)	CF	CF1	H	T
15	48	62	220	1/2”
20	48	62	220	3/4”
25	60	74	235	1”
32	74	81	291	1.1/4”
40	75	91	300	1.1/2”
50	81	110	360	2”
