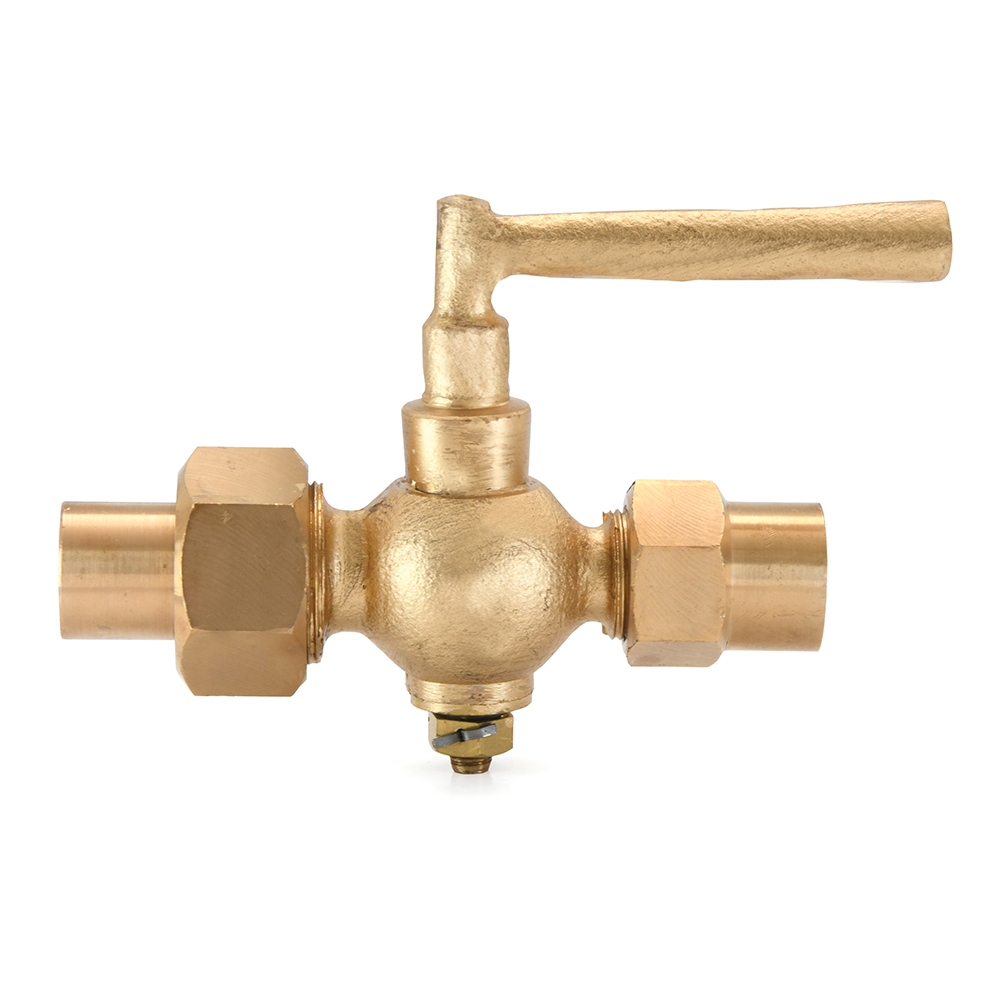

AV-241 Bronze Pressure Gauge Cock, Screwed Ends

AV-241 | Bronze Pressure Gauge Cock, Screwed Ends

Features

Body Material Cum Standard

Bronze (IBR 282 (a) (iv) Gr. B)

Product Description

Pressure Gauge Cock fitted with Pressure Coupling Nut & Tail Pipe

End Details

Screwed Female BSP Taper Threads (BS-21)

Test Pressure

Body: 500 Psig (Hyd.)

Max. Working Pressure

250 Psig (Steam)

Max. Working Temperature

225°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

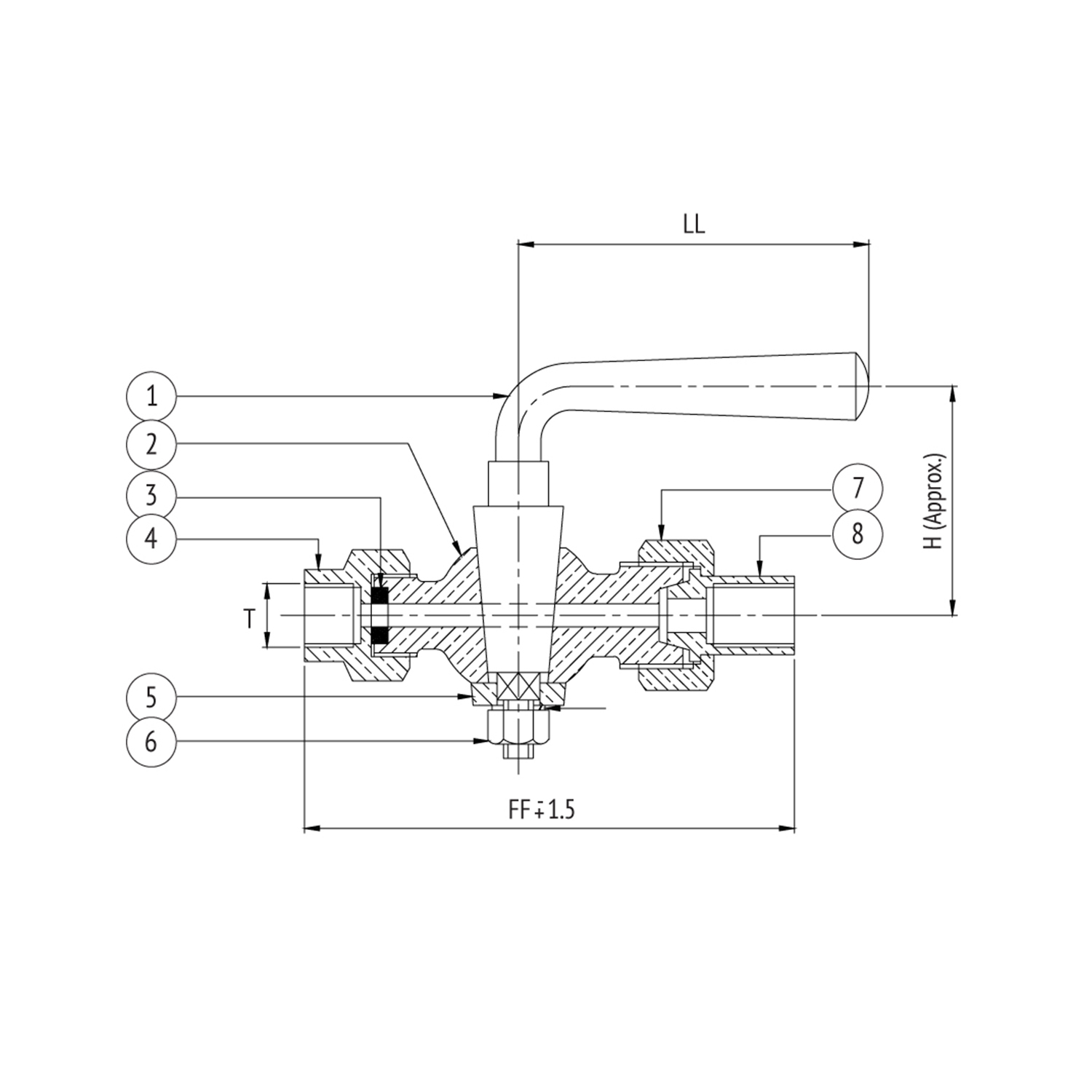

Material Combination

S.No	Description	No.	Material	Specifications
1	Plug	1	Bronze	IBR 282 (a) (iv) Gr. B
2	Body	1	Bronze	IBR 282 (a) (iv) Gr. B
3	Washer	1	Lead	–
4	Nut	1	Bronze	IBR 282 (a) (iv) Gr. B
5	Washer	1	Bronze	IBR 282 (a) (iv) Gr. B
6	Nut	1	Brass	–
7	Union Nut	1	Bronze	IBR 282 (a) (iv) Gr. B
8	Tail Pipe	1	Bronze	IBR 282 (a) (iv) Gr. B
9	Spring Washer	1	Spring Steel	–

Download PDF Product Inquiry

Dimensional Data

Size (mm) FF H LL T

10 135 62 90 3/8”

15 135 62 90 1/2”

Download PDF Product Inquiry
AV-241 | Bronze Pressure Gauge Cock, Screwed Ends

Product Inquiry

Size (mm)	FF	H	LL	T
10	135	62	90	3/8”
15	135	62	90	1/2”

Features

Body Material Cum Standard

Bronze (IBR 282 (a) (iv) Gr. B)

Product Description

Pressure Gauge Cock fitted with Pressure Coupling Nut & Tail Pipe

End Details

Screwed Female BSP Taper Threads (BS-21)

Test Pressure

Body: 500 Psig (Hyd.)

Max. Working Pressure

250 Psig (Steam)

Max. Working Temperature

225°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Plug 1 Bronze IBR 282 (a) (iv) Gr. B

2 Body 1 Bronze IBR 282 (a) (iv) Gr. B

3 Washer 1 Lead –

4 Nut 1 Bronze IBR 282 (a) (iv) Gr. B

5 Washer 1 Bronze IBR 282 (a) (iv) Gr. B

6 Nut 1 Brass –

7 Union Nut 1 Bronze IBR 282 (a) (iv) Gr. B

8 Tail Pipe 1 Bronze IBR 282 (a) (iv) Gr. B

9 Spring Washer 1 Spring Steel –

Dimensional Data

Size (mm) FF H LL T

10 135 62 90 3/8”

15 135 62 90 1/2”

Size (mm)	FF	H	LL	T
10	135	62	90	3/8”
15	135	62	90	1/2”
