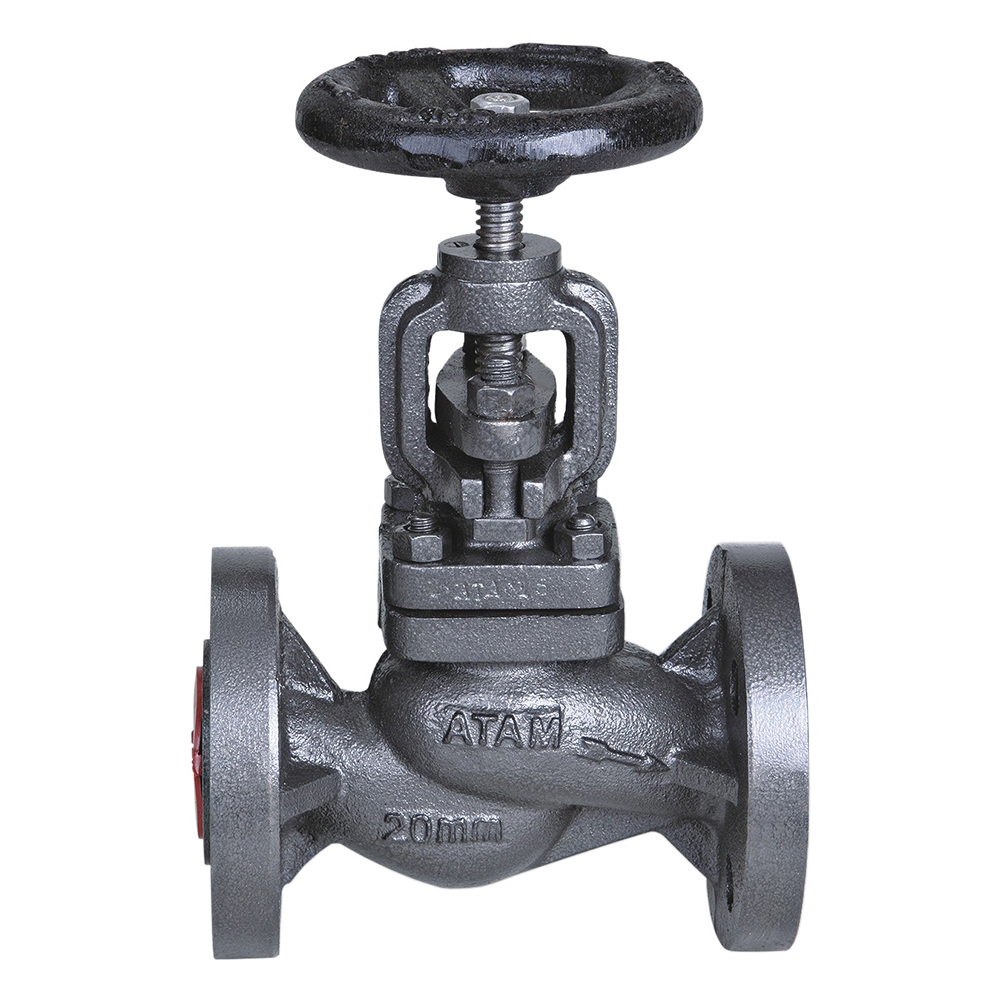

AV-251A Cast Iron Globe Steam Stop Valve, Flanged Ends, PN-10

AV-251A | Cast Iron Globe Steam Stop Valve, Flanged Ends, PN-10

Features

Testing Standard

BS EN 12266-Part 1

Pressure / Class Rating

PN-10

Body Material Cum Standard

Cast Iron (IBR 86 to 93 Gr. A)

Product Description

Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem with Backseat Arrangement, Handwheel Operated

Type of Seat

Renewable Seat

Type of Disc

Renewable Disc

Trim

13% Cr. (SS 410)

End Details

Flanged Drilling as per BS-10 Table-H Raised Face (PN-10)

Test Pressure

Body: 16 kg/cm² (Hyd.), Seat & Back Seat : 10 kg/cm²

Max. Working Pressure

8 kg/cm² (Steam)

Max. Working Temperature

220°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Cast Iron	BS EN 1561 Gr. GJL 220
2	Body Seat Ring	1	Stainless Steel	ASTM A 276 Type 410 / ASTM A 217 Gr. CA15
3	Disc	1	Stainless Steel	ASTM A 276 Type 410 / ASTM A 217 Gr. CA15
4	Disc Nut	1	Stainless Steel	ASTM A 276 Type 410
5	Stem	1	Stainless Steel	ASTM A 276 Type 410
6	Gasket	1	C.A.F. / Non Asbestos Fibre	–
7	Studs & Nuts	To Suit	Carbon Steel	–
8	Packing	–	Graphited Asbestos	–
9	Gland Flange	1	Cast Iron	BS EN 1561 Gr. GJL 220
10	Bonnet	1	Cast Iron	BS EN 1561 Gr. GJL 220
11	Yoke Bush	1	Al. Bronze	BS EN 1982 Gr. CC331G
12	Washer	1	Carbon Steel	–
13	Nut	1	Carbon Steel	–
14	Handwheel	1	M.I.	–
15	T-Bolts & Nuts	2 Each	Carbon Steel	–

Download PDF Product Inquiry

Dimensional Data

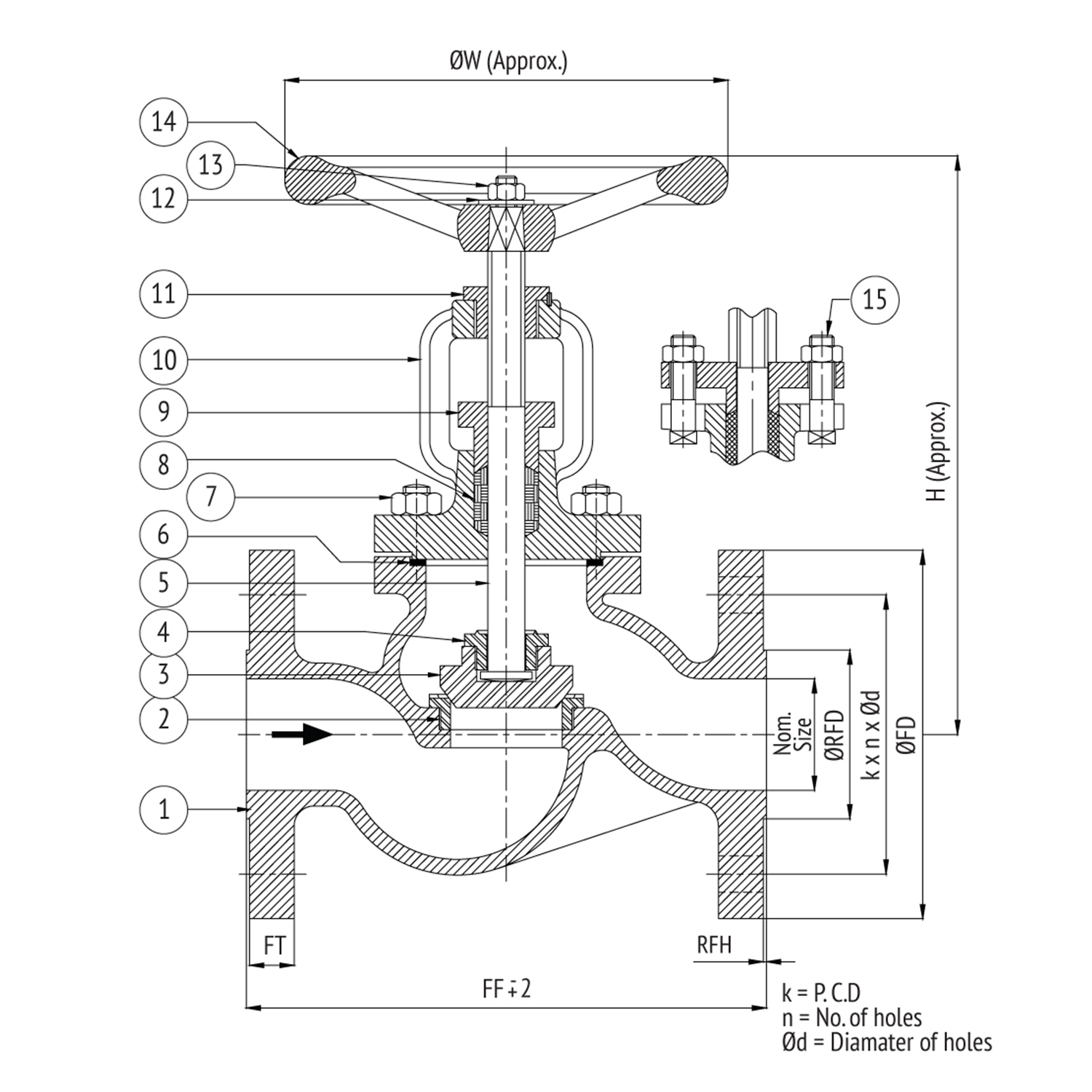

Size (mm) FF H ØW ØFD ØRFD ØRFH k n Ød FT

200 600 490 400 368.3 – – 324 12 22.3 26

250 730 630 400 431.8 – – 381 12 25.4 28

Download PDF Product Inquiry
