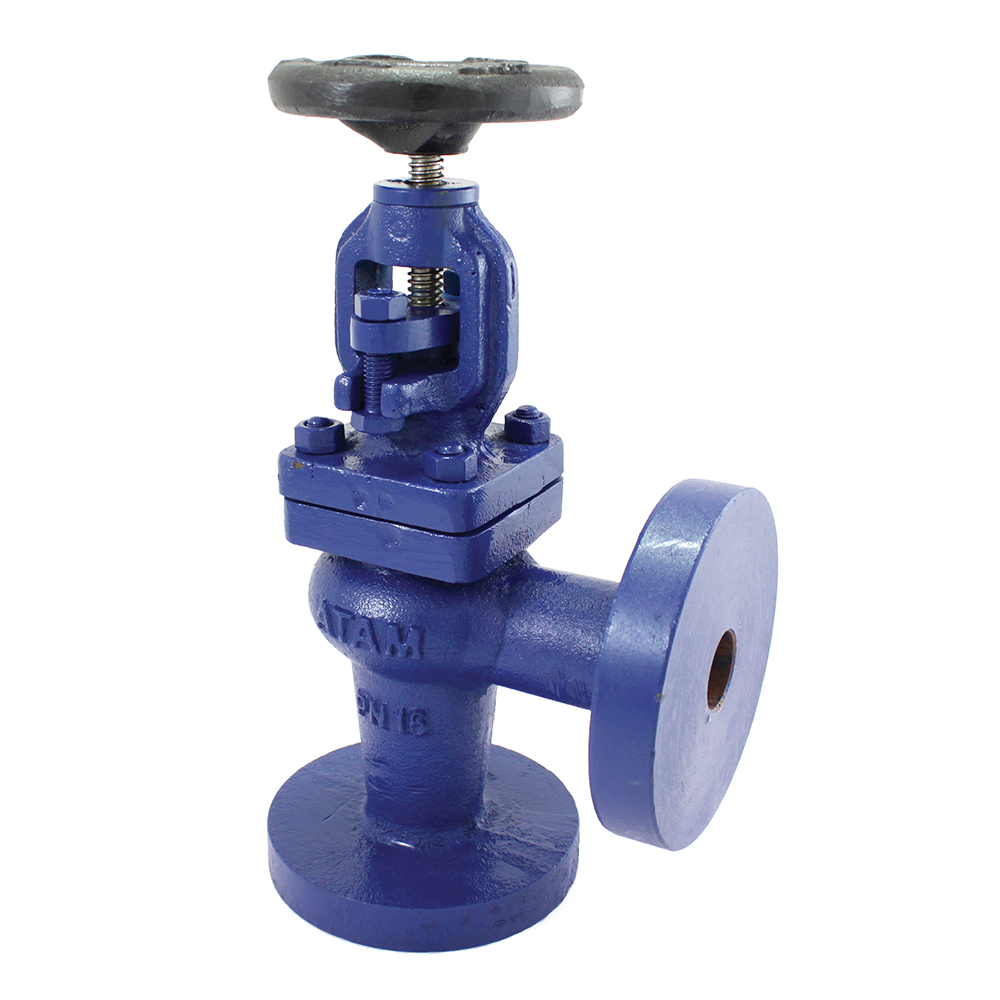

AV-252 Cast Iron Junction Steam Stop Valve, Flanged Ends, PN-16

AV-252 | Cast Iron Junction Steam Stop Valve, Flanged Ends, PN-16

Features

Type of Pattern

Right Angle Pattern

Pressure / Class Rating

PN-16

Body Material Cum Standard

Cast Iron (IBR 86 to 93 Gr. A)

Product Description

Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem with Backseat Arrangement, Handwheel Operated

Type of Seat

Renewable Seat

Type of Disc

Renewable Disc

Trim

13% Cr. (SS 410)

End Details

Flanged Drilling as per BS-10 Table-H Raised Face (PN-16)

Test Pressure

Body: 24 kg/cm² (Hyd.), Seat & Back Seat : 17.6 kg/cm²

Max. Working Pressure

13 kg/cm² (Steam)

Max. Working Temperature

220°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Cast Iron	IBR 86 to 93 Gr.A
2	Disc Holder	1	Cast Iron	IBR 86 to 93 Gr.A
3	Body Seat Ring	1	Stainless Steel	ASTM A 276 Type 410
4	Disc	1	Stainless Steel	ASTM A 276 Type 410
5	Disc Nut	1	Stainless Steel	ASTM A 276 Type 410
6	Gasket	1	C.A.F.	IS 2712
7	Bonnet	1	Cast Iron	IBR 86 to 93 Gr.A
8	Gland Packing	–	Graphited Asbestos	–
9	Gland	1	Cast Iron	IBR 86 to 93 Gr.A
10	Yoke Bush	1	Stainless Steel	ASTM A 582 Type 416
11	Stem	1	Stainless Steel	ASTM A 276 Type 410
12	Handwheel	1	Cast Iron	IS 210 Gr. FG200
13	Washer	1	Carbon Steel	–
14	Nut	1	Carbon Steel	–
15	Studs & Nuts	To Suit	Carbon Steel	–
16	T-Head Bolts & Nuts	2 Each	Carbon Steel	–

Download PDF Product Inquiry

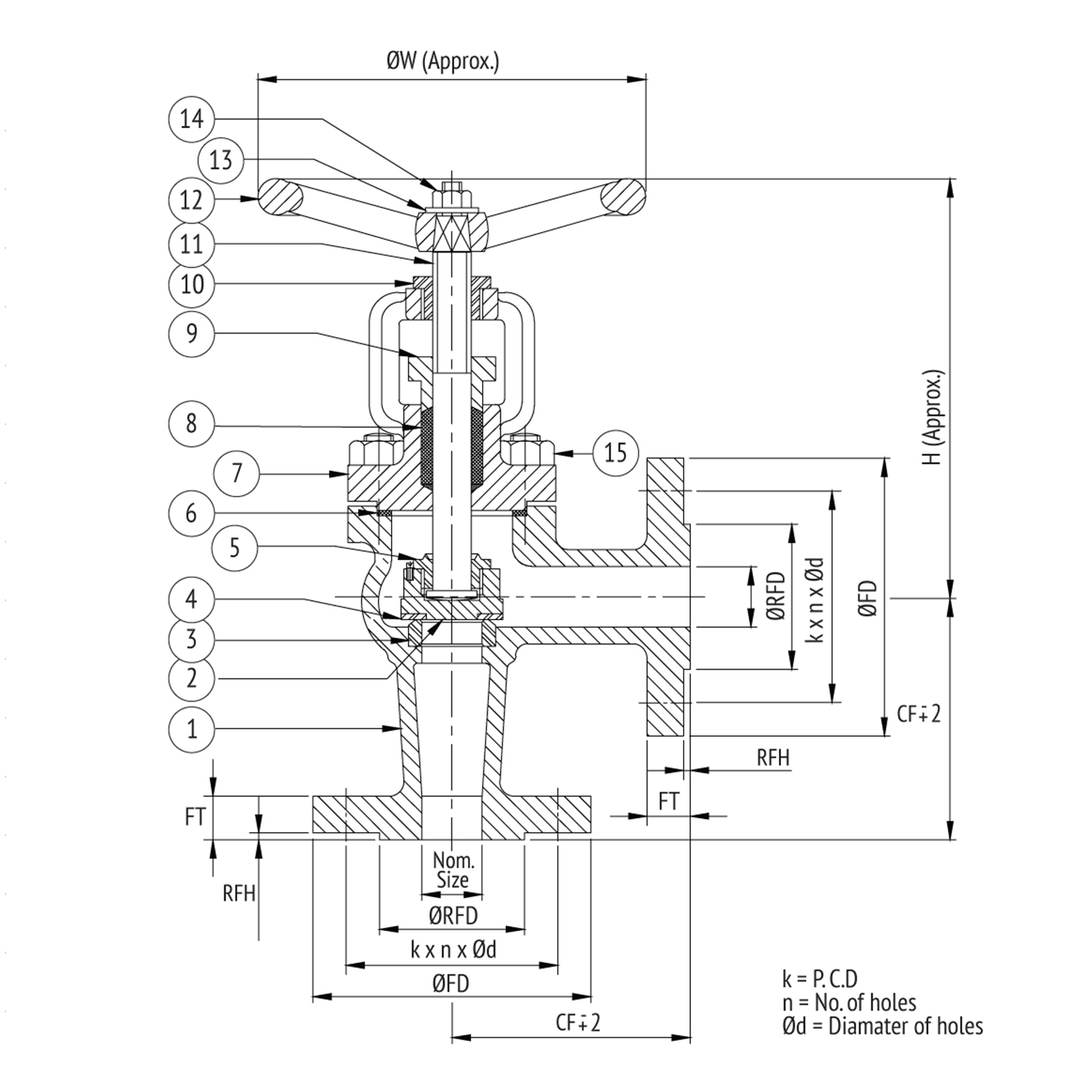

Dimensional Data

Size (mm)	CF	H	ØW	ØFD	FT	ØRFD	RFH	k	n	Ød
15	90	150	100	114.3	14	46	2	82.6	4	17.5
20	95	150	100	114.3	16	56	2	82.6	4	17.5
25	100	160	100	115	16	65	3	87.3	4	17.5
32	105	170	125	140	18	76	3	98.4	4	17.5
40	115	220	160	150	18	84	3	104.8	4	17.5
50	125	260	200	165	20	99	3	127	4	17.5
65	145	280	200	185	20	118	3	146	8	17.5
80	155	300	250	203.2	22	132	3	165	8	17.5
100	175	350	250	228.8	24	156	3	190.5	8	17.5
125	200	400	315	279.4	26	184	3	235	8	22.3
150	225	430	400	304.8	26	211	3	260.4	12	22.3

Download PDF Product Inquiry

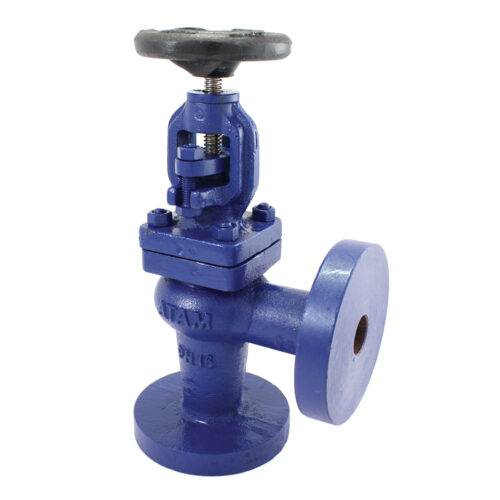

AV-252 | Cast Iron Junction Steam Stop Valve, Flanged Ends, PN-16

Product Inquiry

Features

Type of Pattern

Right Angle Pattern

Pressure / Class Rating

PN-16

Body Material Cum Standard

Cast Iron (IBR 86 to 93 Gr. A)

Product Description

Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem with Backseat Arrangement, Handwheel Operated

Type of Seat

Renewable Seat

Type of Disc

Renewable Disc

Trim

13% Cr. (SS 410)

End Details

Flanged Drilling as per BS-10 Table-H Raised Face (PN-16)

Test Pressure

Body: 24 kg/cm² (Hyd.), Seat & Back Seat : 17.6 kg/cm²

Max. Working Pressure

13 kg/cm² (Steam)

Max. Working Temperature

220°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Body 1 Cast Iron IBR 86 to 93 Gr.A

2 Disc Holder 1 Cast Iron IBR 86 to 93 Gr.A

3 Body Seat Ring 1 Stainless Steel ASTM A 276 Type 410

4 Disc 1 Stainless Steel ASTM A 276 Type 410

5 Disc Nut 1 Stainless Steel ASTM A 276 Type 410

6 Gasket 1 C.A.F. IS 2712

7 Bonnet 1 Cast Iron IBR 86 to 93 Gr.A

8 Gland Packing – Graphited Asbestos –

9 Gland 1 Cast Iron IBR 86 to 93 Gr.A

10 Yoke Bush 1 Stainless Steel ASTM A 582 Type 416

11 Stem 1 Stainless Steel ASTM A 276 Type 410

12 Handwheel 1 Cast Iron IS 210 Gr. FG200

13 Washer 1 Carbon Steel –

14 Nut 1 Carbon Steel –

15 Studs & Nuts To Suit Carbon Steel –

16 T-Head Bolts & Nuts 2 Each Carbon Steel –

Dimensional Data

Size (mm) CF H ØW ØFD FT ØRFD RFH k n Ød

15 90 150 100 114.3 14 46 2 82.6 4 17.5

20 95 150 100 114.3 16 56 2 82.6 4 17.5

25 100 160 100 115 16 65 3 87.3 4 17.5

32 105 170 125 140 18 76 3 98.4 4 17.5

40 115 220 160 150 18 84 3 104.8 4 17.5

50 125 260 200 165 20 99 3 127 4 17.5

65 145 280 200 185 20 118 3 146 8 17.5

80 155 300 250 203.2 22 132 3 165 8 17.5

100 175 350 250 228.8 24 156 3 190.5 8 17.5

125 200 400 315 279.4 26 184 3 235 8 22.3

150 225 430 400 304.8 26 211 3 260.4 12 22.3
