Features
Testing Standard
BS EN 12266-Part 1
Pressure / Class Rating
PN-10
Body Material Cum Standard
Cast Iron (IBR 86 to 93 Gr. A)
Product Description
Bolted Cover
Type of Seat
Renewable Seat
Type of Disc
Renewable Disc
Trim
13% Cr. (SS 410)
End Details
Flanged Drilling as per BS-10 Table-H Raised Face (PN-10)
Test Pressure
Body: 16 kg/cm² (Hyd.), Seat & Back Seat : 10 kg/cm²
Max. Working Pressure
8 kg/cm² (Steam)
Max. Working Temperature
220°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Suitability
Water
Steam
Gas
Oil
Air
-
Material Combination
S.No Description No. Material Specifications 1 Body 1 Cast Iron IBR 86 to 93 Gr.A / IS 210 Gr. FG200 2 Body Seat Ring 1 Stainless Steel ASTM A 276 Type 410 / ASTM A 217 Gr. CA15 3 Disc Ring 1 Stainless Steel ASTM A 276 Type 410 / ASTM A 217 Gr. CA15 4 Disc 1 Cast Iron IBR 86 to 93 Gr.A / IS 210 Gr. FG200 5 Gasket 1 C.A.F. – 6 Cover 1 Cast Iron IBR 86 to 93 Gr.A / IS 210 Gr. FG200 7 Studs & Nuts To Suit Carbon Steel – -

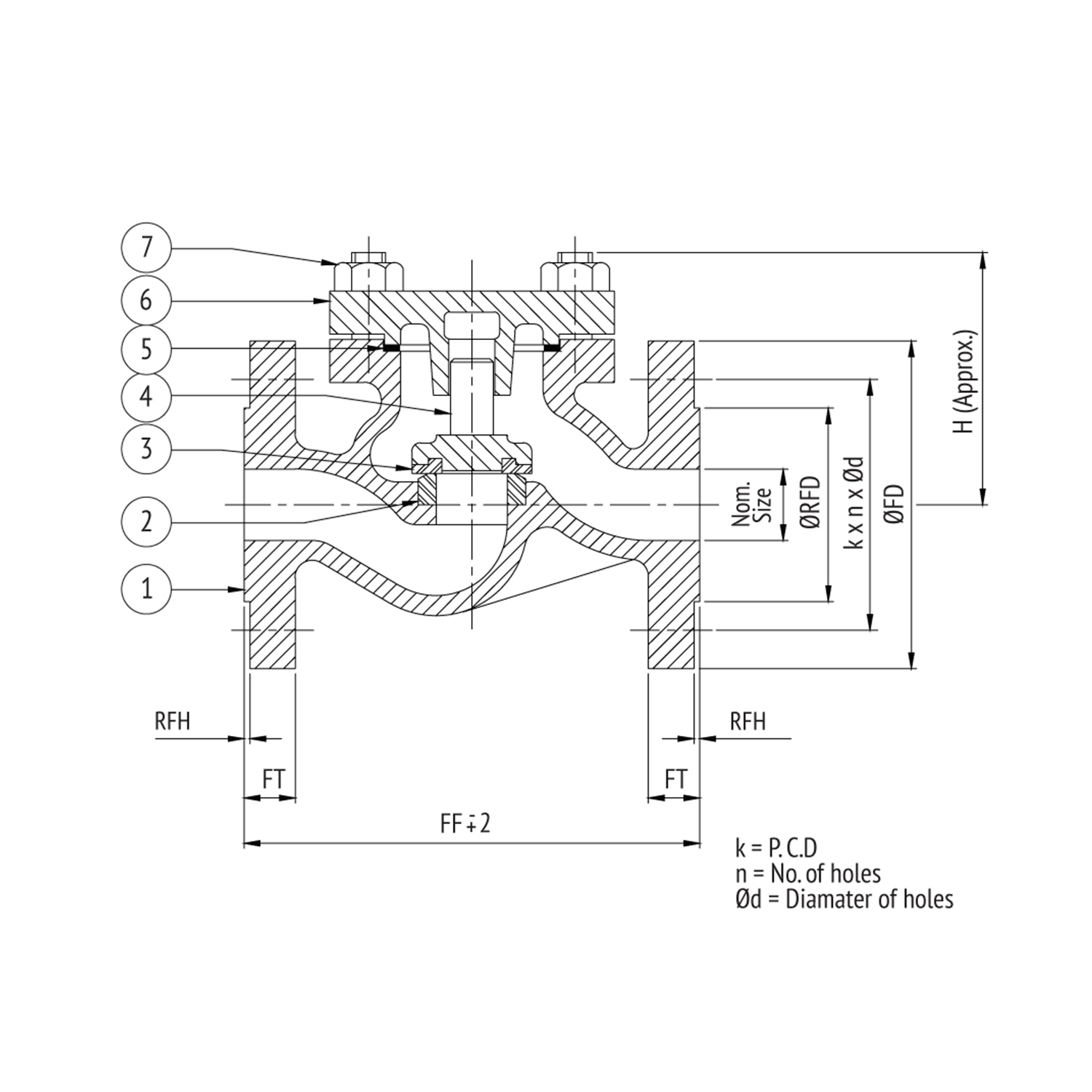

Dimensional Data
Size (mm) FF H ØFD FT ØRFD RFH k n Ød 200 600 250 368.3 26 – – 324 12 22.3 250 730 280 431.5 28 – – 381 12 22.3
Features
Testing Standard
BS EN 12266-Part 1
Pressure / Class Rating
PN-10
Body Material Cum Standard
Cast Iron (IBR 86 to 93 Gr. A)
Product Description
Bolted Cover
Type of Seat
Renewable Seat
Type of Disc
Renewable Disc
Trim
13% Cr. (SS 410)
End Details
Flanged Drilling as per BS-10 Table-H Raised Face (PN-10)
Test Pressure
Body: 16 kg/cm² (Hyd.), Seat & Back Seat : 10 kg/cm²
Max. Working Pressure
8 kg/cm² (Steam)
Max. Working Temperature
220°C
Testing Standard
BS EN 12266-Part 1
Pressure / Class Rating
PN-10
Body Material Cum Standard
Cast Iron (IBR 86 to 93 Gr. A)
Product Description
Bolted Cover
Type of Seat
Renewable Seat
Type of Disc
Renewable Disc
Trim
13% Cr. (SS 410)
End Details
Flanged Drilling as per BS-10 Table-H Raised Face (PN-10)
Test Pressure
Body: 16 kg/cm² (Hyd.), Seat & Back Seat : 10 kg/cm²
Max. Working Pressure
8 kg/cm² (Steam)
Max. Working Temperature
220°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Suitability
Water
Steam
Gas
Oil
Air
Material Combination
S.No
Description
No.
Material
Specifications
1
Body
1
Cast Iron
IBR 86 to 93 Gr.A / IS 210 Gr. FG200
2
Body Seat Ring
1
Stainless Steel
ASTM A 276 Type 410 / ASTM A 217 Gr. CA15
3
Disc Ring
1
Stainless Steel
ASTM A 276 Type 410 / ASTM A 217 Gr. CA15
4
Disc
1
Cast Iron
IBR 86 to 93 Gr.A / IS 210 Gr. FG200
5
Gasket
1
C.A.F.
–
6
Cover
1
Cast Iron
IBR 86 to 93 Gr.A / IS 210 Gr. FG200
7
Studs & Nuts
To Suit
Carbon Steel
–
| S.No | Description | No. | Material | Specifications |
|---|---|---|---|---|
| 1 | Body | 1 | Cast Iron | IBR 86 to 93 Gr.A / IS 210 Gr. FG200 |
| 2 | Body Seat Ring | 1 | Stainless Steel | ASTM A 276 Type 410 / ASTM A 217 Gr. CA15 |
| 3 | Disc Ring | 1 | Stainless Steel | ASTM A 276 Type 410 / ASTM A 217 Gr. CA15 |
| 4 | Disc | 1 | Cast Iron | IBR 86 to 93 Gr.A / IS 210 Gr. FG200 |
| 5 | Gasket | 1 | C.A.F. | – |
| 6 | Cover | 1 | Cast Iron | IBR 86 to 93 Gr.A / IS 210 Gr. FG200 |
| 7 | Studs & Nuts | To Suit | Carbon Steel | – |
Dimensional Data
Size (mm)
FF
H
ØFD
FT
ØRFD
RFH
k
n
Ød
200
600
250
368.3
26
–
–
324
12
22.3
250
730
280
431.5
28
–
–
381
12
22.3
| Size (mm) | FF | H | ØFD | FT | ØRFD | RFH | k | n | Ød |
|---|---|---|---|---|---|---|---|---|---|
| 200 | 600 | 250 | 368.3 | 26 | – | – | 324 | 12 | 22.3 |
| 250 | 730 | 280 | 431.5 | 28 | – | – | 381 | 12 | 22.3 |
Selected Product

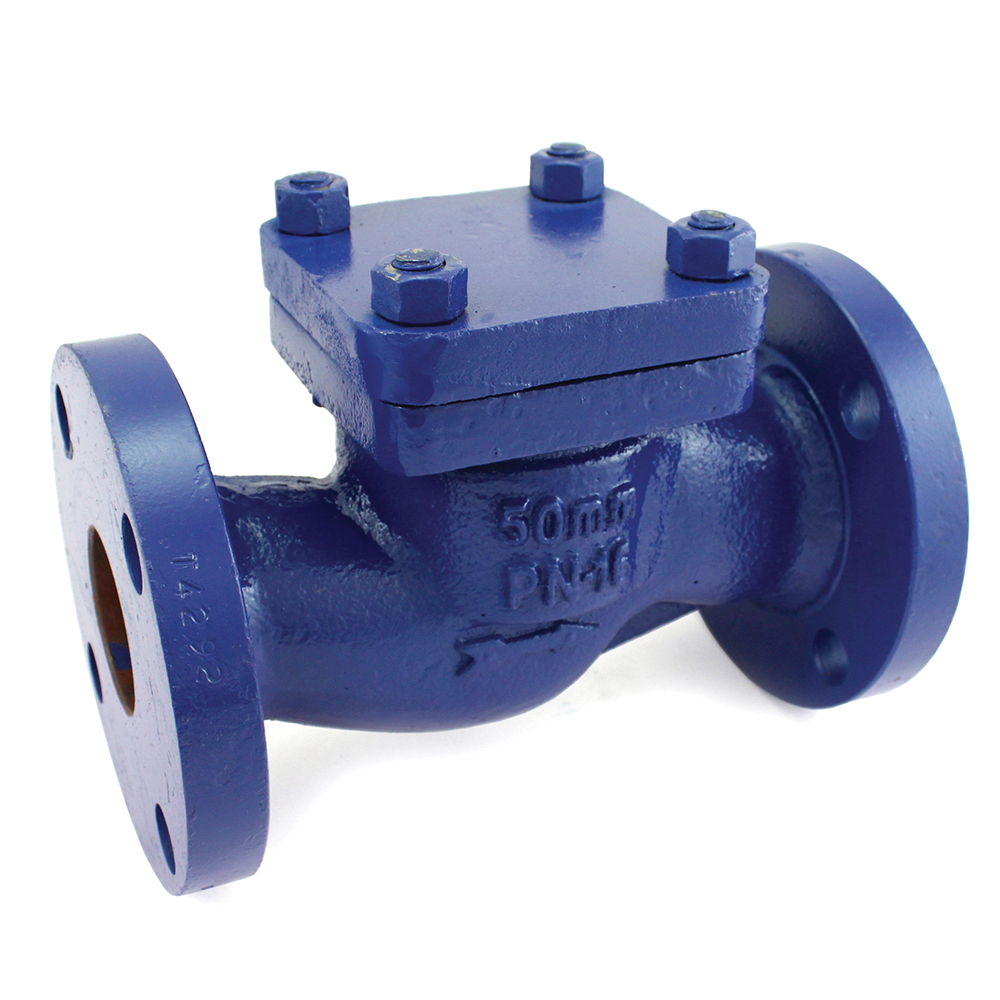

AV-253A Cast Iron Horizontal Lift Check Valve, Flanged Ends, PN-10
