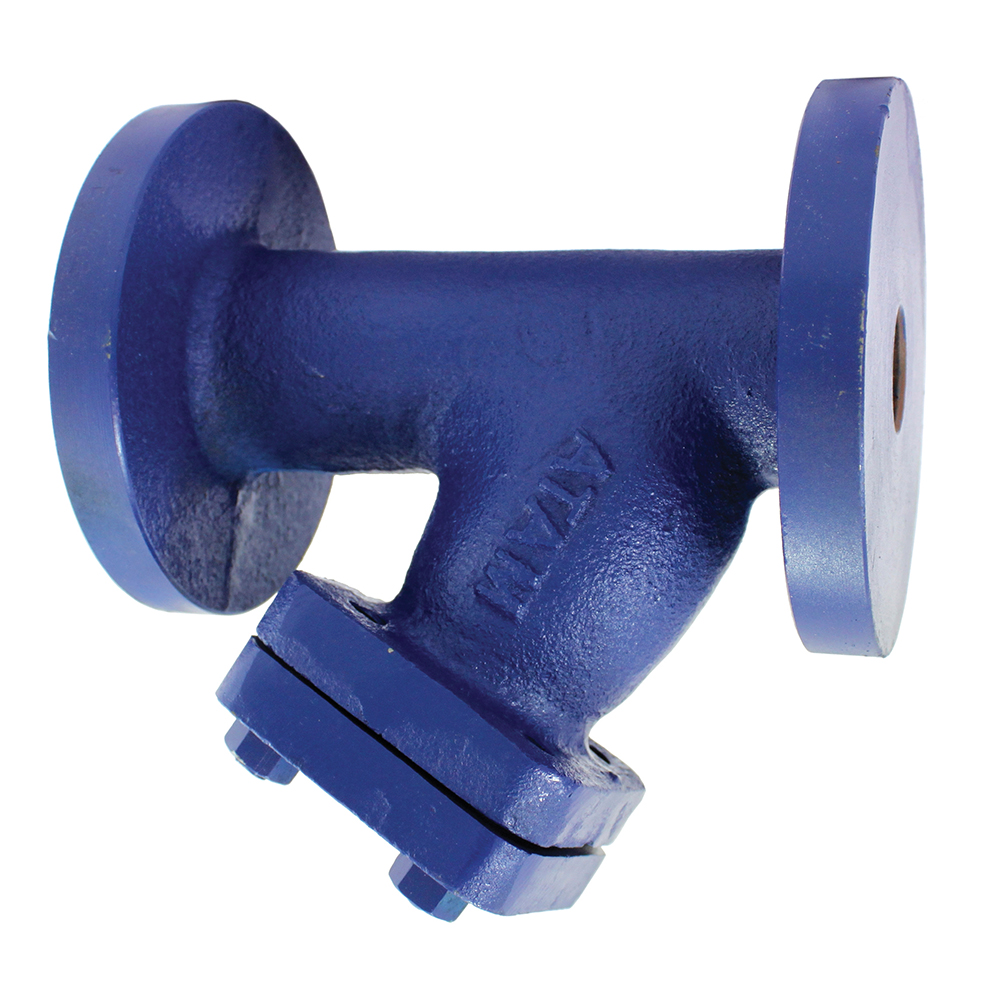

AV-256 Cast Iron Y-Type Strainer, Flanged Ends

AV-256 | Cast Iron Y-Type Strainer, Flanged Ends

Features

Body Material Cum Standard

Cast Iron (IBR 86 to 93 Gr. A)

Product Description

Y-Type, Bolted Cover

Trim

Stainless Steel (AISI 304), Screen Having 1.5 mm Diameter Perforations

End Details

Flanged Ends as per BS-10 Table-F Flat Face (Drilled)

Test Pressure

Body: 300 Psig (Hyd.)

Max. Working Pressure

150 Psig (Steam)

Max. Working Temperature

220°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Cast Iron	BS EN 1561 Gr. GJL 220 / IBR 86 to 93 Gr.A
2	Strainer	1	Stainless Steel	Type 304 (1mm Dia perforation)
3	Gasket	1	C.A.F.	IS 2712
4	Cover	1	Cast Iron	BS EN 1561 Gr. GJL 220 / IBR 86 to 93 Gr.A
5	Studs & Nuts	To Suit	Carbon Steel	–
6	Gasket	1	C.A.F.	–
7	Drain Plug	1	Cast Iron	BS EN 1561 Gr. GJL 220 / IBR 86 to 93 Gr.A

Download PDF Product Inquiry

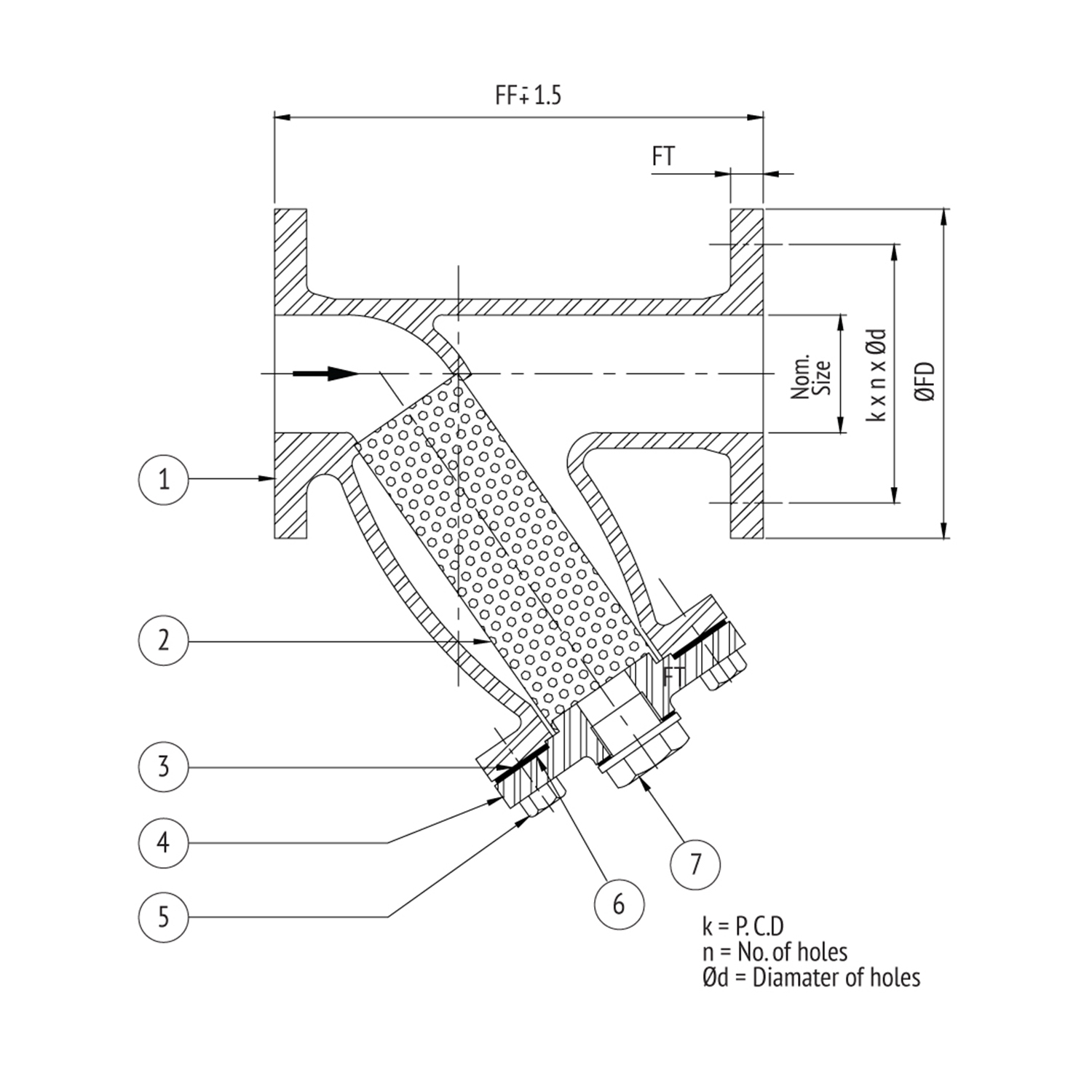

Dimensional Data

Size (mm)	FF	ØFD	k	n	Ød	FT
25	162	120.7	87.3	4	17.5	12.7
40	206	139.7	104.8	4	17.5	15.9
50	210	165.1	127	4	17.5	19.1
65	248	184.2	146.1	8	17.5	19.1
80	270	203.2	165.1	8	17.5	19.1
100	381	228.6	190.5	8	17.5	22.3
125	416	279.4	235	8	22.3	25.4
150	451	304.8	260.4	12	22.3	25.4
200	523	368.3	323.9	12	22.3	28.6

Download PDF Product Inquiry

AV-256 | Cast Iron Y-Type Strainer, Flanged Ends

Product Inquiry

Features

Body Material Cum Standard

Cast Iron (IBR 86 to 93 Gr. A)

Product Description

Y-Type, Bolted Cover

Trim

Stainless Steel (AISI 304), Screen Having 1.5 mm Diameter Perforations

End Details

Flanged Ends as per BS-10 Table-F Flat Face (Drilled)

Test Pressure

Body: 300 Psig (Hyd.)

Max. Working Pressure

150 Psig (Steam)

Max. Working Temperature

220°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Body 1 Cast Iron BS EN 1561 Gr. GJL 220 / IBR 86 to 93 Gr.A

2 Strainer 1 Stainless Steel Type 304 (1mm Dia perforation)

3 Gasket 1 C.A.F. IS 2712

4 Cover 1 Cast Iron BS EN 1561 Gr. GJL 220 / IBR 86 to 93 Gr.A

5 Studs & Nuts To Suit Carbon Steel –

6 Gasket 1 C.A.F. –

7 Drain Plug 1 Cast Iron BS EN 1561 Gr. GJL 220 / IBR 86 to 93 Gr.A

Dimensional Data

Size (mm) FF ØFD k n Ød FT

25 162 120.7 87.3 4 17.5 12.7

40 206 139.7 104.8 4 17.5 15.9

50 210 165.1 127 4 17.5 19.1

65 248 184.2 146.1 8 17.5 19.1

80 270 203.2 165.1 8 17.5 19.1

100 381 228.6 190.5 8 17.5 22.3

125 416 279.4 235 8 22.3 25.4

150 451 304.8 260.4 12 22.3 25.4

200 523 368.3 323.9 12 22.3 28.6
