Features
Body Material Cum Standard
Cast Iron (IBR 86 to 93 Gr. A)
Product Description
with Renewable Stainless Steel Working Parts
Trim
Valve & Ball Seat: 13% Cr. (SS 410) Bucket: Stainless Steel (Type 304)
End Details
Screwed Female BSP Parallel Threads (BS-21)
Test Pressure
Body: 300 Psig (Hyd.)
Max. Working Pressure
150 Psig (Steam)
Max. Working Temperature
220°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Suitability
Water
Steam
Gas
Oil
Air
-
Material Combination

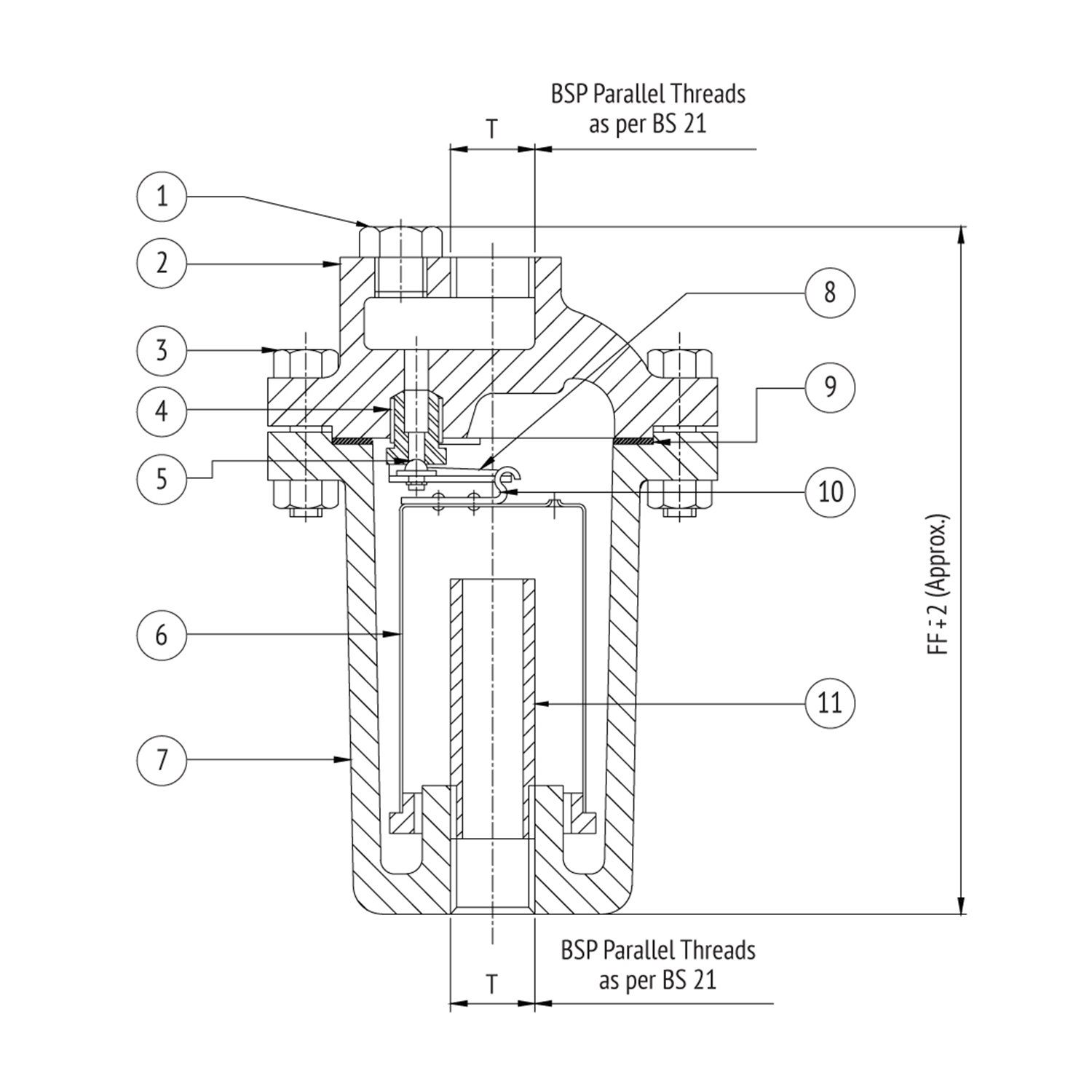

S.No Description No. Material Specifications 1 Plug 1 Carbon Steel – 2 Cover 1 Cast Iron IBR 86 to 93 Gr.A 3 Bolts & Nuts To Suit Carbon Steel – 4 Valve Seat 1 Stainless Steel ASTM A 276 Type 410 5 Ball Seat 1 Stainless Steel ASTM A 276 Type 410 6 Bucket 1 Stainless Steel ASTM A 276 Type 410 7 Body 1 Cast Iron IBR 86 to 93 Gr.A 8 Valve Lever 1 Stainless Steel ASTM A 276 Type 410 9 Gasket 1 C.A.F. IS 2712 10 Hook 1 Stainless Steel ASTM A 276 Type 410 11 Syphon Pipe 1 Carbon Steel – -
Dimensional Data
Size (mm) FF T 15 175 1/2” 20 210 3/4” 25 275 1” 32 395 1.1/4” 40 395 1.1/2” 50 452 2”
Features
Body Material Cum Standard
Cast Iron (IBR 86 to 93 Gr. A)
Product Description
with Renewable Stainless Steel Working Parts
Trim
Valve & Ball Seat: 13% Cr. (SS 410) Bucket: Stainless Steel (Type 304)
End Details
Screwed Female BSP Parallel Threads (BS-21)
Test Pressure
Body: 300 Psig (Hyd.)
Max. Working Pressure
150 Psig (Steam)
Max. Working Temperature
220°C
Body Material Cum Standard
Cast Iron (IBR 86 to 93 Gr. A)
Product Description
with Renewable Stainless Steel Working Parts
Trim
Valve & Ball Seat: 13% Cr. (SS 410) Bucket: Stainless Steel (Type 304)
End Details
Screwed Female BSP Parallel Threads (BS-21)
Test Pressure
Body: 300 Psig (Hyd.)
Max. Working Pressure
150 Psig (Steam)
Max. Working Temperature
220°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Suitability
Water
Steam
Gas
Oil
Air
Material Combination
S.No
Description
No.
Material
Specifications
1
Plug
1
Carbon Steel
–
2
Cover
1
Cast Iron
IBR 86 to 93 Gr.A
3
Bolts & Nuts
To Suit
Carbon Steel
–
4
Valve Seat
1
Stainless Steel
ASTM A 276 Type 410
5
Ball Seat
1
Stainless Steel
ASTM A 276 Type 410
6
Bucket
1
Stainless Steel
ASTM A 276 Type 410
7
Body
1
Cast Iron
IBR 86 to 93 Gr.A
8
Valve Lever
1
Stainless Steel
ASTM A 276 Type 410
9
Gasket
1
C.A.F.
IS 2712
10
Hook
1
Stainless Steel
ASTM A 276 Type 410
11
Syphon Pipe
1
Carbon Steel
–
| S.No | Description | No. | Material | Specifications |
|---|---|---|---|---|
| 1 | Plug | 1 | Carbon Steel | – |
| 2 | Cover | 1 | Cast Iron | IBR 86 to 93 Gr.A |
| 3 | Bolts & Nuts | To Suit | Carbon Steel | – |
| 4 | Valve Seat | 1 | Stainless Steel | ASTM A 276 Type 410 |
| 5 | Ball Seat | 1 | Stainless Steel | ASTM A 276 Type 410 |
| 6 | Bucket | 1 | Stainless Steel | ASTM A 276 Type 410 |
| 7 | Body | 1 | Cast Iron | IBR 86 to 93 Gr.A |
| 8 | Valve Lever | 1 | Stainless Steel | ASTM A 276 Type 410 |
| 9 | Gasket | 1 | C.A.F. | IS 2712 |
| 10 | Hook | 1 | Stainless Steel | ASTM A 276 Type 410 |
| 11 | Syphon Pipe | 1 | Carbon Steel | – |
Dimensional Data
Size (mm)
FF
T
15
175
1/2”
20
210
3/4”
25
275
1”
32
395
1.1/4”
40
395
1.1/2”
50
452
2”
| Size (mm) | FF | T |
|---|---|---|
| 15 | 175 | 1/2” |
| 20 | 210 | 3/4” |
| 25 | 275 | 1” |
| 32 | 395 | 1.1/4” |
| 40 | 395 | 1.1/2” |
| 50 | 452 | 2” |
Selected Product

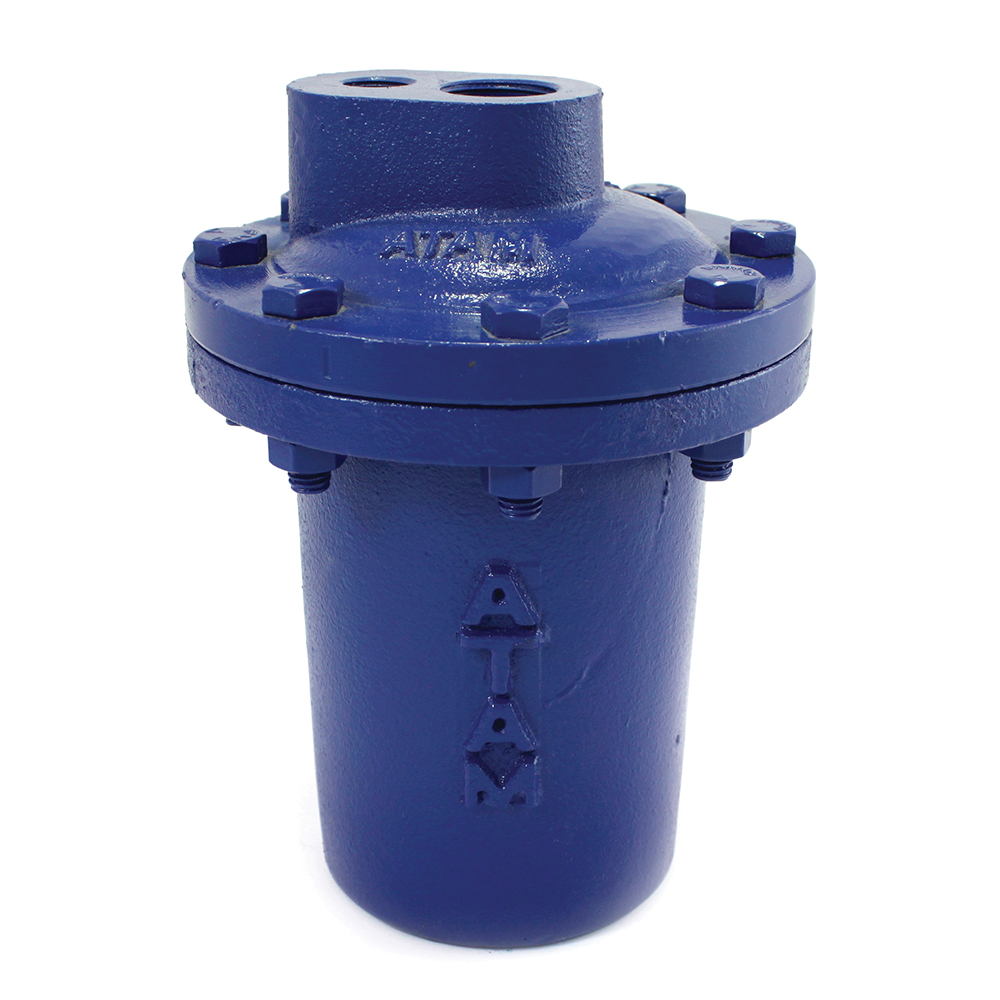

AV-260 Cast Iron Vertical Inverted Bucket Type Steam Trap, Screwed Ends
