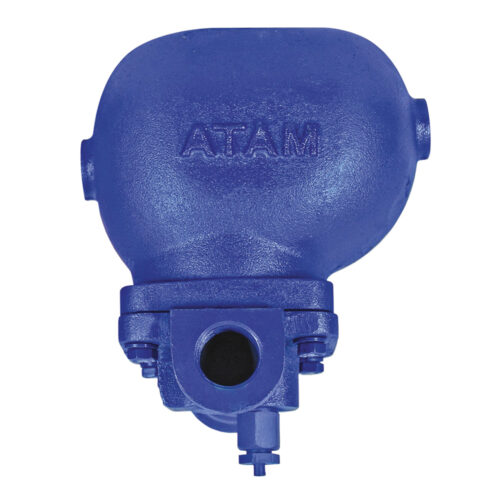

AV-269 Cast Iron Ball Float Steam Trap, Screwed Ends

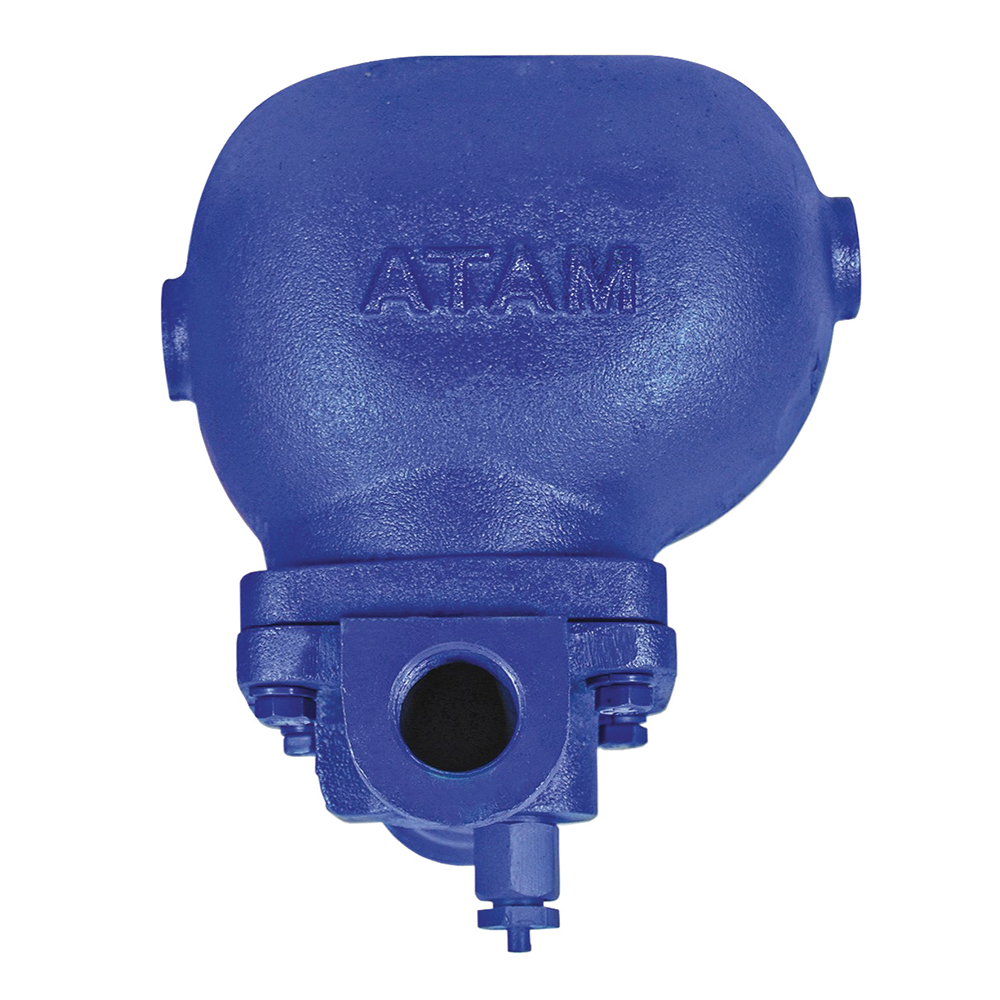

AV-269 | Cast Iron Ball Float Steam Trap, Screwed Ends

Features

Body Material Cum Standard

Cast Iron (IBR 86 to 93 Gr. A)

Product Description

Horizontal Type

Trim

Stainless Steel (AISI 304)

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 300 Psig (Hyd.)

Max. Working Pressure

150 Psig (Steam)

Max. Working Temperature

220°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	SLR Assembly	1	Stainless Steel	AISI 304
2	Cover	1	Cast Iron	IBR 86 to 93 Gr.A
3	Seat Assembly	1	Stainless Steel	AISI 304
4	Ball Float	1	Stainless Steel	AISI 304
5	Washer	1	Copper	–
6	Bolts & Nuts	4 Each	Carbon Steel	–
7	Nipple	1	Stainless Steel	AISI 410
8	Gasket	1	C.A.F.	–
9	Body	1	Cast Iron	IBR 86 to 93 Gr.A

Download PDF Product Inquiry

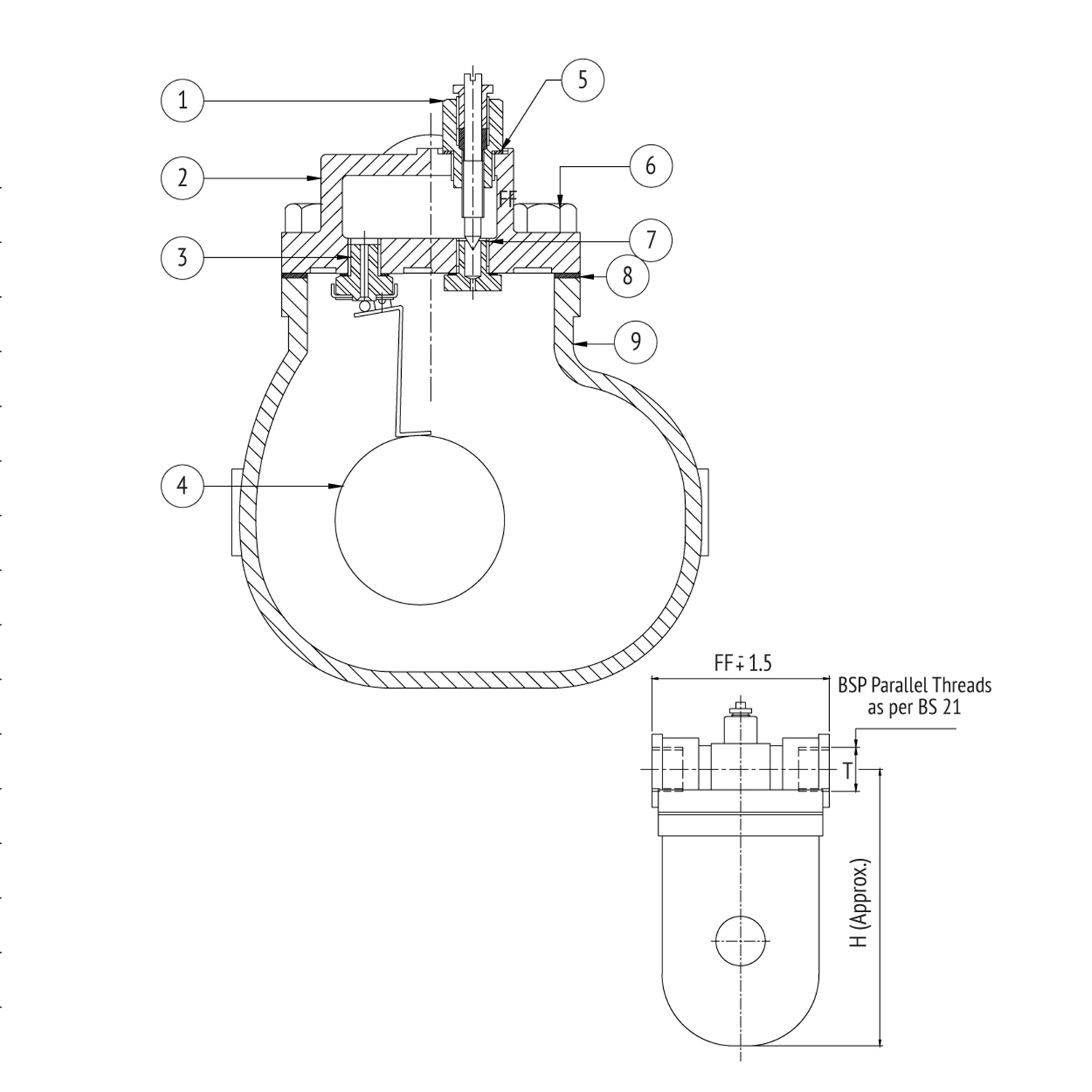

Dimensional Data

Size (mm) FF H T

15 131 157 1/2”

20 131 162 3/4“

25 133 200 1”

40 272 250 1.1/2”

50 301 272 2”

Download PDF Product Inquiry
AV-269 | Cast Iron Ball Float Steam Trap, Screwed Ends

Product Inquiry

Size (mm)	FF	H	T
15	131	157	1/2”
20	131	162	3/4“
25	133	200	1”
40	272	250	1.1/2”
50	301	272	2”

Features

Body Material Cum Standard

Cast Iron (IBR 86 to 93 Gr. A)

Product Description

Horizontal Type

Trim

Stainless Steel (AISI 304)

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 300 Psig (Hyd.)

Max. Working Pressure

150 Psig (Steam)

Max. Working Temperature

220°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 SLR Assembly 1 Stainless Steel AISI 304

2 Cover 1 Cast Iron IBR 86 to 93 Gr.A

3 Seat Assembly 1 Stainless Steel AISI 304

4 Ball Float 1 Stainless Steel AISI 304

5 Washer 1 Copper –

6 Bolts & Nuts 4 Each Carbon Steel –

7 Nipple 1 Stainless Steel AISI 410

8 Gasket 1 C.A.F. –

9 Body 1 Cast Iron IBR 86 to 93 Gr.A

Dimensional Data

Size (mm) FF H T

15 131 157 1/2”

20 131 162 3/4“

25 133 200 1”

40 272 250 1.1/2”

50 301 272 2”

Size (mm)	FF	H	T
15	131	157	1/2”
20	131	162	3/4“
25	133	200	1”
40	272	250	1.1/2”
50	301	272	2”
