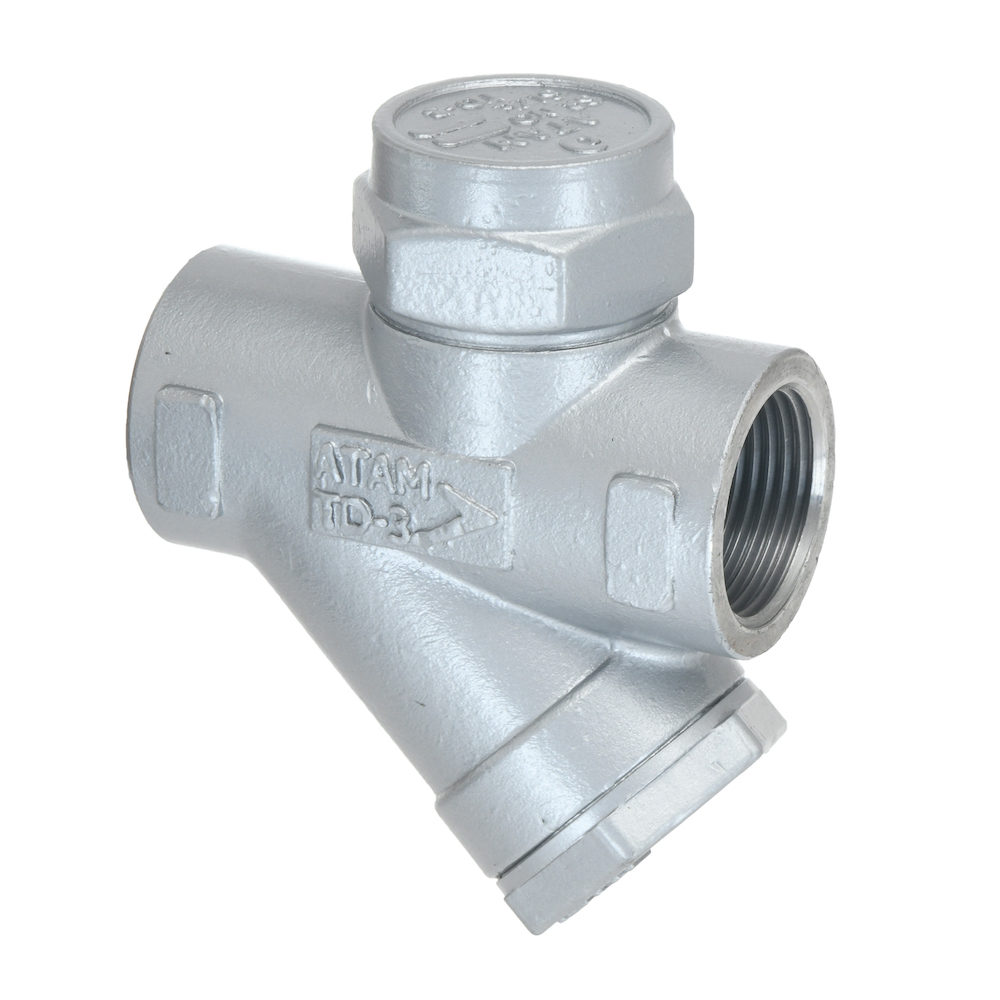

AV-270 Investment Casting Stainless Steel (CA15) Thermodynamic Steam Trap, Screwed Ends

AV-270 | Investment Casting Stainless Steel (CA15) Thermodynamic Steam Trap, Screwed Ends

Features

Body Material Cum Standard

Cast Stainless Steel (ASTM A217 Gr. CA15)

Product Description

Thermodynamic Type with inbuilt Strainer

Trim

13% Cr. (SS 410)

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 900 Psig (Hyd.), Seat: 450 Psig (Hyd.)

Max. Working Temperature

425°C

Notes

Other screwed end specifications can be provided on request.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

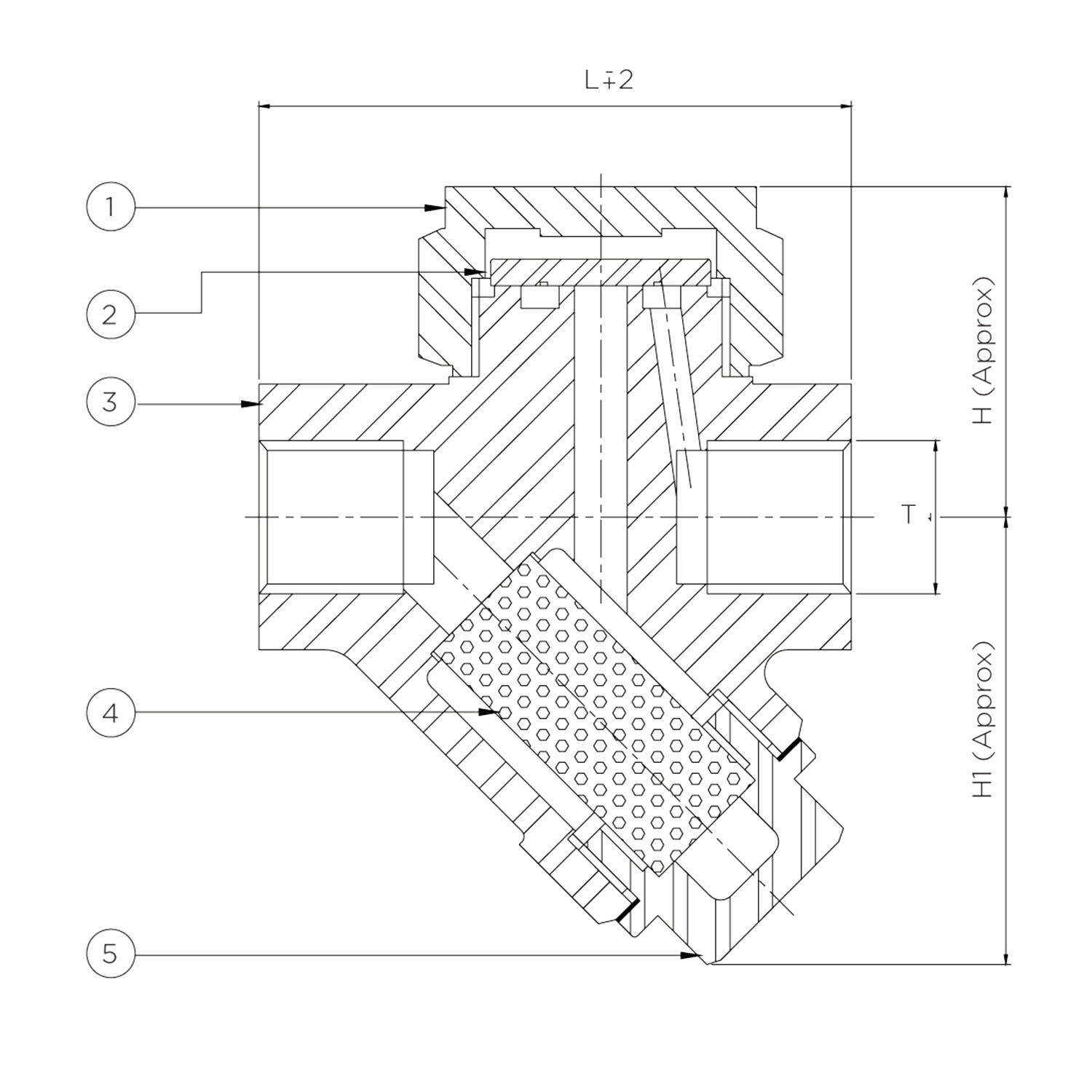

Material Combination

S.No	Description	No.	Material	Specifications
1	Cover	1	Stainless Steel	AISI 410 / ASTM A 217 Gr. CA 15
2	Disc	1	Stainless Steel	AISI 410 / ASTM A 217 Gr. CA 15
3	Body	1	Stainless Steel	AISI 410 / ASTM A 217 Gr. CA 15
4	Screen	1	Stainless Steel	AISI 410 / ASTM A 217 Gr. CA 15
5	Plug	1	Stainless Steel	AISI 410 / ASTM A 217 Gr. CA 15

Download PDF Product Inquiry

Dimensional Data

Size (mm) Size (inches) L T H H1

15 1/2” 78 1/2” 44 61

20 3/4” 78 3/4” 44 61

25 1.1/4” 88 1.1/4” 48 68

40 1.1/2” 108 1.1/2” 70 88

50 2” 108 2” 70 88

Download PDF Product Inquiry
AV-270 | Investment Casting Stainless Steel (CA15) Thermodynamic Steam Trap, Screwed Ends

Product Inquiry

Size (mm)	Size (inches)	L	T	H	H1
15	1/2”	78	1/2”	44	61
20	3/4”	78	3/4”	44	61
25	1.1/4”	88	1.1/4”	48	68
40	1.1/2”	108	1.1/2”	70	88
50	2”	108	2”	70	88

Features

Body Material Cum Standard

Cast Stainless Steel (ASTM A217 Gr. CA15)

Product Description

Thermodynamic Type with inbuilt Strainer

Trim

13% Cr. (SS 410)

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 900 Psig (Hyd.), Seat: 450 Psig (Hyd.)

Max. Working Temperature

425°C

Notes

Other screwed end specifications can be provided on request.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Cover 1 Stainless Steel AISI 410 / ASTM A 217 Gr. CA 15

2 Disc 1 Stainless Steel AISI 410 / ASTM A 217 Gr. CA 15

3 Body 1 Stainless Steel AISI 410 / ASTM A 217 Gr. CA 15

4 Screen 1 Stainless Steel AISI 410 / ASTM A 217 Gr. CA 15

5 Plug 1 Stainless Steel AISI 410 / ASTM A 217 Gr. CA 15

Dimensional Data

Size (mm) Size (inches) L T H H1

15 1/2” 78 1/2” 44 61

20 3/4” 78 3/4” 44 61

25 1.1/4” 88 1.1/4” 48 68

40 1.1/2” 108 1.1/2” 70 88

50 2” 108 2” 70 88

Size (mm)	Size (inches)	L	T	H	H1
15	1/2”	78	1/2”	44	61
20	3/4”	78	3/4”	44	61
25	1.1/4”	88	1.1/4”	48	68
40	1.1/2”	108	1.1/2”	70	88
50	2”	108	2”	70	88
