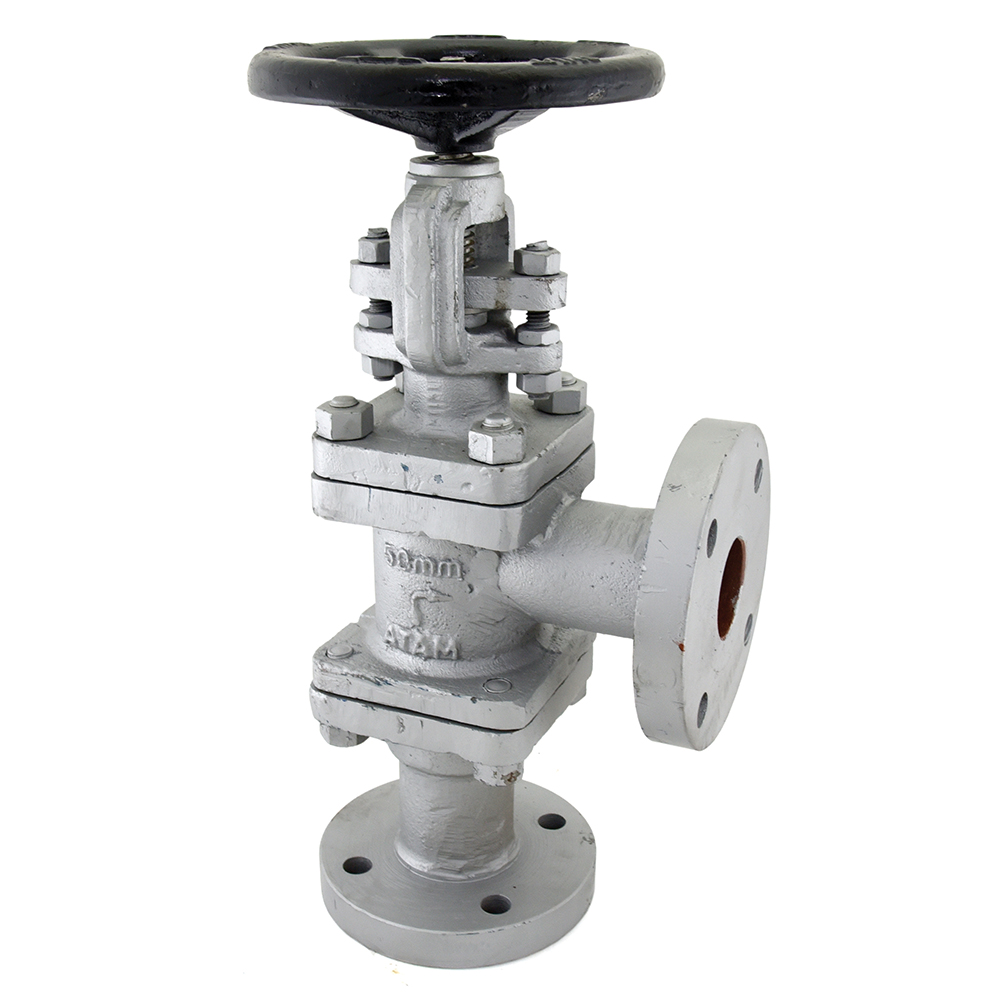

AV-282 Cast Carbon Steel Accessible Feed Check Valve, Flanged Ends

AV-282 | Cast Carbon Steel Accessible Feed Check Valve, Flanged Ends

Features

Body Material Cum Standard

Cast Carbon Steel (ASTM A216 Gr. WCB)

Product Description

Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem with Backseat Arrangement, Handwheel Operated

Type of Seat

Renewable Seat

Type of Disc

Renewable Disc

Trim

13% Cr. (SS 410) + Stellited Facing

End Details

Flanged Ends as per BS-10 Table-J Flat Face (Undrilled)

Test Pressure

Body: 700 Psig (Hyd.)

Max. Working Pressure

350 Psig (Steam)

Max. Working Temperature

400°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	Nut	1	Carbon Steel	–
2	Handwheel	1	C.I. / M.I.	IS 210 Gr. FG200 / –
4	Yoke Bush	1	Stainless Steel	ASTM A 582 Type 416 / 276 Type 410
5	Gland Studs & Nuts	2 & 6	Carbon Steel	–
6, 3	Gland Follower, Stem	1	Stainless Steel	ASTM A 276 Type 410
7	Gland Packing	–	Graphited Asbestos	–
8	Gasket	2	C.A.F.	–
9	Disc Nut	1	Stainless Steel	ASTM A 276 Type 410
10, 11	Disc, Check Valve Disc	1	Stainless Steel	ASTM A 276 Type 410 / ASTM A 217 Gr. CA15
12	Body Seat Ring	2	Stainless Steel	ASTM A 276 Type 410 + Stellite
13	Disc Guide	1	Bronze	IBR 282 (a) (iv) Gr. B
14	Inlet Body	1	C.C.S.	IBR 73 to 80 / ASTM A 216 Gr. WCB
15, 16	Bonnet, Gland Flange	1	C.C.S.	IBR 73 to 80 / ASTM A 216 Gr. WCB
17	Studs & Nuts	To Suit	Carbon Steel	–
18	Back Seat Bush	1	Stainless Steel	ASTM A 276 Type 410
19	Body	1	C.C.S.	IBR 73 to 80 / ASTM A 216 Gr. WCB

Download PDF Product Inquiry

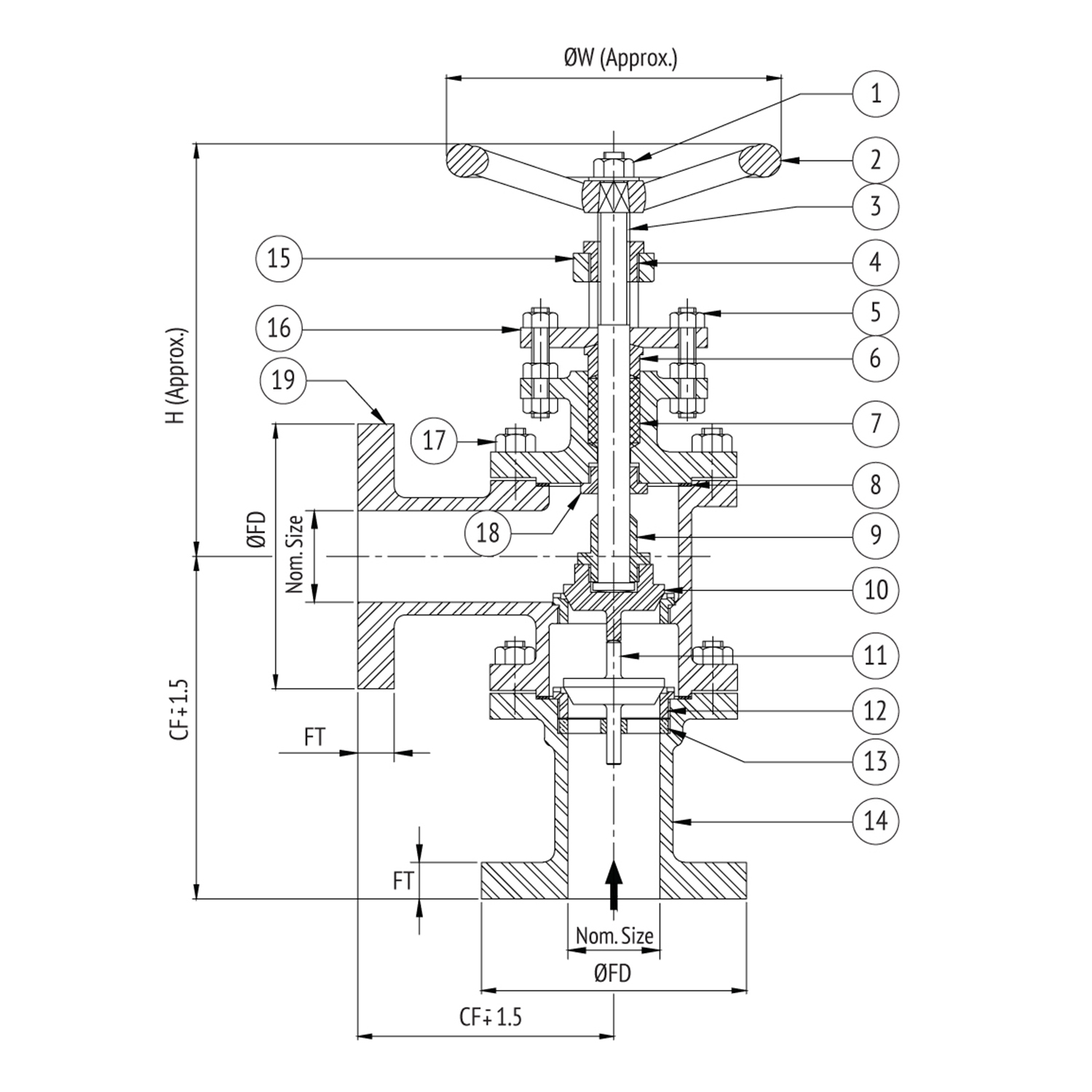

Dimensional Data

Size (mm) CF CF1 H ØW ØFD FT

25 127 165 225 160 120.7 19.1

40 140 190 235 200 139.7 22.3

50 152 215 255 200 165.1 25.4

65 178 240 285 250 184.2 25.4

80 203 265 315 250 203.2 31.8

Download PDF Product Inquiry
AV-282 | Cast Carbon Steel Accessible Feed Check Valve, Flanged Ends

Product Inquiry

Size (mm)	CF	CF1	H	ØW	ØFD	FT
25	127	165	225	160	120.7	19.1
40	140	190	235	200	139.7	22.3
50	152	215	255	200	165.1	25.4
65	178	240	285	250	184.2	25.4
80	203	265	315	250	203.2	31.8

Features

Body Material Cum Standard

Cast Carbon Steel (ASTM A216 Gr. WCB)

Product Description

Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem with Backseat Arrangement, Handwheel Operated

Type of Seat

Renewable Seat

Type of Disc

Renewable Disc

Trim

13% Cr. (SS 410) + Stellited Facing

End Details

Flanged Ends as per BS-10 Table-J Flat Face (Undrilled)

Test Pressure

Body: 700 Psig (Hyd.)

Max. Working Pressure

350 Psig (Steam)

Max. Working Temperature

400°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Nut 1 Carbon Steel –

2 Handwheel 1 C.I. / M.I. IS 210 Gr. FG200 / –

4 Yoke Bush 1 Stainless Steel ASTM A 582 Type 416 / 276 Type 410

5 Gland Studs & Nuts 2 & 6 Carbon Steel –

6, 3 Gland Follower, Stem 1 Stainless Steel ASTM A 276 Type 410

7 Gland Packing – Graphited Asbestos –

8 Gasket 2 C.A.F. –

9 Disc Nut 1 Stainless Steel ASTM A 276 Type 410

10, 11 Disc, Check Valve Disc 1 Stainless Steel ASTM A 276 Type 410 / ASTM A 217 Gr. CA15

12 Body Seat Ring 2 Stainless Steel ASTM A 276 Type 410 + Stellite

13 Disc Guide 1 Bronze IBR 282 (a) (iv) Gr. B

14 Inlet Body 1 C.C.S. IBR 73 to 80 / ASTM A 216 Gr. WCB

15, 16 Bonnet, Gland Flange 1 C.C.S. IBR 73 to 80 / ASTM A 216 Gr. WCB

17 Studs & Nuts To Suit Carbon Steel –

18 Back Seat Bush 1 Stainless Steel ASTM A 276 Type 410

19 Body 1 C.C.S. IBR 73 to 80 / ASTM A 216 Gr. WCB

Dimensional Data

Size (mm) CF CF1 H ØW ØFD FT

25 127 165 225 160 120.7 19.1

40 140 190 235 200 139.7 22.3

50 152 215 255 200 165.1 25.4

65 178 240 285 250 184.2 25.4

80 203 265 315 250 203.2 31.8

Size (mm)	CF	CF1	H	ØW	ØFD	FT
25	127	165	225	160	120.7	19.1
40	140	190	235	200	139.7	22.3
50	152	215	255	200	165.1	25.4
65	178	240	285	250	184.2	25.4
80	203	265	315	250	203.2	31.8
