Features
Product Standard
API 600
Testing Standard
API-598
Pressure / Class Rating
Class-150
Body Material Cum Standard
Cast Carbon Steel (ASTM A216 Gr. WCB)
Product Description
Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem, Handwheel Operated
Type of Seat
Renewable Seat
Type of Wedge
Solid or Flexible Wedge
Trim
13% Cr. (SS 410)
End Details
Flanged Ends as per ASME B16.5 Class-150 Raised Face (Drilled)
Test Pressure
Body: 30 Bar (Hyd.), Seat: 22 Bar (Hyd.), Seat: 7 Bar (Air)
Max. Working Temperature
425°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Other trim material combinations are available on request.
±3mm tolerance for sizes 300mm and above.
Suitability
Water
Steam
Gas
Oil
Air
-
Material Combination
S.No Description No. Material Specifications 1 Body 1 C.C.S. ASTM A 216 Gr. WCB 2 Body Seat Ring 1 C.C.S. / F.S.S. ASTM A 216 Gr. WCB + 13% Cr. Deposit / ASTM A 182 Gr. F6a 3 Wedge 1 C.C.S. / C.S.S. ASTM A 216 Gr. WCB + 13% Cr. Deposit / ASTM A 217 Gr. CA15 4 Gasket 1 S.S. 304 Graphoil Filler with Inner Ring (C.S. or S.S.304) 5 Studs & Nuts To Suit Alloy Steel / H.T. Steel ASTM A 193 Gr. B7 / ASTM A 194 Gr. 2H 6 Bonnet 1 C.C.S. ASTM A 216 Gr. WCB 7, 8 Stem, Back Seat Bush 1 Stainless Steel ASTM A 276 Type 410 9 Gland Packing – Flexible Graphite (Min. 5 Rings) 10 Gland Follower 1 Stainless Steel ASTM A 276 Type 410 11 Gland Flange 1 C.C.S. ASTM A 216 Gr. WCB / Carbon Steel 12 Gland Studs & Nuts 2 / 4 Alloy Steel / H.T. Steel ASTM A 193 Gr. B7 / ASTM A 194 Gr. 2H 13 Yoke Sleeve 1 Al. Bronze / S.S. BS EN 1982 Gr. CC 331G / AISI 410 14 Yoke Sleeve Retaining Nut 1 Carbon Steel – 15 Handwheel 1 M.I. / D.I. ASTM A338 / ASTM A536 Gr. 80-55-06 16 Handwheel Retaining Nut 1 Carbon Steel – 17 Yoke 1 C.C.S. ASTM A 216 Gr. WCB -
Dimensional Data
Size (mm) FF FT ØFW ØRFD RFH ØFD K n Ød ØHW H 15 108 8 15 34.9 2 90 60.3 4 5/8″ 80 140 20 117 9 20 42.9 2 100 70 4 5/8″ 80 165 25 127 9.6 25 50.8 2 110 79.5 4 5/8″ 127 190 40 165 12.7 38.1 73 2 125 98.4 4 5/8″ 210 365 50 178 14.3 50.8 92.1 2 150 120.7 4 3/4″ 210 390 65 190 15.9 63.5 104.8 2 180 139.7 4 3/4″ 210 440 80 203 17.5 76.2 127 2 190 152.4 4 3/4″ 225 460 100 229 22.3 101.6 157.2 2 230 190.5 8 3/4″ 225 570 125 254 22.3 127 185.7 2 255 215.9 8 7/8″ 310 690 150 267 23.9 152.4 215.9 2 280 241.3 8 7/8″ 310 780 200 292 27 203.2 269.9 2 345 298.5 8 7/8″ 400 975 250 330 28.6 254 323.8 2 405 362 12 1″ 460 1215 300 356 30.2 304.8 381 2 485 431.8 12 1″ 500 1350 350 381 33.4 336.6 412.8 2 535 476.3 12 1.1/8″ 450 1605 400 406 35 387.4 469.9 2 595 539.8 16 1.1/8″ 450 1960 450 432 38.1 436.2 533.4 2 635 577.9 16 1.1/4″ 450 2055 500 457 41.3 489 584.2 2 700 700 20 1.1/4″ 450 2410 600 508 46.1 590.6 692.2 2 815 815 20 1.3/8″ 450 2875
Features
Product Standard
API 600
Testing Standard
API-598
Pressure / Class Rating
Class-150
Body Material Cum Standard
Cast Carbon Steel (ASTM A216 Gr. WCB)
Product Description
Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem, Handwheel Operated
Type of Seat
Renewable Seat
Type of Wedge
Solid or Flexible Wedge
Trim
13% Cr. (SS 410)
End Details
Flanged Ends as per ASME B16.5 Class-150 Raised Face (Drilled)
Test Pressure
Body: 30 Bar (Hyd.), Seat: 22 Bar (Hyd.), Seat: 7 Bar (Air)
Max. Working Temperature
425°C
Product Standard
API 600
Testing Standard
API-598
Pressure / Class Rating
Class-150
Body Material Cum Standard
Cast Carbon Steel (ASTM A216 Gr. WCB)
Product Description
Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem, Handwheel Operated
Type of Seat
Renewable Seat
Type of Wedge
Solid or Flexible Wedge
Trim
13% Cr. (SS 410)
End Details
Flanged Ends as per ASME B16.5 Class-150 Raised Face (Drilled)
Test Pressure
Body: 30 Bar (Hyd.), Seat: 22 Bar (Hyd.), Seat: 7 Bar (Air)
Max. Working Temperature
425°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Other trim material combinations are available on request.
±3mm tolerance for sizes 300mm and above.
Suitability
Water
Steam
Gas
Oil
Air

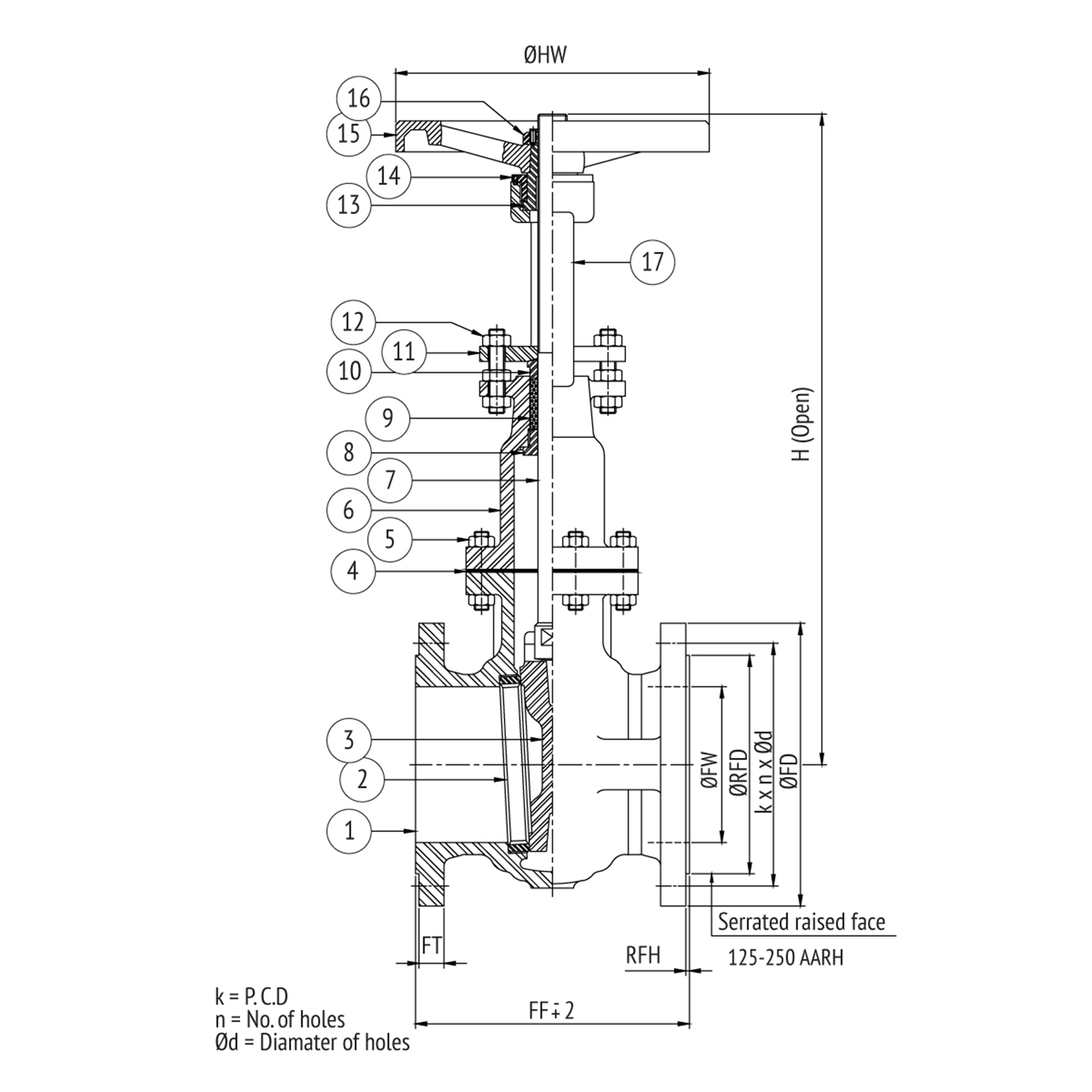

Material Combination
S.No
Description
No.
Material
Specifications
1
Body
1
C.C.S.
ASTM A 216 Gr. WCB
2
Body Seat Ring
1
C.C.S. / F.S.S.
ASTM A 216 Gr. WCB + 13% Cr. Deposit / ASTM A 182 Gr. F6a
3
Wedge
1
C.C.S. / C.S.S.
ASTM A 216 Gr. WCB + 13% Cr. Deposit / ASTM A 217 Gr. CA15
4
Gasket
1
S.S. 304 Graphoil Filler with Inner Ring (C.S. or S.S.304)
5
Studs & Nuts
To Suit
Alloy Steel / H.T. Steel
ASTM A 193 Gr. B7 / ASTM A 194 Gr. 2H
6
Bonnet
1
C.C.S.
ASTM A 216 Gr. WCB
7, 8
Stem, Back Seat Bush
1
Stainless Steel
ASTM A 276 Type 410
9
Gland Packing
–
Flexible Graphite (Min. 5 Rings)
10
Gland Follower
1
Stainless Steel
ASTM A 276 Type 410
11
Gland Flange
1
C.C.S.
ASTM A 216 Gr. WCB / Carbon Steel
12
Gland Studs & Nuts
2 / 4
Alloy Steel / H.T. Steel
ASTM A 193 Gr. B7 / ASTM A 194 Gr. 2H
13
Yoke Sleeve
1
Al. Bronze / S.S.
BS EN 1982 Gr. CC 331G / AISI 410
14
Yoke Sleeve Retaining Nut
1
Carbon Steel
–
15
Handwheel
1
M.I. / D.I.
ASTM A338 / ASTM A536 Gr. 80-55-06
16
Handwheel Retaining Nut
1
Carbon Steel
–
17
Yoke
1
C.C.S.
ASTM A 216 Gr. WCB
| S.No | Description | No. | Material | Specifications |
|---|---|---|---|---|
| 1 | Body | 1 | C.C.S. | ASTM A 216 Gr. WCB |
| 2 | Body Seat Ring | 1 | C.C.S. / F.S.S. | ASTM A 216 Gr. WCB + 13% Cr. Deposit / ASTM A 182 Gr. F6a |
| 3 | Wedge | 1 | C.C.S. / C.S.S. | ASTM A 216 Gr. WCB + 13% Cr. Deposit / ASTM A 217 Gr. CA15 |
| 4 | Gasket | 1 | S.S. 304 Graphoil Filler with Inner Ring (C.S. or S.S.304) | |
| 5 | Studs & Nuts | To Suit | Alloy Steel / H.T. Steel | ASTM A 193 Gr. B7 / ASTM A 194 Gr. 2H |
| 6 | Bonnet | 1 | C.C.S. | ASTM A 216 Gr. WCB |
| 7, 8 | Stem, Back Seat Bush | 1 | Stainless Steel | ASTM A 276 Type 410 |
| 9 | Gland Packing | – | Flexible Graphite (Min. 5 Rings) | |
| 10 | Gland Follower | 1 | Stainless Steel | ASTM A 276 Type 410 |
| 11 | Gland Flange | 1 | C.C.S. | ASTM A 216 Gr. WCB / Carbon Steel |
| 12 | Gland Studs & Nuts | 2 / 4 | Alloy Steel / H.T. Steel | ASTM A 193 Gr. B7 / ASTM A 194 Gr. 2H |
| 13 | Yoke Sleeve | 1 | Al. Bronze / S.S. | BS EN 1982 Gr. CC 331G / AISI 410 |
| 14 | Yoke Sleeve Retaining Nut | 1 | Carbon Steel | – |
| 15 | Handwheel | 1 | M.I. / D.I. | ASTM A338 / ASTM A536 Gr. 80-55-06 |
| 16 | Handwheel Retaining Nut | 1 | Carbon Steel | – |
| 17 | Yoke | 1 | C.C.S. | ASTM A 216 Gr. WCB |
Dimensional Data
Size (mm)
FF
FT
ØFW
ØRFD
RFH
ØFD
K
n
Ød
ØHW
H
15
108
8
15
34.9
2
90
60.3
4
5/8″
80
140
20
117
9
20
42.9
2
100
70
4
5/8″
80
165
25
127
9.6
25
50.8
2
110
79.5
4
5/8″
127
190
40
165
12.7
38.1
73
2
125
98.4
4
5/8″
210
365
50
178
14.3
50.8
92.1
2
150
120.7
4
3/4″
210
390
65
190
15.9
63.5
104.8
2
180
139.7
4
3/4″
210
440
80
203
17.5
76.2
127
2
190
152.4
4
3/4″
225
460
100
229
22.3
101.6
157.2
2
230
190.5
8
3/4″
225
570
125
254
22.3
127
185.7
2
255
215.9
8
7/8″
310
690
150
267
23.9
152.4
215.9
2
280
241.3
8
7/8″
310
780
200
292
27
203.2
269.9
2
345
298.5
8
7/8″
400
975
250
330
28.6
254
323.8
2
405
362
12
1″
460
1215
300
356
30.2
304.8
381
2
485
431.8
12
1″
500
1350
350
381
33.4
336.6
412.8
2
535
476.3
12
1.1/8″
450
1605
400
406
35
387.4
469.9
2
595
539.8
16
1.1/8″
450
1960
450
432
38.1
436.2
533.4
2
635
577.9
16
1.1/4″
450
2055
500
457
41.3
489
584.2
2
700
700
20
1.1/4″
450
2410
600
508
46.1
590.6
692.2
2
815
815
20
1.3/8″
450
2875
| Size (mm) | FF | FT | ØFW | ØRFD | RFH | ØFD | K | n | Ød | ØHW | H |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 108 | 8 | 15 | 34.9 | 2 | 90 | 60.3 | 4 | 5/8″ | 80 | 140 |
| 20 | 117 | 9 | 20 | 42.9 | 2 | 100 | 70 | 4 | 5/8″ | 80 | 165 |
| 25 | 127 | 9.6 | 25 | 50.8 | 2 | 110 | 79.5 | 4 | 5/8″ | 127 | 190 |
| 40 | 165 | 12.7 | 38.1 | 73 | 2 | 125 | 98.4 | 4 | 5/8″ | 210 | 365 |
| 50 | 178 | 14.3 | 50.8 | 92.1 | 2 | 150 | 120.7 | 4 | 3/4″ | 210 | 390 |
| 65 | 190 | 15.9 | 63.5 | 104.8 | 2 | 180 | 139.7 | 4 | 3/4″ | 210 | 440 |
| 80 | 203 | 17.5 | 76.2 | 127 | 2 | 190 | 152.4 | 4 | 3/4″ | 225 | 460 |
| 100 | 229 | 22.3 | 101.6 | 157.2 | 2 | 230 | 190.5 | 8 | 3/4″ | 225 | 570 |
| 125 | 254 | 22.3 | 127 | 185.7 | 2 | 255 | 215.9 | 8 | 7/8″ | 310 | 690 |
| 150 | 267 | 23.9 | 152.4 | 215.9 | 2 | 280 | 241.3 | 8 | 7/8″ | 310 | 780 |
| 200 | 292 | 27 | 203.2 | 269.9 | 2 | 345 | 298.5 | 8 | 7/8″ | 400 | 975 |
| 250 | 330 | 28.6 | 254 | 323.8 | 2 | 405 | 362 | 12 | 1″ | 460 | 1215 |
| 300 | 356 | 30.2 | 304.8 | 381 | 2 | 485 | 431.8 | 12 | 1″ | 500 | 1350 |
| 350 | 381 | 33.4 | 336.6 | 412.8 | 2 | 535 | 476.3 | 12 | 1.1/8″ | 450 | 1605 |
| 400 | 406 | 35 | 387.4 | 469.9 | 2 | 595 | 539.8 | 16 | 1.1/8″ | 450 | 1960 |
| 450 | 432 | 38.1 | 436.2 | 533.4 | 2 | 635 | 577.9 | 16 | 1.1/4″ | 450 | 2055 |
| 500 | 457 | 41.3 | 489 | 584.2 | 2 | 700 | 700 | 20 | 1.1/4″ | 450 | 2410 |
| 600 | 508 | 46.1 | 590.6 | 692.2 | 2 | 815 | 815 | 20 | 1.3/8″ | 450 | 2875 |
Selected Product

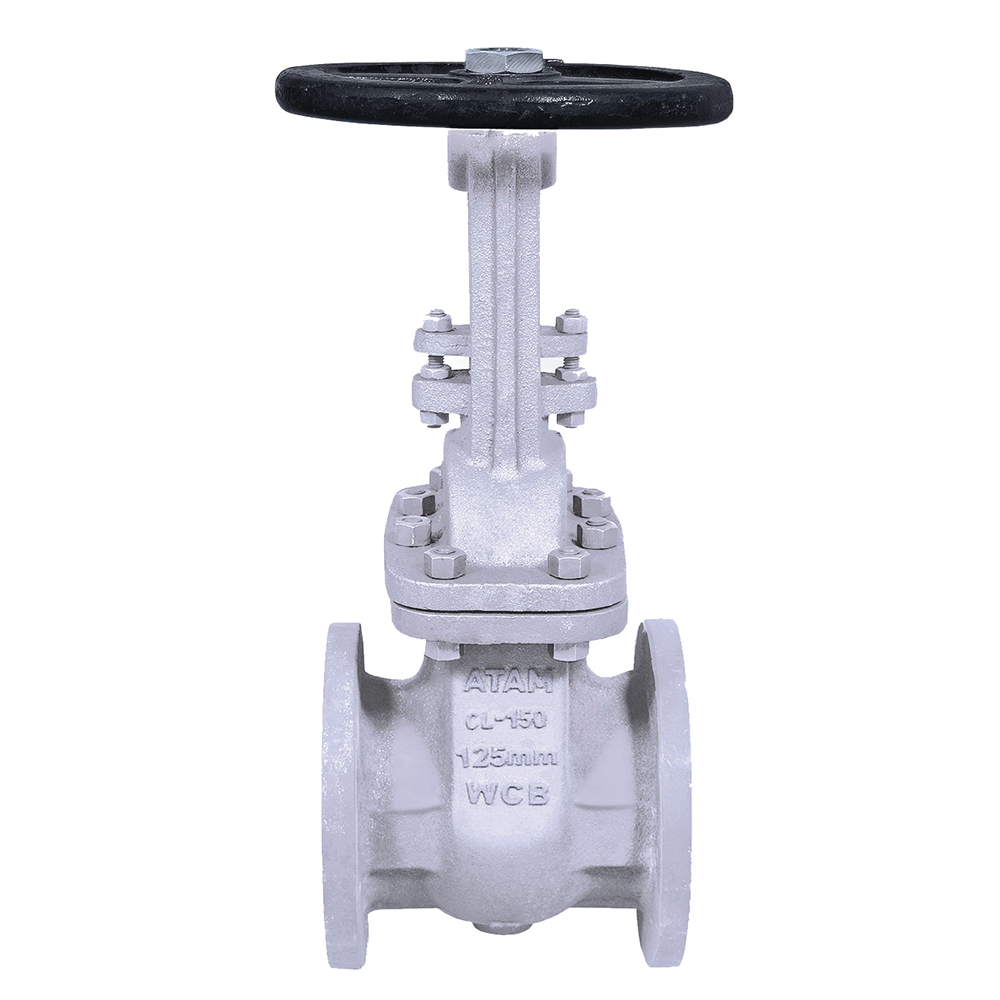

AV-288 Cast Carbon Steel Gate Valve, Flanged Ends, Class-150
