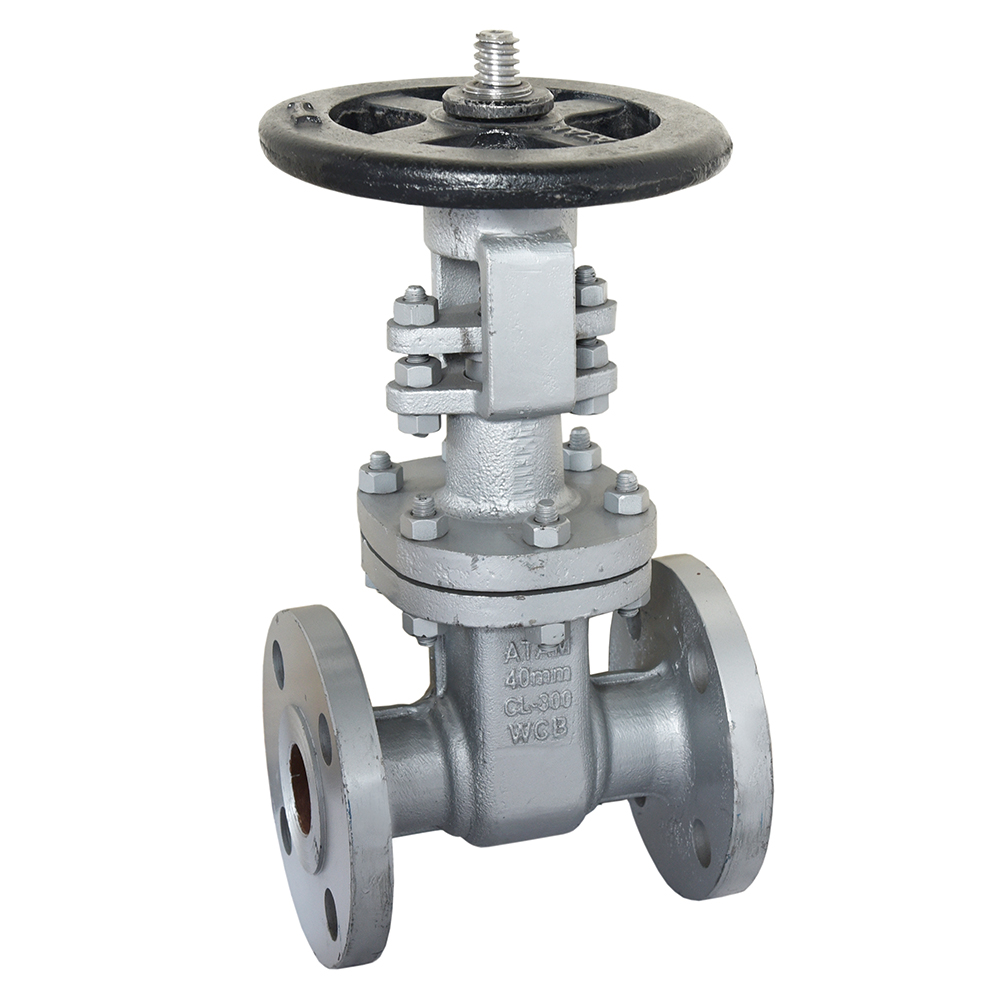

Features
Product Standard
API 600
Testing Standard
API-598
Pressure / Class Rating
Class-600
Body Material Cum Standard
Cast Carbon Steel (ASTM A216 Gr. WCB)
Product Description
Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem, Handwheel Operated
Type of Seat
Renewable Seat
Type of Wedge
Solid or Flexible Wedge
Trim
13% Cr. (SS 410)
End Details
Flanged Ends as per ASME B16.5 Class-600 Raised Face (Drilled)
Test Pressure
Body: 153 Bar (Hyd.), Seat: 112 Bar (Hyd.), Seat: 7 Bar (Air)
Max. Working Temperature
425°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Other trim material combinations are available on request.
Suitability
Water
Steam
Gas
Oil
Air
-

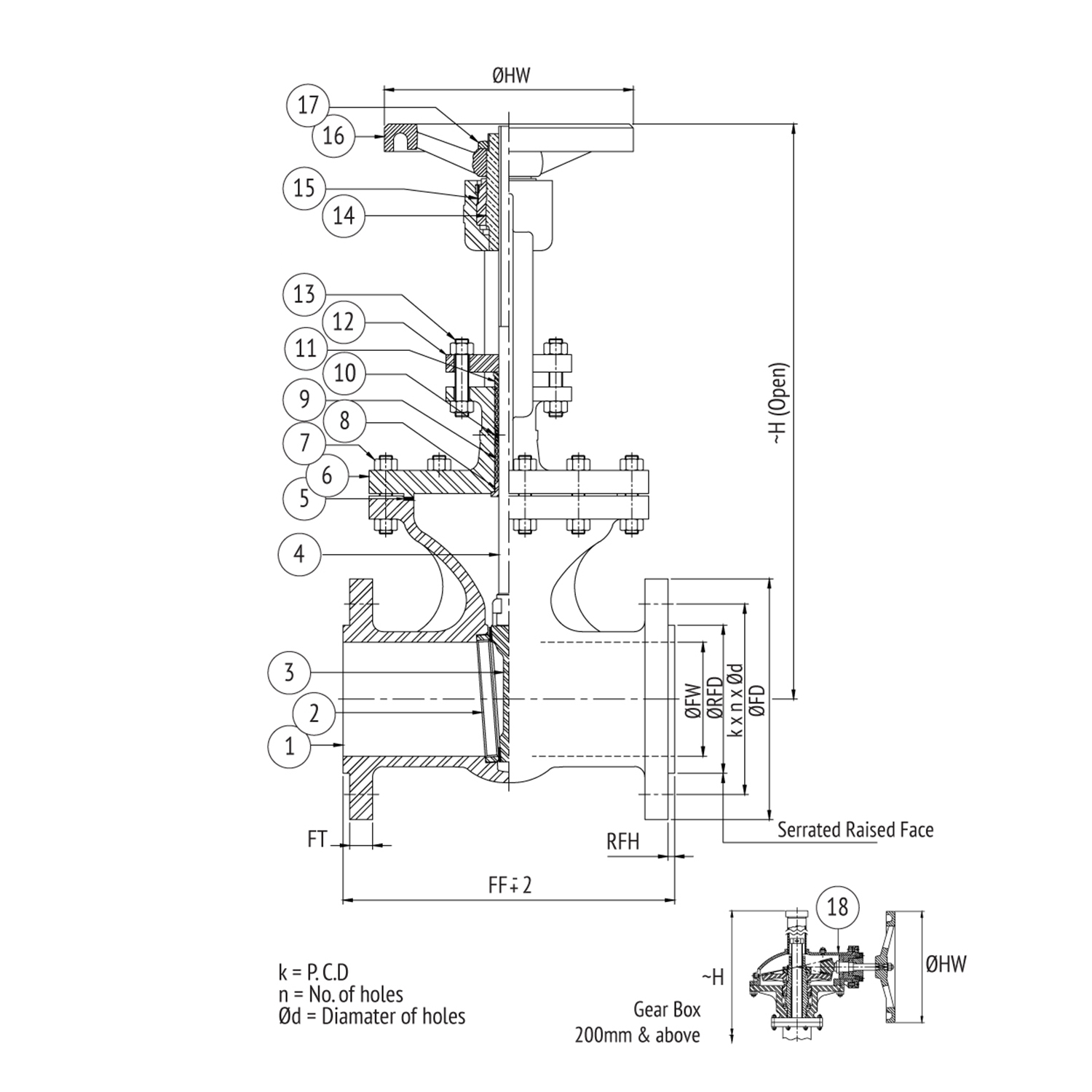

Material Combination
P.No. Name of Part Material Specification Nos. 1 Body C.C.S ASTM A216 Gr. WCB 1 2 Body Seat Ring S.S./ F.S.S. ASTM A216 Gr. WCB + 13% Cr. Weld Deposite/ ASTM A182 Gr. F6a 2 3 Wedge C.C.S/ C.A.S. ASTM A216 Gr. WCB + 13% Cr. Weld Deposite/ ASTM 217 Gr. CA15 1 4 Stem Stainless Steel ASTM A276 TYPE 410 1 5 Gasket Spiral Wound S.S. 304 Graphite Filler With Inner Ring – 1 6 Bonnet C.C.S ASTM A216 Gr. WCB 1 7 Studs & Nuts Alloy Steel/ H.T Steel ASTM A193 Gr. B7/ASTM A194 Gr. 2H To Suit 8 Back Seat Bush Stainless Steel ASTM A276 TYPE 410 1 9 Gland Packing Flexible Graphite – 10 Lantern Ring S.S. ASTM A276 TYPE 410 1 11 Gland Follower Stainless Steel ASTM A276 TYPE 410 1 12 Gland Flange C.C.S./ C.S. ASTM A216 Gr. WCB/ – 1 13 Gland Studs & Nuts Alloy Steel/ H.T Steel ASTM A193 Gr. B7/ASTM A194 Gr. 2H 2/4 14 Yoke Sleeve Al. Bronze / S.S. BSEN 1982 Gr. CC331G 1 15 Yoke sleeve Retaining Nut Carbon Steel – 1 16 Handwheel D.I./ M.I. ASTM A536 Gr. 80-55-08/ ASTM A338 1 17 Handwheel Retaining Nut Carbon Steel – 1 18 Gear Assembly C.I. – 1 -
Dimensional Data
Nominal Size (mm) FF FT ØFW ØRFD RFH ØFD K n Ød ØHW H 40 241 22.3 38.1 73 7 155 114.3 4 7/8″ 210 410 50 292 25.4 50.8 92.1 7 165 127 8 3/4″ 210 470 65 330 28.6 63.5 104.8 7 190 149.2 8 7/8″ 210 540 80 356 31.8 76.2 127 7 210 168.3 8 7/8″ 254 610 100 432 38.1 102 157.2 7 275 215.9 8 1″ 350 725 125 508 44.5 127 185.7 7 330 266.7 8 1.1/8″ 400 870 150 559 47.7 153 215.9 7 355 292.1 12 1.1/8″ 500 1050 200 660 55.6 200 269.9 7 420 349.2 12 1.1/4″ 450 1345 250 787 63.5 247.7 323.8 7 510 431.8 16 1.3/8″ 450 1370 300 838 66.7 298.5 381 7 560 489 20 1.3/8″ 450 1645 k – P.C.D; n – Number of Holes; Ød – Diameter of Holes
Features
Product Standard
API 600
Testing Standard
API-598
Pressure / Class Rating
Class-600
Body Material Cum Standard
Cast Carbon Steel (ASTM A216 Gr. WCB)
Product Description
Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem, Handwheel Operated
Type of Seat
Renewable Seat
Type of Wedge
Solid or Flexible Wedge
Trim
13% Cr. (SS 410)
End Details
Flanged Ends as per ASME B16.5 Class-600 Raised Face (Drilled)
Test Pressure
Body: 153 Bar (Hyd.), Seat: 112 Bar (Hyd.), Seat: 7 Bar (Air)
Max. Working Temperature
425°C
Product Standard
API 600
Testing Standard
API-598
Pressure / Class Rating
Class-600
Body Material Cum Standard
Cast Carbon Steel (ASTM A216 Gr. WCB)
Product Description
Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem, Handwheel Operated
Type of Seat
Renewable Seat
Type of Wedge
Solid or Flexible Wedge
Trim
13% Cr. (SS 410)
End Details
Flanged Ends as per ASME B16.5 Class-600 Raised Face (Drilled)
Test Pressure
Body: 153 Bar (Hyd.), Seat: 112 Bar (Hyd.), Seat: 7 Bar (Air)
Max. Working Temperature
425°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Other trim material combinations are available on request.
Suitability
Water
Steam
Gas
Oil
Air
Material Combination
P.No.
Name of Part
Material
Specification
Nos.
1
Body
C.C.S
ASTM A216 Gr. WCB
1
2
Body Seat Ring
S.S./ F.S.S.
ASTM A216 Gr. WCB + 13% Cr. Weld Deposite/ ASTM A182 Gr. F6a
2
3
Wedge
C.C.S/ C.A.S.
ASTM A216 Gr. WCB + 13% Cr. Weld Deposite/ ASTM 217 Gr. CA15
1
4
Stem
Stainless Steel
ASTM A276 TYPE 410
1
5
Gasket
Spiral Wound S.S. 304 Graphite Filler With Inner Ring
–
1
6
Bonnet
C.C.S
ASTM A216 Gr. WCB
1
7
Studs & Nuts
Alloy Steel/ H.T Steel
ASTM A193 Gr. B7/ASTM A194 Gr. 2H
To Suit
8
Back Seat Bush
Stainless Steel
ASTM A276 TYPE 410
1
9
Gland Packing
Flexible Graphite
–
10
Lantern Ring
S.S.
ASTM A276 TYPE 410
1
11
Gland Follower
Stainless Steel
ASTM A276 TYPE 410
1
12
Gland Flange
C.C.S./ C.S.
ASTM A216 Gr. WCB/ –
1
13
Gland Studs & Nuts
Alloy Steel/ H.T Steel
ASTM A193 Gr. B7/ASTM A194 Gr. 2H
2/4
14
Yoke Sleeve
Al. Bronze / S.S.
BSEN 1982 Gr. CC331G
1
15
Yoke sleeve Retaining Nut
Carbon Steel
–
1
16
Handwheel
D.I./ M.I.
ASTM A536 Gr. 80-55-08/ ASTM A338
1
17
Handwheel Retaining Nut
Carbon Steel
–
1
18
Gear Assembly
C.I.
–
1
| P.No. | Name of Part | Material | Specification | Nos. |
|---|---|---|---|---|
| 1 | Body | C.C.S | ASTM A216 Gr. WCB | 1 |
| 2 | Body Seat Ring | S.S./ F.S.S. | ASTM A216 Gr. WCB + 13% Cr. Weld Deposite/ ASTM A182 Gr. F6a | 2 |
| 3 | Wedge | C.C.S/ C.A.S. | ASTM A216 Gr. WCB + 13% Cr. Weld Deposite/ ASTM 217 Gr. CA15 | 1 |
| 4 | Stem | Stainless Steel | ASTM A276 TYPE 410 | 1 |
| 5 | Gasket | Spiral Wound S.S. 304 Graphite Filler With Inner Ring | – | 1 |
| 6 | Bonnet | C.C.S | ASTM A216 Gr. WCB | 1 |
| 7 | Studs & Nuts | Alloy Steel/ H.T Steel | ASTM A193 Gr. B7/ASTM A194 Gr. 2H | To Suit |
| 8 | Back Seat Bush | Stainless Steel | ASTM A276 TYPE 410 | 1 |
| 9 | Gland Packing | Flexible Graphite | – | |
| 10 | Lantern Ring | S.S. | ASTM A276 TYPE 410 | 1 |
| 11 | Gland Follower | Stainless Steel | ASTM A276 TYPE 410 | 1 |
| 12 | Gland Flange | C.C.S./ C.S. | ASTM A216 Gr. WCB/ – | 1 |
| 13 | Gland Studs & Nuts | Alloy Steel/ H.T Steel | ASTM A193 Gr. B7/ASTM A194 Gr. 2H | 2/4 |
| 14 | Yoke Sleeve | Al. Bronze / S.S. | BSEN 1982 Gr. CC331G | 1 |
| 15 | Yoke sleeve Retaining Nut | Carbon Steel | – | 1 |
| 16 | Handwheel | D.I./ M.I. | ASTM A536 Gr. 80-55-08/ ASTM A338 | 1 |
| 17 | Handwheel Retaining Nut | Carbon Steel | – | 1 |
| 18 | Gear Assembly | C.I. | – | 1 |

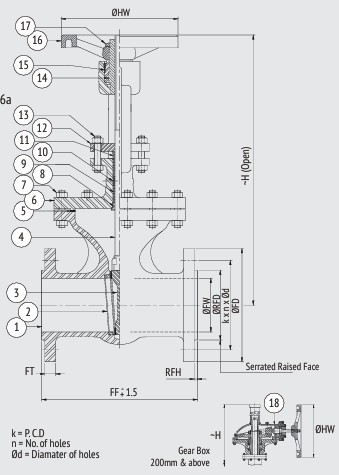

Dimensional Data
Nominal Size (mm)
FF
FT
ØFW
ØRFD
RFH
ØFD
K
n
Ød
ØHW
H
40
241
22.3
38.1
73
7
155
114.3
4
7/8″
210
410
50
292
25.4
50.8
92.1
7
165
127
8
3/4″
210
470
65
330
28.6
63.5
104.8
7
190
149.2
8
7/8″
210
540
80
356
31.8
76.2
127
7
210
168.3
8
7/8″
254
610
100
432
38.1
102
157.2
7
275
215.9
8
1″
350
725
125
508
44.5
127
185.7
7
330
266.7
8
1.1/8″
400
870
150
559
47.7
153
215.9
7
355
292.1
12
1.1/8″
500
1050
200
660
55.6
200
269.9
7
420
349.2
12
1.1/4″
450
1345
250
787
63.5
247.7
323.8
7
510
431.8
16
1.3/8″
450
1370
300
838
66.7
298.5
381
7
560
489
20
1.3/8″
450
1645
k – P.C.D; n – Number of Holes; Ød – Diameter of Holes
| Nominal Size (mm) | FF | FT | ØFW | ØRFD | RFH | ØFD | K | n | Ød | ØHW | H |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 40 | 241 | 22.3 | 38.1 | 73 | 7 | 155 | 114.3 | 4 | 7/8″ | 210 | 410 |
| 50 | 292 | 25.4 | 50.8 | 92.1 | 7 | 165 | 127 | 8 | 3/4″ | 210 | 470 |
| 65 | 330 | 28.6 | 63.5 | 104.8 | 7 | 190 | 149.2 | 8 | 7/8″ | 210 | 540 |
| 80 | 356 | 31.8 | 76.2 | 127 | 7 | 210 | 168.3 | 8 | 7/8″ | 254 | 610 |
| 100 | 432 | 38.1 | 102 | 157.2 | 7 | 275 | 215.9 | 8 | 1″ | 350 | 725 |
| 125 | 508 | 44.5 | 127 | 185.7 | 7 | 330 | 266.7 | 8 | 1.1/8″ | 400 | 870 |
| 150 | 559 | 47.7 | 153 | 215.9 | 7 | 355 | 292.1 | 12 | 1.1/8″ | 500 | 1050 |
| 200 | 660 | 55.6 | 200 | 269.9 | 7 | 420 | 349.2 | 12 | 1.1/4″ | 450 | 1345 |
| 250 | 787 | 63.5 | 247.7 | 323.8 | 7 | 510 | 431.8 | 16 | 1.3/8″ | 450 | 1370 |
| 300 | 838 | 66.7 | 298.5 | 381 | 7 | 560 | 489 | 20 | 1.3/8″ | 450 | 1645 |
k – P.C.D; n – Number of Holes; Ød – Diameter of Holes
