Features
Product Standard
BS 1873 / ASME B16.34
Testing Standard
API-598
Pressure / Class Rating
Class-300
Body Material Cum Standard
Cast Carbon Steel (ASTM A216 Gr. WCB)
Product Description
Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem, Handwheel Operated
Type of Seat
Renewable Seat
Type of Disc
Renewable Disc
Trim
13% Cr. (SS 410)
End Details
Flanged Ends as per ASME B16.5 Class-300 Raised Face (Drilled)
Test Pressure
Body: 77 Bar (Hyd.), Seat: 57 Bar (Hyd.), Seat: 7 Bar (Air)
Max. Working Temperature
425°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Other trim material combinations are available on request.
Suitability
Water
Steam
Gas
Oil
Air
-

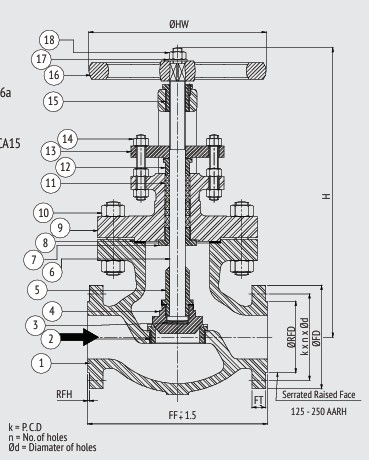

Material Combination
P.No. Name of Part Material Specification Nos. 1 Body C.C.S ASTM A216 Gr. WCB 1 2 Body Seat Ring C.C.S/F.S.S. ASTM A216 Gr. WCB + 13% Cr. Weld Deposite/ ASTM A182 Gr. F6a 2 3 Thrust Plate Hardened Steel – 1 4 Disc C.C.S./ C.A.S. / S.S. ASTM A216 Gr. WCB + 13% Cr. Weld Deposite/ ASTM A 217 Gr. CA15 / ASTM A 276 TYPE 410 1 5 Disc Nut S.S. ASTM A 276 TYPE 410 1 6 Stem S.S. ASTM A 276 TYPE 410 1 7 Back Seat Bush Stainless Steel ASTM A276 TYPE 410 To Suit 8 Gasket Spiral Wound S.S. 304 Graphoil Filler With Inner Ring (C.S. or S.S. 304) – 1 9 Bonnet C.C.S. ASTM A 216 Gr. WCB 1 10 Studs & Nuts Alloy Steel/ H.T Steel ASTM A193 Gr. B7/ASTM A194 Gr. 2H 1 11 Gland Packing Flexible Graphite – 12 Gland Follower Stainless Steel ASTM A276 TYPE 410 1 13 Gland Flange C.C.S./ C.S. ASTM A216 Gr. WCB/ – 1 14 Gland Studs & Nuts Alloy Steel/ H.T Steel ASTM A193 Gr. B7/ASTM A194 Gr. 2H 2/4 15 Yoke Bush Al. Bronze / S.S. BS EN 1982 Gr. CC331G / ASTM A 582 Type 416 1 18 Handwheel M.I./ D.I. ASTM A338/ ASTM A536 Gr. 80-55-06 1 17 Washer Carbon Steel – 1 18 Nut for Handwheel Carbon Steel – 1 -
Dimensional Data
Nominal Size (mm) FF FT ØFW ØRFD RFH ØFD K n Ød ØHW H 15 152 12.7 13 34.9 2 95 66.7 4 5/8″ 120 196 20 178 14.3 20 42.9 2 115 82.6 4 3/4″ 120 238 25 203 15.9 25 50.8 2 125 88.9 4 3/4″ 150 260 40 229 19.1 38 73 2 155 114.3 4 7/8″ 215 350 50 267 20.7 51 92.1 2 165 127 8 3/4″ 215 385 65 292 23.9 64 104.8 2 190 149.2 8 7/8″ 254 408 80 318 27 76 127 2 210 168.3 8 7/8″ 254 490 100 356 30.2 102 157.2 2 255 200 8 7/8″ 350 573 125 400 33.4 127 185.7 2 280 235 8 7/8″ 400 655 150 444 35 152 215.9 2 320 269.9 12 7/8″ 450 675 200 559 39.7 203 269.9 2 380 330.2 12 1″ 500 795 250 622 46.1 254 323.8 2 445 387.4 16 1.1/8″ 560 750 k – P.C.D; n – Number of Holes; Ød – Diameter of Holes
Features
Product Standard
BS 1873 / ASME B16.34
Testing Standard
API-598
Pressure / Class Rating
Class-300
Body Material Cum Standard
Cast Carbon Steel (ASTM A216 Gr. WCB)
Product Description
Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem, Handwheel Operated
Type of Seat
Renewable Seat
Type of Disc
Renewable Disc
Trim
13% Cr. (SS 410)
End Details
Flanged Ends as per ASME B16.5 Class-300 Raised Face (Drilled)
Test Pressure
Body: 77 Bar (Hyd.), Seat: 57 Bar (Hyd.), Seat: 7 Bar (Air)
Max. Working Temperature
425°C
Product Standard
BS 1873 / ASME B16.34
Testing Standard
API-598
Pressure / Class Rating
Class-300
Body Material Cum Standard
Cast Carbon Steel (ASTM A216 Gr. WCB)
Product Description
Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem, Handwheel Operated
Type of Seat
Renewable Seat
Type of Disc
Renewable Disc
Trim
13% Cr. (SS 410)
End Details
Flanged Ends as per ASME B16.5 Class-300 Raised Face (Drilled)
Test Pressure
Body: 77 Bar (Hyd.), Seat: 57 Bar (Hyd.), Seat: 7 Bar (Air)
Max. Working Temperature
425°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Other trim material combinations are available on request.
Suitability
Water
Steam
Gas
Oil
Air
Material Combination
P.No.
Name of Part
Material
Specification
Nos.
1
Body
C.C.S
ASTM A216 Gr. WCB
1
2
Body Seat Ring
C.C.S/F.S.S.
ASTM A216 Gr. WCB + 13% Cr. Weld Deposite/ ASTM A182 Gr. F6a
2
3
Thrust Plate
Hardened Steel
–
1
4
Disc
C.C.S./ C.A.S. / S.S.
ASTM A216 Gr. WCB + 13% Cr. Weld Deposite/ ASTM A 217 Gr. CA15 / ASTM A 276 TYPE 410
1
5
Disc Nut
S.S.
ASTM A 276 TYPE 410
1
6
Stem
S.S.
ASTM A 276 TYPE 410
1
7
Back Seat Bush
Stainless Steel
ASTM A276 TYPE 410
To Suit
8
Gasket
Spiral Wound S.S. 304 Graphoil Filler With Inner Ring (C.S. or S.S. 304)
–
1
9
Bonnet
C.C.S.
ASTM A 216 Gr. WCB
1
10
Studs & Nuts
Alloy Steel/ H.T Steel
ASTM A193 Gr. B7/ASTM A194 Gr. 2H
1
11
Gland Packing
Flexible Graphite
–
12
Gland Follower
Stainless Steel
ASTM A276 TYPE 410
1
13
Gland Flange
C.C.S./ C.S.
ASTM A216 Gr. WCB/ –
1
14
Gland Studs & Nuts
Alloy Steel/ H.T Steel
ASTM A193 Gr. B7/ASTM A194 Gr. 2H
2/4
15
Yoke Bush
Al. Bronze / S.S.
BS EN 1982 Gr. CC331G / ASTM A 582 Type 416
1
18
Handwheel
M.I./ D.I.
ASTM A338/ ASTM A536 Gr. 80-55-06
1
17
Washer
Carbon Steel
–
1
18
Nut for Handwheel
Carbon Steel
–
1
| P.No. | Name of Part | Material | Specification | Nos. |
|---|---|---|---|---|
| 1 | Body | C.C.S | ASTM A216 Gr. WCB | 1 |
| 2 | Body Seat Ring | C.C.S/F.S.S. | ASTM A216 Gr. WCB + 13% Cr. Weld Deposite/ ASTM A182 Gr. F6a | 2 |
| 3 | Thrust Plate | Hardened Steel | – | 1 |
| 4 | Disc | C.C.S./ C.A.S. / S.S. | ASTM A216 Gr. WCB + 13% Cr. Weld Deposite/ ASTM A 217 Gr. CA15 / ASTM A 276 TYPE 410 | 1 |
| 5 | Disc Nut | S.S. | ASTM A 276 TYPE 410 | 1 |
| 6 | Stem | S.S. | ASTM A 276 TYPE 410 | 1 |
| 7 | Back Seat Bush | Stainless Steel | ASTM A276 TYPE 410 | To Suit |
| 8 | Gasket | Spiral Wound S.S. 304 Graphoil Filler With Inner Ring (C.S. or S.S. 304) | – | 1 |
| 9 | Bonnet | C.C.S. | ASTM A 216 Gr. WCB | 1 |
| 10 | Studs & Nuts | Alloy Steel/ H.T Steel | ASTM A193 Gr. B7/ASTM A194 Gr. 2H | 1 |
| 11 | Gland Packing | Flexible Graphite | – | |
| 12 | Gland Follower | Stainless Steel | ASTM A276 TYPE 410 | 1 |
| 13 | Gland Flange | C.C.S./ C.S. | ASTM A216 Gr. WCB/ – | 1 |
| 14 | Gland Studs & Nuts | Alloy Steel/ H.T Steel | ASTM A193 Gr. B7/ASTM A194 Gr. 2H | 2/4 |
| 15 | Yoke Bush | Al. Bronze / S.S. | BS EN 1982 Gr. CC331G / ASTM A 582 Type 416 | 1 |
| 18 | Handwheel | M.I./ D.I. | ASTM A338/ ASTM A536 Gr. 80-55-06 | 1 |
| 17 | Washer | Carbon Steel | – | 1 |
| 18 | Nut for Handwheel | Carbon Steel | – | 1 |
Dimensional Data
Nominal Size (mm)
FF
FT
ØFW
ØRFD
RFH
ØFD
K
n
Ød
ØHW
H
15
152
12.7
13
34.9
2
95
66.7
4
5/8″
120
196
20
178
14.3
20
42.9
2
115
82.6
4
3/4″
120
238
25
203
15.9
25
50.8
2
125
88.9
4
3/4″
150
260
40
229
19.1
38
73
2
155
114.3
4
7/8″
215
350
50
267
20.7
51
92.1
2
165
127
8
3/4″
215
385
65
292
23.9
64
104.8
2
190
149.2
8
7/8″
254
408
80
318
27
76
127
2
210
168.3
8
7/8″
254
490
100
356
30.2
102
157.2
2
255
200
8
7/8″
350
573
125
400
33.4
127
185.7
2
280
235
8
7/8″
400
655
150
444
35
152
215.9
2
320
269.9
12
7/8″
450
675
200
559
39.7
203
269.9
2
380
330.2
12
1″
500
795
250
622
46.1
254
323.8
2
445
387.4
16
1.1/8″
560
750
k – P.C.D; n – Number of Holes; Ød – Diameter of Holes
| Nominal Size (mm) | FF | FT | ØFW | ØRFD | RFH | ØFD | K | n | Ød | ØHW | H |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 152 | 12.7 | 13 | 34.9 | 2 | 95 | 66.7 | 4 | 5/8″ | 120 | 196 |
| 20 | 178 | 14.3 | 20 | 42.9 | 2 | 115 | 82.6 | 4 | 3/4″ | 120 | 238 |
| 25 | 203 | 15.9 | 25 | 50.8 | 2 | 125 | 88.9 | 4 | 3/4″ | 150 | 260 |
| 40 | 229 | 19.1 | 38 | 73 | 2 | 155 | 114.3 | 4 | 7/8″ | 215 | 350 |
| 50 | 267 | 20.7 | 51 | 92.1 | 2 | 165 | 127 | 8 | 3/4″ | 215 | 385 |
| 65 | 292 | 23.9 | 64 | 104.8 | 2 | 190 | 149.2 | 8 | 7/8″ | 254 | 408 |
| 80 | 318 | 27 | 76 | 127 | 2 | 210 | 168.3 | 8 | 7/8″ | 254 | 490 |
| 100 | 356 | 30.2 | 102 | 157.2 | 2 | 255 | 200 | 8 | 7/8″ | 350 | 573 |
| 125 | 400 | 33.4 | 127 | 185.7 | 2 | 280 | 235 | 8 | 7/8″ | 400 | 655 |
| 150 | 444 | 35 | 152 | 215.9 | 2 | 320 | 269.9 | 12 | 7/8″ | 450 | 675 |
| 200 | 559 | 39.7 | 203 | 269.9 | 2 | 380 | 330.2 | 12 | 1″ | 500 | 795 |
| 250 | 622 | 46.1 | 254 | 323.8 | 2 | 445 | 387.4 | 16 | 1.1/8″ | 560 | 750 |
k – P.C.D; n – Number of Holes; Ød – Diameter of Holes
