Features
Product Standard
BS 1873 / ASME B16.34
Testing Standard
API-598
Pressure / Class Rating
Class-600
Body Material Cum Standard
Cast Carbon Steel (ASTM A216 Gr. WCB)
Product Description
Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem, Handwheel Operated
Type of Seat
Renewable Seat
Type of Disc
Renewable Disc
Trim
13% Cr. (SS 410)
End Details
Flanged Ends as per ASME B16.5 Class-600 Raised Face (Drilled)
Test Pressure
Body: 153 Bar (Hyd.), Seat: 112 Bar (Hyd.), Seat: 7 Bar (Air)
Max. Working Temperature
425°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Other trim material combinations are available on request.
Suitability
Water
Steam
Gas
Oil
Air
-

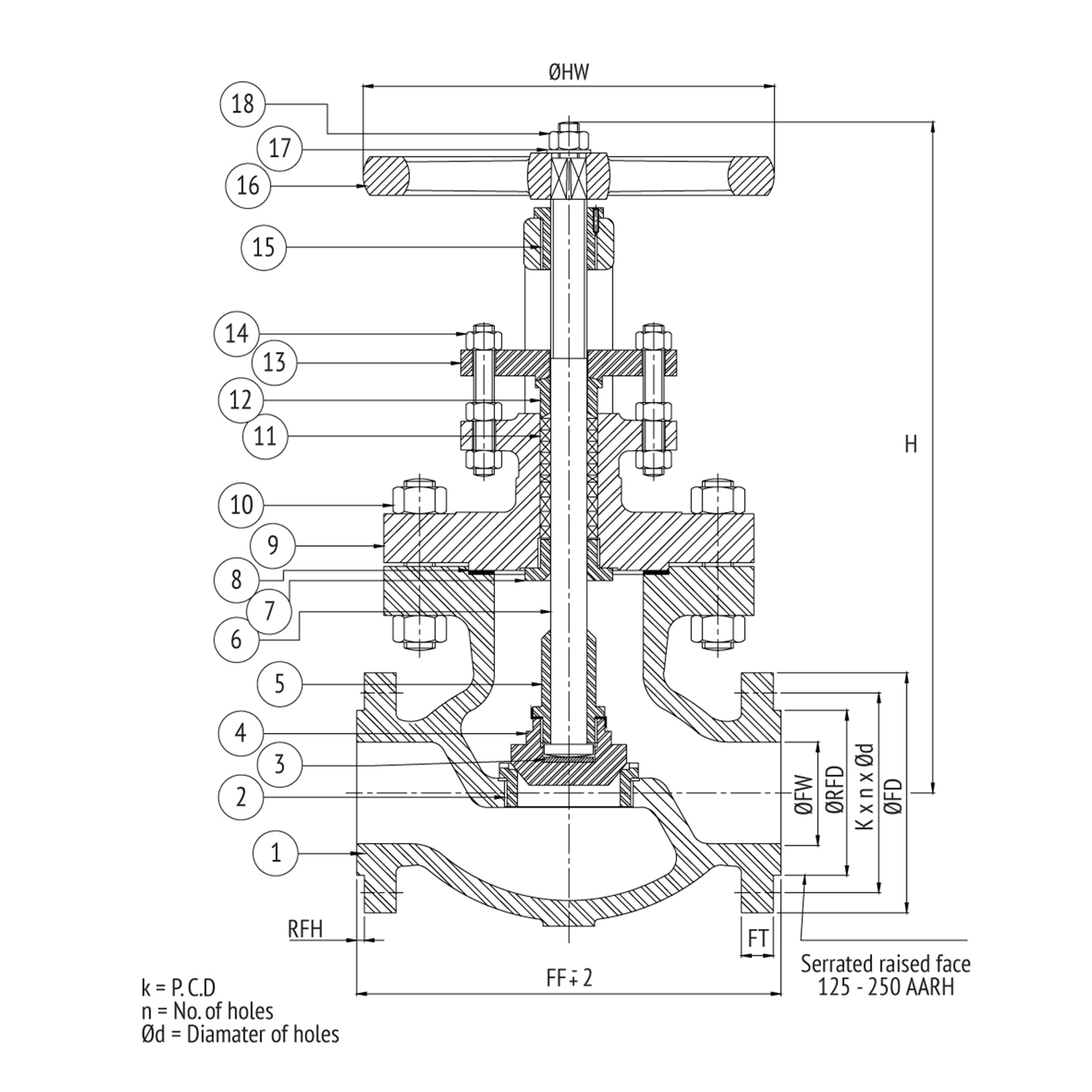

Material Combination
P.No. Name of Part Material Specification Nos. 1 Body C.C.S ASTM A216 Gr. WCB 1 2 Body Seat Ring C.C.S/F.S.S. ASTM A216 Gr. WCB + 13% Cr. Weld Deposite/ ASTM A182 Gr. F6a 2 3 Thrust Plate Hardened Steel 1 4 Disc C.C.S./ S.S. ASTM A216 Gr. WCB + 13% Cr. Weld Deposite/ ASTM A217 Gr. CA 15 1 5 Disc Nut S.S. ASTM A 276 TYPE 410 1 6 Stem S.S. ASTM A 276 TYPE 410 1 7 Back Seat Bush S.S. ASTM A276 TYPE 410 To Suit 8 Gasket Spiral Wound S.S. 304 Graphoil Filler With Inner Ring – 1 9 Bonnet C.C.S. ASTM A 216 Gr. WCB 1 10 Studs & Nuts Alloy Steel/ H.T Steel ASTM A193 Gr. B7/ASTM A194 Gr. 2H 1 11 Gland Packing Flexible Graphite – 12 Gland Follower S.S. ASTM A276 TYPE 410 1 13 Gland Flange C.C.S./ C.S. ASTM A216 Gr. WCB/ – 1 14 Gland Studs & Nuts Alloy Steel/ H.T Steel ASTM A193 Gr. B7/ASTM A194 Gr. 2H 2/4 15 Yoke Bush Al. Bronze BSEN 1982 Gr. CC331G 1 18 Handwheel M.I./ D.I. ASTM A338/ ASTM A536 Gr. 80-55-06 1 17 Washer Carbon Steel – 1 18 Nut for Handwheel Carbon Steel – 1 NOTE : 1. This item can be supplied in WC6, WC9 material also.
-
Dimensional Data
Nominal Size (mm) FF FT ØFW ØRFD RFH ØFD K n Ød ØHW H 40 241 22.3 38 73 7 155 114.3 4 7/8″ 254 365 50 292 25.4 51 92.1 7 165 127 8 3/4″ 254 393 65 330 28.6 64 104.8 7 190 149.2 8 7/8″ 305 497 80 356 31.8 76 127 7 210 168.3 8 7/8″ 305 518 100 432 38.1 102 157.2 7 275 215.9 8 1″ 455 633 125 508 44.5 127 185.7 7 330 266.7 8 1.1/8″ 500 742 150 559 47.7 152 215.9 7 355 292.1 12 1.1/8″ 590 788 200 660 55.6 200 269.9 7 420 349.2 12 1.1/4″ 600 823 k – P.C.D; n – Number of Holes; Ød – Diameter of Holes
Features
Product Standard
BS 1873 / ASME B16.34
Testing Standard
API-598
Pressure / Class Rating
Class-600
Body Material Cum Standard
Cast Carbon Steel (ASTM A216 Gr. WCB)
Product Description
Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem, Handwheel Operated
Type of Seat
Renewable Seat
Type of Disc
Renewable Disc
Trim
13% Cr. (SS 410)
End Details
Flanged Ends as per ASME B16.5 Class-600 Raised Face (Drilled)
Test Pressure
Body: 153 Bar (Hyd.), Seat: 112 Bar (Hyd.), Seat: 7 Bar (Air)
Max. Working Temperature
425°C
Product Standard
BS 1873 / ASME B16.34
Testing Standard
API-598
Pressure / Class Rating
Class-600
Body Material Cum Standard
Cast Carbon Steel (ASTM A216 Gr. WCB)
Product Description
Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem, Handwheel Operated
Type of Seat
Renewable Seat
Type of Disc
Renewable Disc
Trim
13% Cr. (SS 410)
End Details
Flanged Ends as per ASME B16.5 Class-600 Raised Face (Drilled)
Test Pressure
Body: 153 Bar (Hyd.), Seat: 112 Bar (Hyd.), Seat: 7 Bar (Air)
Max. Working Temperature
425°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Other trim material combinations are available on request.
Suitability
Water
Steam
Gas
Oil
Air
Material Combination
P.No.
Name of Part
Material
Specification
Nos.
1
Body
C.C.S
ASTM A216 Gr. WCB
1
2
Body Seat Ring
C.C.S/F.S.S.
ASTM A216 Gr. WCB + 13% Cr. Weld Deposite/ ASTM A182 Gr. F6a
2
3
Thrust Plate
Hardened Steel
1
4
Disc
C.C.S./ S.S.
ASTM A216 Gr. WCB + 13% Cr. Weld Deposite/ ASTM A217 Gr. CA 15
1
5
Disc Nut
S.S.
ASTM A 276 TYPE 410
1
6
Stem
S.S.
ASTM A 276 TYPE 410
1
7
Back Seat Bush
S.S.
ASTM A276 TYPE 410
To Suit
8
Gasket
Spiral Wound S.S. 304 Graphoil Filler With Inner Ring
–
1
9
Bonnet
C.C.S.
ASTM A 216 Gr. WCB
1
10
Studs & Nuts
Alloy Steel/ H.T Steel
ASTM A193 Gr. B7/ASTM A194 Gr. 2H
1
11
Gland Packing
Flexible Graphite
–
12
Gland Follower
S.S.
ASTM A276 TYPE 410
1
13
Gland Flange
C.C.S./ C.S.
ASTM A216 Gr. WCB/ –
1
14
Gland Studs & Nuts
Alloy Steel/ H.T Steel
ASTM A193 Gr. B7/ASTM A194 Gr. 2H
2/4
15
Yoke Bush
Al. Bronze
BSEN 1982 Gr. CC331G
1
18
Handwheel
M.I./ D.I.
ASTM A338/ ASTM A536 Gr. 80-55-06
1
17
Washer
Carbon Steel
–
1
18
Nut for Handwheel
Carbon Steel
–
1
NOTE : 1. This item can be supplied in WC6, WC9 material also.
| P.No. | Name of Part | Material | Specification | Nos. |
|---|---|---|---|---|
| 1 | Body | C.C.S | ASTM A216 Gr. WCB | 1 |
| 2 | Body Seat Ring | C.C.S/F.S.S. | ASTM A216 Gr. WCB + 13% Cr. Weld Deposite/ ASTM A182 Gr. F6a | 2 |
| 3 | Thrust Plate | Hardened Steel | 1 | |
| 4 | Disc | C.C.S./ S.S. | ASTM A216 Gr. WCB + 13% Cr. Weld Deposite/ ASTM A217 Gr. CA 15 | 1 |
| 5 | Disc Nut | S.S. | ASTM A 276 TYPE 410 | 1 |
| 6 | Stem | S.S. | ASTM A 276 TYPE 410 | 1 |
| 7 | Back Seat Bush | S.S. | ASTM A276 TYPE 410 | To Suit |
| 8 | Gasket | Spiral Wound S.S. 304 Graphoil Filler With Inner Ring | – | 1 |
| 9 | Bonnet | C.C.S. | ASTM A 216 Gr. WCB | 1 |
| 10 | Studs & Nuts | Alloy Steel/ H.T Steel | ASTM A193 Gr. B7/ASTM A194 Gr. 2H | 1 |
| 11 | Gland Packing | Flexible Graphite | – | |
| 12 | Gland Follower | S.S. | ASTM A276 TYPE 410 | 1 |
| 13 | Gland Flange | C.C.S./ C.S. | ASTM A216 Gr. WCB/ – | 1 |
| 14 | Gland Studs & Nuts | Alloy Steel/ H.T Steel | ASTM A193 Gr. B7/ASTM A194 Gr. 2H | 2/4 |
| 15 | Yoke Bush | Al. Bronze | BSEN 1982 Gr. CC331G | 1 |
| 18 | Handwheel | M.I./ D.I. | ASTM A338/ ASTM A536 Gr. 80-55-06 | 1 |
| 17 | Washer | Carbon Steel | – | 1 |
| 18 | Nut for Handwheel | Carbon Steel | – | 1 |
NOTE : 1. This item can be supplied in WC6, WC9 material also.

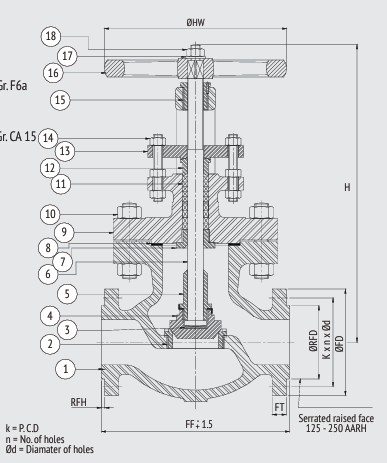

Dimensional Data
Nominal Size (mm)
FF
FT
ØFW
ØRFD
RFH
ØFD
K
n
Ød
ØHW
H
40
241
22.3
38
73
7
155
114.3
4
7/8″
254
365
50
292
25.4
51
92.1
7
165
127
8
3/4″
254
393
65
330
28.6
64
104.8
7
190
149.2
8
7/8″
305
497
80
356
31.8
76
127
7
210
168.3
8
7/8″
305
518
100
432
38.1
102
157.2
7
275
215.9
8
1″
455
633
125
508
44.5
127
185.7
7
330
266.7
8
1.1/8″
500
742
150
559
47.7
152
215.9
7
355
292.1
12
1.1/8″
590
788
200
660
55.6
200
269.9
7
420
349.2
12
1.1/4″
600
823
k – P.C.D; n – Number of Holes; Ød – Diameter of Holes
| Nominal Size (mm) | FF | FT | ØFW | ØRFD | RFH | ØFD | K | n | Ød | ØHW | H |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 40 | 241 | 22.3 | 38 | 73 | 7 | 155 | 114.3 | 4 | 7/8″ | 254 | 365 |
| 50 | 292 | 25.4 | 51 | 92.1 | 7 | 165 | 127 | 8 | 3/4″ | 254 | 393 |
| 65 | 330 | 28.6 | 64 | 104.8 | 7 | 190 | 149.2 | 8 | 7/8″ | 305 | 497 |
| 80 | 356 | 31.8 | 76 | 127 | 7 | 210 | 168.3 | 8 | 7/8″ | 305 | 518 |
| 100 | 432 | 38.1 | 102 | 157.2 | 7 | 275 | 215.9 | 8 | 1″ | 455 | 633 |
| 125 | 508 | 44.5 | 127 | 185.7 | 7 | 330 | 266.7 | 8 | 1.1/8″ | 500 | 742 |
| 150 | 559 | 47.7 | 152 | 215.9 | 7 | 355 | 292.1 | 12 | 1.1/8″ | 590 | 788 |
| 200 | 660 | 55.6 | 200 | 269.9 | 7 | 420 | 349.2 | 12 | 1.1/4″ | 600 | 823 |
k – P.C.D; n – Number of Holes; Ød – Diameter of Holes
Selected Product

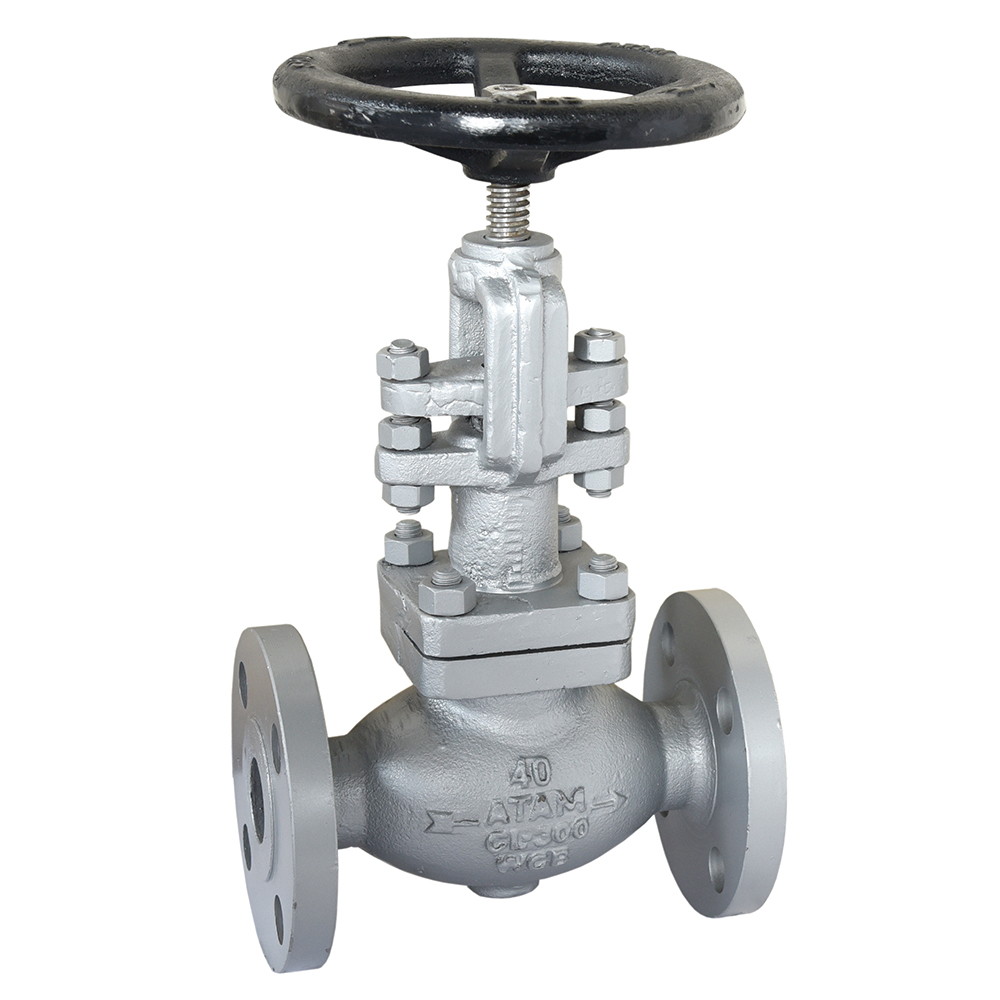

AV-289B Cast Carbon Steel Globe Valve, Flanged Ends, Class-600
