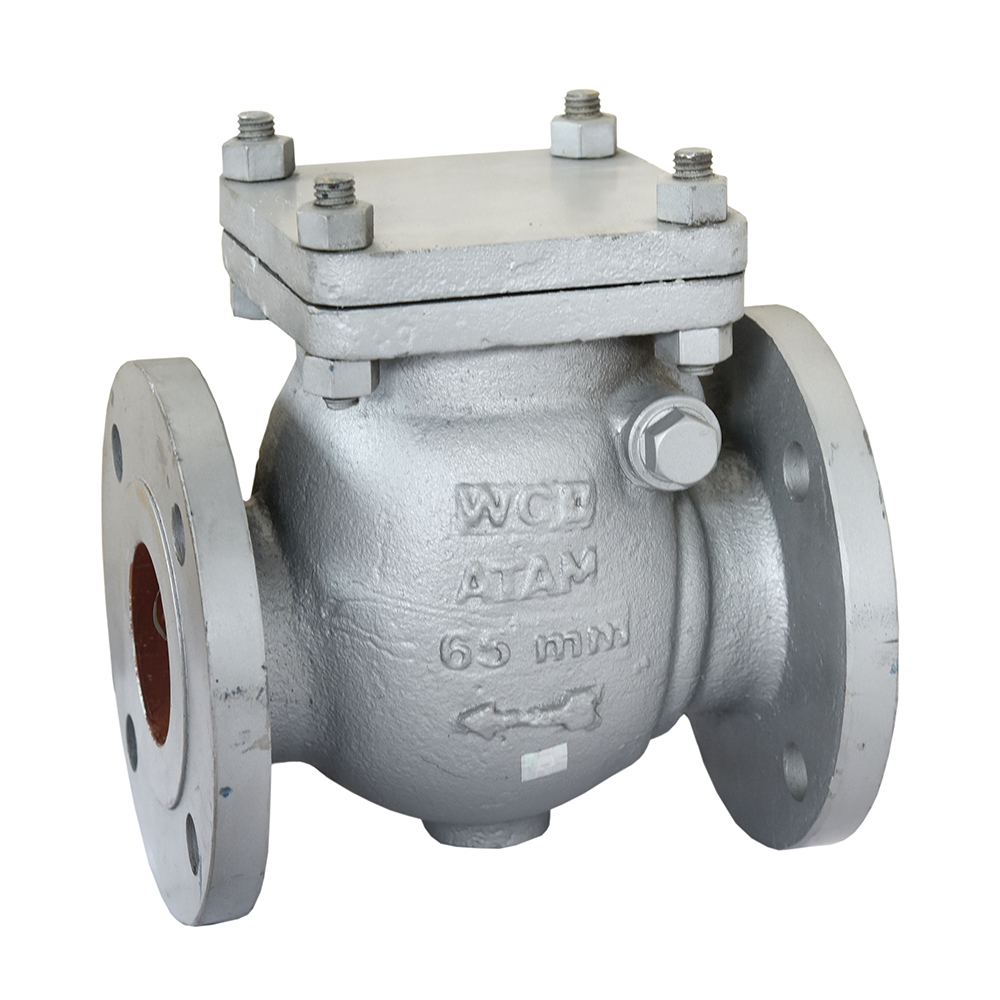

AV-290 Cast Carbon Steel Swing Check Valve, Flanged Ends, Class-150

AV-290 | Cast Carbon Steel Swing Check Valve, Flanged Ends, Class-150

Features

Product Standard

BS-1868

Testing Standard

API-598

Pressure / Class Rating

Class-150

Body Material Cum Standard

Cast Carbon Steel (ASTM A216 Gr. WCB)

Product Description

Bolted Cover

Type of Seat

Renewable Seat

Trim

13% Cr. (SS 410)

End Details

Flanged Ends as per ASME B16.5 Class-150 Raised Face (Drilled)

Test Pressure

Body: 30 Bar (Hyd.), Seat: 22 Bar (Hyd.), Seat: 7 Bar (Air)

Max. Working Temperature

425°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.
Other trim material combinations are available on request.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

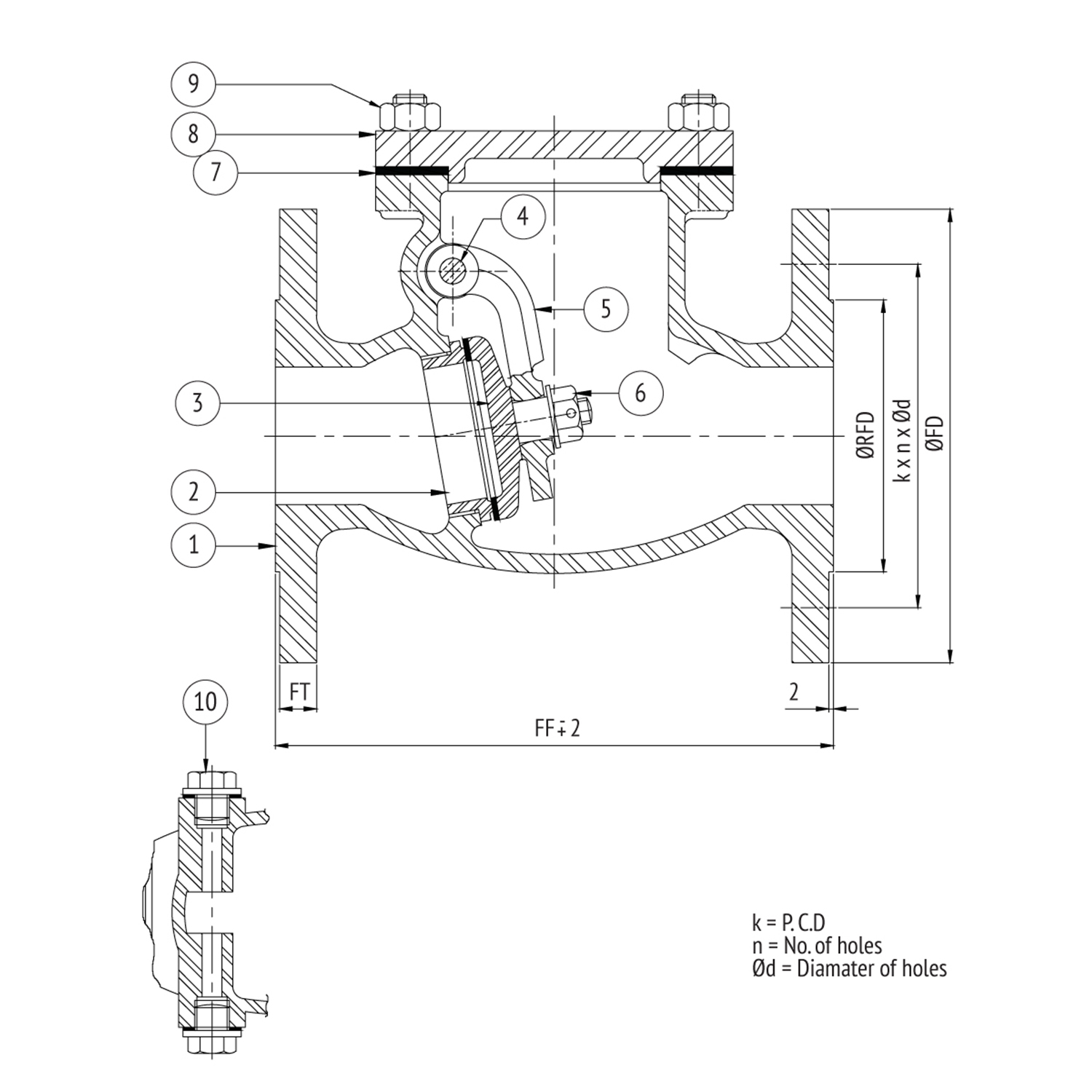

Material Combination

P.No.	Name of Part	Material	Specification	Nos.
1	Body	C.C.S	ASTM A216 Gr. WCB	1
2	Body Seat Ring	S.S./ F.S.S./ C.C.S.	ASTM A276 TYPE 410/ ASTM A182 Gr. F6a/ ASTM A216 Gr. WCB + 13% Cr. Welded Deposit	2
3	Disc	C.C.S.	ASTM A216 Gr. WCB + 13% Cr. Welded Deposit	1
4	Hinge Pin	S.S.	ASTM A276 TYPE 410	1
5	Hinge	C.C.S.	ASTM A216 Gr. WCB	1
6	Nut	S.S.	AISI-410	1
7	Washer	Carbon Steel	–	To Suit
8	Gasket	Spiral Wound S.S. 304 with Graphite Filler Inner Ring	–	1
9	Cover	C.C.S.	ASTM A216 Gr. WCB	1
10	Stud & Nuts	Alloy Steel/ H.T. Steel	ASTM A193 Gr. B7/ ASTM A194 Gr. 2H	1

NOTE : 1. This item can be supplied in WC6, WC9 material also.

Download PDF Product Inquiry

Dimensional Data

Nominal Size (mm)	FF	FT	ØRFD	ØFD	K	n	Ød
15	108	8	34.9	90	60.3	4	5/8″
20	117	8.9	42.9	100	69.9	4	5/8″
25	127	9.6	50.8	110	79.4	4	5/8″
40	165	12.7	73	125	98.4	4	5/8″
50	203	14.3	92.1	150	120.7	4	3/4″
65	216	15.9	104.8	180	139.7	4	3/4″
80	241	17.5	127	190	152.4	4	3/4″
100	292	22.3	157.2	230	190.5	8	3/4″
125	330	22.3	185.7	255	215.9	8	7/8″
150	356	23.9	215.9	280	241.3	8	7/8″
200	495	27	269.9	345	298.5	8	7/8″

k – P.C.D; n – Number of Holes; Ød – Diameter of Holes

Download PDF Product Inquiry

AV-290 | Cast Carbon Steel Swing Check Valve, Flanged Ends, Class-150

Product Inquiry

Features

Product Standard

BS-1868

Testing Standard

API-598

Pressure / Class Rating

Class-150

Body Material Cum Standard

Cast Carbon Steel (ASTM A216 Gr. WCB)

Product Description

Bolted Cover

Type of Seat

Renewable Seat

Trim

13% Cr. (SS 410)

End Details

Flanged Ends as per ASME B16.5 Class-150 Raised Face (Drilled)

Test Pressure

Body: 30 Bar (Hyd.), Seat: 22 Bar (Hyd.), Seat: 7 Bar (Air)

Max. Working Temperature

425°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.
Other trim material combinations are available on request.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

P.No. Name of Part Material Specification Nos.

1 Body C.C.S ASTM A216 Gr. WCB 1

2 Body Seat Ring S.S./ F.S.S./ C.C.S. ASTM A276 TYPE 410/ ASTM A182 Gr. F6a/ ASTM A216 Gr. WCB + 13% Cr. Welded Deposit 2

3 Disc C.C.S. ASTM A216 Gr. WCB + 13% Cr. Welded Deposit 1

4 Hinge Pin S.S. ASTM A276 TYPE 410 1

5 Hinge C.C.S. ASTM A216 Gr. WCB 1

6 Nut S.S. AISI-410 1

7 Washer Carbon Steel – To Suit

8 Gasket Spiral Wound S.S. 304 with Graphite Filler Inner Ring – 1

9 Cover C.C.S. ASTM A216 Gr. WCB 1

10 Stud & Nuts Alloy Steel/ H.T. Steel ASTM A193 Gr. B7/ ASTM A194 Gr. 2H 1

NOTE : 1. This item can be supplied in WC6, WC9 material also.

Dimensional Data

Nominal Size (mm) FF FT ØRFD ØFD K n Ød

15 108 8 34.9 90 60.3 4 5/8″

20 117 8.9 42.9 100 69.9 4 5/8″

25 127 9.6 50.8 110 79.4 4 5/8″

40 165 12.7 73 125 98.4 4 5/8″

50 203 14.3 92.1 150 120.7 4 3/4″

65 216 15.9 104.8 180 139.7 4 3/4″

80 241 17.5 127 190 152.4 4 3/4″

100 292 22.3 157.2 230 190.5 8 3/4″

125 330 22.3 185.7 255 215.9 8 7/8″

150 356 23.9 215.9 280 241.3 8 7/8″

200 495 27 269.9 345 298.5 8 7/8″

k – P.C.D; n – Number of Holes; Ød – Diameter of Holes
