Features
Product Standard
BS-1868
Testing Standard
API-598
Pressure / Class Rating
Class-300
Body Material Cum Standard
Cast Carbon Steel (ASTM A216 Gr. WCB)
Product Description
Bolted Cover
Type of Seat
Renewable Seat
Trim
13% Cr. (SS 410)
End Details
Flanged Ends as per ASME B16.5 Class-300 Raised Face (Drilled)
Test Pressure
Body: 77 Bar (Hyd.), Seat: 57 Bar (Hyd.), Seat: 7 Bar (Air)
Max. Working Temperature
425°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Other trim material combinations are available on request.
Suitability
Water
Steam
Gas
Oil
Air
-
Material Combination
P.No. Name of Part Material Specification Nos. 1 Body C.C.S ASTM A216 Gr. WCB 1 2 Body Seat Ring S.S./ F.S.S./ C.C.S. ASTM A276 TYPE 410/ ASTM A182 Gr. F6a/ ASTM A216 Gr. WCB + 13% Cr. Welded Deposit 2 3 Disc C.C.S. ASTM A216 Gr. WCB + 13% Cr. Welded Deposit 1 4 Hinge Pin S.S. ASTM A276 TYPE 410 1 5 Hinge C.C.S. ASTM A216 Gr. WCB 1 6 Nut S.S. – 1 7 Gasket – Spiral Wound S.S. 304 Graphoil Filler To Suit 8 Cover C.C.S. ASTM A216 Gr. WCB 1 9 Stud & Nuts Alloy Steel/ H.T. Steel ASTM A193 Gr. B7/ ASTM A194 Gr. 2H 1 10 Side Plug S.S. ASTM A276 TYPE 410 1 NOTE : 1. This item can be supplied in WC6, WC9 material also.
-

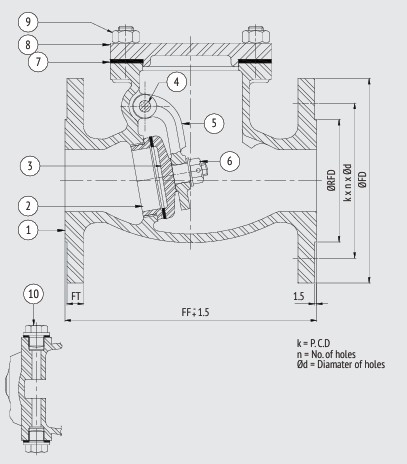

Dimensional Data
Nominal Size (mm) FF ØRFD ØFD FT K n Ød 40 241 73 155 19.1 114.3 4 7/8″ 50 267 92.1 165 20.7 127 8 3/4″ 65 292 104.8 190 23.9 149.2 8 7/8″ 80 318 127 210 27 168.3 8 7/8″ 100 356 157.2 255 30.2 200 8 7/8″ 125 400 185.7 280 33.4 235 8 7/8″ 150 444 215.9 320 35 269.9 12 7/8″ 200 533 269.9 380 39.7 330.2 12 1″ 250 622 323.8 445 46.1 387.4 16 1.1/8″ 300 711 381 520 49.3 450.8 16 1.1/4″ k – P.C.D; n – Number of Holes; Ød – Diameter of Holes
Features
Product Standard
BS-1868
Testing Standard
API-598
Pressure / Class Rating
Class-300
Body Material Cum Standard
Cast Carbon Steel (ASTM A216 Gr. WCB)
Product Description
Bolted Cover
Type of Seat
Renewable Seat
Trim
13% Cr. (SS 410)
End Details
Flanged Ends as per ASME B16.5 Class-300 Raised Face (Drilled)
Test Pressure
Body: 77 Bar (Hyd.), Seat: 57 Bar (Hyd.), Seat: 7 Bar (Air)
Max. Working Temperature
425°C
Product Standard
BS-1868
Testing Standard
API-598
Pressure / Class Rating
Class-300
Body Material Cum Standard
Cast Carbon Steel (ASTM A216 Gr. WCB)
Product Description
Bolted Cover
Type of Seat
Renewable Seat
Trim
13% Cr. (SS 410)
End Details
Flanged Ends as per ASME B16.5 Class-300 Raised Face (Drilled)
Test Pressure
Body: 77 Bar (Hyd.), Seat: 57 Bar (Hyd.), Seat: 7 Bar (Air)
Max. Working Temperature
425°C
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Other trim material combinations are available on request.
Suitability
Water
Steam
Gas
Oil
Air
Material Combination
P.No.
Name of Part
Material
Specification
Nos.
1
Body
C.C.S
ASTM A216 Gr. WCB
1
2
Body Seat Ring
S.S./ F.S.S./ C.C.S.
ASTM A276 TYPE 410/ ASTM A182 Gr. F6a/ ASTM A216 Gr. WCB + 13% Cr. Welded Deposit
2
3
Disc
C.C.S.
ASTM A216 Gr. WCB + 13% Cr. Welded Deposit
1
4
Hinge Pin
S.S.
ASTM A276 TYPE 410
1
5
Hinge
C.C.S.
ASTM A216 Gr. WCB
1
6
Nut
S.S.
–
1
7
Gasket
–
Spiral Wound S.S. 304 Graphoil Filler
To Suit
8
Cover
C.C.S.
ASTM A216 Gr. WCB
1
9
Stud & Nuts
Alloy Steel/ H.T. Steel
ASTM A193 Gr. B7/ ASTM A194 Gr. 2H
1
10
Side Plug
S.S.
ASTM A276 TYPE 410
1
NOTE : 1. This item can be supplied in WC6, WC9 material also.
| P.No. | Name of Part | Material | Specification | Nos. |
|---|---|---|---|---|
| 1 | Body | C.C.S | ASTM A216 Gr. WCB | 1 |
| 2 | Body Seat Ring | S.S./ F.S.S./ C.C.S. | ASTM A276 TYPE 410/ ASTM A182 Gr. F6a/ ASTM A216 Gr. WCB + 13% Cr. Welded Deposit | 2 |
| 3 | Disc | C.C.S. | ASTM A216 Gr. WCB + 13% Cr. Welded Deposit | 1 |
| 4 | Hinge Pin | S.S. | ASTM A276 TYPE 410 | 1 |
| 5 | Hinge | C.C.S. | ASTM A216 Gr. WCB | 1 |
| 6 | Nut | S.S. | – | 1 |
| 7 | Gasket | – | Spiral Wound S.S. 304 Graphoil Filler | To Suit |
| 8 | Cover | C.C.S. | ASTM A216 Gr. WCB | 1 |
| 9 | Stud & Nuts | Alloy Steel/ H.T. Steel | ASTM A193 Gr. B7/ ASTM A194 Gr. 2H | 1 |
| 10 | Side Plug | S.S. | ASTM A276 TYPE 410 | 1 |
NOTE : 1. This item can be supplied in WC6, WC9 material also.
Dimensional Data
Nominal Size (mm)
FF
ØRFD
ØFD
FT
K
n
Ød
40
241
73
155
19.1
114.3
4
7/8″
50
267
92.1
165
20.7
127
8
3/4″
65
292
104.8
190
23.9
149.2
8
7/8″
80
318
127
210
27
168.3
8
7/8″
100
356
157.2
255
30.2
200
8
7/8″
125
400
185.7
280
33.4
235
8
7/8″
150
444
215.9
320
35
269.9
12
7/8″
200
533
269.9
380
39.7
330.2
12
1″
250
622
323.8
445
46.1
387.4
16
1.1/8″
300
711
381
520
49.3
450.8
16
1.1/4″
k – P.C.D; n – Number of Holes; Ød – Diameter of Holes
| Nominal Size (mm) | FF | ØRFD | ØFD | FT | K | n | Ød |
|---|---|---|---|---|---|---|---|
| 40 | 241 | 73 | 155 | 19.1 | 114.3 | 4 | 7/8″ |
| 50 | 267 | 92.1 | 165 | 20.7 | 127 | 8 | 3/4″ |
| 65 | 292 | 104.8 | 190 | 23.9 | 149.2 | 8 | 7/8″ |
| 80 | 318 | 127 | 210 | 27 | 168.3 | 8 | 7/8″ |
| 100 | 356 | 157.2 | 255 | 30.2 | 200 | 8 | 7/8″ |
| 125 | 400 | 185.7 | 280 | 33.4 | 235 | 8 | 7/8″ |
| 150 | 444 | 215.9 | 320 | 35 | 269.9 | 12 | 7/8″ |
| 200 | 533 | 269.9 | 380 | 39.7 | 330.2 | 12 | 1″ |
| 250 | 622 | 323.8 | 445 | 46.1 | 387.4 | 16 | 1.1/8″ |
| 300 | 711 | 381 | 520 | 49.3 | 450.8 | 16 | 1.1/4″ |
k – P.C.D; n – Number of Holes; Ød – Diameter of Holes
