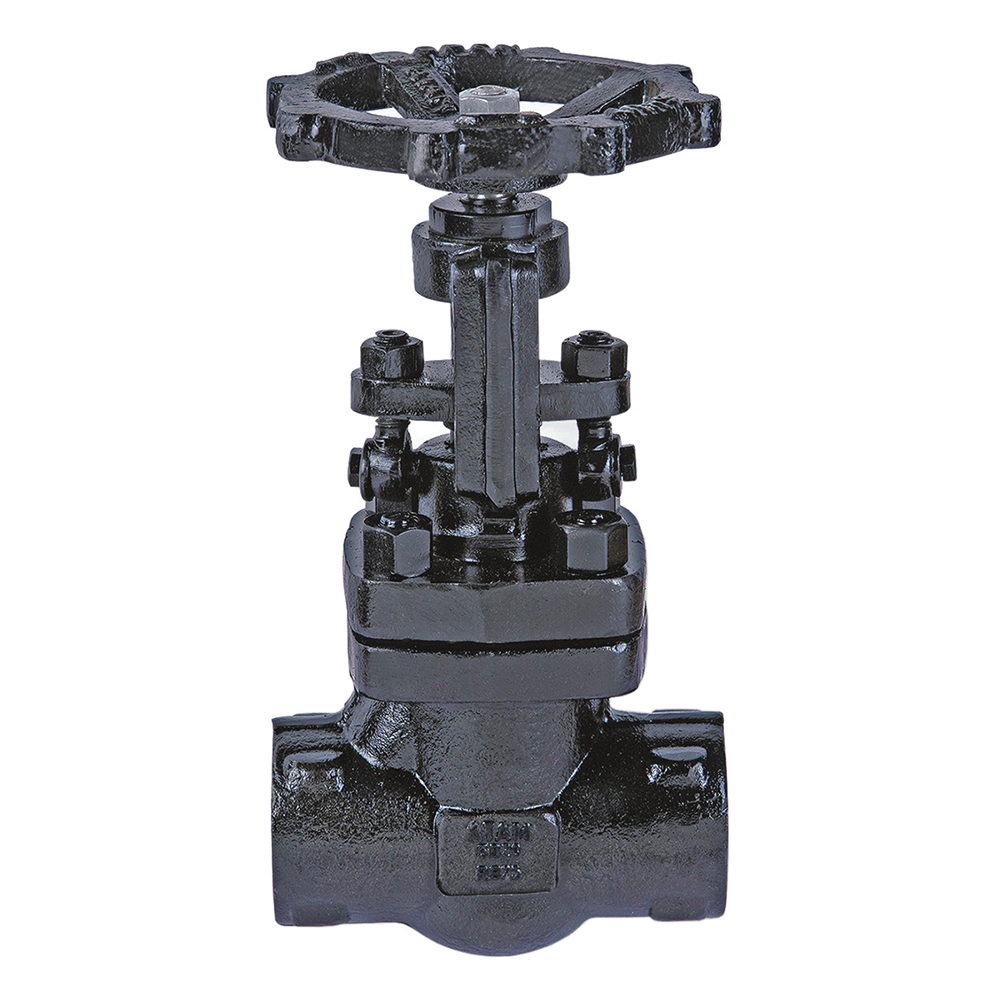

AV-303 Drop Forged Steel Globe Valve, Screwed Ends, Class-800

AV-303 | Drop Forged Steel Globe Valve, Screwed Ends, Class-800

Features

Product Standard

API 602 / BS EN-15761

Testing Standard

API-598

Pressure / Class Rating

Class-800

Body Material Cum Standard

Forged Carbon Steel (ASTM A105)

Product Description

Standard Bore, Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem with Backseat Arrangement, Handwheel Operated

Type of Seat

Renewable Seat

Type of Disc

Renewable Disc

Trim

13% Cr. (SS 410)

End Details

Screwed Female NPT Threads (ASME B-1.20.1)

Test Pressure

Body: 207 Bar (Hyd.), Seat & Back Seat: 152 Bar (Hyd.), Seat: 7 Bar (Air)

Max. Working Temperature

425°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

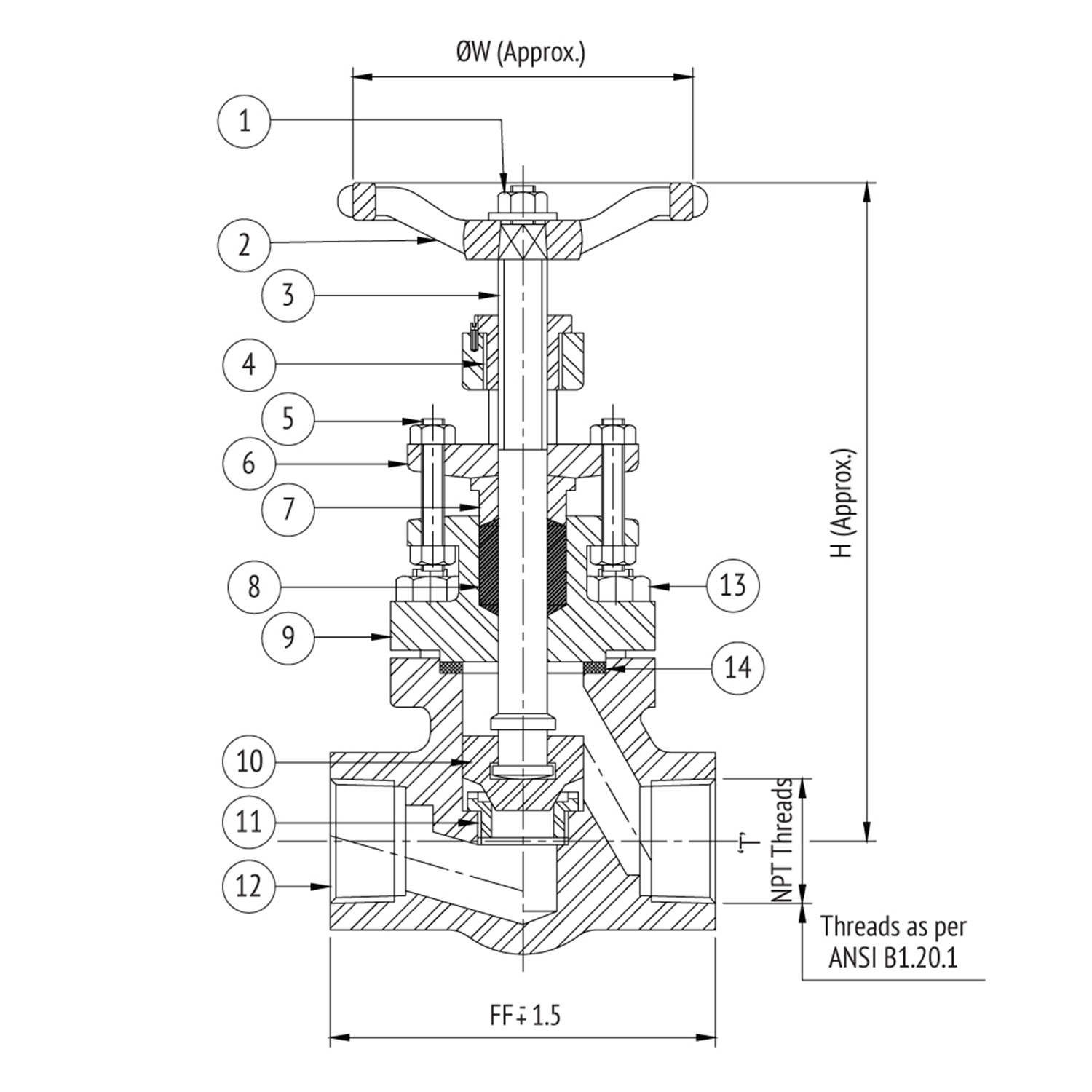

Material Combination

S.No	Description	No.	Material	Specifications
1	Handwheel Retaining Nut	1	Carbon Steel	–
2	Handwheel	1	M.I.	ASTM A338
3	Stem	1	Stainless Steel	ASTM A276 Type 410
4	Yoke Sleeve	1	Stainless Steel	ASTM A276 Type 410
5	Stud Bolts & Nuts	1	Alloy Steel / H.T. Steel	ASTM A193 Gr. B7 / ASTM A194 Gr. 2H
6	Gland Flange	1	Forged Carbon Steel	ASTM A 105
7	Gland Follower	1	Stainless Steel	ASTM A276 Type 410
8	Gland Packing	–	Flexible Graphite	–
9	Bonnet	1	Forged Carbon Steel	ASTM A105
10	Disc	1	Stainless Steel	ASTM A182 Gr. F6a / ASTM A276 Type 410
11	Body Seat Ring	1	Stainless Steel	ASTM A182 Gr. F6a / ASTM A276 Type 410
12	Body	1	Forged Carbon Steel	ASTM A105
13	Stud Bolts & Nuts	1	Alloy Steel / H.T. Steel	ASTM A193 Gr. B7 / ASTM A194 Gr. 2H
14	Gasket	1	Spiral Wound S.S. 304 Graphoil

Download PDF Product Inquiry

Dimensional Data

Size (mm) FF H ØW T

10 80 140 80 3/8”

15 80 153 80 1/2”

20 88 157 80 3/4”

25 100 176 90 1”

32 145 240 152 1.1/4”

40 145 240 152 1.1/2”

50 170 275 152 2”

Download PDF Product Inquiry
AV-303 | Drop Forged Steel Globe Valve, Screwed Ends, Class-800

Product Inquiry

Size (mm)	FF	H	ØW	T
10	80	140	80	3/8”
15	80	153	80	1/2”
20	88	157	80	3/4”
25	100	176	90	1”
32	145	240	152	1.1/4”
40	145	240	152	1.1/2”
50	170	275	152	2”

Features

Product Standard

API 602 / BS EN-15761

Testing Standard

API-598

Pressure / Class Rating

Class-800

Body Material Cum Standard

Forged Carbon Steel (ASTM A105)

Product Description

Standard Bore, Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem with Backseat Arrangement, Handwheel Operated

Type of Seat

Renewable Seat

Type of Disc

Renewable Disc

Trim

13% Cr. (SS 410)

End Details

Screwed Female NPT Threads (ASME B-1.20.1)

Test Pressure

Body: 207 Bar (Hyd.), Seat & Back Seat: 152 Bar (Hyd.), Seat: 7 Bar (Air)

Max. Working Temperature

425°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Handwheel Retaining Nut 1 Carbon Steel –

2 Handwheel 1 M.I. ASTM A338

3 Stem 1 Stainless Steel ASTM A276 Type 410

4 Yoke Sleeve 1 Stainless Steel ASTM A276 Type 410

5 Stud Bolts & Nuts 1 Alloy Steel / H.T. Steel ASTM A193 Gr. B7 / ASTM A194 Gr. 2H

6 Gland Flange 1 Forged Carbon Steel ASTM A 105

7 Gland Follower 1 Stainless Steel ASTM A276 Type 410

8 Gland Packing – Flexible Graphite –

9 Bonnet 1 Forged Carbon Steel ASTM A105

10 Disc 1 Stainless Steel ASTM A182 Gr. F6a / ASTM A276 Type 410

11 Body Seat Ring 1 Stainless Steel ASTM A182 Gr. F6a / ASTM A276 Type 410

12 Body 1 Forged Carbon Steel ASTM A105

13 Stud Bolts & Nuts 1 Alloy Steel / H.T. Steel ASTM A193 Gr. B7 / ASTM A194 Gr. 2H

14 Gasket 1 Spiral Wound S.S. 304 Graphoil

Dimensional Data

Size (mm) FF H ØW T

10 80 140 80 3/8”

15 80 153 80 1/2”

20 88 157 80 3/4”

25 100 176 90 1”

32 145 240 152 1.1/4”

40 145 240 152 1.1/2”

50 170 275 152 2”

Size (mm)	FF	H	ØW	T
10	80	140	80	3/8”
15	80	153	80	1/2”
20	88	157	80	3/4”
25	100	176	90	1”
32	145	240	152	1.1/4”
40	145	240	152	1.1/2”
50	170	275	152	2”
