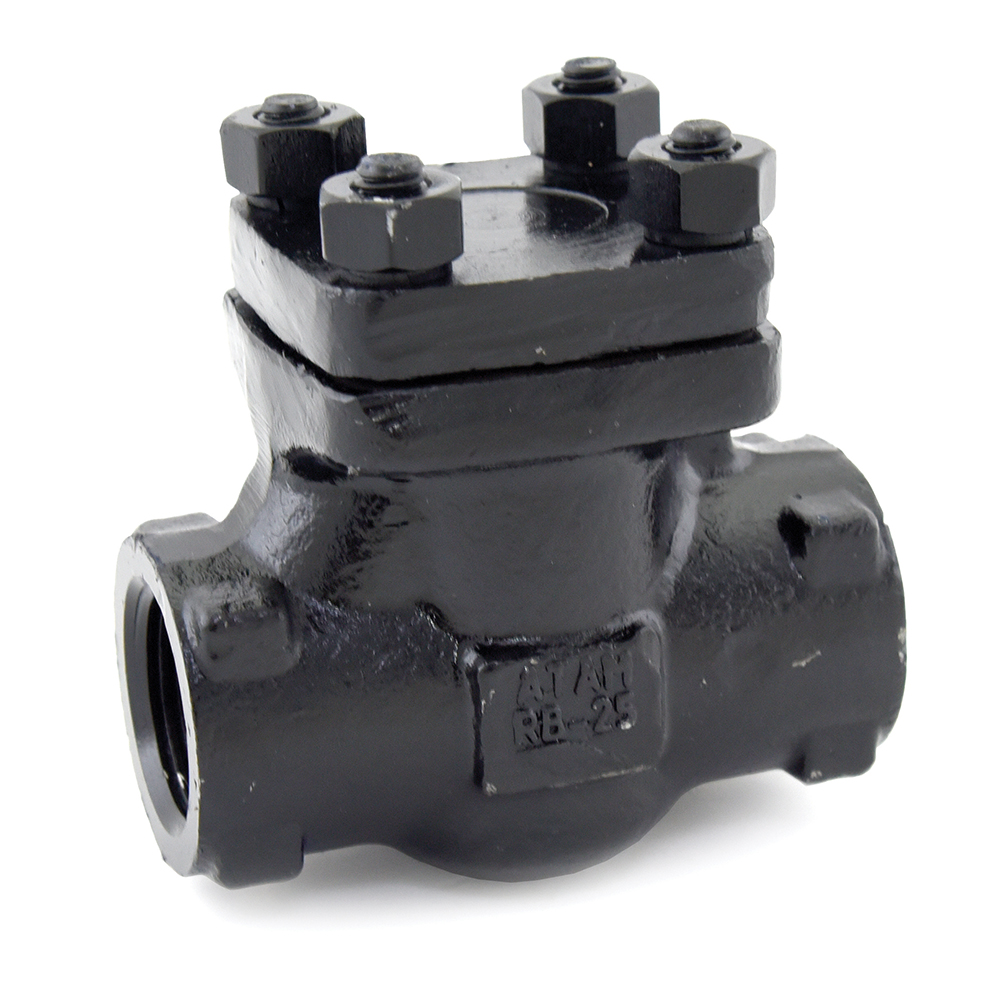

AV-305 Drop Forged Steel Horizontal Lift Check Valve, Screwed Ends, Class-800

AV-305 | Drop Forged Steel Horizontal Lift Check Valve, Screwed Ends, Class-800

Features

Product Standard

API 602 / BS EN-15761

Testing Standard

API-598

Pressure / Class Rating

Class-800

Body Material Cum Standard

Forged Carbon Steel (ASTM A105)

Product Description

Standard Bore, Bolted Cover

Type of Seat

Renewable Seat

Type of Disc

Renewable Disc

Trim

13% Cr. (SS 410)

End Details

Screwed Female NPT Threads (ASME B-1.20.1)

Test Pressure

Body: 207 Bar (Hyd.), Seat: 152 Bar (Hyd.), Seat: 7 Bar (Air)

Max. Working Temperature

425°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	Studs & Nuts	1	Alloy Steel / H.T. Steel	ASTM A193 Gr. B7 / ASTM A194 Gr. 2H
2	Cover	1	Forged Carbon Steel	ASTM A105
3	Gasket	1	Spiral Wound S.S. 304 Graphoil
4	Disc	1	Stainless Steel	ASTM A182 Gr. F6a / ASTM A276 Type 410
5	Body Seat Ring	1	Stainless Steel	ASTM A276 Type 410
6	Body	1	Forged Carbon Steel	ASTM A 105

Download PDF Product Inquiry

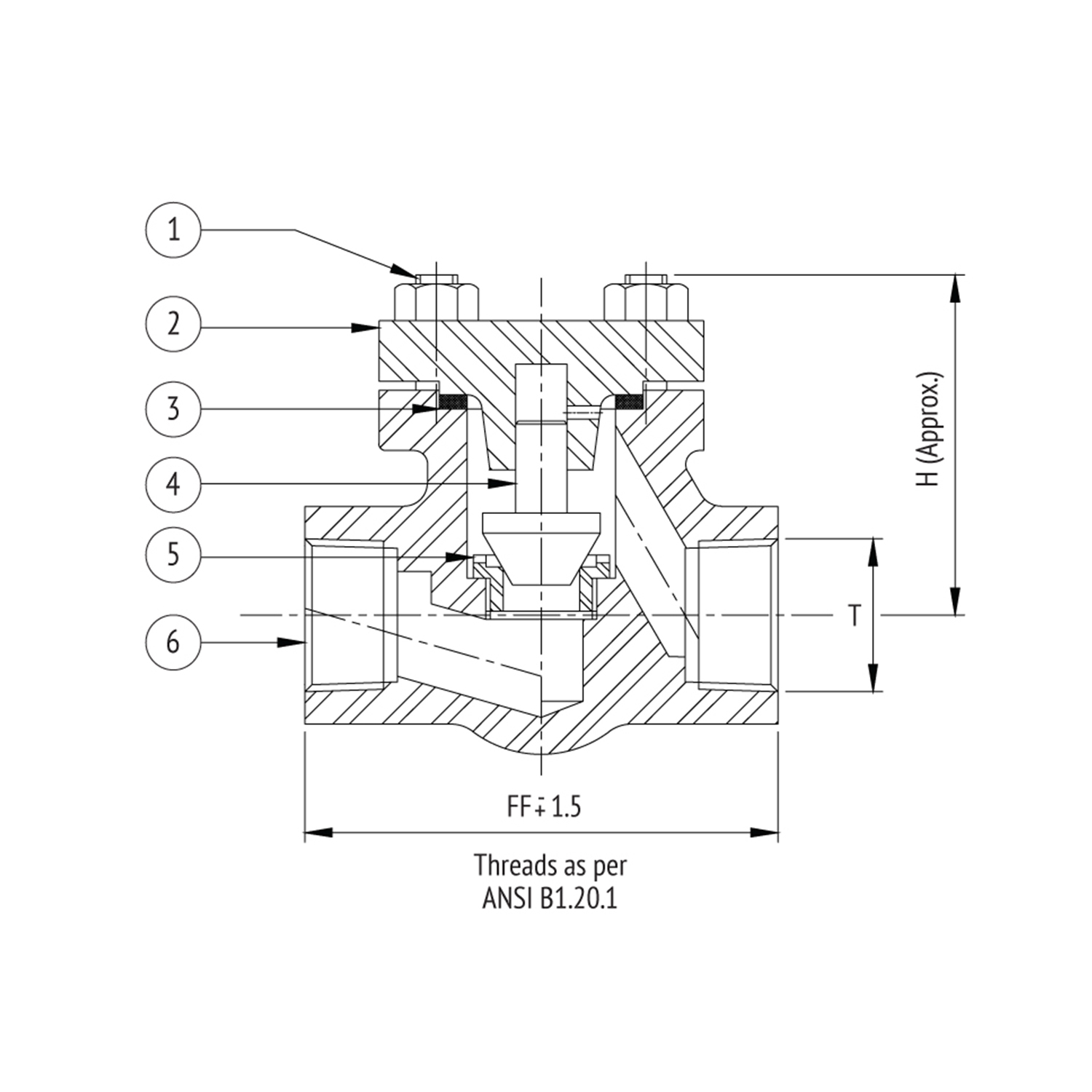

Dimensional Data

Size (mm) FF H T

10 80 58 3/8”

15 80 55 1/2”

20 88 62 3/4”

25 100 85 1”

40 145 98 1.1/2”

50 170 120 2”

Download PDF Product Inquiry
AV-305 | Drop Forged Steel Horizontal Lift Check Valve, Screwed Ends, Class-800

Product Inquiry

Size (mm)	FF	H	T
10	80	58	3/8”
15	80	55	1/2”
20	88	62	3/4”
25	100	85	1”
40	145	98	1.1/2”
50	170	120	2”

Features

Product Standard

API 602 / BS EN-15761

Testing Standard

API-598

Pressure / Class Rating

Class-800

Body Material Cum Standard

Forged Carbon Steel (ASTM A105)

Product Description

Standard Bore, Bolted Cover

Type of Seat

Renewable Seat

Type of Disc

Renewable Disc

Trim

13% Cr. (SS 410)

End Details

Screwed Female NPT Threads (ASME B-1.20.1)

Test Pressure

Body: 207 Bar (Hyd.), Seat: 152 Bar (Hyd.), Seat: 7 Bar (Air)

Max. Working Temperature

425°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Studs & Nuts 1 Alloy Steel / H.T. Steel ASTM A193 Gr. B7 / ASTM A194 Gr. 2H

2 Cover 1 Forged Carbon Steel ASTM A105

3 Gasket 1 Spiral Wound S.S. 304 Graphoil

4 Disc 1 Stainless Steel ASTM A182 Gr. F6a / ASTM A276 Type 410

5 Body Seat Ring 1 Stainless Steel ASTM A276 Type 410

6 Body 1 Forged Carbon Steel ASTM A 105

Dimensional Data

Size (mm) FF H T

10 80 58 3/8”

15 80 55 1/2”

20 88 62 3/4”

25 100 85 1”

40 145 98 1.1/2”

50 170 120 2”

Size (mm)	FF	H	T
10	80	58	3/8”
15	80	55	1/2”
20	88	62	3/4”
25	100	85	1”
40	145	98	1.1/2”
50	170	120	2”
