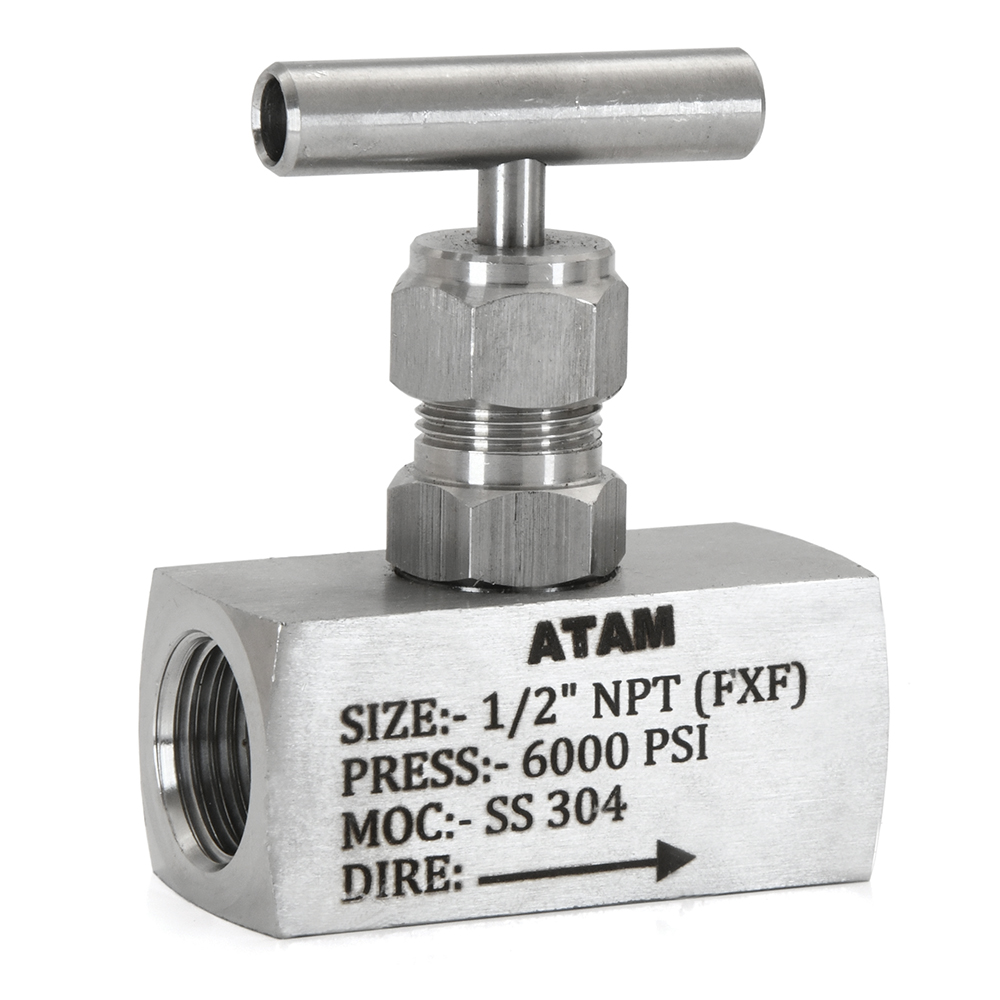

AV-311 Drop Forged Stainless Steel Needle Valve, Screwed Ends, Class-800

AV-311 | Drop Forged Stainless Steel Needle Valve, Screwed Ends, Class-800

Features

Product Standard

API 602 / BS EN-15761

Testing Standard

API-598

Pressure / Class Rating

Class-800

Body Material Cum Standard

Forged Stainless Steel (ASTM A182 Gr. F304)

Product Description

Standard Bore, One Piece Design, Inside Screw, Rising Stem,

Type of Seat

Renewable Seat

Type of Disc

Renewable Needle Type Disc

Trim

Stainless Steel (Type 304)

End Details

Screwed Female NPT Threads (ASME B-1.20.1)

Test Pressure

Body: 207 Bar (Hyd.), Seat: 152 Bar (Hyd.), Seat: 7 Bar (Air)

Max. Working Temperature

425°C

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

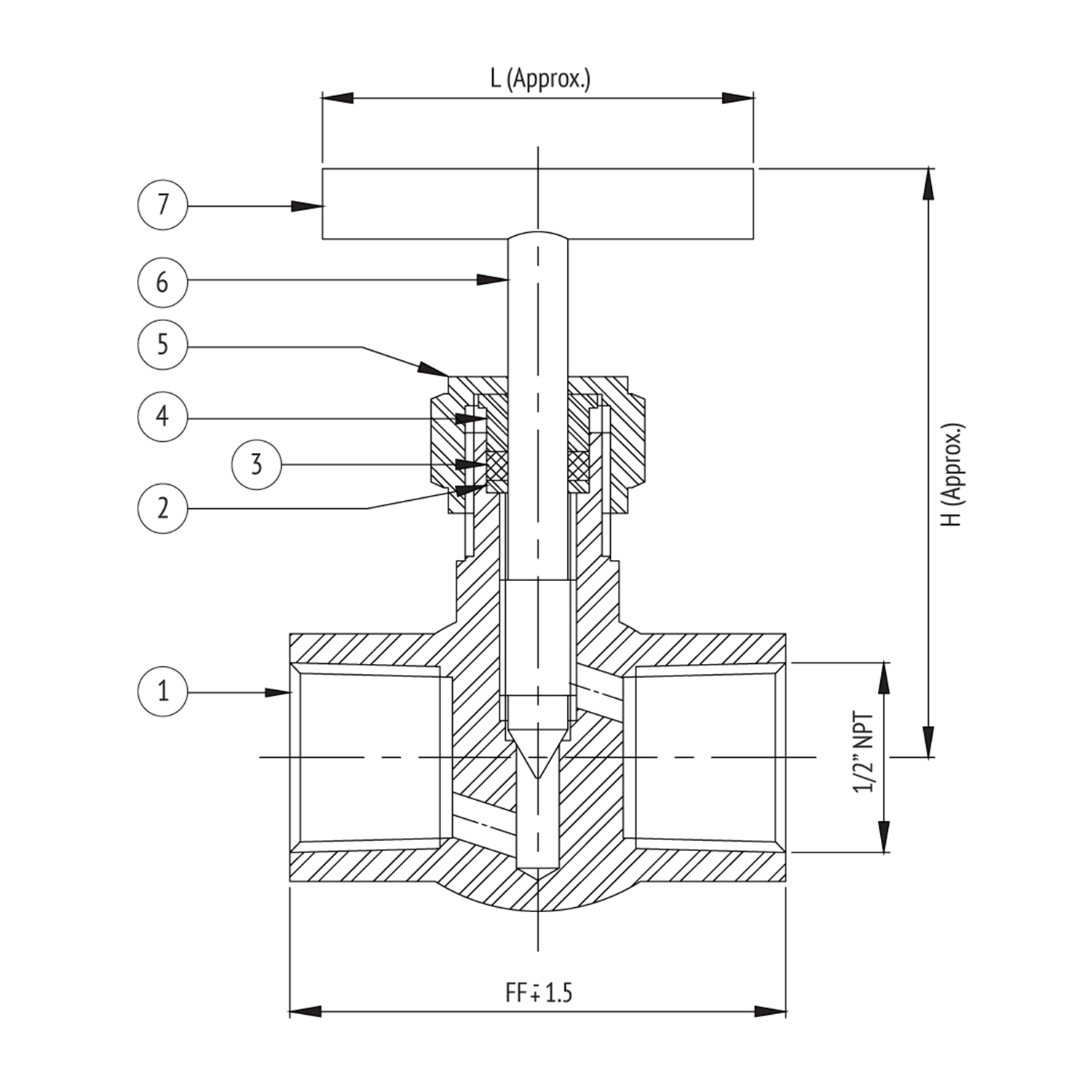

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Forged Stainless Steel	ASTM A182 Gr. F 304
2	Washer	1	Stainless Steel	ASTM A276 Type 304
3	Gland Packing	–	To Suit	–
4	Gland	1	Stainless Steel	ASTM A276 Type 304
5	Gland Nut	1	Stainless Steel	ASTM A276 Type 304
6	Stem	1	Stainless Steel	ASTM A276 Type 304
7	Handle	1	Stainless Steel	ASTM A276 Type 304

Download PDF Product Inquiry

Dimensional Data

Size (mm) FF H L

15 58 75 55

Download PDF Product Inquiry
AV-311 | Drop Forged Stainless Steel Needle Valve, Screwed Ends, Class-800

Product Inquiry

Size (mm)	FF	H	L
15	58	75	55

Features

Product Standard

API 602 / BS EN-15761

Testing Standard

API-598

Pressure / Class Rating

Class-800

Body Material Cum Standard

Forged Stainless Steel (ASTM A182 Gr. F304)

Product Description

Standard Bore, One Piece Design, Inside Screw, Rising Stem,

Type of Seat

Renewable Seat

Type of Disc

Renewable Needle Type Disc

Trim

Stainless Steel (Type 304)

End Details

Screwed Female NPT Threads (ASME B-1.20.1)

Test Pressure

Body: 207 Bar (Hyd.), Seat: 152 Bar (Hyd.), Seat: 7 Bar (Air)

Max. Working Temperature

425°C

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Body 1 Forged Stainless Steel ASTM A182 Gr. F 304

2 Washer 1 Stainless Steel ASTM A276 Type 304

3 Gland Packing – To Suit –

4 Gland 1 Stainless Steel ASTM A276 Type 304

5 Gland Nut 1 Stainless Steel ASTM A276 Type 304

6 Stem 1 Stainless Steel ASTM A276 Type 304

7 Handle 1 Stainless Steel ASTM A276 Type 304

Dimensional Data

Size (mm) FF H L

15 58 75 55

Size (mm)	FF	H	L
15	58	75	55
