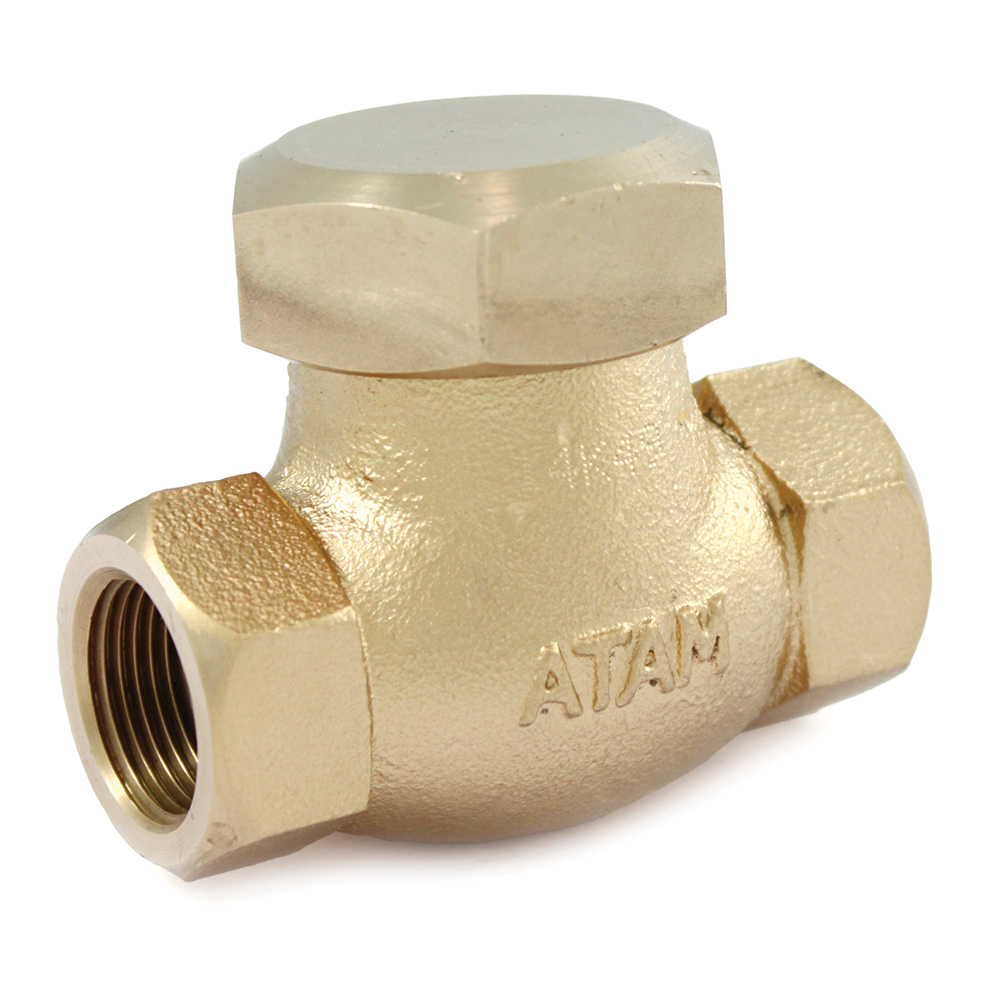

AV-34 Bronze Union Cover Horizontal Lift Check Valve No.9, Screwed Ends, PN-20 / Class-150

AV-34 | Bronze Union Cover Horizontal Lift Check Valve No.9, Screwed Ends, PN-20 / Class-150

Features

Testing Standard

BS EN 12266-Part 1

Pressure / Class Rating

PN-20 / Class-150

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Product Description

Union Cover

Type of Seat

Renewable Seat

Type of Disc

Renewable Disc

Trim

13% Cr. (SS 410)

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 450 Psig (Hyd.), Seat: 320 Psig (Hyd.)

Max. Working Pressure

150 Psig (Steam)

Notes

Other screwed end specifications can be provided on request.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

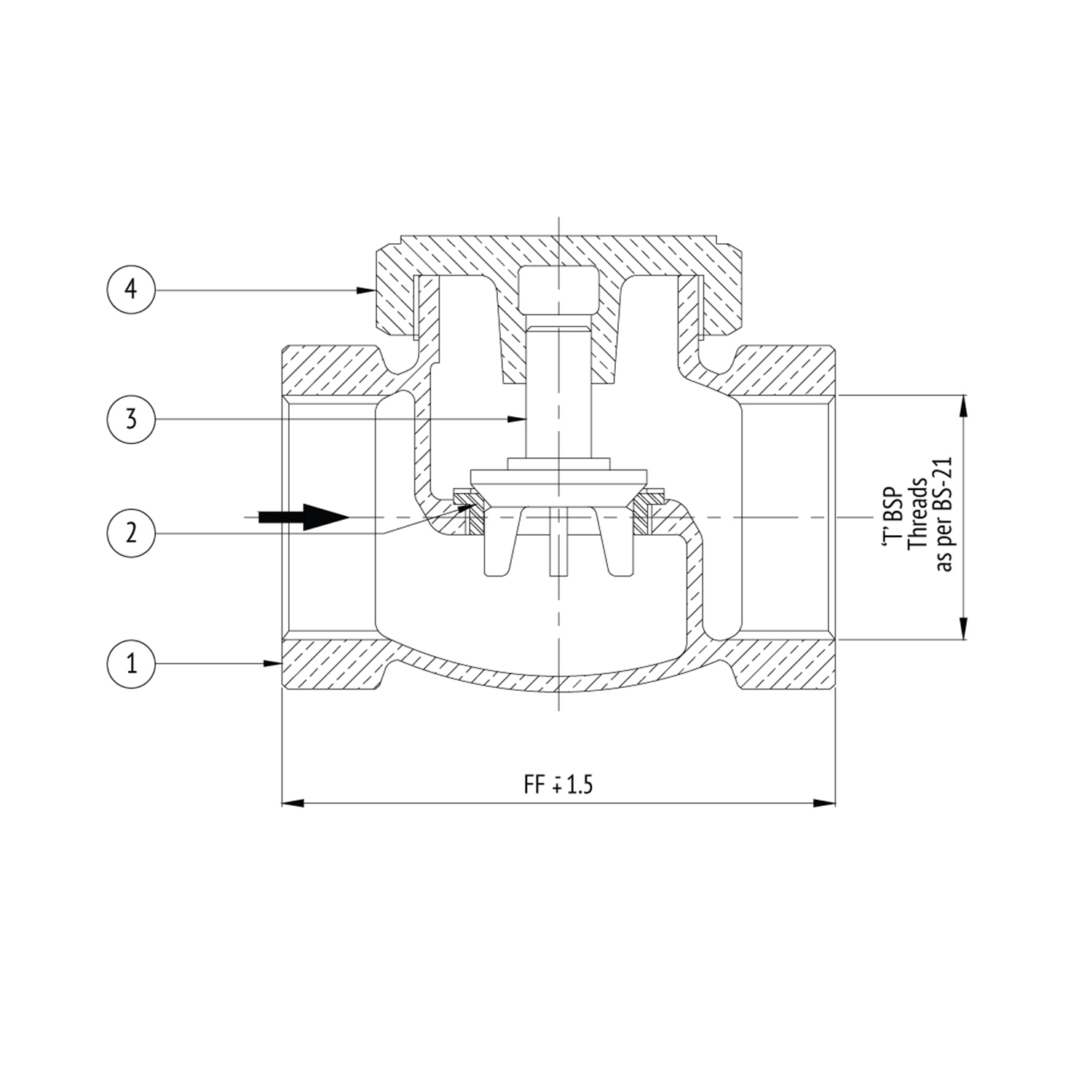

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Bronze	BSEN 1982 Gr. CC491K
2	Seat Ring	1	Stainless Steel	ASTM A 276 Type 410
3	Disc	1	Stainless Steel	ASTM A 276 Type 410
4	Cover	1	Bronze	BSEN 1982 Gr. CC491K

Download PDF Product Inquiry

Dimensional Data

Size (mm) FF T H

15 73 1/2” 44

20 87 3/4” 55

25 95 1” 65

32 110 1.1/4” 70

40 118 1.1/2” 74

50 145 2” 88

65 182 2.1/2” 102

80 203 3” 110

100 248 4” 125

Download PDF Product Inquiry
