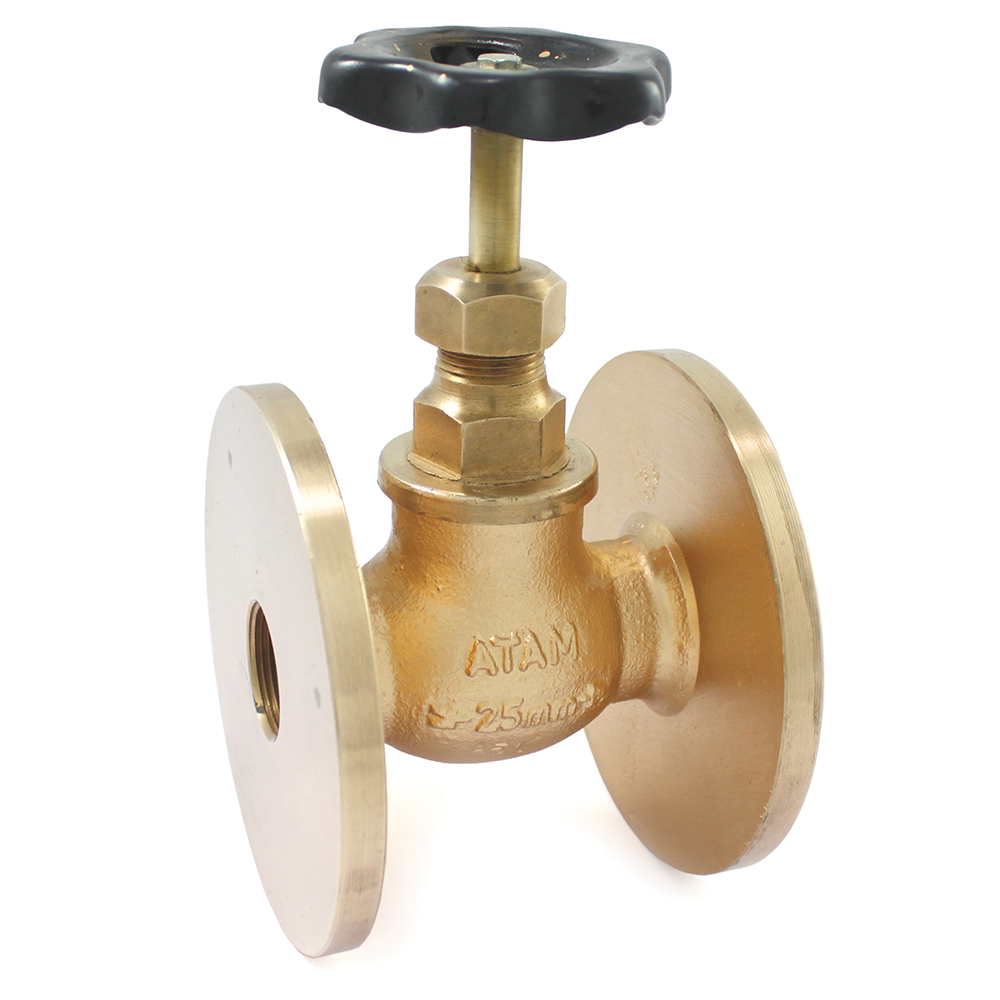

AV-41 Bronze Globe Valve No.8, Flanged Ends, PN-16

AV-41 | Bronze Globe Valve No.8, Flanged Ends, PN-16

Features

Testing Standard

BS EN 12266-Part 1

Pressure / Class Rating

PN-16

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Product Description

Screwed in Bonnet, Inside Screw, Rising Stem with Backseat Arrangement, Handwheel Operated

Type of Seat

Integral Seat

Type of Disc

Renewable Disc

Trim

Cu-Alloy

End Details

Flanged Ends as per BS-10 Table-D (Undrilled)

Test Pressure

Body: 348 Psig (Hyd.), Seat & Back Seat: 255 Psig (Hyd.)

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Bronze	BSEN 1982 Gr. CC491K
2	Disc	1	Bronze	BSEN 1982 Gr. CC491K
3	Disc Nut	1	Bronze	BSEN 1982 Gr. CC491K
4	Bonnet	1	Bronze	BSEN 1982 Gr. CC491K
5	Gland Nut	1	Bronze	BSEN 1982 Gr. CC491K
6	Gland	1	Bronze	BSEN 1982 Gr. CC491K
7	Stem	1	H.T. Brass	BS EN 2874 Gr. CZ121 / IS 6912 Gr. FLB
8	Handwheel	1	C.I.	BS 1452 Gr.220
9	Washer	1	Carbon Steel	–
10	Screw / Bolt	1	Carbon Steel	–
11	Packing	–	Graphited Asbestos	–

Download PDF Product Inquiry

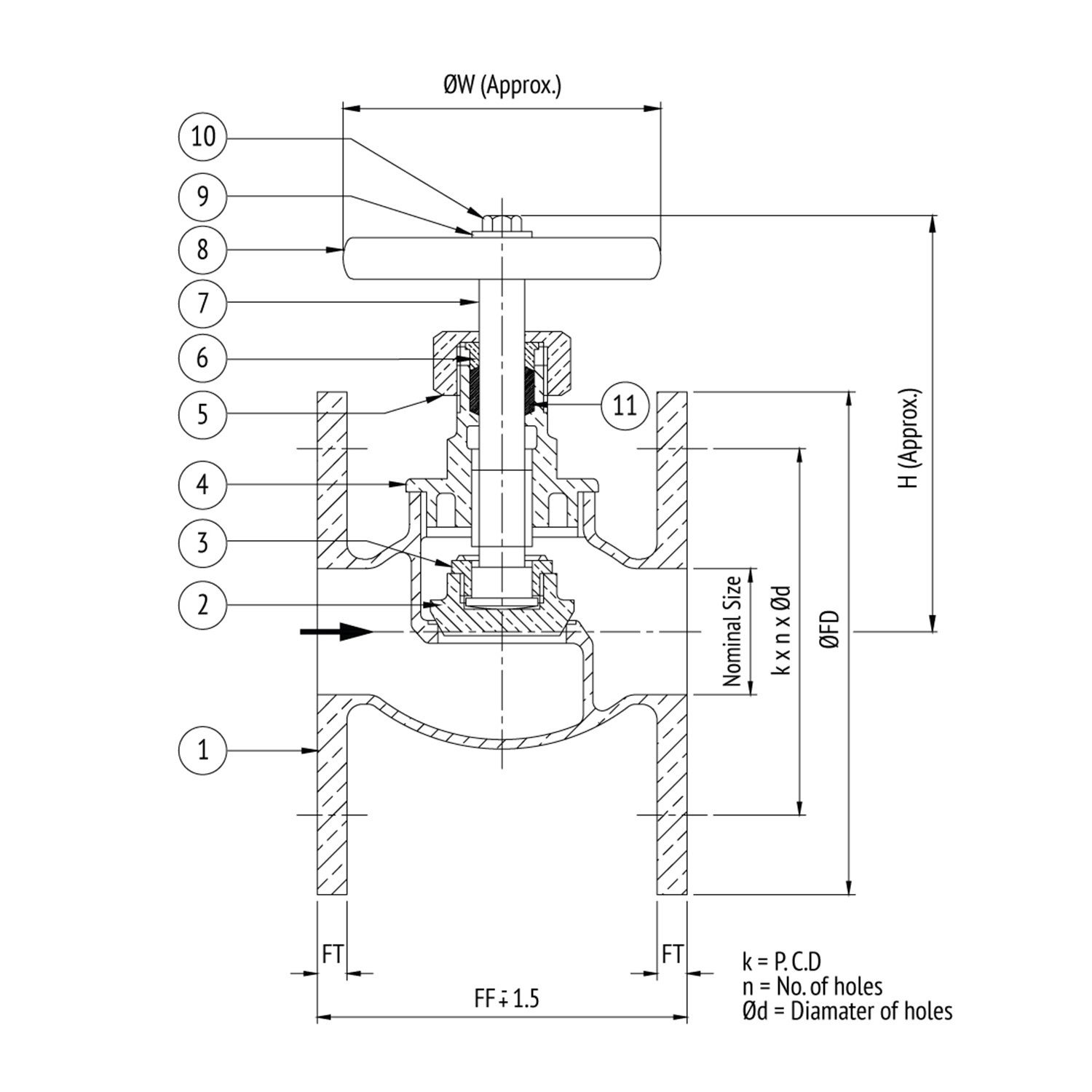

Dimensional Data

Size (mm)	FF	H	ØW	ØFD	FT	k	n	Ød
15	55	74	50	95.3	6.4	66.7	4	14.3
20	66	85	60	101.6	6.4	73	4	14.3
25	83	92	67	114.3	7.9	82.6	4	14.3
32	83	110	77	120.7	7.9	87.3	4	14.3
40	83	120	85	133.4	9.5	98.4	4	14.3
50	105	132	95	152.4	9.5	114.3	4	17.5
65	140	152	108	165.1	11.1	127	4	17.5
80	175	180	150	184.2	12.7	146.1	4	17.5
100	207	235	160	215.9	15.9	177.8	4	17.5

Download PDF Product Inquiry
