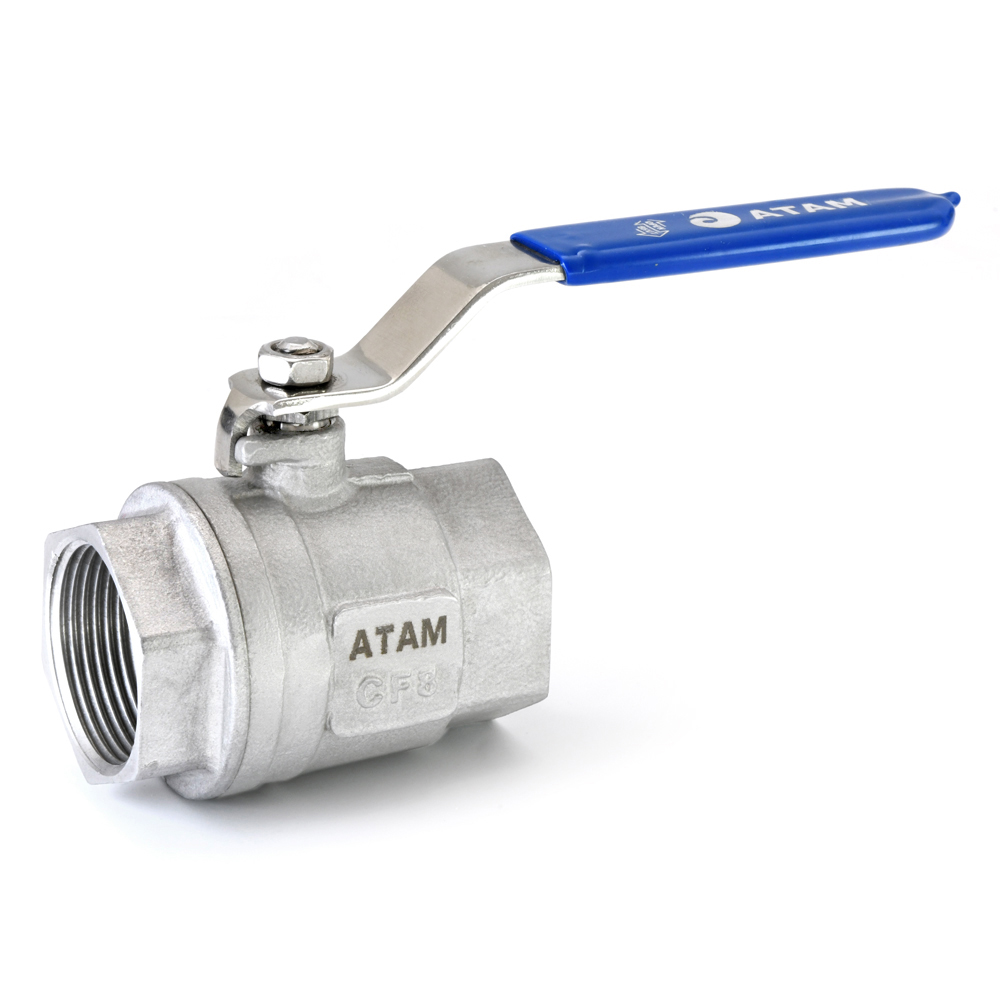

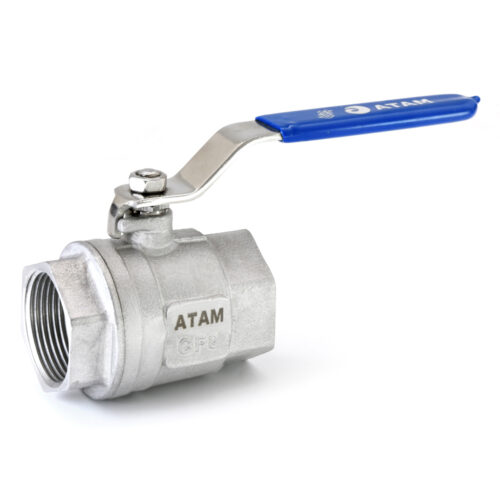

AV-505 Investment Casting Stainless Steel (CF8) Ball Valve, Screwed Ends, PN-40

AV-505 | Investment Casting Stainless Steel (CF8) Ball Valve, Screwed Ends, PN-40

Features

Pressure / Class Rating

PN-40

Body Material Cum Standard

Cast Stainless Steel (ASTM A351 Gr. CF8)

Port Opening

Full Bore

Product Description

Two Piece Design, Lever Operated (Blow Out Proof Stem)

Type of Seat

Renewable Seat

Trim

Ball & Stem: Stainless Steel (AISI 304), PTFE Seats

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 60 Bar (Hyd.), Seat: 7 Bar (Air)

Notes

Can be provided with Glass Filled PTFE, Graphite Blended PTFE & PEEK Seats on request.
Other screwed end specifications can be provided on request.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Cast Stainless Steel	ASTM A 351 Gr. CF8
2	Connector	1	Cast Stainless Steel	ASTM A 351 Gr. CF8
3	Seat	2	PTFE	–
4	Ball	1	Cast Stainless Steel	ASTM A 351 Gr. CF8
5	Gasket	1	PTFE	–
6	Packing	–	PTFE	–
7	Gland Nut	1	Stainless Steel	ASTM A 276 Type 304
8	Stem	1	Stainless Steel	ASTM A 276 Type 304
9	Stem Seal	1	PTFE	–
10	Stem Nut	1	Stainless Steel	ASTM A 276 Type 202
11	Lever	1	S.S. Sheet	–

Download PDF Product Inquiry

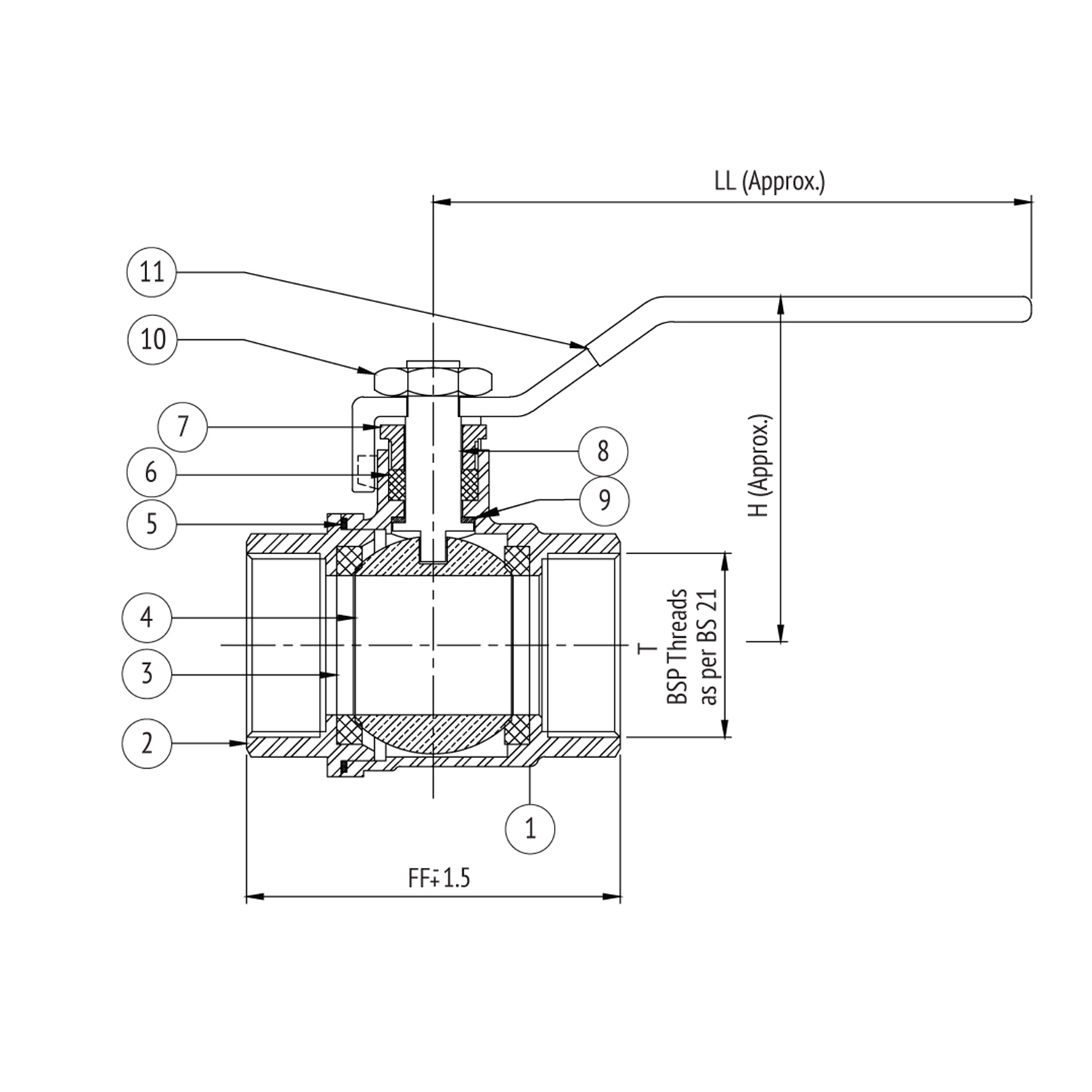

Dimensional Data

Size (mm) FF H LL T

8 48 40 90 1/4”

10 48 40 90 3/8”

15 56 50 99 1/2”

20 60 53 99 3/4”

25 66 68 117 1”

32 80 78 117 1.1/4”

40 89 81 153 1.1/2”

50 108 87 153 2”

Download PDF Product Inquiry
AV-505 | Investment Casting Stainless Steel (CF8) Ball Valve, Screwed Ends, PN-40

Product Inquiry

Size (mm)	FF	H	LL	T
8	48	40	90	1/4”
10	48	40	90	3/8”
15	56	50	99	1/2”
20	60	53	99	3/4”
25	66	68	117	1”
32	80	78	117	1.1/4”
40	89	81	153	1.1/2”
50	108	87	153	2”

Features

Pressure / Class Rating

PN-40

Body Material Cum Standard

Cast Stainless Steel (ASTM A351 Gr. CF8)

Port Opening

Full Bore

Product Description

Two Piece Design, Lever Operated (Blow Out Proof Stem)

Type of Seat

Renewable Seat

Trim

Ball & Stem: Stainless Steel (AISI 304), PTFE Seats

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 60 Bar (Hyd.), Seat: 7 Bar (Air)

Notes

Can be provided with Glass Filled PTFE, Graphite Blended PTFE & PEEK Seats on request.
Other screwed end specifications can be provided on request.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Body 1 Cast Stainless Steel ASTM A 351 Gr. CF8

2 Connector 1 Cast Stainless Steel ASTM A 351 Gr. CF8

3 Seat 2 PTFE –

4 Ball 1 Cast Stainless Steel ASTM A 351 Gr. CF8

5 Gasket 1 PTFE –

6 Packing – PTFE –

7 Gland Nut 1 Stainless Steel ASTM A 276 Type 304

8 Stem 1 Stainless Steel ASTM A 276 Type 304

9 Stem Seal 1 PTFE –

10 Stem Nut 1 Stainless Steel ASTM A 276 Type 202

11 Lever 1 S.S. Sheet –

Dimensional Data

Size (mm) FF H LL T

8 48 40 90 1/4”

10 48 40 90 3/8”

15 56 50 99 1/2”

20 60 53 99 3/4”

25 66 68 117 1”

32 80 78 117 1.1/4”

40 89 81 153 1.1/2”

50 108 87 153 2”

Size (mm)	FF	H	LL	T
8	48	40	90	1/4”
10	48	40	90	3/8”
15	56	50	99	1/2”
20	60	53	99	3/4”
25	66	68	117	1”
32	80	78	117	1.1/4”
40	89	81	153	1.1/2”
50	108	87	153	2”
