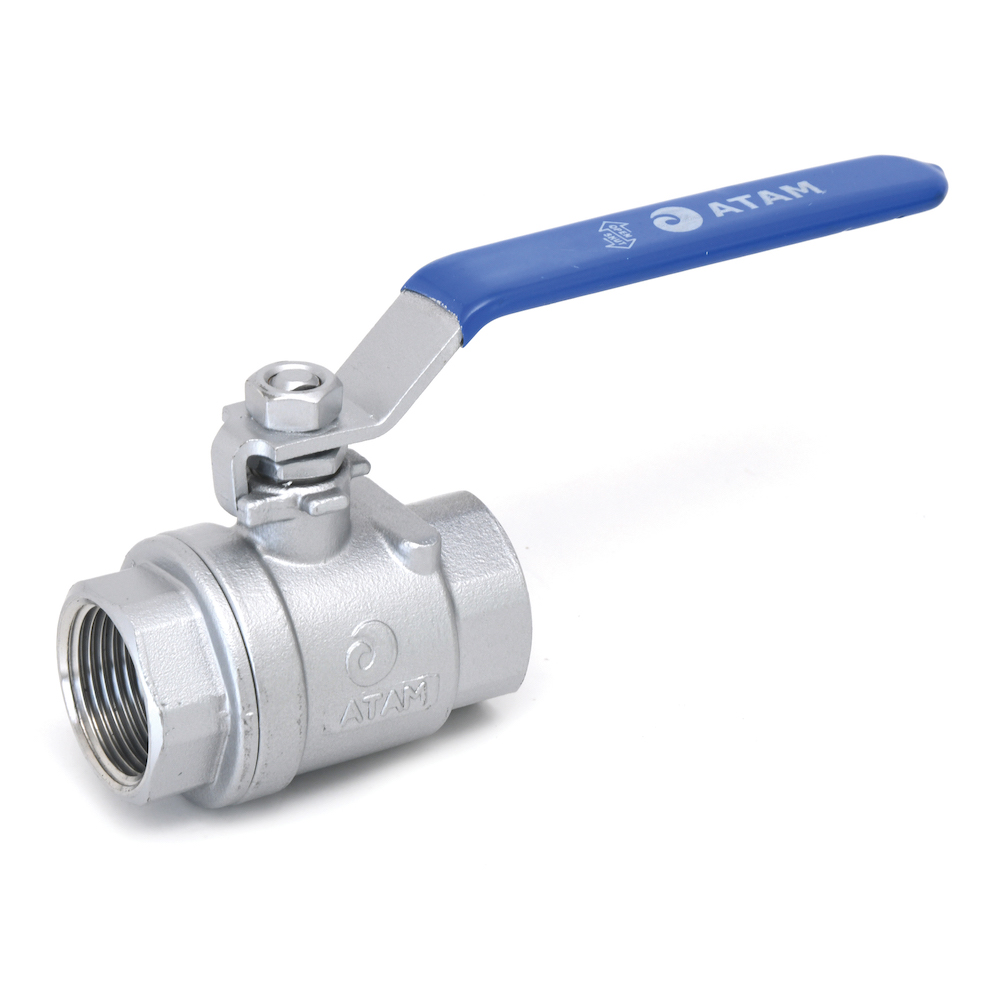

AV-508 Investment Casting Stainless Steel (CF8M) Ball Valve, Screwed Ends

AV-508 | Investment Casting Stainless Steel (CF8M) Ball Valve, Screwed Ends

Features

Body Material Cum Standard

Cast Stainless Steel (ASTM A351 Gr. CF8M)

Port Opening

Full Bore

Product Description

Two Piece Design, Lever Operated (Blow Out Proof Stem)

Type of Seat

Renewable Seat

Trim

Ball & Stem: Stainless Steel (AISI 316), PTFE Seats

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

1000 Psig (Hyd.)

Notes

Suitable for steam service with specialized PTFE.
Can be provided with Glass Filled PTFE, Graphite Blended PTFE & PEEK Seats on request.
Other screwed end specifications can be provided on request.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

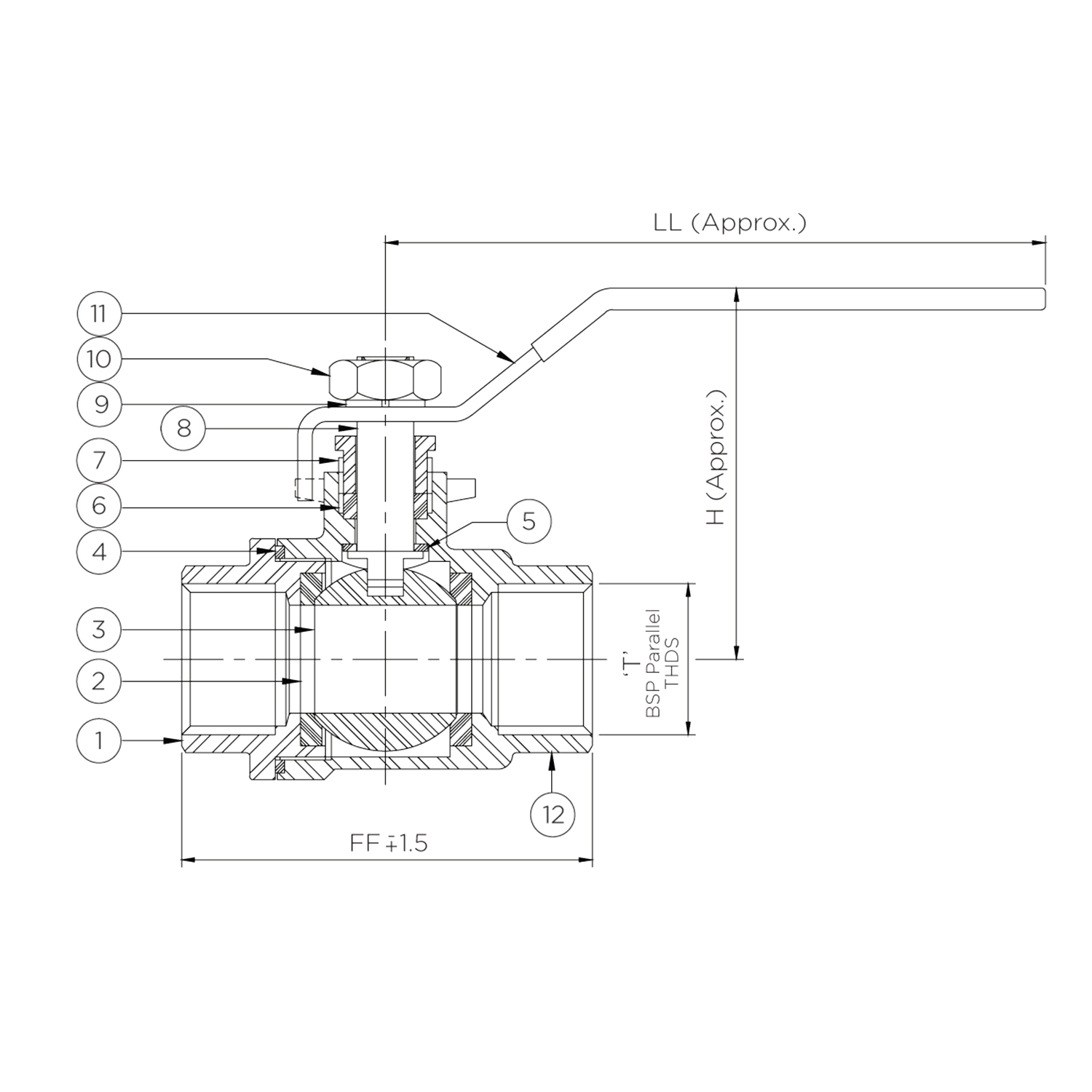

Material Combination

S.No	Description	No.	Material	Specifications
1	Connector	1	Cast Stainless Steel	ASTM A 351 Gr. CF8M
2	Seat	2	PTFE	–
3	Ball	1	Cast Stainless Steel	ASTM A 351 Gr. CF8M
				ASTM A 276 Type 316
4, 5	Gasket, Stem Seal	1	PTFE	–
6	Packing	–	PTFE	–
7	Gland Nut	1	Stainless Steel	ASTM A 276 Type 316
8, 10	Stem, Stem Nut	1	Stainless Steel	ASTM A 76 Type 316
9	Spring Washer	1	Stainless Steel	–
11	Lever	1	Stainless Steel Sheet	–
12	Body	1	Cast Stainless Steel	ASTM A 351 Gr. CF8M

Download PDF Product Inquiry

Dimensional Data

Size (mm)	Size (inches)	FF	H	LL	T
8	1/4”	62	50	100	1/4”
10	3/8”	62	50	100	3/8”
15	1/2”	56	52	113	1/2”
20	3/4”	63	57	113	3/4”
25	1”	78	63	116	1”
32	1.1/4”	77	80	145	1.1/4”
40	1.1/2”	98	85	152	1.1/2”
50	2	108	93	152	2

Download PDF Product Inquiry

AV-508 | Investment Casting Stainless Steel (CF8M) Ball Valve, Screwed Ends

Product Inquiry

Features

Body Material Cum Standard

Cast Stainless Steel (ASTM A351 Gr. CF8M)

Port Opening

Full Bore

Product Description

Two Piece Design, Lever Operated (Blow Out Proof Stem)

Type of Seat

Renewable Seat

Trim

Ball & Stem: Stainless Steel (AISI 316), PTFE Seats

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

1000 Psig (Hyd.)

Notes

Suitable for steam service with specialized PTFE.
Can be provided with Glass Filled PTFE, Graphite Blended PTFE & PEEK Seats on request.
Other screwed end specifications can be provided on request.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Connector 1 Cast Stainless Steel ASTM A 351 Gr. CF8M

2 Seat 2 PTFE –

3 Ball 1 Cast Stainless Steel ASTM A 351 Gr. CF8M

ASTM A 276 Type 316

4, 5 Gasket, Stem Seal 1 PTFE –

6 Packing – PTFE –

7 Gland Nut 1 Stainless Steel ASTM A 276 Type 316

8, 10 Stem, Stem Nut 1 Stainless Steel ASTM A 76 Type 316

9 Spring Washer 1 Stainless Steel –

11 Lever 1 Stainless Steel Sheet –

12 Body 1 Cast Stainless Steel ASTM A 351 Gr. CF8M

Dimensional Data

Size (mm) Size (inches) FF H LL T

8 1/4” 62 50 100 1/4”

10 3/8” 62 50 100 3/8”

15 1/2” 56 52 113 1/2”

20 3/4” 63 57 113 3/4”

25 1” 78 63 116 1”

32 1.1/4” 77 80 145 1.1/4”

40 1.1/2” 98 85 152 1.1/2”

50 2 108 93 152 2
