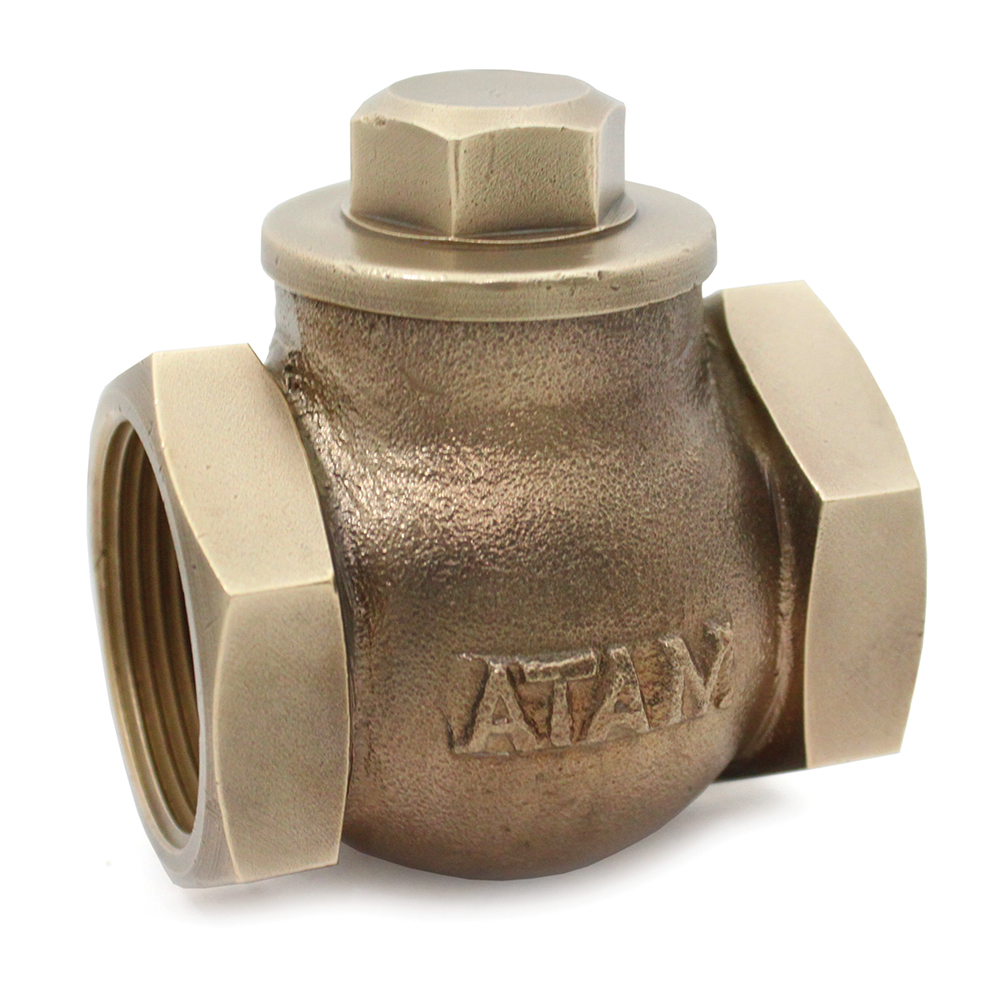

AV-51 Bronze Horizontal Lift Check Valve No.4, Screwed Ends, PN-16

AV-51 | Bronze Horizontal Lift Check Valve No.4, Screwed Ends, PN-16

Features

Pressure / Class Rating

PN-16

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Product Description

Screwed in Cover,Guided Disc

Type of Seat

Integral Seat

Type of Disc

Renewable Disc

Trim

Cu-Alloy

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 348 Psig (Hyd.), Seat: 255 Psig (Hyd.)

Notes

Other screwed end specifications can be provided on request.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

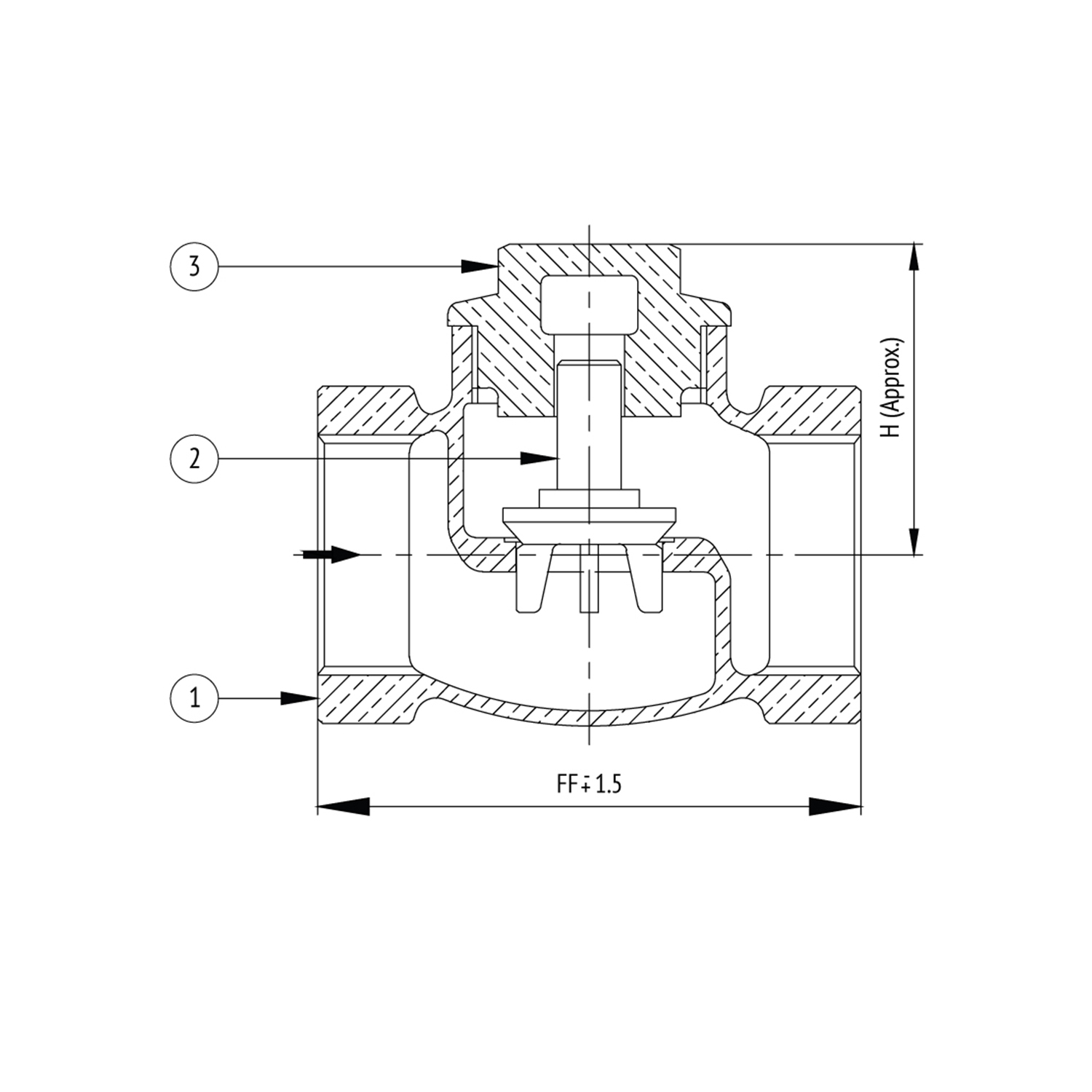

Material Combination

S.No Description No. Material Specifications

1 Body 1 Bronze BSEN 1982 Gr. CC491K

2 Disc 1 Bronze BSEN 1982 Gr. CC491K

3 Cover 1 Bronze BSEN 1982 Gr. CC491K

AV-51 | Bronze Horizontal Lift Check Valve No.4, Screwed Ends, PN-16

Download PDF Product Inquiry

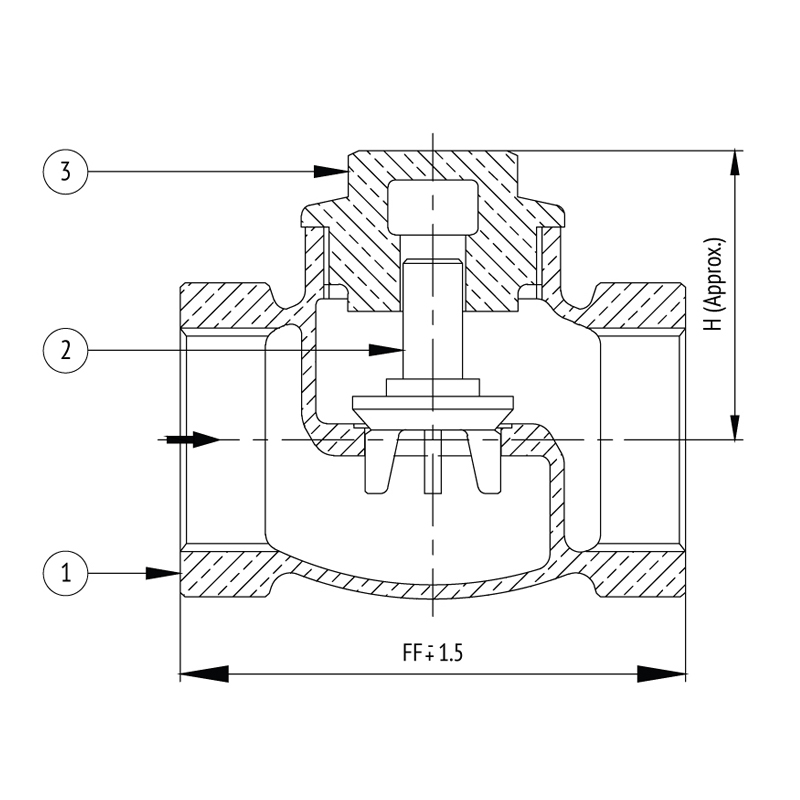

Dimensional Data

Size (mm) FF H

8 39 37

10 39 38

15 49 38

20 55 39

25 67 42

32 76 50

40 82 55

50 99 66

65 128 77

80 149 90

100 191 112

AV-51 | Bronze Horizontal Lift Check Valve No.4, Screwed Ends, PN-16

Download PDF Product Inquiry
AV-51 | Bronze Horizontal Lift Check Valve No.4, Screwed Ends, PN-16

Product Inquiry

S.No	Description	No.	Material	Specifications
1	Body	1	Bronze	BSEN 1982 Gr. CC491K
2	Disc	1	Bronze	BSEN 1982 Gr. CC491K
3	Cover	1	Bronze	BSEN 1982 Gr. CC491K

Size (mm)	FF	H
8	39	37
10	39	38
15	49	38
20	55	39
25	67	42
32	76	50
40	82	55
50	99	66
65	128	77
80	149	90
100	191	112

Features

Pressure / Class Rating

PN-16

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Product Description

Screwed in Cover,Guided Disc

Type of Seat

Integral Seat

Type of Disc

Renewable Disc

Trim

Cu-Alloy

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 348 Psig (Hyd.), Seat: 255 Psig (Hyd.)

Notes

Other screwed end specifications can be provided on request.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Body 1 Bronze BSEN 1982 Gr. CC491K

2 Disc 1 Bronze BSEN 1982 Gr. CC491K

3 Cover 1 Bronze BSEN 1982 Gr. CC491K

S.No	Description	No.	Material	Specifications
1	Body	1	Bronze	BSEN 1982 Gr. CC491K
2	Disc	1	Bronze	BSEN 1982 Gr. CC491K
3	Cover	1	Bronze	BSEN 1982 Gr. CC491K

Dimensional Data

Size (mm) FF H

8 39 37

10 39 38

15 49 38

20 55 39

25 67 42

32 76 50

40 82 55

50 99 66

65 128 77

80 149 90

100 191 112

Size (mm)	FF	H
8	39	37
10	39	38
15	49	38
20	55	39
25	67	42
32	76	50
40	82	55
50	99	66
65	128	77
80	149	90
100	191	112
