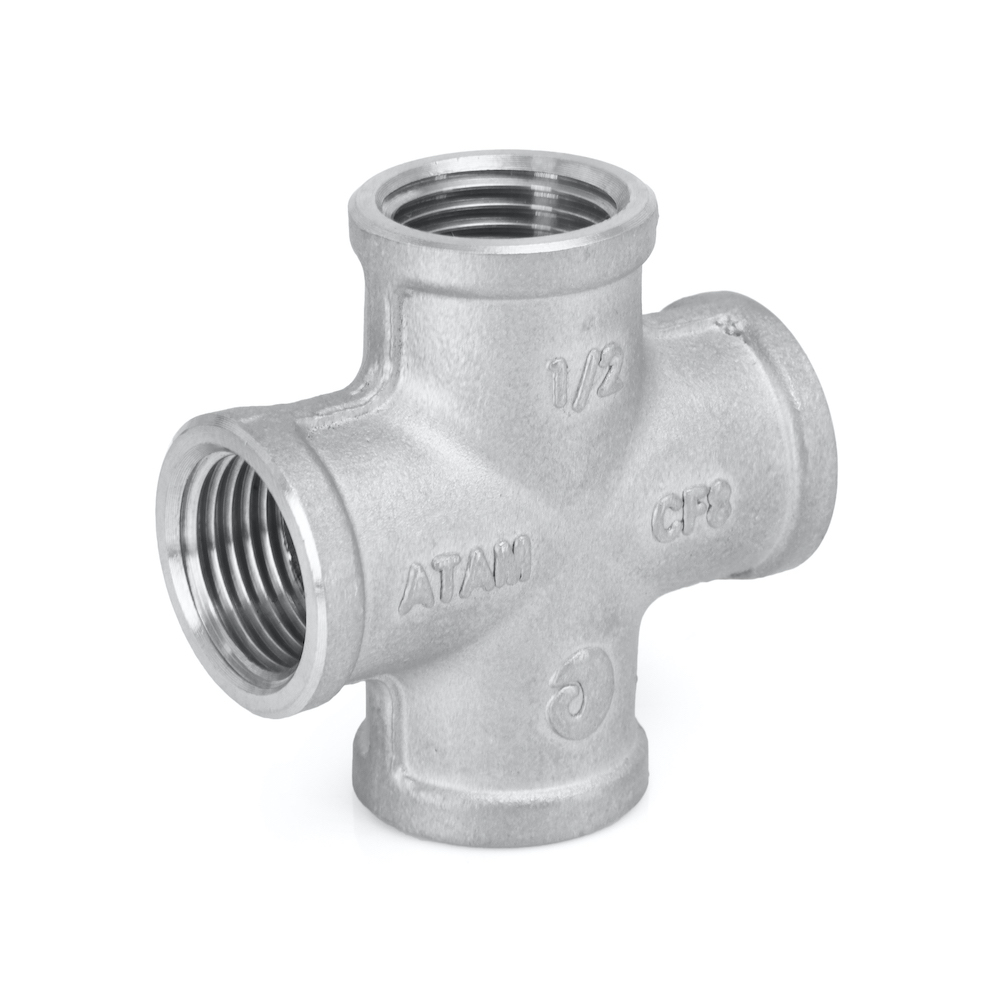

AV-531 Stainless Steel Cross, PN-25

AV-531 | Stainless Steel Cross, PN-25

Features

Threading

BSP / NPT

Grade

CF8 (SS 304) / CF8M (SS 316)

Tolerance

±1.5mm

Pressure Rating

PN-25 (Hyd. 30kg)

Max. Working Pressure

356 Psig

Application Medium

Food Processing

Notes

Also available in CF8M (SS 316)

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry
Material Combination

AV-531 | Stainless Steel Cross, PN-25

Download PDF Product Inquiry

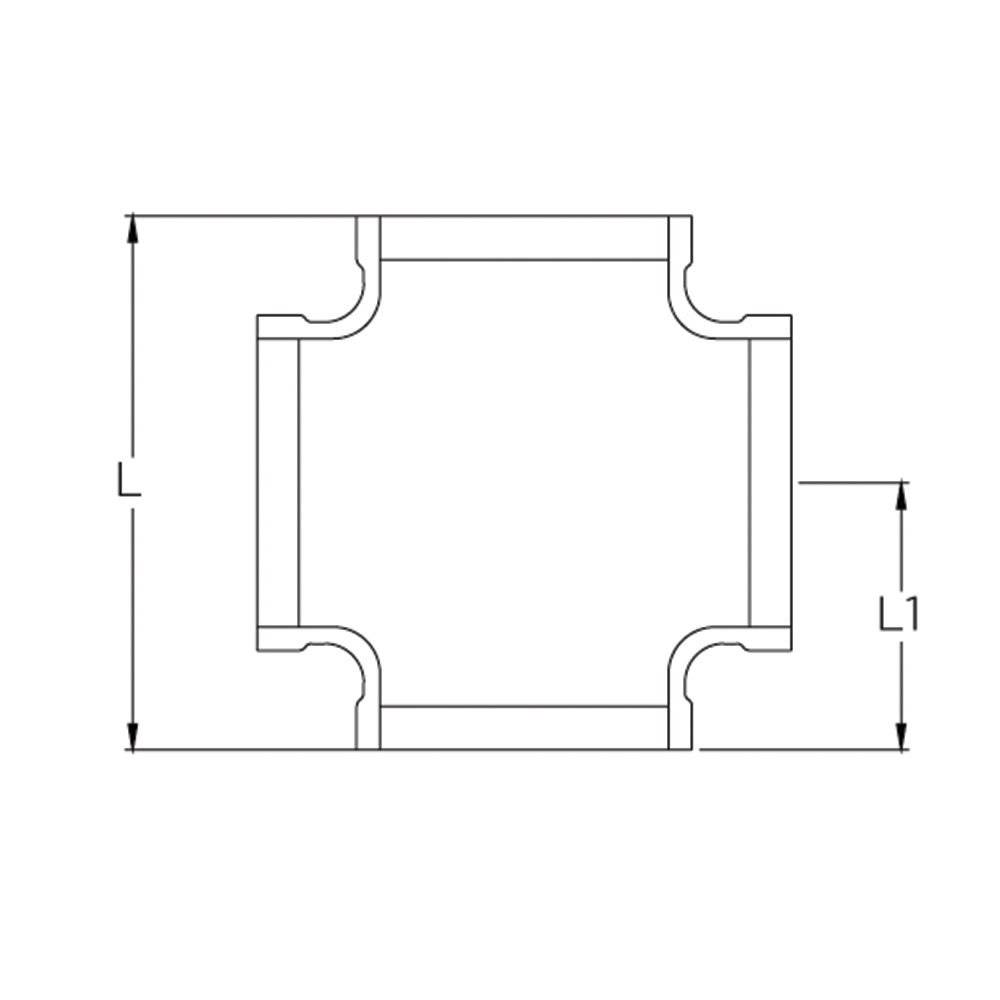

Dimensional Data

Size L L1

1/4” 40 20

3/8” 48 24

1/2” 56 28

3/4” 66 33

1” 80 40

1.1/4” 92 46

1.1/2” 100 50

2” 116 58

2.1/2” 138 69

3” 156 78

4” 192 96

Download PDF Product Inquiry
