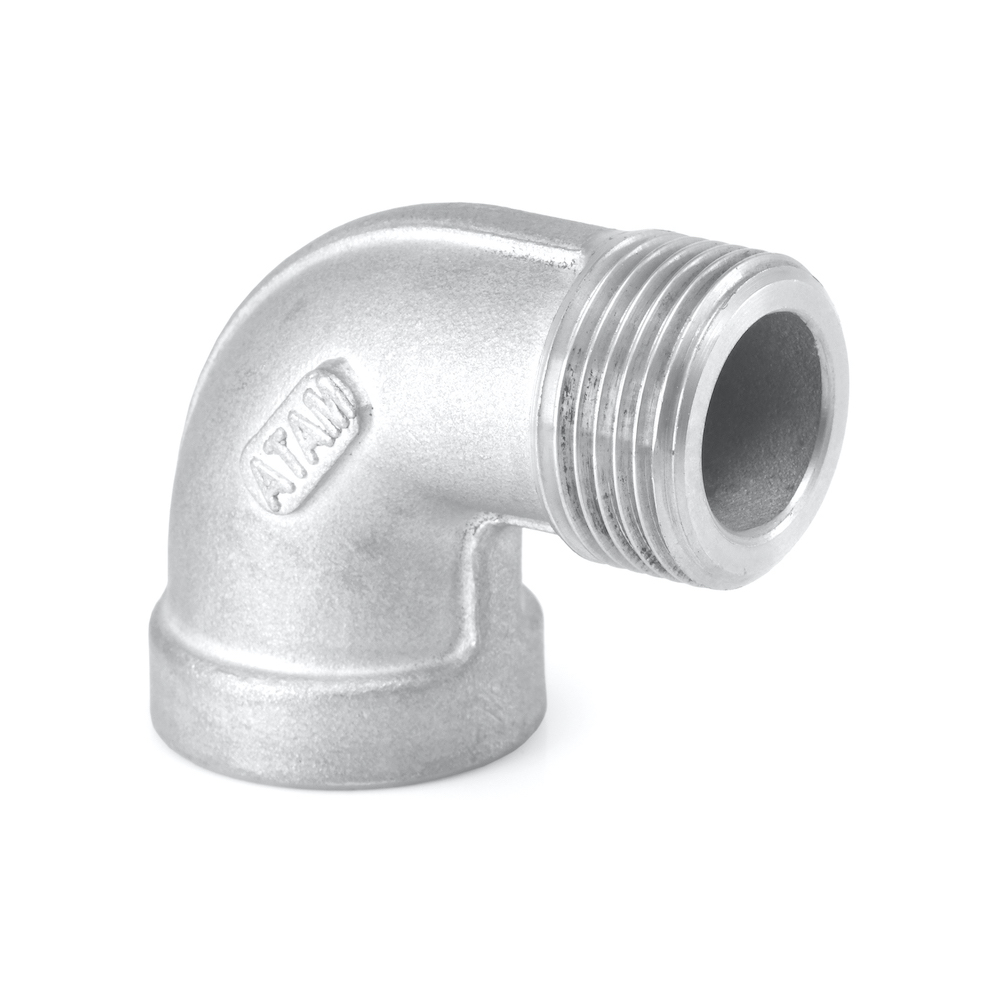

AV-534 Stainless Steel Street Elbow, PN-25

AV-534 | Stainless Steel Street Elbow, PN-25

Features

Threading

BSP / NPT

Grade

CF8 (SS 304) / CF8M (SS 316)

Tolerance

±1.5mm

Pressure Rating

PN-25 (Hyd. 30kg)

Max. Working Pressure

356 Psig

Application Medium

Food Processing

Notes

Also available in CF8M (SS 316)

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry
Material Combination

AV-534 | Stainless Steel Street Elbow, PN-25

Download PDF Product Inquiry

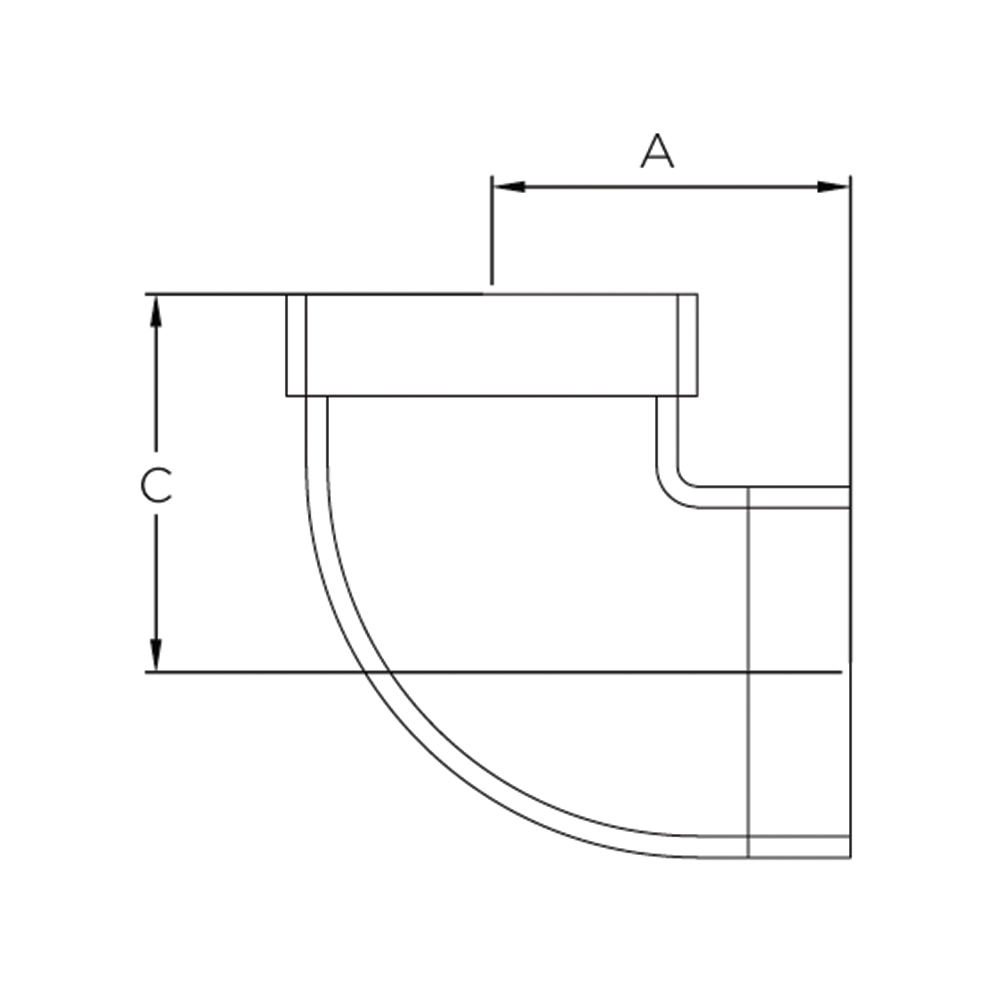

Dimensional Data

Size A C

1/4” 19 27

3/8” 23 29

1/2” 27 35

3/4” 32 40

1” 38 46

1.1/4” 45 54

1.1/2” 48 57

2” 57 70

2.1/2” 83 72

3” 94 78

4” 115 97

Download PDF Product Inquiry
