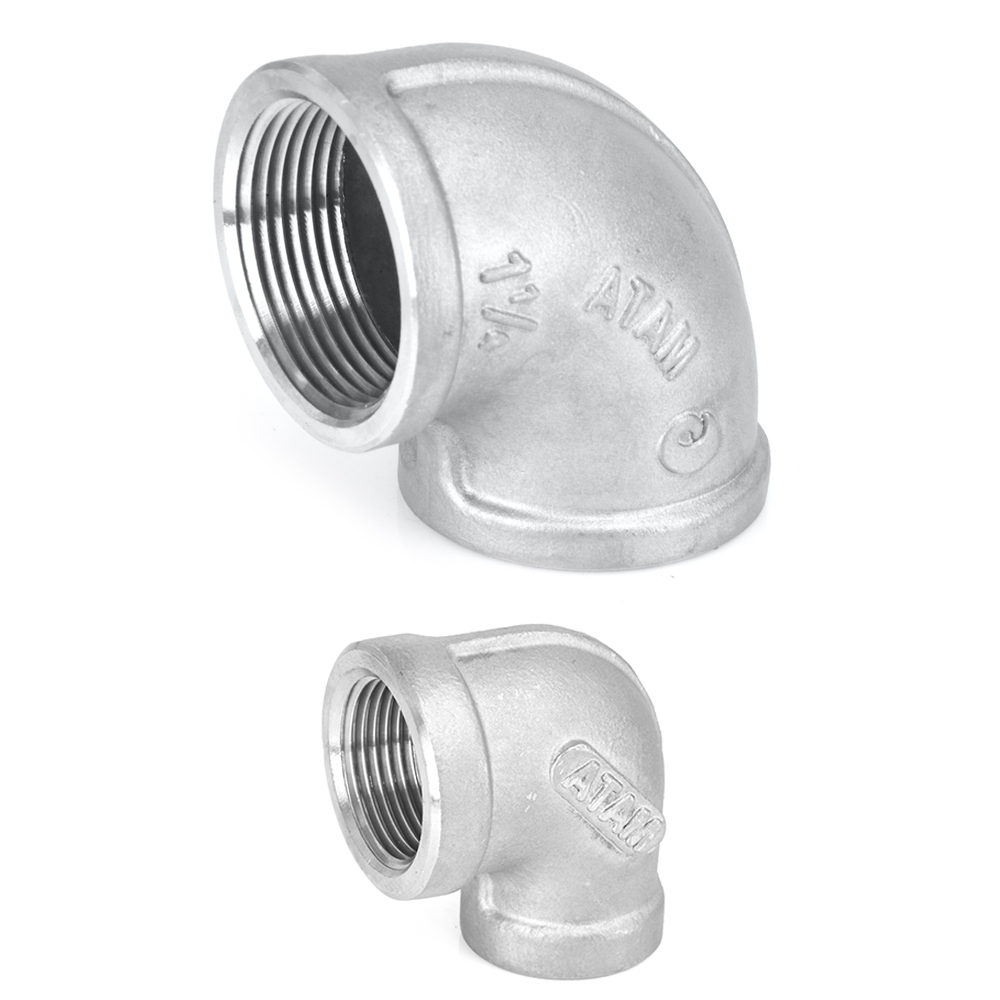

AV-537 Stainless Steel 90˚ Elbow (AV-537A Reducing Elbow), PN-25

AV-537 | Stainless Steel 90˚ Elbow (AV-537A Reducing Elbow), PN-25

Features

Threading

BSP / NPT

Grade

CF8 (SS 304) / CF8M (SS 316)

Tolerance

±1.5mm

Pressure Rating

PN-25 (Hyd. 30kg)

Max. Working Pressure

356 Psig

Application Medium

Food Processing

Notes

Also available in CF8M (SS 316)

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry
Material Combination

AV-537 | Stainless Steel 90˚ Elbow (AV-537A Reducing Elbow), PN-25

Download PDF Product Inquiry

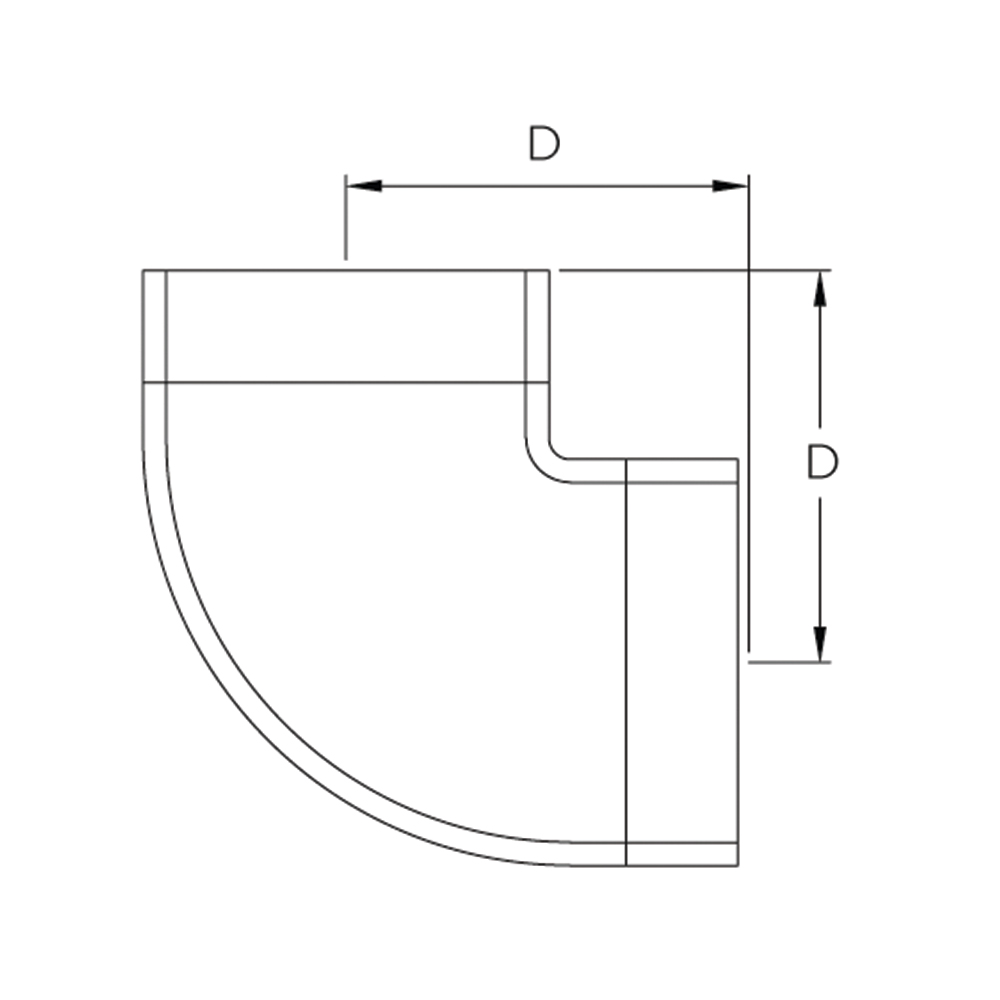

Dimensional Data

Size D

1/4” 20

3/8” 23

1/2” 27.5

3/4” 29.5

1” 35

1.1/4” 37

1.1/2” 45

2” 53.5

2.1/2” 69

3” 78

4” 96

Download PDF Product Inquiry
