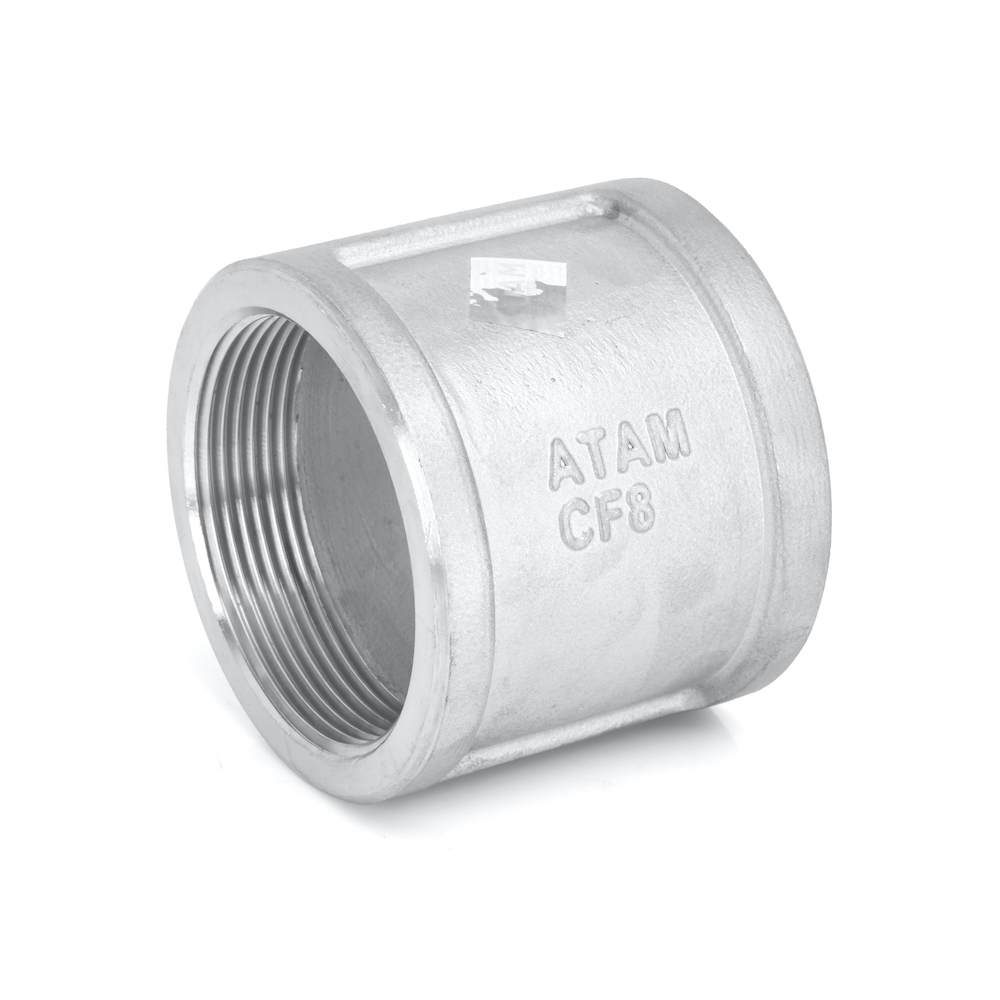

AV-539 Stainless Steel Socket, PN-25

AV-539 | Stainless Steel Socket, PN-25

Features

Threading

BSP / NPT

Grade

CF8 (SS 304) / CF8M (SS 316)

Tolerance

±1.5mm

Pressure Rating

PN-25 (Hyd. 30kg)

Max. Working Pressure

356 Psig

Application Medium

Food Processing

Notes

Also available in CF8M (SS 316)

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry
Material Combination

AV-539 | Stainless Steel Socket, PN-25

Download PDF Product Inquiry

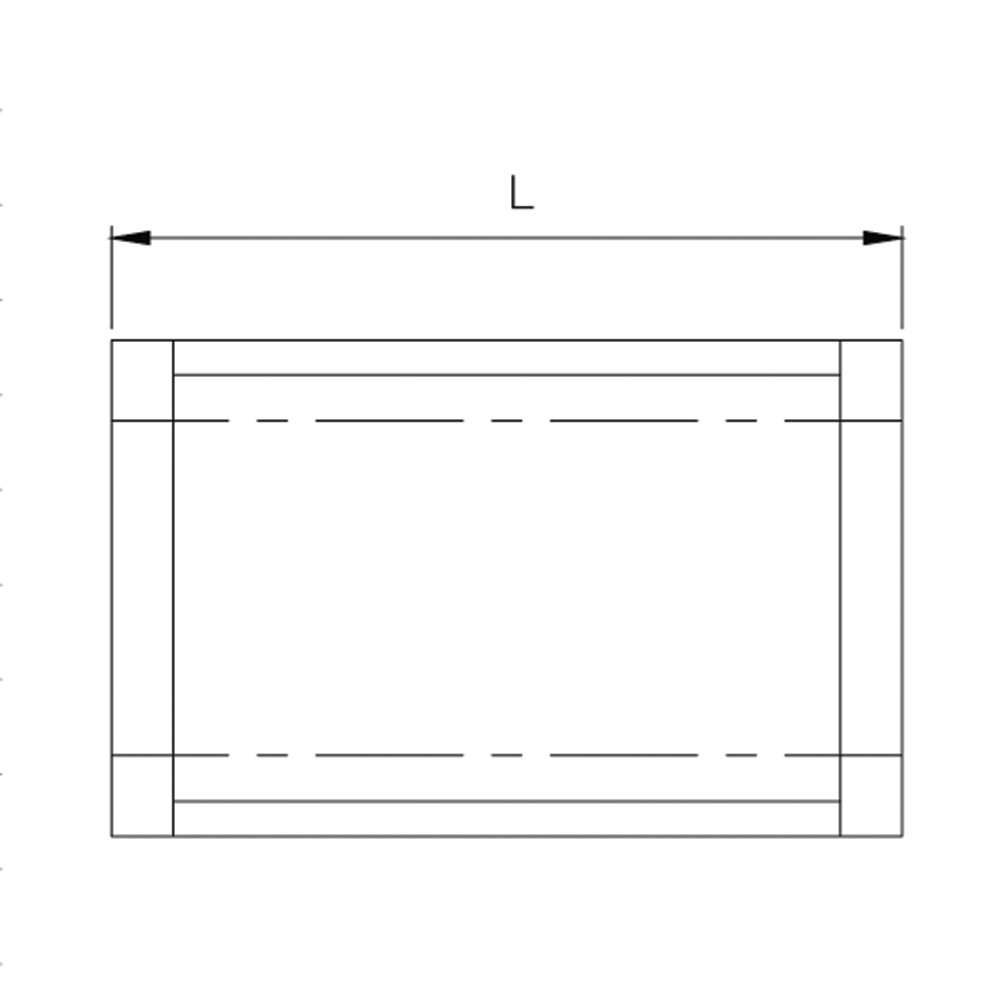

Dimensional Data

Size D

1/4” 24

3/8” 26

1/2” 37

3/4” 37

1” 45

1.1/4” 50

1.1/2” 50

2” 58

2.1/2” 65

3” 71

4” 83

Download PDF Product Inquiry
