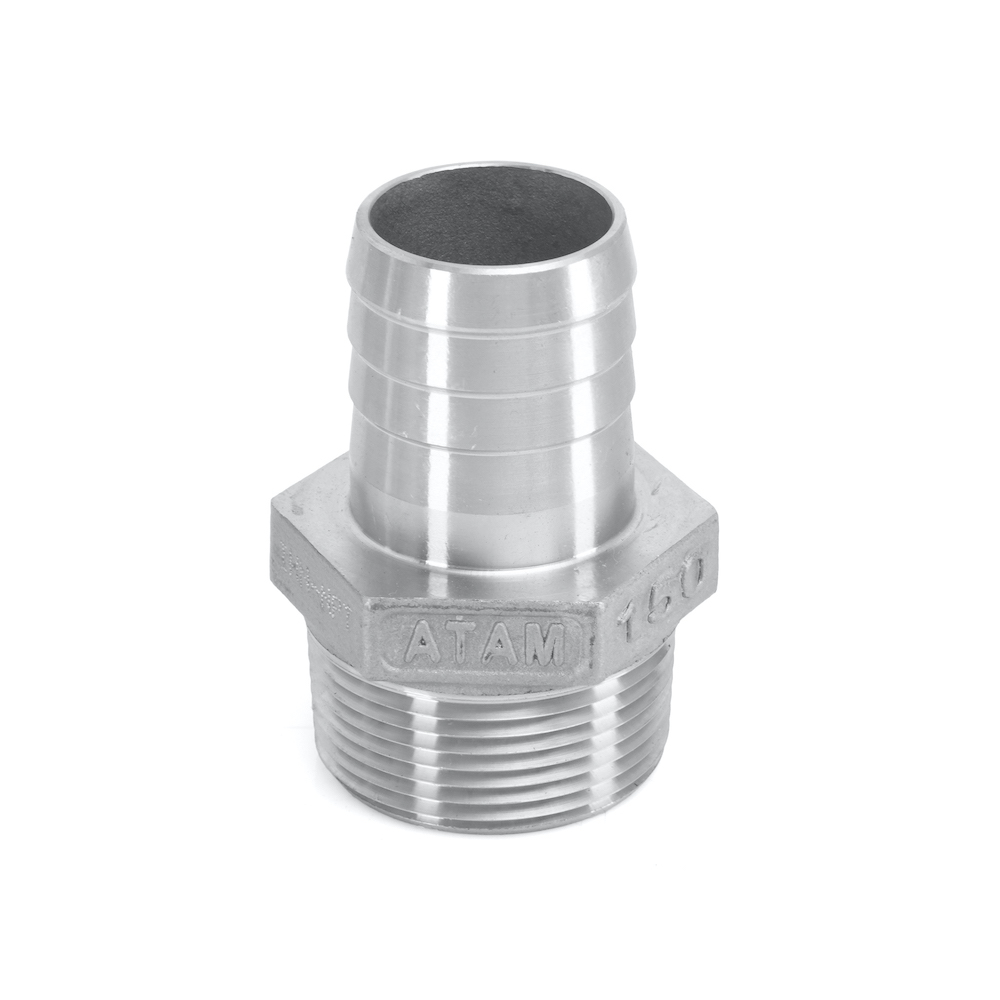

AV-542 Stainless Steel Hose Nipple, PN-25IBR Approved


  • AV-542 | Stainless Steel Hose Nipple, PN-25
    Features

    Threading

    BSP / NPT

    Grade

    CF8 (SS 304) / CF8M (SS 316)

    Tolerance

    ±1.5mm

    Pressure Rating

    PN-25 (Hyd. 30kg)

    Max. Working Pressure

    356 Psig

    Application Medium

    Food Processing

    Notes

    Also available in CF8M (SS 316)


    Suitability

    Water

    Steam

    Gas

    Oil

    Air


  • Material Combination
  • Dimensional Data
    Size A L
    1/4” 4 43
    3/8” 6 49
    1/2” 7 56
    3/4” 15 60
    1” 20 69
    1-1/4” 26 70
    1-1/2” 34 80
    2” 44 88
    2.1/2” 56 136
    3” 70 147
    4” 90 158
  • AV-542 | Stainless Steel Hose Nipple, PN-25
    Product Inquiry
Features

Threading

BSP / NPT

Grade

CF8 (SS 304) / CF8M (SS 316)

Tolerance

±1.5mm

Pressure Rating

PN-25 (Hyd. 30kg)

Max. Working Pressure

356 Psig

Application Medium

Food Processing

Notes

Also available in CF8M (SS 316)

Download PDF

Suitability

Water

Steam

Gas

Oil

Air


Dimensional Data
Size A L
1/4” 4 43
3/8” 6 49
1/2” 7 56
3/4” 15 60
1” 20 69
1-1/4” 26 70
1-1/2” 34 80
2” 44 88
2.1/2” 56 136
3” 70 147
4” 90 158
