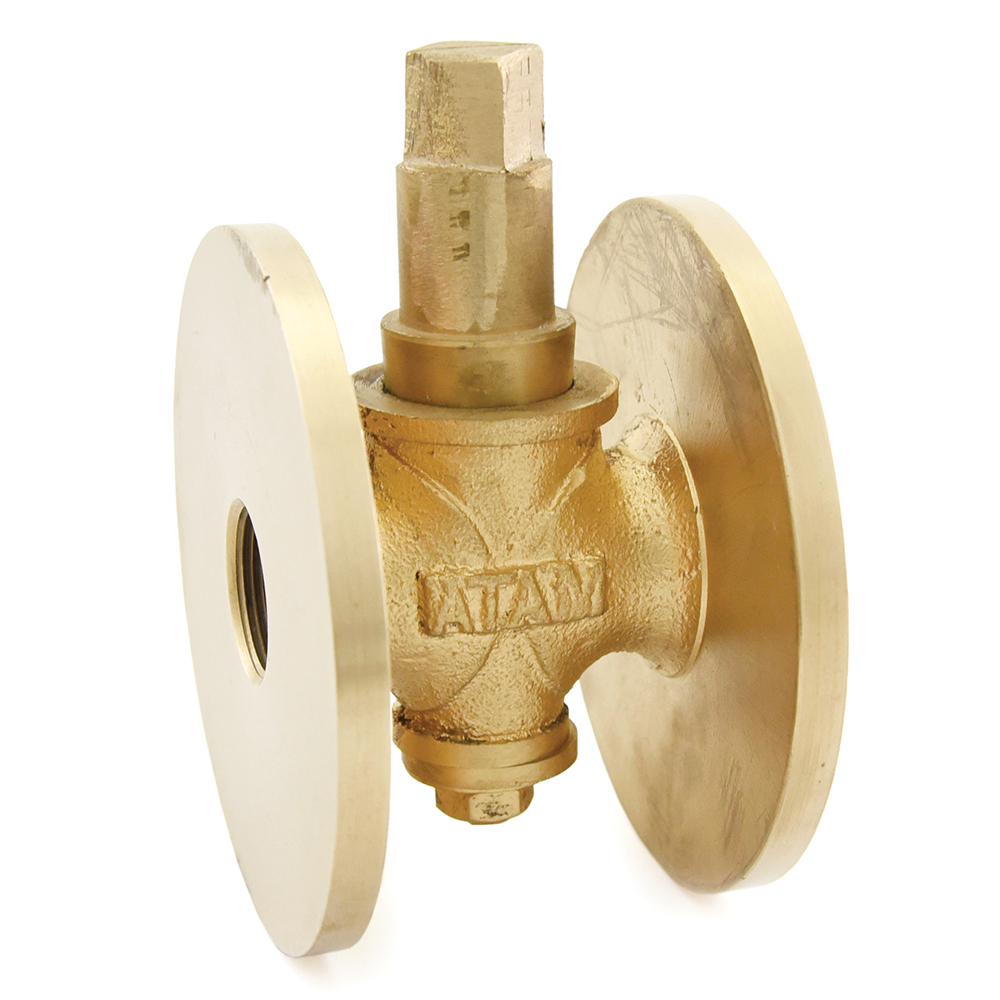

AV-60 Bronze Plug Cock (Main Cock), Flanged Ends

AV-60 | Bronze Plug Cock (Main Cock), Flanged Ends

Features

Type of Pattern

Straight Pattern

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Product Description

Fitted with Taper Plug in a Taper Seated Body

End Details

Flanged Ends to BS-10 Table-D (Undrilled)

Test Pressure

Body: 300 Psig (Hyd.), Seat: 150 Psig (Hyd.)

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	Plug	1	Bronze	BSEN 1982 Gr. CC491K
2	Body	1	Bronze	BSEN 1982 Gr. CC491K
3	Washer	1	Bronze	BSEN 1982 Gr. CC491K
4	Spring Washer	1	Spring Steel	–
5	Nut	1	M.S.	BS 916

Download PDF Product Inquiry

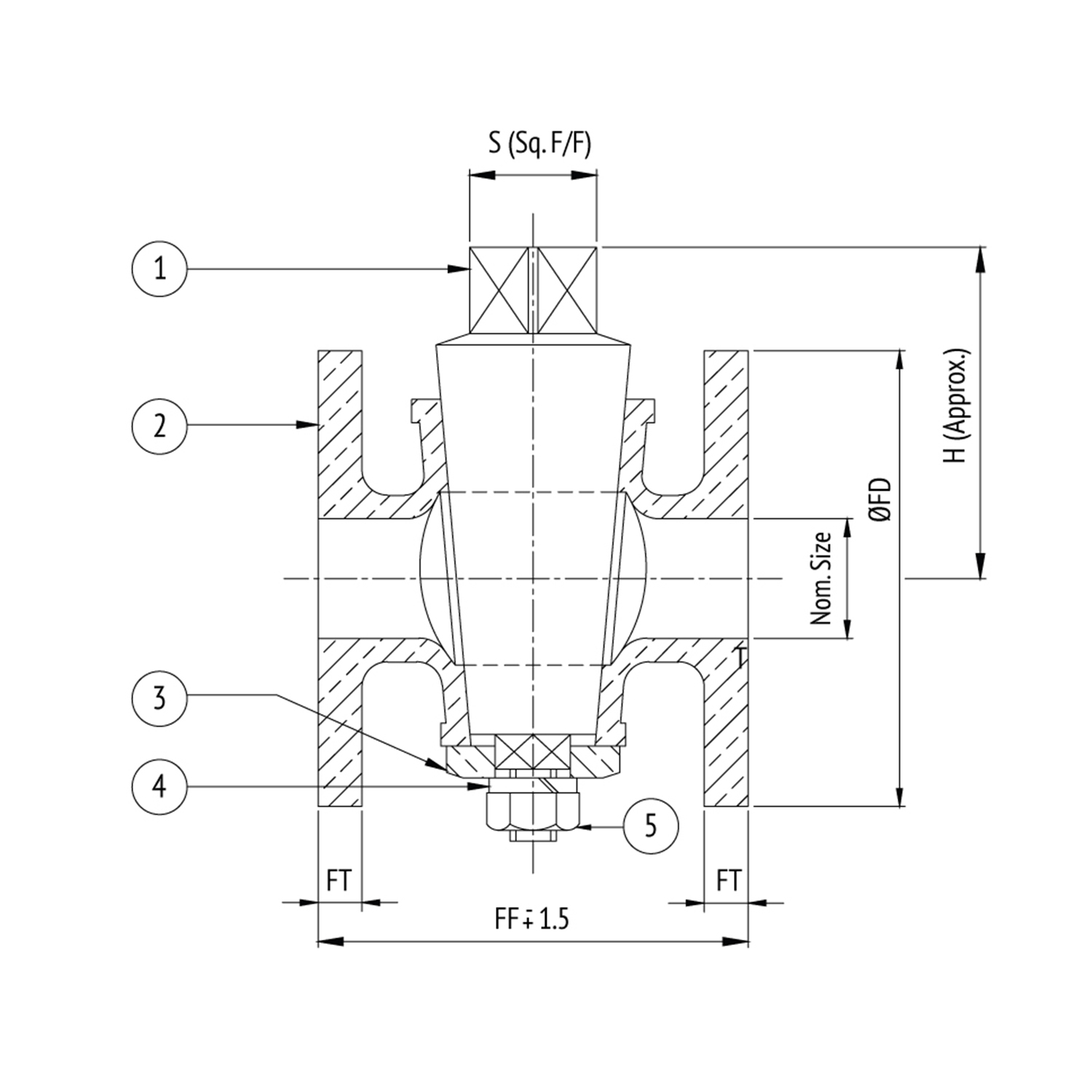

Dimensional Data

Size (mm)	FF	H	S	ØFD	FT
15	58	75	13	95.3	6.4
20	60	75	17	101.6	6.4
25	77	84	18	114.3	7.9
32	84	92	23	120.7	7.9
40	97	95	25	133.4	9.5
50	108	105	27	152.4	9.5
65	163	155	32	165.1	11.1
80	189	165	33	184.2	12.7
100	259	184	48	215.9	15.9

Download PDF Product Inquiry
