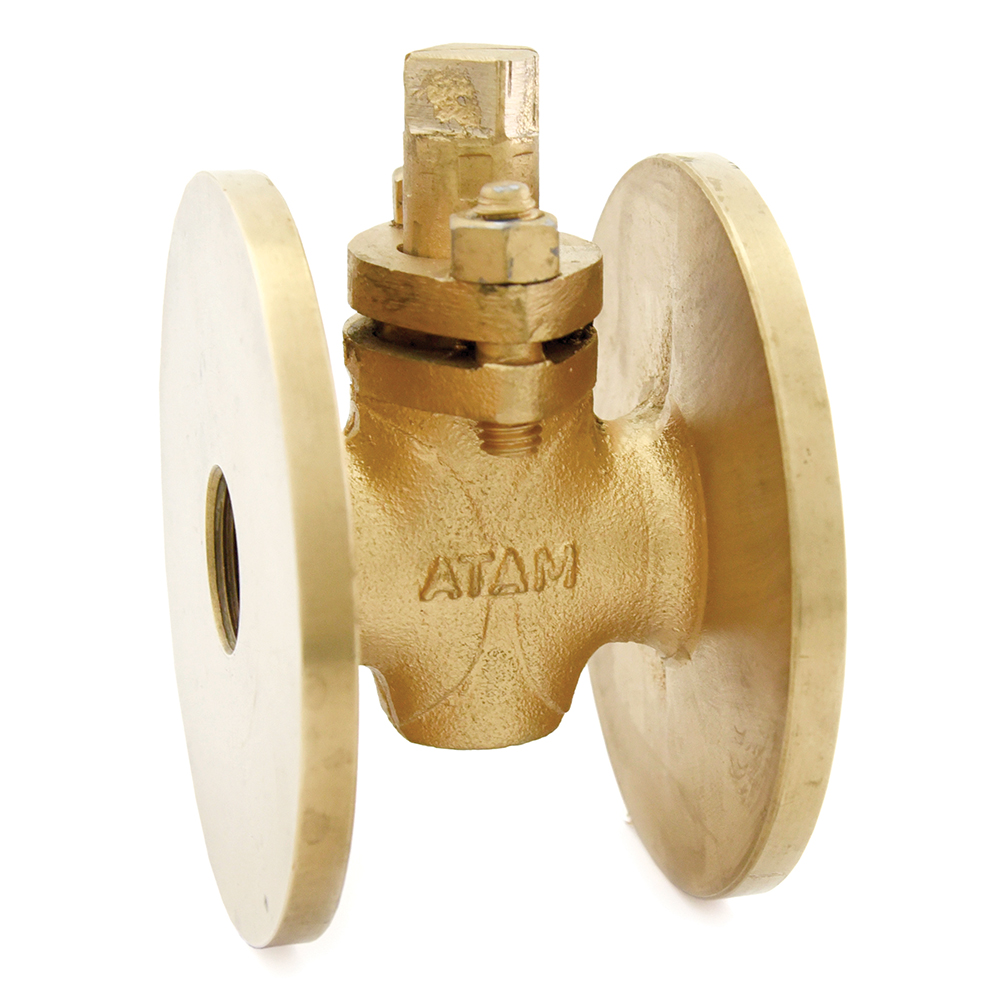

AV-63 Bronze Gland Cock, Flanged Ends

AV-63 | Bronze Gland Cock, Flanged Ends

Features

Type of Pattern

Straight Pattern

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Product Description

Gland Packed Fitted with Taper Plug in a Taper Seated Body

End Details

Flanged Ends to BS-10 Table-D (Undrilled)

Test Pressure

Body: 300 Psig (Hyd.), Seat: 150 Psig (Hyd.)

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

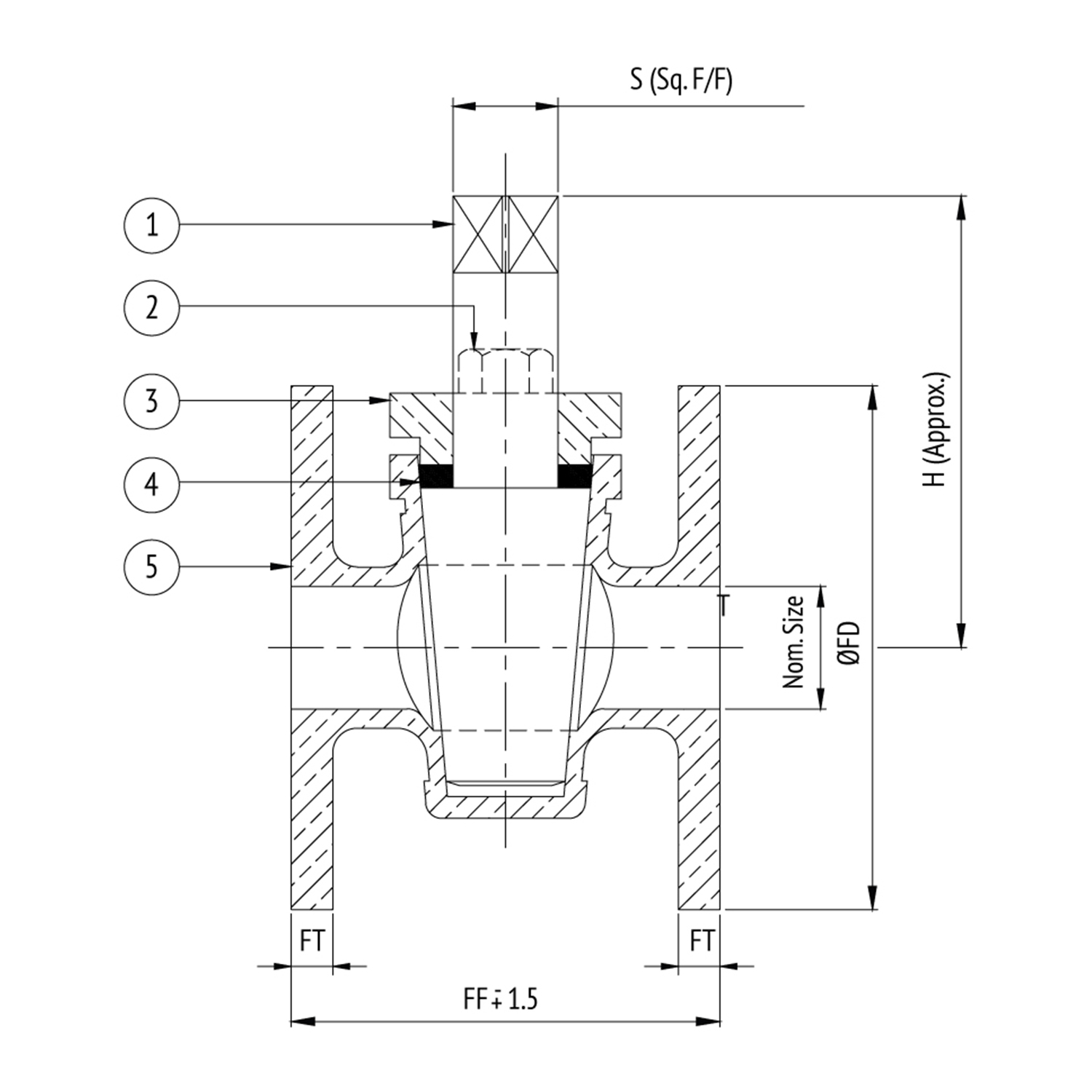

Material Combination

S.No	Description	No.	Material	Specifications
1	Plug	1	Bronze	BSEN 1982 Gr. CC491K
2	Bolt	2	M.S.	BS 916
3	Gland	1	Bronze	BSEN 1982 Gr. CC491K
4	Gland Packing	–	Asbestos	–
5	Body	1	Bronze	BSEN 1982 Gr. CC491K

Download PDF Product Inquiry

Dimensional Data

Size (mm)	FF	H	S	ØFD	FT
15	54	64	11	95.3	6.4
20	60	67	13.5	101.6	6.4
25	78	74	17	114.3	7.9
32	83	76	17	120.7	7.9
40	98	110	20	133.4	9.5
50	110	110	24	152.4	9.5
65	144	150	32	165.1	11.1
80	168	152	32	184.2	12.7
100	251	155	36	215.9	15.9

Download PDF Product Inquiry
